Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- Place of Origin: Zhejiang, China
- Brand Name: Brolight
- Model Number: BIM-66 Series
- Power: Electronic
- Usage: Universal Testing Machine
- Color: Blue
Raman spectra miniature fiber optic spectrometer

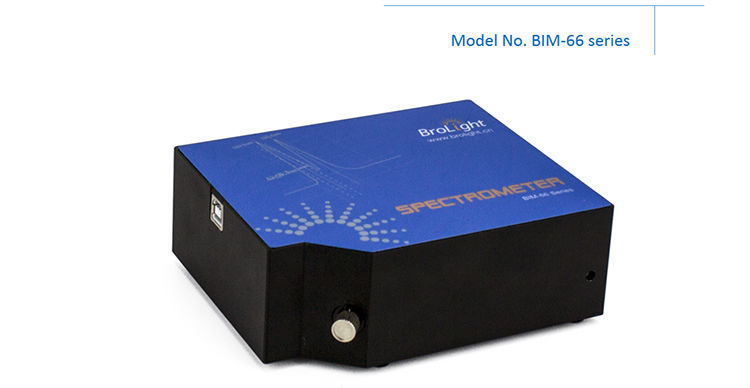

High Resolution Fiber Spectrometer
|
|
FEATURE |
|
|
DETAILS |
|

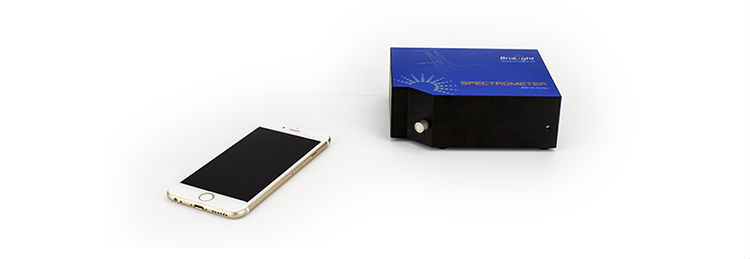

Small, handy and compact
|
|
BIM-66 series fiber spectrometer has a miniature structure. The size is as small as a name card. It’s easy to carry and integrated into spectrum analysis apparatus. . |
|
Optimized optical structure CT crossover asymmetric optical structure eliminates the coma of intermediate wavelength. Suppression of stray light in the surface plane, so that eliminate the effect of the secondary diffraction. External trigger function The spectrometer has four trigger modes: normal, software, synchronization and external hardware. Extensive specification selection You can choose different specification for spectrometer. Wavelength range is 200-1100nm, and the resolution is 0.1nm-0.3nm. In order to meet different needs, we provide a wavelength response range of 300nm-1100nm and 200nm-1000nm detector for users to choose.
Extensible BSV spectrometer software BSV software is compatible with all Brolight spectrometers. Now, it’s available for measuring the emission spectrum, absorption spectrum, transmittance and absorbance, etc.. Support to export and import data, and next it will expand to integrate various professional test modules. Currently the software supports WIN8, WIN7 64bit, WIN 7 32 bit, XP operating systems. Professional customized services According to users’ need of spectrometer, we can provide one-stop customized services of optical, mechanical, electrical and software.. Application
. |
|
Typical Experiments And Data |
|

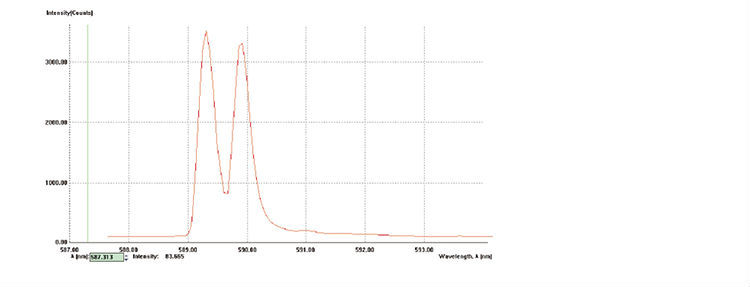

Na lamp spectrum |
 |
Specification
|
Specification |
BIM-6601 |
BIM-6602 |
|
Dimensions |
137 mm×110 mm×46mm |
137 mm×110 mm×46mm |
|
Weight |
0.7 Kg |
0.7 Kg |
|
Detector spectral response |
300 nm-1100 nm |
200 nm-1000 nm |
|
Optical resolution |
≤0.1 nm |
≤0.1 nm |
|
Fiber optic connector |
SMA905 |
SMA905 |
|
Detector |
TOSHIBA TCD1304 linear CCD |
2048 linear CCD |
|
Pixel |
3648 pixels |
2048 pixels |
|
Size 8 µm×200 µm |
Size 14 µm×200 µm |
|
|
Sigal-to-nosie ratio |
300:1 at full signal |
2000:1 at full signal |
|
A/D resolution |
12 bit |
12 bit |
|
Integration time |
4 ms-10 s |
4 ms-10 s |
|
Power consumption |
250 mA, 5 VDC |
250 mA, 5 VDC |
|
Operating temperature |
15℃ -30℃(25℃) |
15℃ -30℃(25℃) |
|
Computer interface |
USB2.0 |
USB2.0 |
|
Operating system |
Win XP, Win7 & Win8 |
Win XP, Win7 & Win8 |
Order information
|
Order No. |
Grating (l/mm) |
Wavelength range (nm) |
Slit (µm) |
Resolution (nm) |
|
BIM-6601-01 |
1200 |
400-620 |
25 |
≤0.3 |
|
BIM-6602-01 |
1200 |
200-420 |
25 |
≤0.3 |
Note: Please talk to us if you have a special requirement in Grating, Wavelength range and Resolution.
Optional Part
|
Description |
Model # |
Qty. |
|
Plastic optical fiber |
BIM-6101 |
1 |
|
Quartz optical fiber |
BIM-6102 |
1 |
|
Tungsten light source |
BIM-6201 |
1 |
