Description
- Brand Name: laserlands
- Certification: NONE
- Origin: CN(Origin)
- Style: DMX Stage Light
- Model Number: QL80S4HD-Y
- Occasion: Home Entertainment

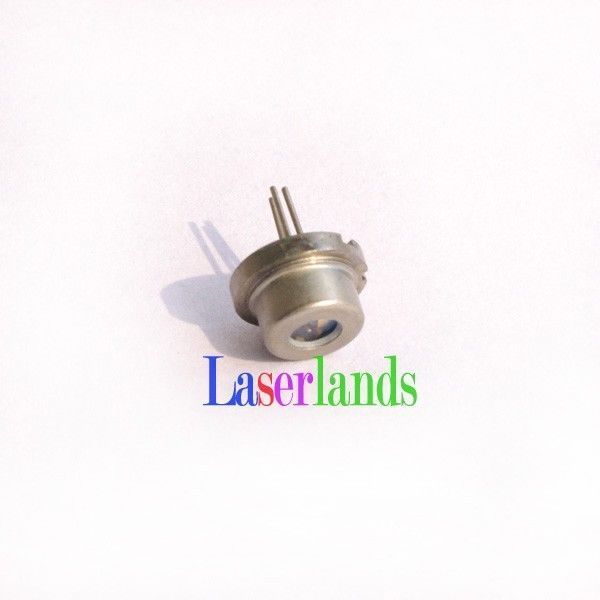

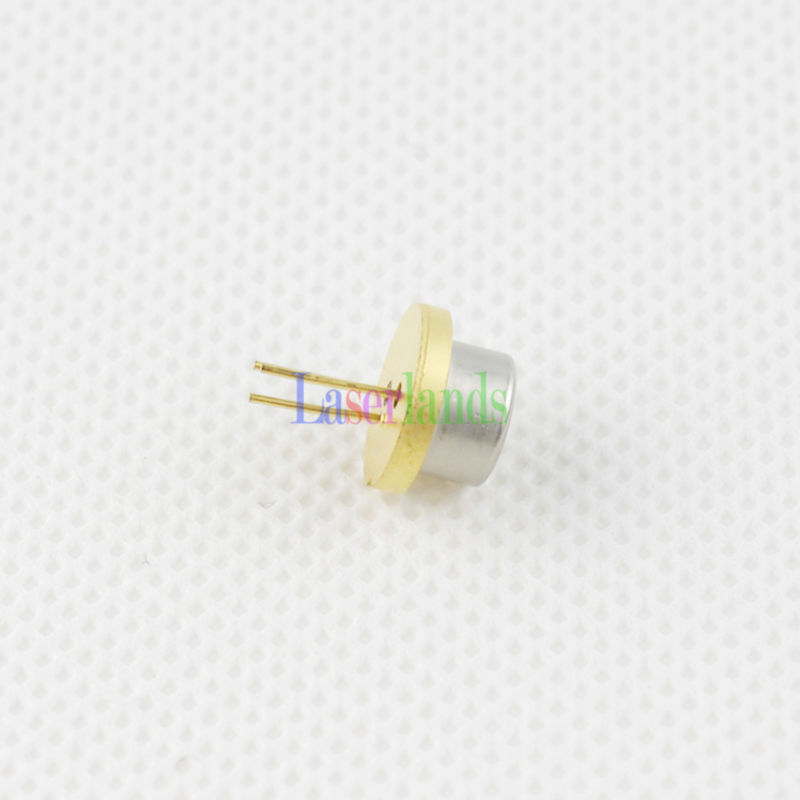

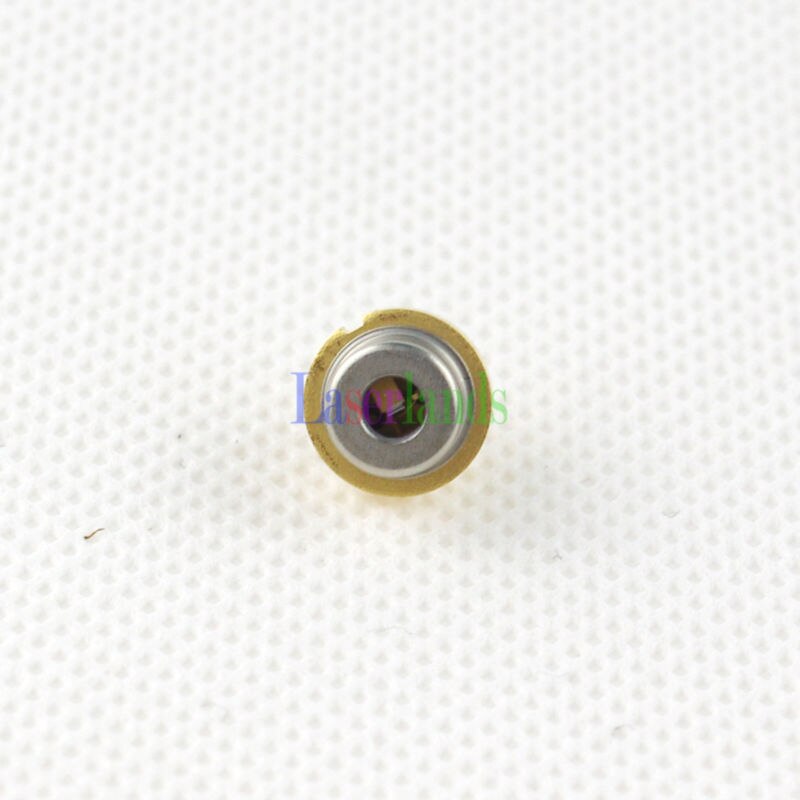

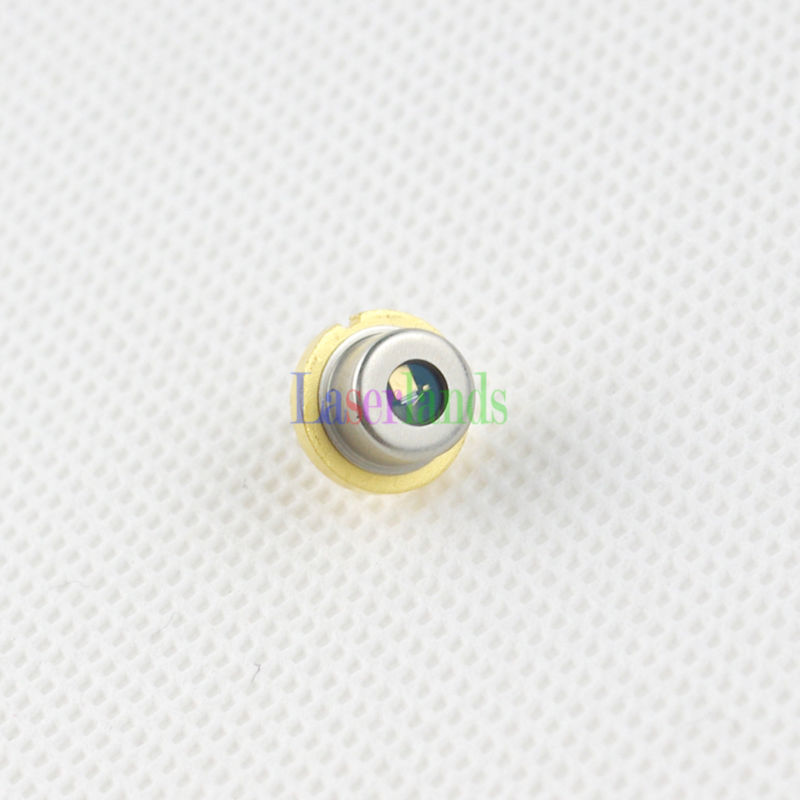

QL80S4HD-Y 9.0mm 500mW 808nm/810nm IR Infrared Laser Diode LD TO5
QL80S4HD-Y is a MOCVD grown 808nm band laser diode with quantum well structure.
It’s an attractive light source, with a typical light output power of 500mW for optoelectronic devices such as solid state laser pumping and medical use.
APPLICATION
-Solid state laser excitation
-Medical use
-Material processes
-Measurement
FEATURES
Optical Output Power: 500mW CW
Package Type : TO-5 (φ9mm)
Polarization : TM (Electric Field Perpendicular to the Junction Plane)
This Infrared laser diode is an industrial electronic component and used for as Industrial test, Lab, DIY. NO HANDHELD LASE USE
