PUVCOD-900 UVCOD spectrometer online cod monitor water bod analyzer

$13,148.96

SKU: 3530197018651 Category:

Description

PUVCOD-900 UVCOD spectrometer online cod monitor water bod analyzer (Controller is for choice)

Product Description
Model No. PUVCOD-900 UVCOD spectrometer online cod monitor water bod analyzer
Measuring Range 0~2000mg/l COD  (2mm,optical pathop)
Accuracy ±5%
Measuring interval Min one minute
Pressure Range ≤0.4Mpa
Sensor material SUS316L
Power Supply AC:85-500VAC (50/60HZ)  DC:9~36VDC
Output 3-way 4-20mA
Relay Setting three-way relays,programmed response parameter and response value.
Communication protocol MODBUS  RS485
Storage temperature -15-65℃
Measuring temperature 0-45℃

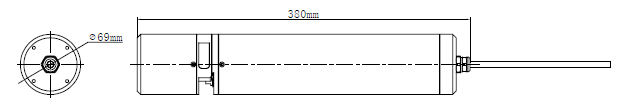

Dimensions Sensor:Diam 69mm*Length 380mm
Weight Sensor:3.2KG;
Protective rate Sensor:IP68/NEMA6P;
Cable length Standard:10m,the maximum may be extended to 100m
Suggested Backup spare parts PGP-UVCOD :  UVCOD Sensor Scraper

 Features:

1. Direct-immersion probe measurement without taking sampling and pretreatment;
2. No chemical reagents, no secondary pollution;
3. Short response time for continuous measurement

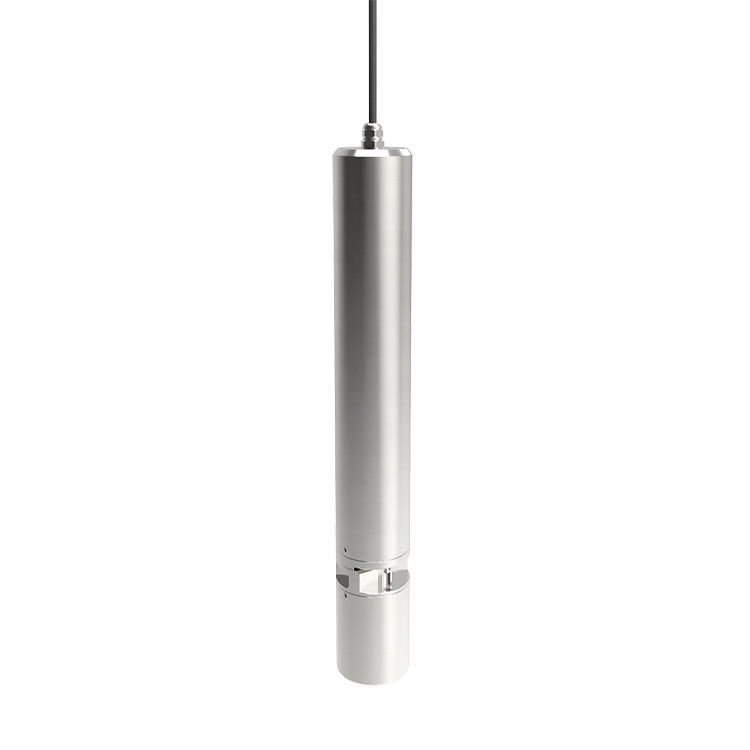

 PUVCOD-900 COD sensor1

Applications:
1. Continuous monitoring of organic load during sewage treatment, online real-time monitoring of influent and effluent water quality of waste water treatment plants;
2.Continuous on-line monitoring of surface water, industrial effluent, and fishery waste water.





WHY CHOOSE US:

Probest is a professional ISO9001 certificated manufacturer with many patents specializing in researching, developing, producing of water analysis instruments (water test sensors probe meter, ph sensor, do sensor, orp sensor, EC sensor, MLSS sensor, turbidity sensor, dissolved oxygen sensor, suspended solids sensor,sludge concentration sensors) , including portable water analyzer, multi-parameter water quality analyzer, data acquisition and transmission terminal. The product can be applied to the fields of water quality monitoring of drinking water, waste water, surface water, aquaculture water, industrial process water, etc.
Probest is a reliable company including 30+ researcher, focusing on the development of sensor technology to make water analysis faster, simpler, greener and better.
Quality is our core advantages, providing stable and reliable water quality analysis.



PRODUCT SHOW

.jpg

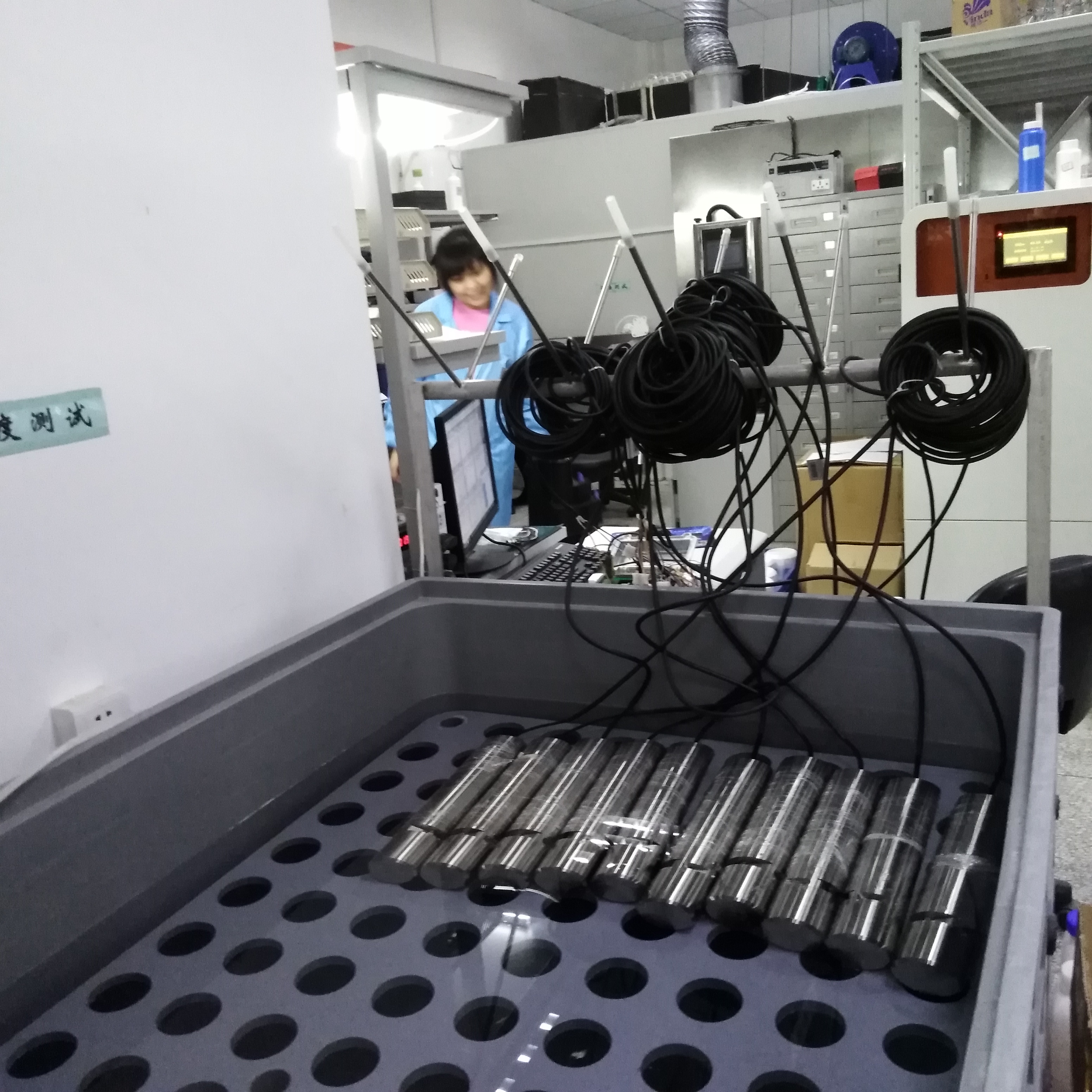

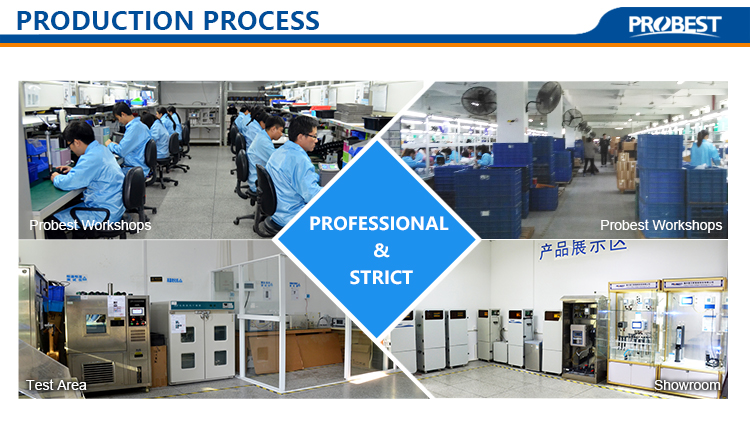

PRODUCTION PROCESS

_06

CERTIFICATE

_07
