Host size: length 69mm* width 30mm* high 30mm



Circuit size: length 47.5mm* width 31.5mm* high 16mm

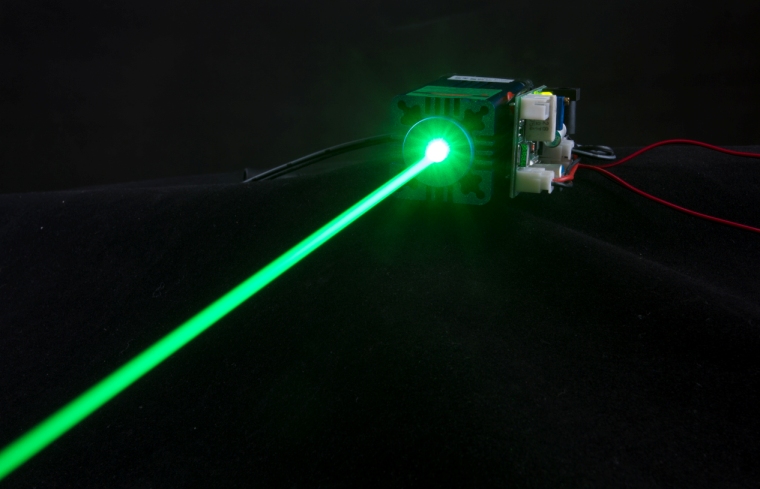

Wavelength: 520 nm



Output power: 100mW (120mW 150mW  1W are avaliable)

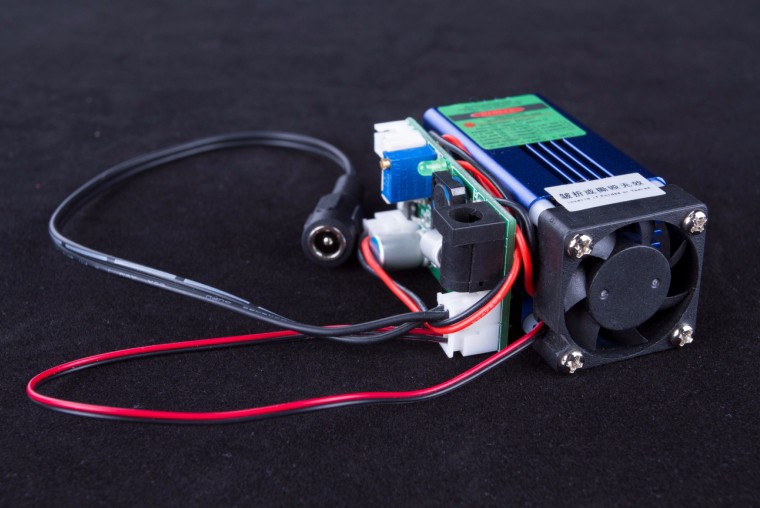

Cooling method: aluminum cooling



Modulation frequency: adjustable



Working features: continuous work



Surface treatment: Blue



Shell material: Aluminum



Circuit control: constant current



Reverse protection: automatic identification of positive and negative pole



Working voltage: DC=12V



Working current: I<1.7A



Preheating time: no



Working temperature: of-10 DEG C 40 C



Storage temperature: -10 ~ 40 C

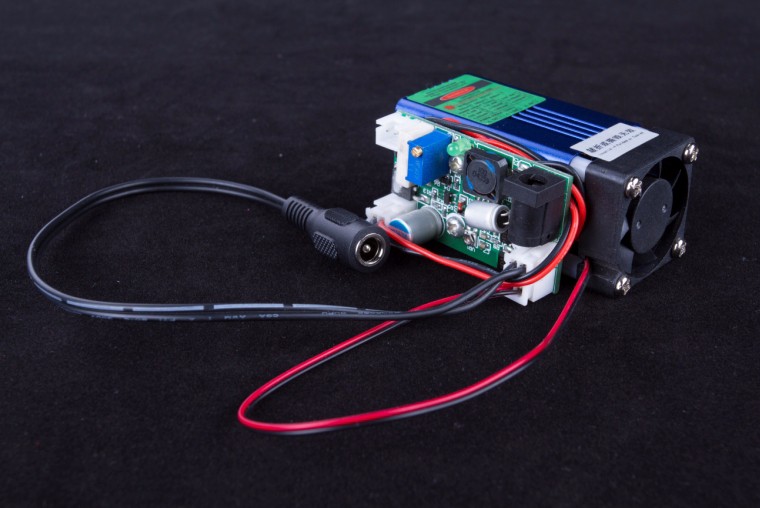

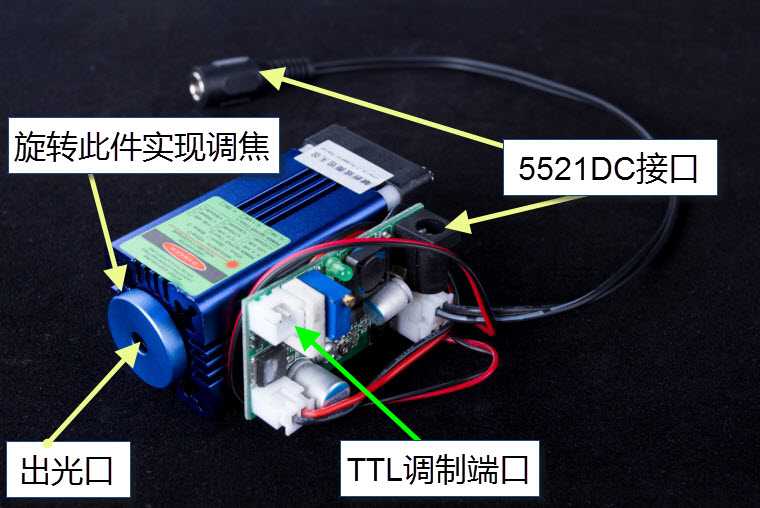

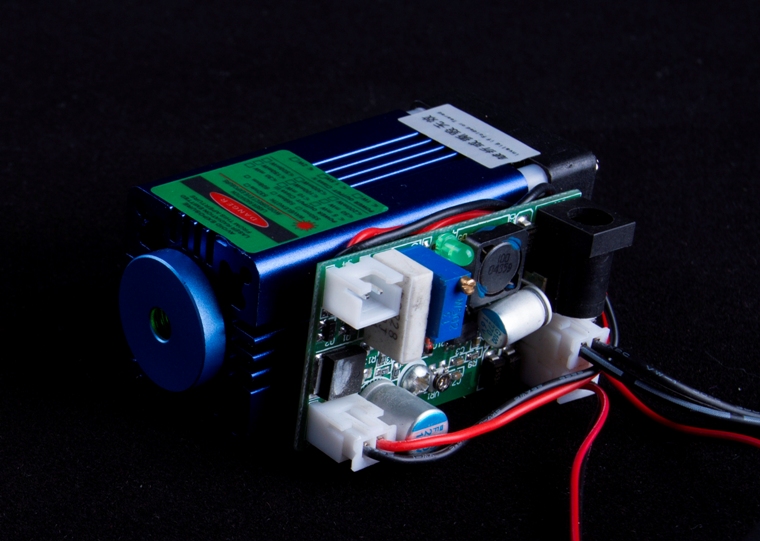

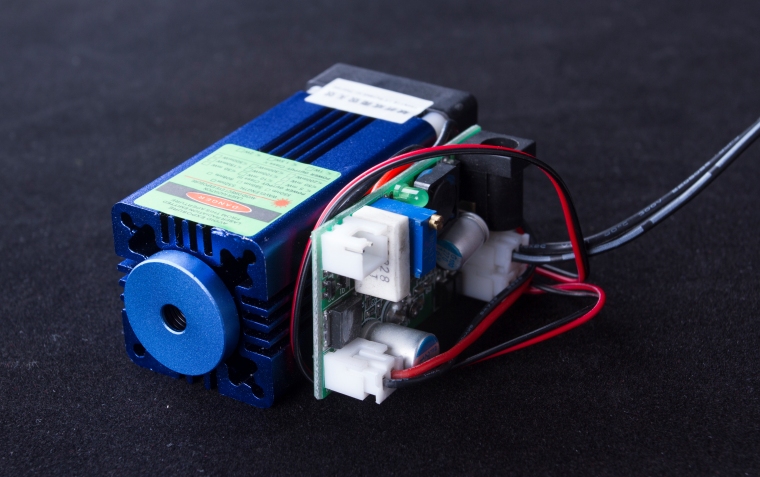

Structure features: laser diode+ lens + cooling heatsink



Note: PCB driver is external.

Remind: the input voltage is 12V, Over 12V will cause the circuit and the module instantaneous damage, if you have any technical problems, please consult first, thank you!
