Pulse type pull rope type displacement sensor WPS-M-P-7000mm pull rope displacement sensor

  • Home
  • Pulse type pull rope type displacement sensor WPS-M-P-7000mm pull rope displacement sensor
Sale!

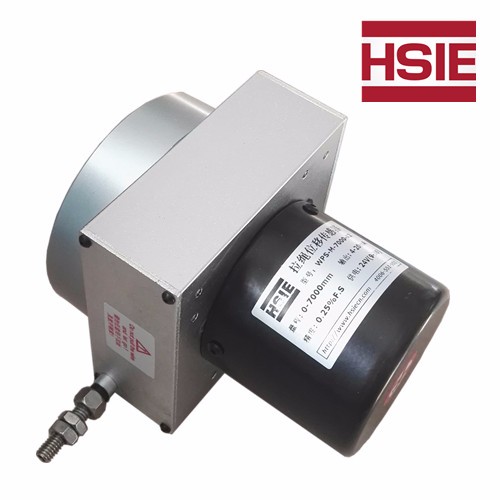

Pulse type pull rope type displacement sensor WPS-M-P-7000mm pull rope displacement sensor

$495.00

888888 in stock

SKU: 32664962488 Category:

Description

  • Origin: CN(Origin)
  • Usage: Other
  • Material: Polymer
  • Type: Vibration Sensor
  • Output: Other
  • Theory: Other
  • Model Number: WPS-M-P-7000mm
  • is_customized: Yes

aeProduct.getSubject()



aeProduct.getSubject()



Product details:
M type frame (medium)
Travel range: 0-7000mm optional
Optional signal:
1) analog signal: resistance type, current type, voltage type
2) digital signal: pulse type
Product form:
(1) resistance type (0-5K or 0-10K)
(2) current type (4-20mA or 20-4mA)
(3) voltage type (0-5/0-10vdc or 5-0/10-0vdc)
4) pulse type (incremental / absolute)
Linear precision: (Universal) + 0.15%FS: (precision) + 0.08%FS
Repeat accuracy: 0.01%FS~0.005%FS
Supply voltage: 24VDC (pulse type power supply voltage 5-30V)
Temperature range: -40-120
The instantaneous acceleration of traction speed: less than 2 m / s.
Absolute speed: less than 1 m / s.
Anti vibration coefficient: 50g
Elastic coefficient: 400g-500g
Effective life: 5 million times
Protection level: IP67

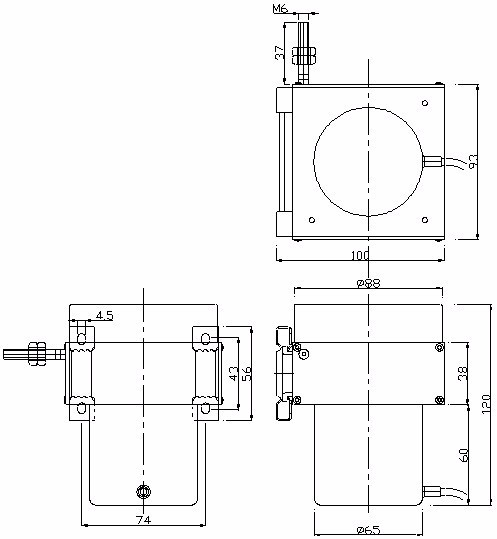

Traction screw installation: M6
Fixed screw: M4mm
Installation method: support installation
