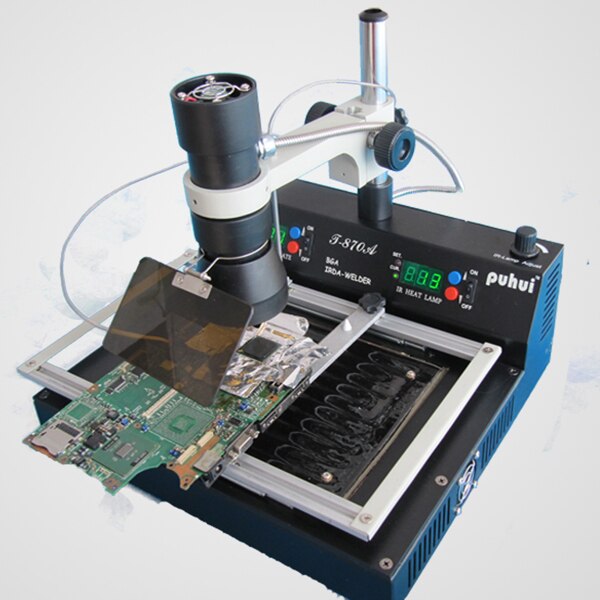

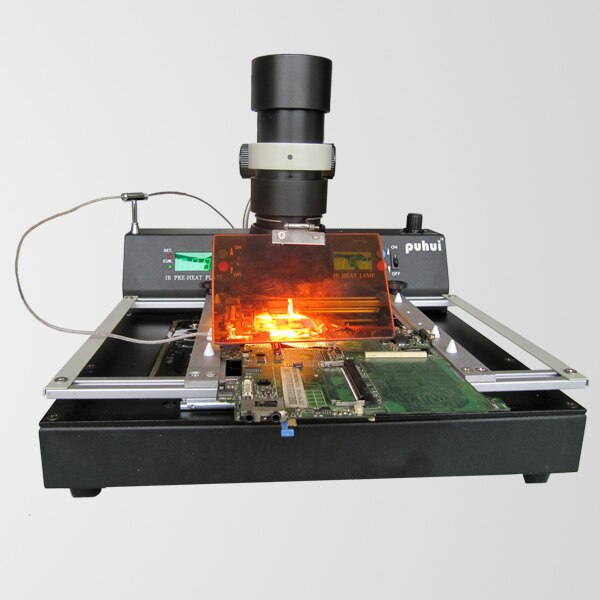

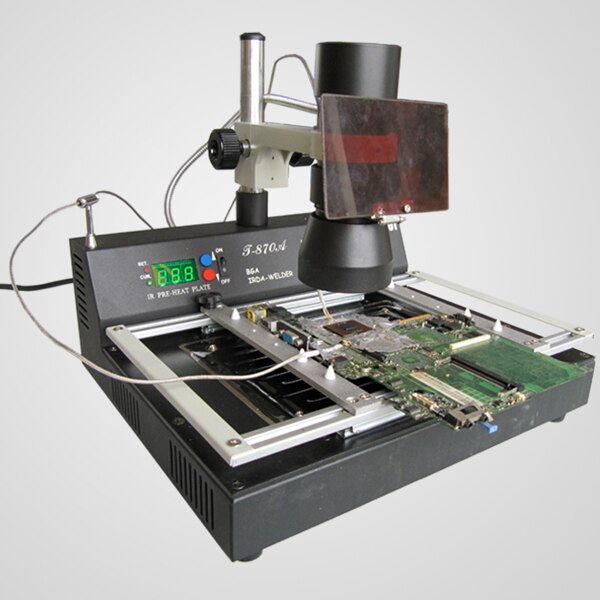

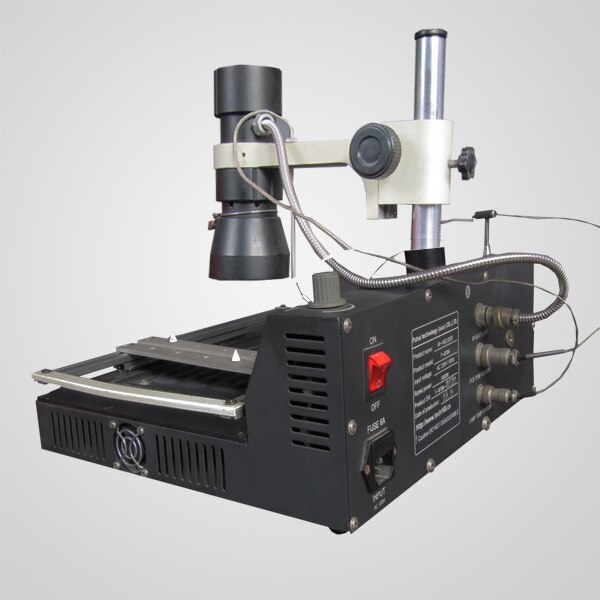

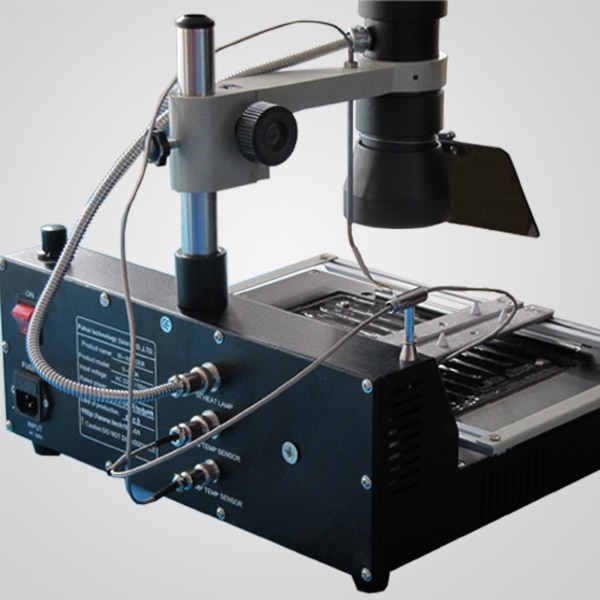

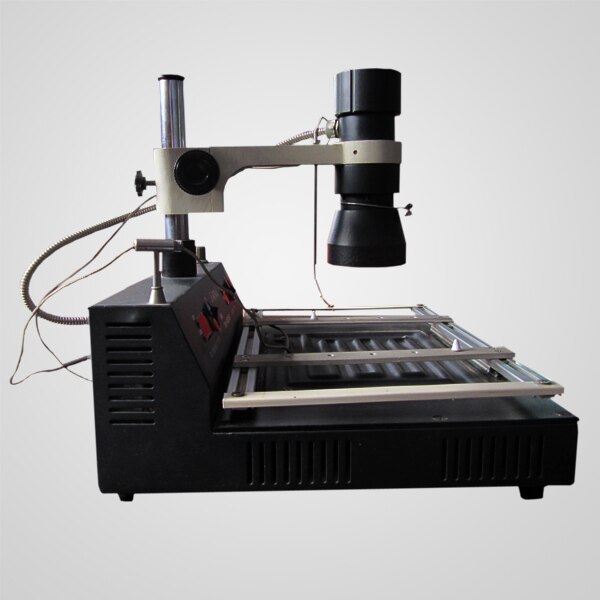

PUHUI T-870A BGA IRDA Welder T870A Infrared Soldering Reflow Oven T 870A IR Rework Station

$359.35

SKU: 2251832445035738 Category:

Description

  • Dimensions: 360X240mm
  • Temperature Stability:  /-1C
  • Model Number: T-870A
  • Output Temperature: 60 -350 degrees Celsius
  • Brand Name: puhui
  • Output Power: 1000W
  • Input Voltagle: 110V/220-230V

HTB15hnwKFXXXXXIXpXXq6xXFXXXo

PUHUI T-870A BGA IRDA Welder T870A Infrared Soldering Reflow Oven T 870A IR Rework Station



Fetures:

1. Adopts infrared welding technology with independent exploration.
2. Uses infrared heat, easy to cut through, heat proportion piercing tradition weld machine with sirocco.
3. Easy operation: just need one day training to operate this machine.
4. Don’t need welding tools. This machine can weld all the component of 35 x 35 – 50 x 50 mm.
5. This machine has 800 W heating systems, widely to 240 x 180 mm.

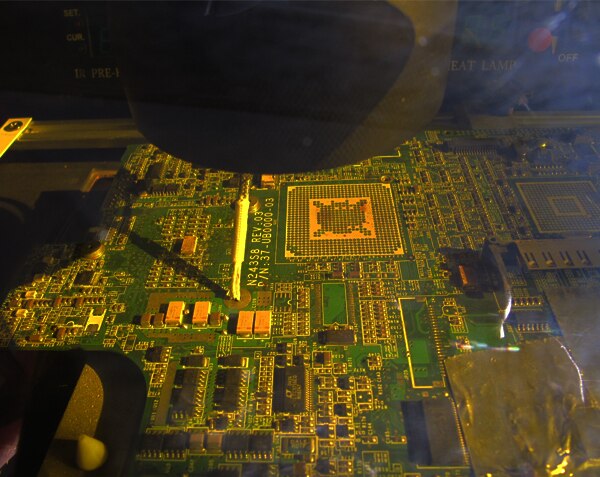

6. Infrared heating don’t have sirocco flow. Don’t impact perimeter small component. Can suitable for the entire component, especially Micro BGA component.
7. Definitely can satisfy the computer, the notebook, the electricity swims and so on the BGA sealing off/repairs to request; Specially especially suits to the computer north and south bridge.

Speciafications:
Model T-870A
Power Supply AC 220 V / 110 V; 50 – 60 Hz
Heat Style infrared radiation
Complete Machine Power
1000 W (220 V); 1200 W (110 V)
Infrared Lamp Body Power 150 W
Preheating Chassis Power 800 W (220 V); 1000 W (110 V)
Chassis Temperature Range 60 °C – 200 °C
Infrared Lamp Body Temperature Range 200 °C – 450 °C
Preheating Chassis Size 240 x 180 mm
Infrared Lamp Body Size 70 x 70 mm
Infrared Lamp Body Heating Size 35 – 50 mm
Working Bench Size 360 x 240 mm
Dimensions 430 x 260 x 420 mm
Gross Weight 11 kg

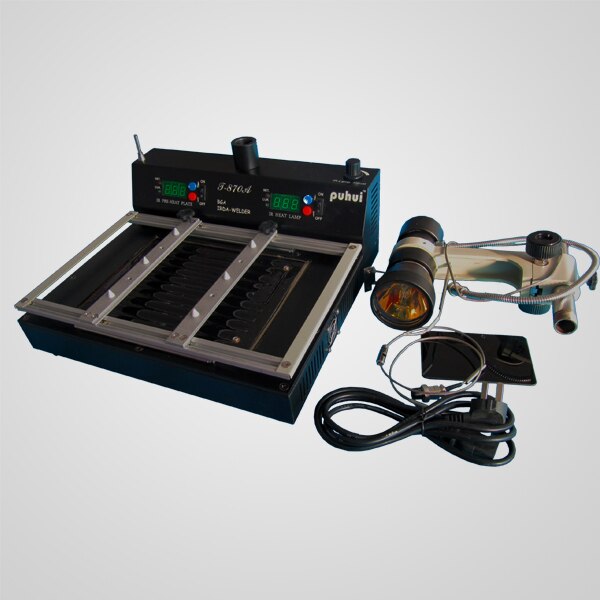

Package List:

1 x Welding Station
1 x Infrared Lamp Body
1 x Temperature Sensor
1 x Board Support of the Circuit
1 x User’s Manual (Compact Disc)

Pay Attention:
110V and 220V model all are available now, please leave a message in the order,tell me which kind of input voltage you need,if not, we will send 220V model to you as default.







T-870A 1T-870A 2T-870A 4T-870A 5T-870A 6T-870A 7T-870A 8T-870A 9
