Prominent Energy Dispersive X-Ray Fluorescence Gold Spectrometer/ Xrf Analyzer

$10,580.70

SKU: 3532216018651 Category:

Description

Product Description

 Two Years Warranty!!!CE , FCC , ROHS Certification

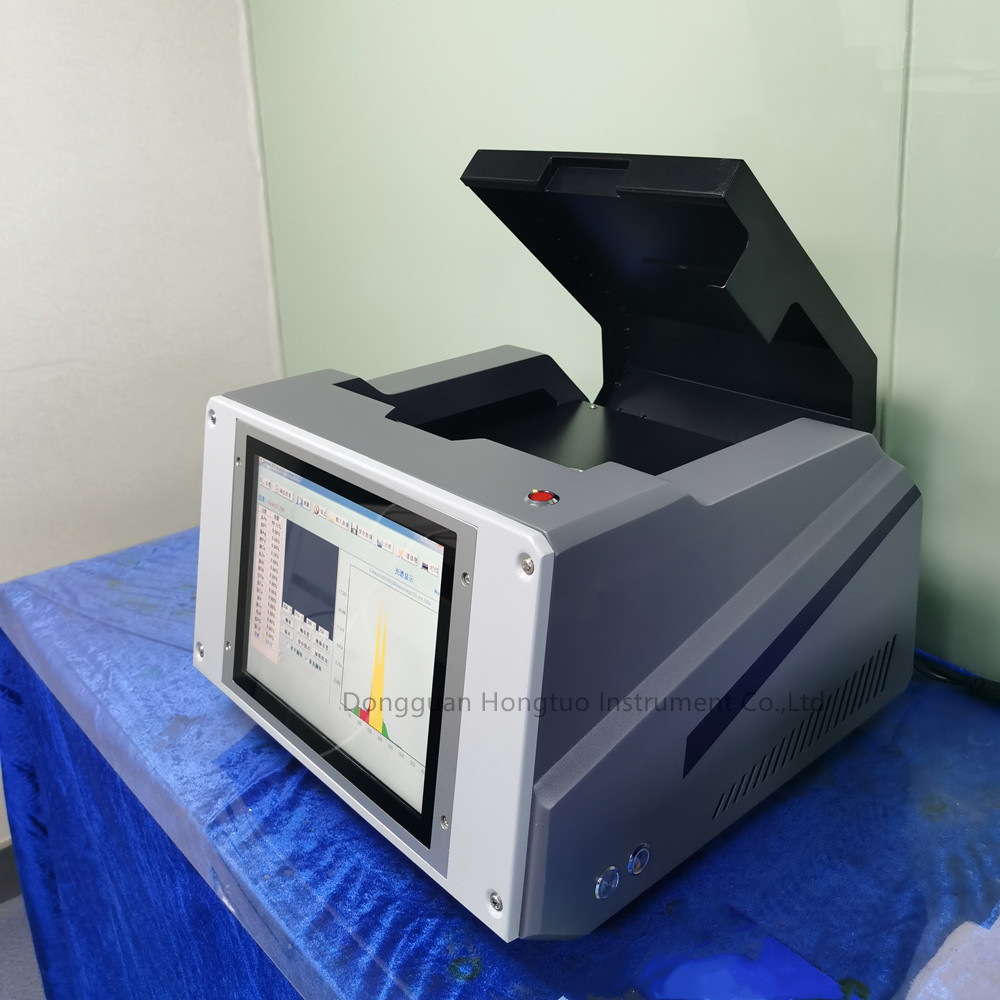

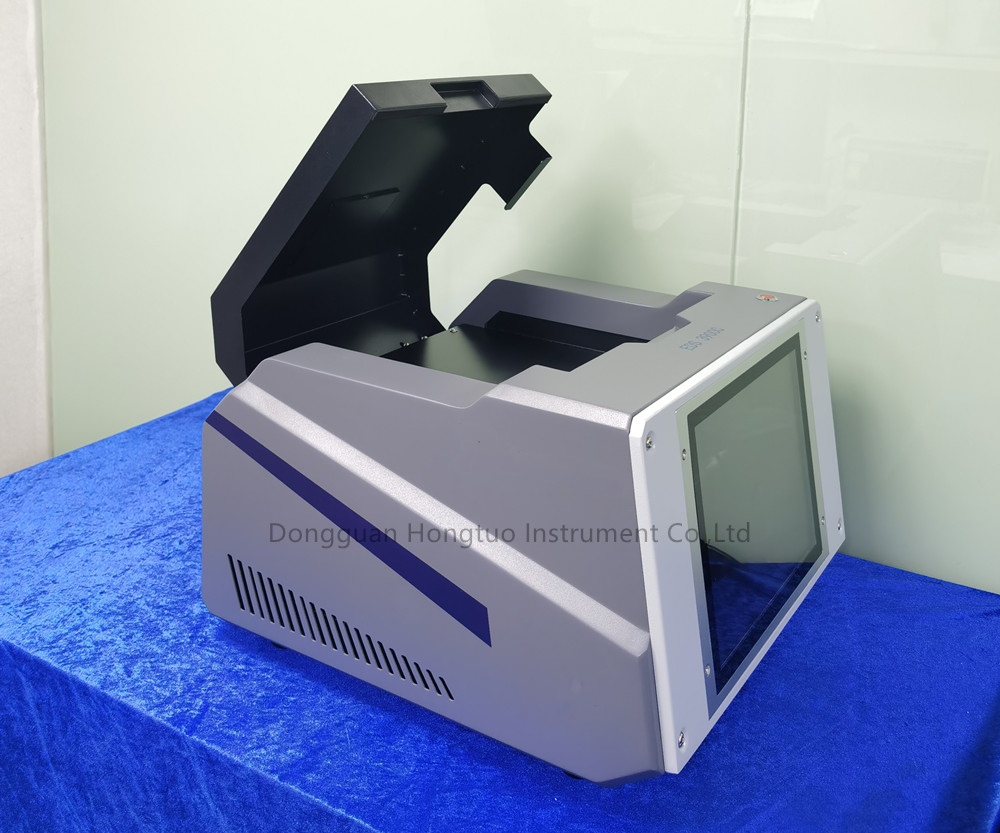

Prominent Energy Dispersive X-Ray Fluorescence Gold Spectrometer/ Xrf Analyzer DX-800M



Application:

pawnbroking,jewelry industry,banking industry,jewelry testing center,mining industry,precious metal recycling,precious metal materials researching laboratory.,etc.

jewellery application.jpg

Advantages and Characteristics

(1)Integrated an inbuilt computer with high industrial motherboard and multi- point hand touch, you don’t need to prepare other computers, it can bring you super smooth experience feelings

(2)Three core components inside the instrument are all imported, so it determines that the instrument can accurately distinguish different gold samples especially 99.9% gold and 99.99% gold

(3)The instruments possess own unique mode of “one-key test”, it is China first and same as Europe’s top spectrometers. No matter any unknown metal material, the operators don’t need to choose test templates and software intelligently matches the best way to measure and calculate. They are capable of fast, precise and non-destructive metal testing, making them suitable for use by jewelry retailers, jewelry manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions

(4)Super long two years free warranty, confidence comes from pure European spectrometer production technology

(5)The instruments have an innovative function that can help customers identify gold-plated samples

(6)The users can see sample test position accurately by camera and cabin lighting system, and it can improve the testing confidence of users

(7)Equipped with a variety of optical collimator, breakthrough solved test problems of tiny metal samples (such as spun gold and gold thread samples)

(8)We can download and upload test data from network, and it is easy to view and share test results

(9)Temperature drift rate of all the parts inside instrument is controlled within one over one million, ensuring the strong stability and high precision of instrument. Testing results can show 4 digits after the decimal point, beyond all domestic spectral type precious metals analyzer

(10)Ultrahigh resolution, Super clear camera, Super convenient operation, Super fast detection speed,Perfect human interface





Specification:



Brand

DahoMeter

Model

DX-800

DX-800M

DX-2800

DX-2800M

Computer Built In

No

Yes

Yes

Yes

Detector Type

Proportional Counter tube

Si-pin (USA)

SSD(USA)

Multichannel Analyzer

Digital multichannel

DahoMeter-DMCP

Sample Chamber Size

300 *300 *100 (mm)

280 *280 *90 (mm)

380 * 380 * 60 (mm)

Test Time

10sec ~ 100sec

5sec ~ 30sec

Measuring Element

 Au Ag Pt Pd Cu Ni Zn Rh Cd Ru Fe Co Ir W Os Pb (16 elements )
Au, Ag, Pt, Pd, Cu, Mo, Mn ,Ga,Co ,Ir(Ir≥5%)

72 elements from sodium (Na) touranium (U) between all the elements

Analysis Range

0.01% to 99.99%

1ppm to 99.99%

Accuracy

0.05% ~ 0.1%
0.1% (Au≥96%)

0.03% (A≥96%)

0.01% (Au≥96%)

Sample Form

Solid, powder, liquid

Tube Voltage

5KV ~ 50KV

High Voltage Power Supply

0 ~ 50KV

Camera

HD camera

Filters

Selectable customized switches

Analysis Software

Qualitative and quantitative analysis software

External Dimensions

450 * 400 * 290 (mm)

410 * 390 * 280 (mm)

480 * 480 * 390 (mm)

480 * 480 * 390 (mm)

Weight

33Kg

30Kg

38Kg

38Kg

Instruments Environmental Requirements

Ambient Temperature

-5 ° C ~ 40 ° C (Suggested that in air conditioning room)

Relative Humidity

15% ~ 90%

Power Requirements

AC 220V ± 5V, 50/ 60 HzNo high power electromagnetic and vibration interference sources nearby
