Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Condition: New
- Warranty: 1 Year
- Video outgoing-inspection: Provided
- Machinery Test Report: Provided
- Marketing Type: New Product 2020
- Warranty of core components: 1 Year
- Core Components: Engine, Bearing, Motor, Mechanical transmission structure
- Standard or Nonstandard: Nonstandard
- Structure: General Cylinder
- Body Material: Aluminum
- Place of Origin: Guangdong, China
- Brand Name: Mingshi
- Product name: electric cylinder
- Application: Machinery
- Type: Double Action
- Material: Aluminium Alloy
- Certificate: Ce, ISO
- OEM: OEM Services Provided
- Feature: Widely Used
- Product type: Enerpac Standard Electric Hydraulic
- Motor: Brushless Motor
- Working temperature: -30℃
- After Warranty Service: Video technical support, Online support
- Local Service Location: None
- Showroom Location: None
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-6{margin-bottom:0}#detail_decorate_root .magic-7{position:relative;width:100%}#detail_decorate_root .magic-8{width:750px;border-collapse:collapse}#detail_decorate_root .magic-9{min-height:18px;padding:5px 10px;width:86px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:18px;padding:5px 10px;width:60px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-11{text-align:center}#detail_decorate_root .magic-12{min-height:18px;padding:5px 10px;width:144px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-13{display:none}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;width:62px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;width:130px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:18px;padding:5px 10px;width:54px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:18px;padding:5px 10px;width:124px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:18px;padding:5px 10px;width:53px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:18px;padding:5px 10px;width:61px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:18px;padding:5px 10px;width:55px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:18px;padding:5px 10px;width:52px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:18px;padding:5px 10px;width:129px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:18px;padding:5px 10px;width:143px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-24{text-align:left}#detail_decorate_root .magic-25{width:750px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:539.7574123989218px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:539.7574123989218px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:530.5131761442441px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:530.5131761442441px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:525.219298245614px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:525.219298245614px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:561.6279069767442px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:561.6279069767442px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:565.149136577708px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:565.149136577708px}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:1000.0000000000001px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750px;height:1000.0000000000001px}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:503px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:750px;height:503px}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:499.21874999999994px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:499.21874999999994px}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:561.9565217391304px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750px;height:561.9565217391304px}#detail_decorate_root .magic-44{overflow:hidden;width:750px;height:434.2105263157894px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:749.9999999999999px;height:434.2105263157894px}#detail_decorate_root .magic-46{overflow:hidden;width:750px;height:492.06349206349205px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-47{margin-top:0;margin-left:0;width:750px;height:492.06349206349205px}#detail_decorate_root .magic-48{overflow:hidden;width:373px;height:298.86625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-49{margin-top:14px;margin-left:1px;width:354px;height:283px}#detail_decorate_root .magic-50{overflow:hidden;width:373px;height:298px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-51{margin-top:46px;margin-left:28px;width:311px;height:216px}#detail_decorate_root .magic-52{overflow:hidden;width:750px;height:1000px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-53{margin-top:0;margin-left:0;width:750px;height:1000px}
Product Description

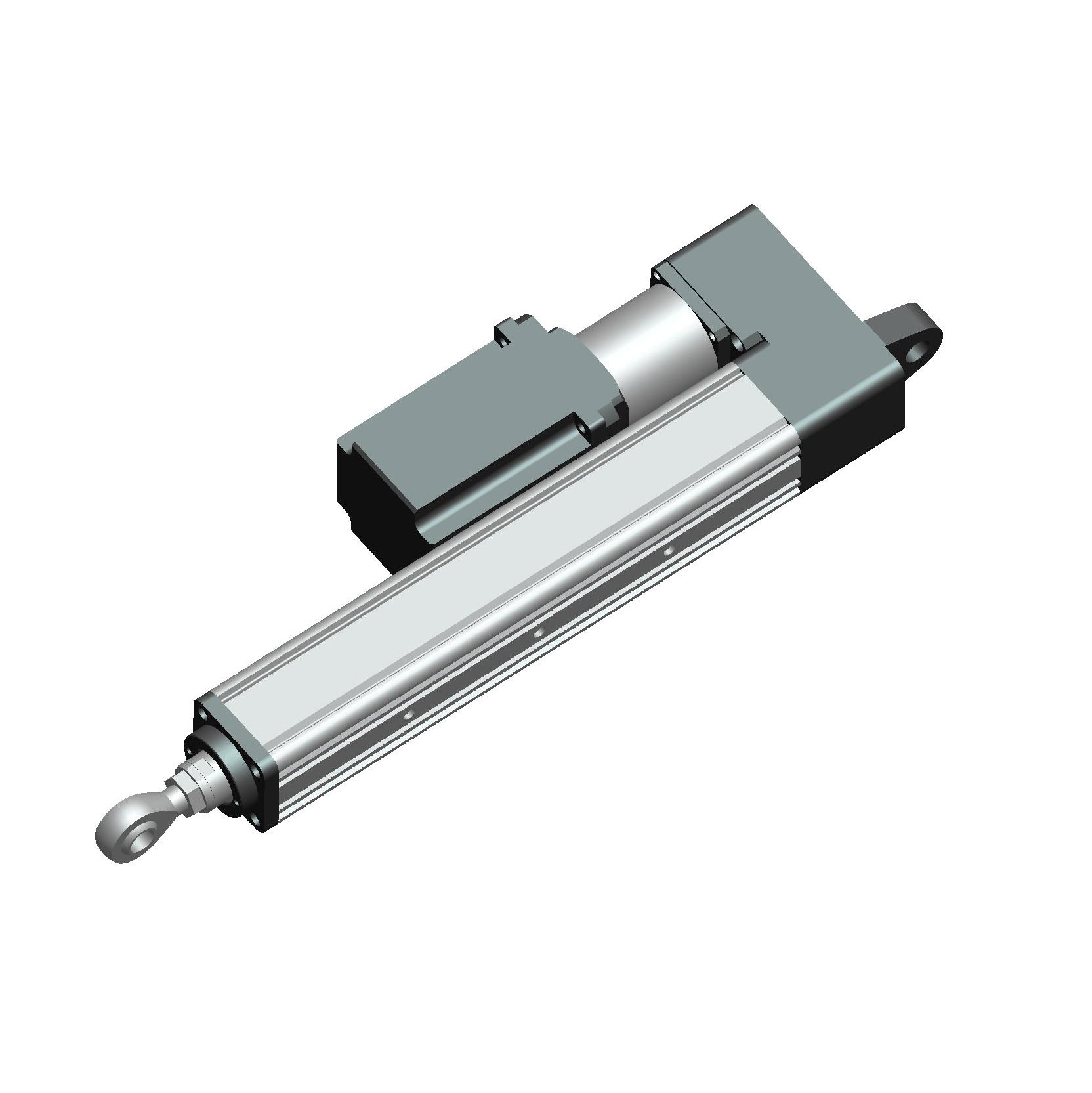

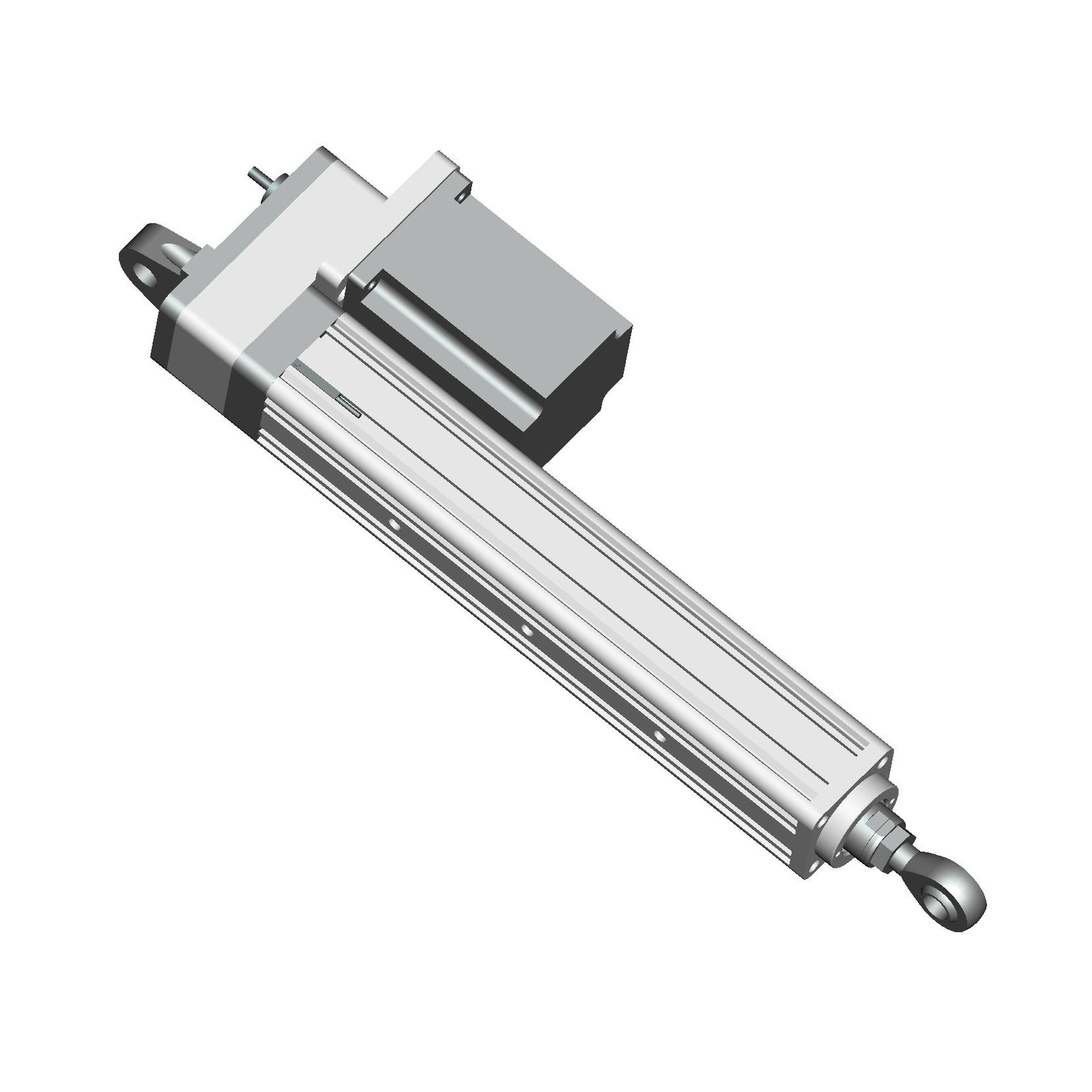

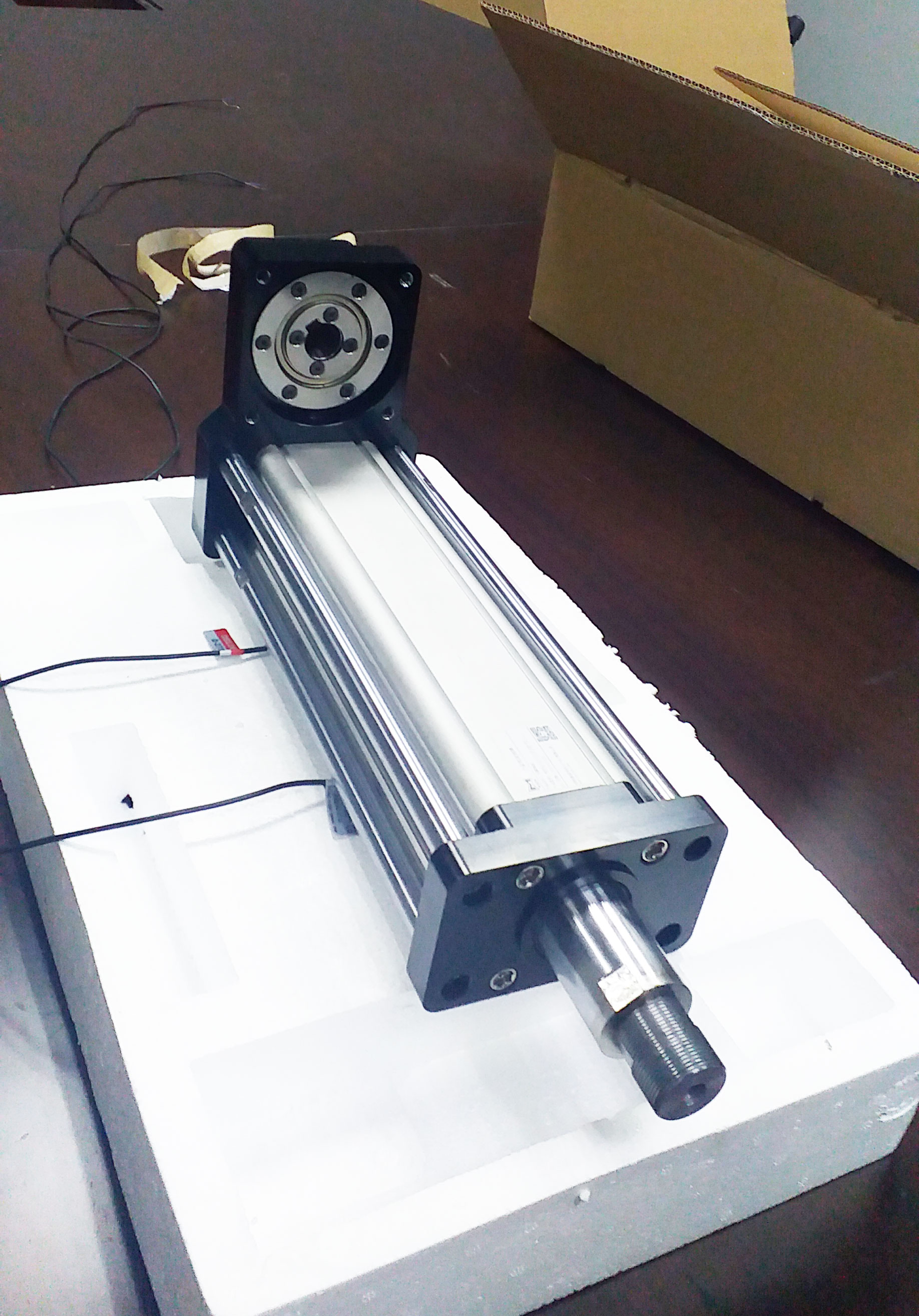

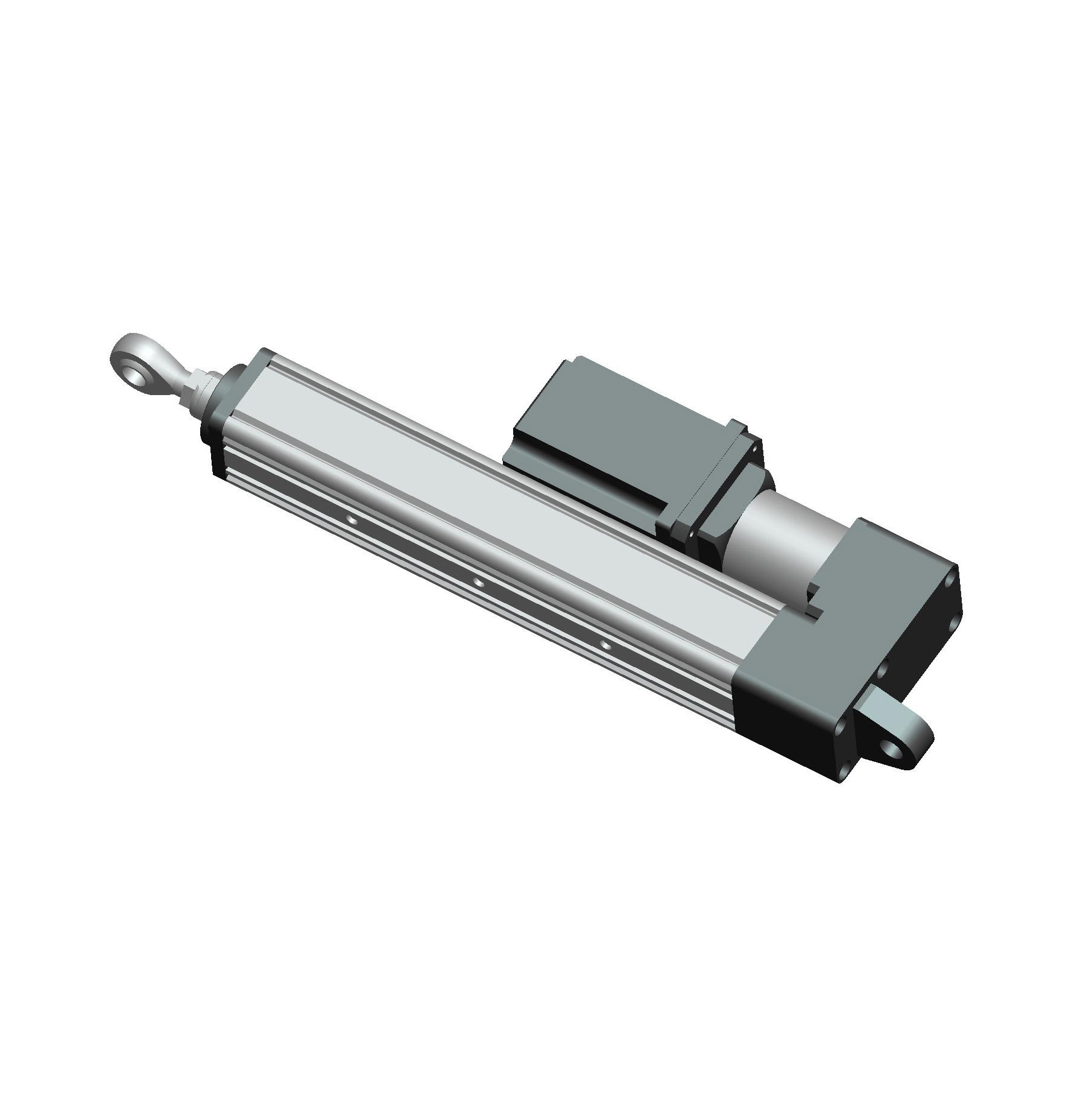

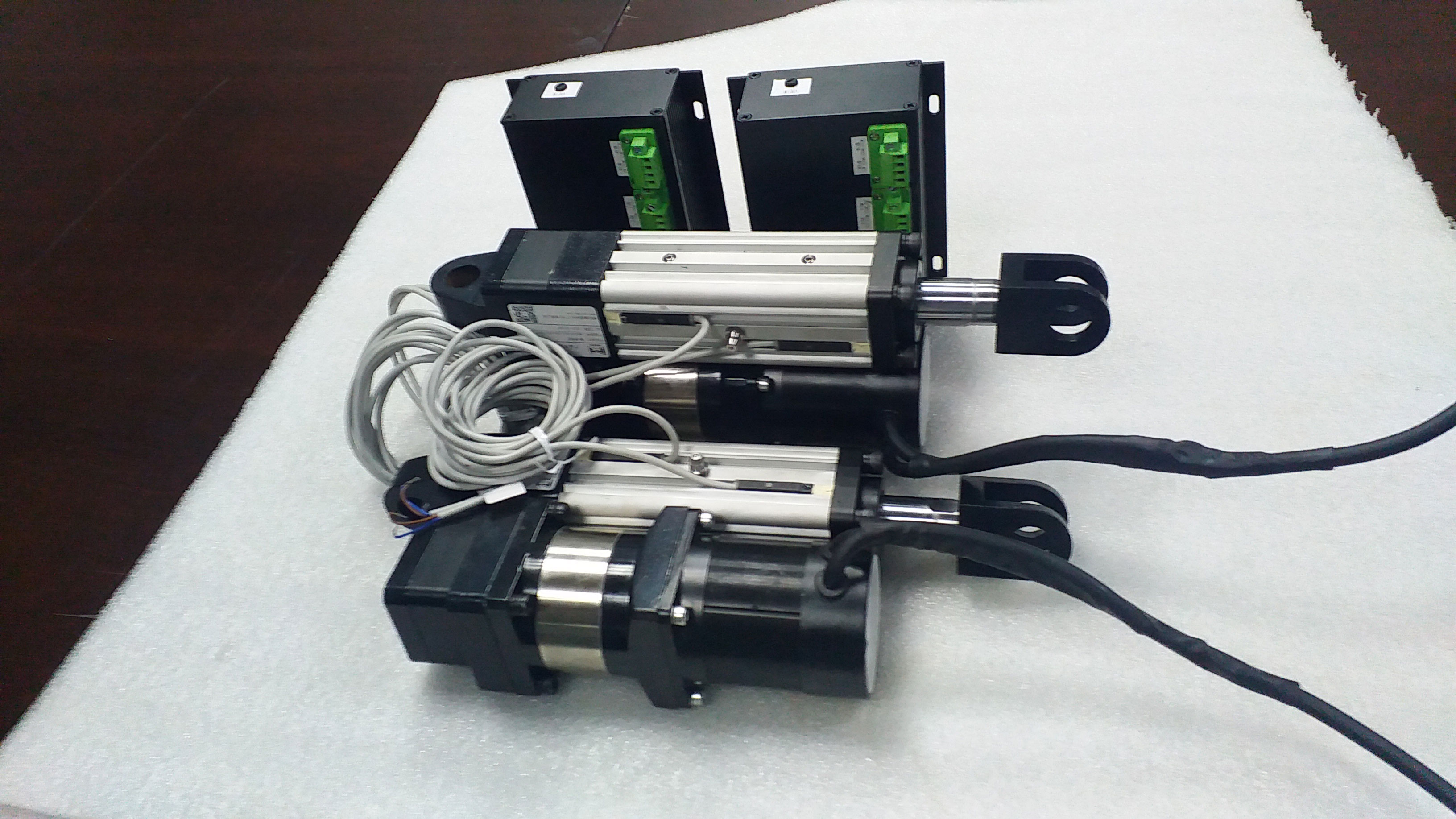

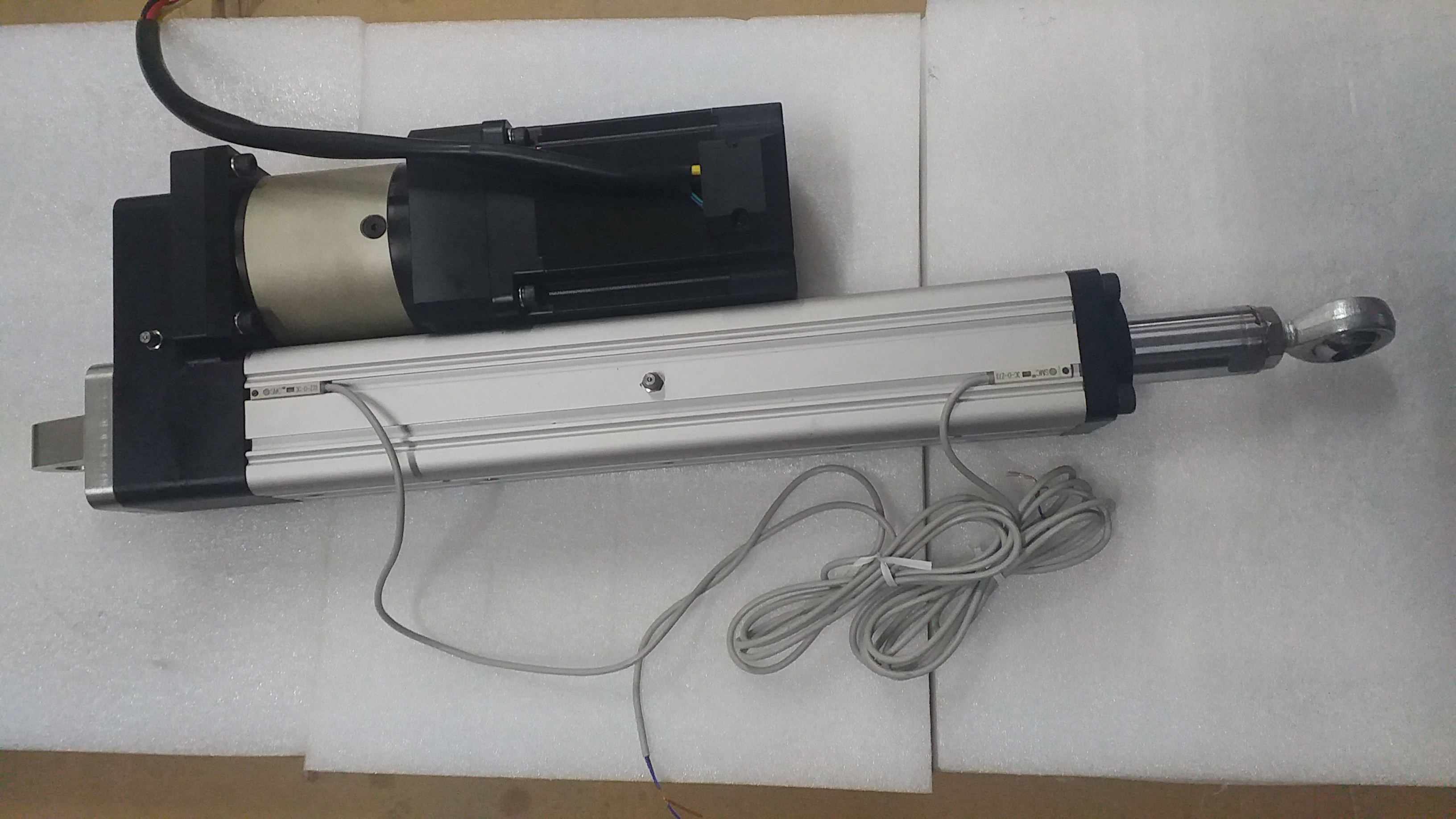

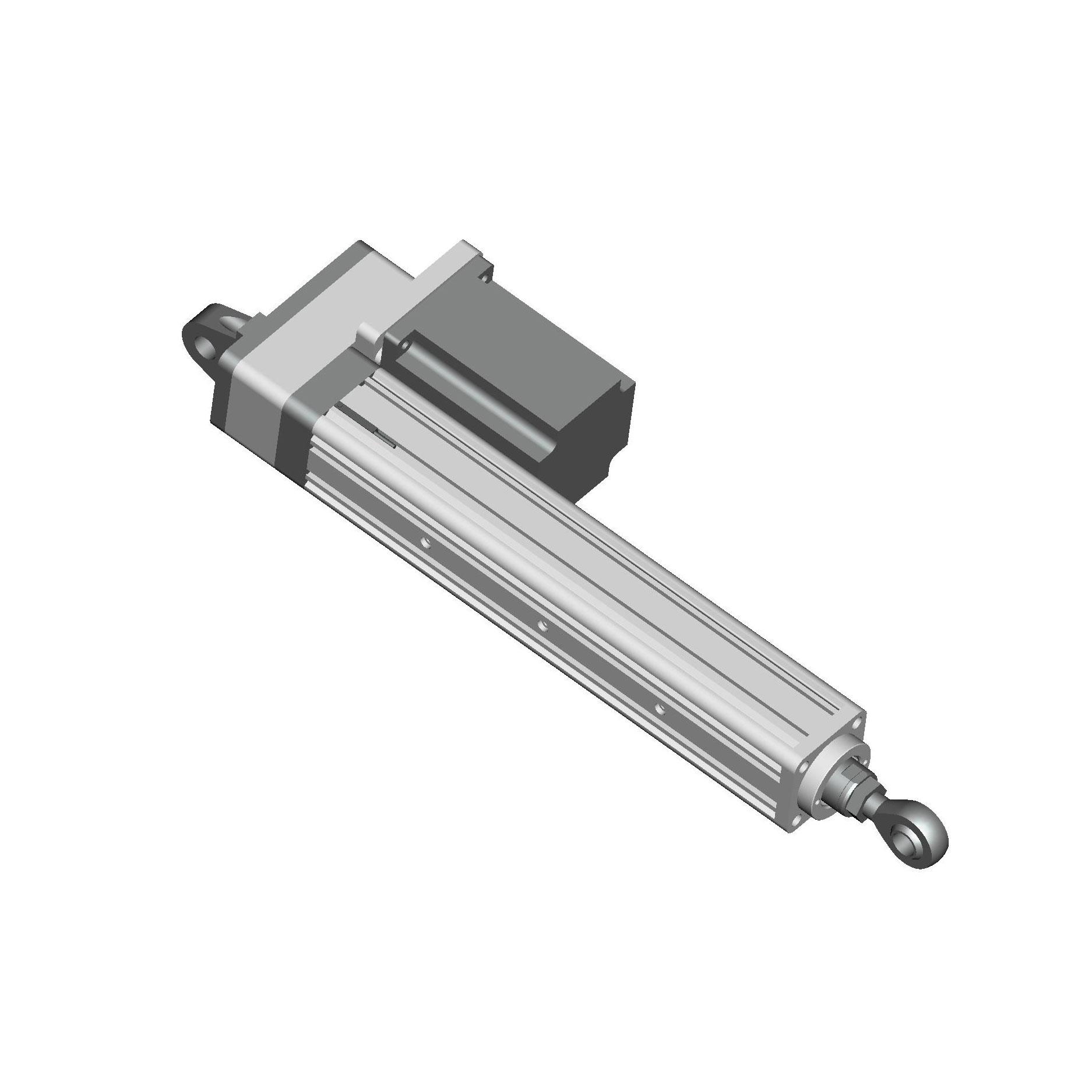

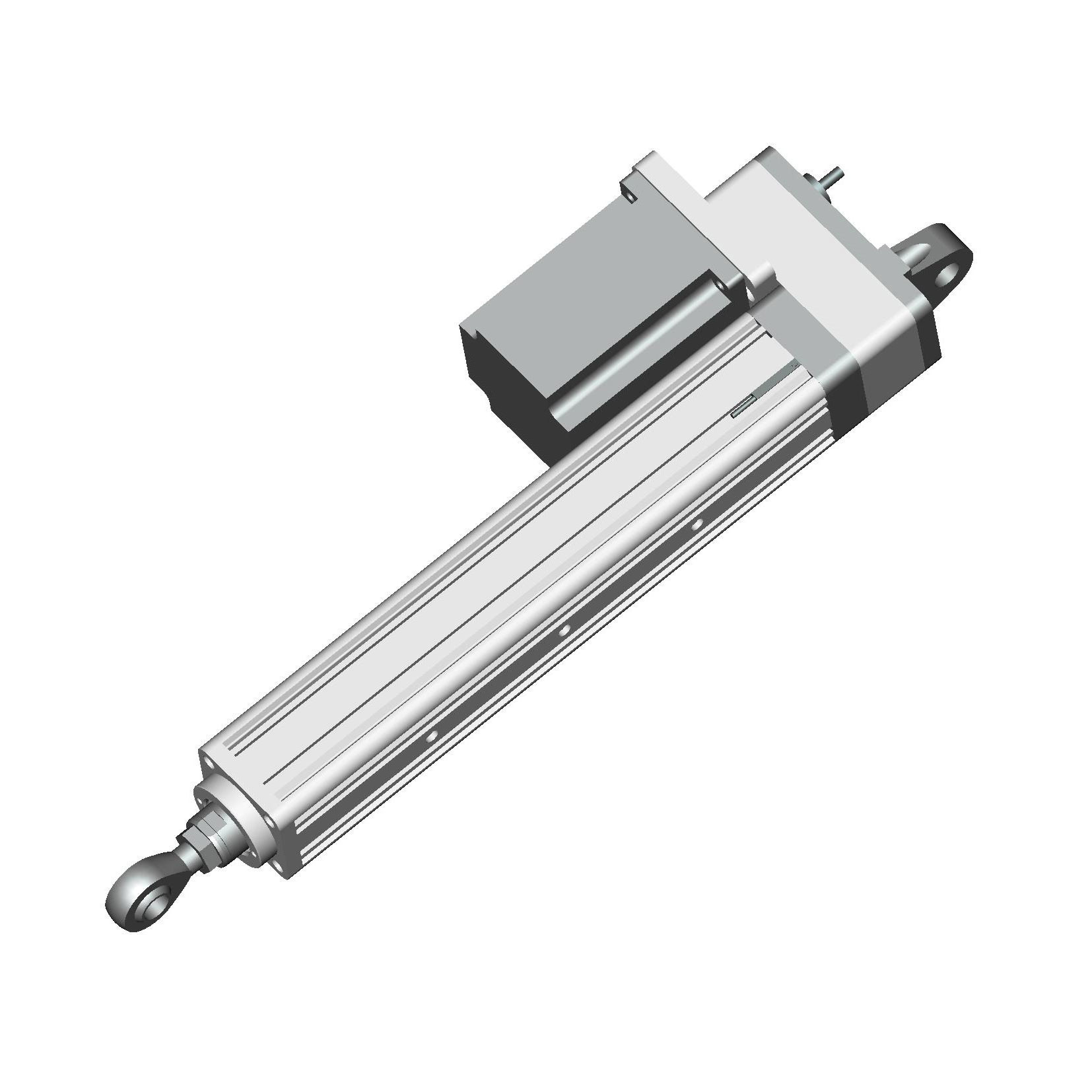

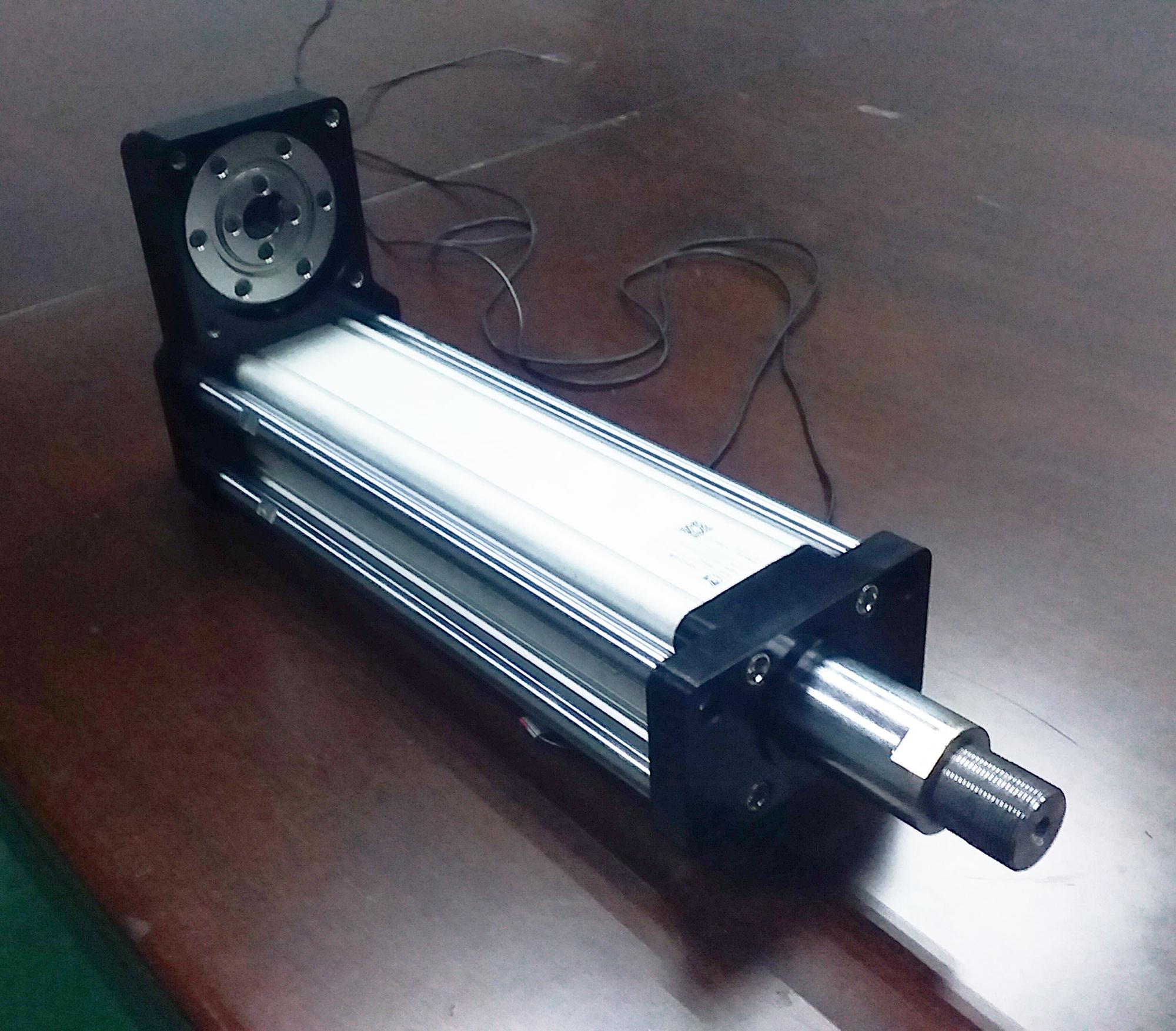

SPG series high-speed electric cylinders are driven by brushless motor (standard power-off brake) and precision ball screw. The power supply is DC24V, DC48V, AC220V, AC380V, and the power is 200W-3000W. The thrust is 80 kg-4 tons, the speed is 60mm/S-500mm/S, the installation is simple and fast, only need to connect the power supply and the movement direction control line to operate, with the encoder and PWM control can be connected with PLC, single chip, motion controller Realize low-cost motion control, speed and thrust can be customized.

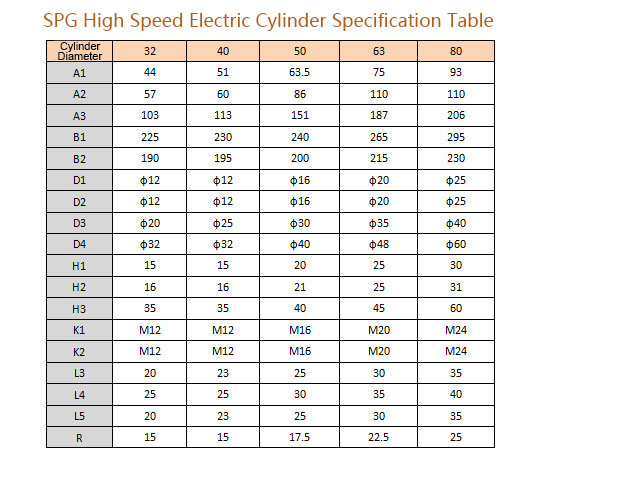

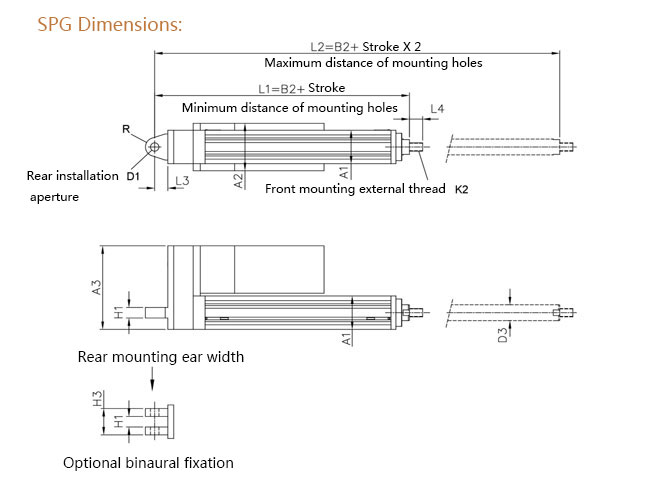

Specification
Cylinder Diameter/mm
|
32
|
40
|
50
|
50
|
63
|
63
|
80
|
80
|
|||
Power/W
|
210
|
300
|
550
|
570
|
1000
|
1500
|
2000
|
3000
|
|||
Voltage/V
|
DC24V/DC48V
|
DC24V/DC48V
|
DC24V/DC48V/AC220V
|
|
DC24V/DC48V/AC220V
|
|
AC220V
|
|
|||
Rated Speed/mm/s
|
60mm/s-250mm/s
|
60mm/s-250mm/s
|
60mm/s-500mm/s
|
|
60mm/s-1000mm/s
|
|
60mm/s-1250mm/s
|
|
|||

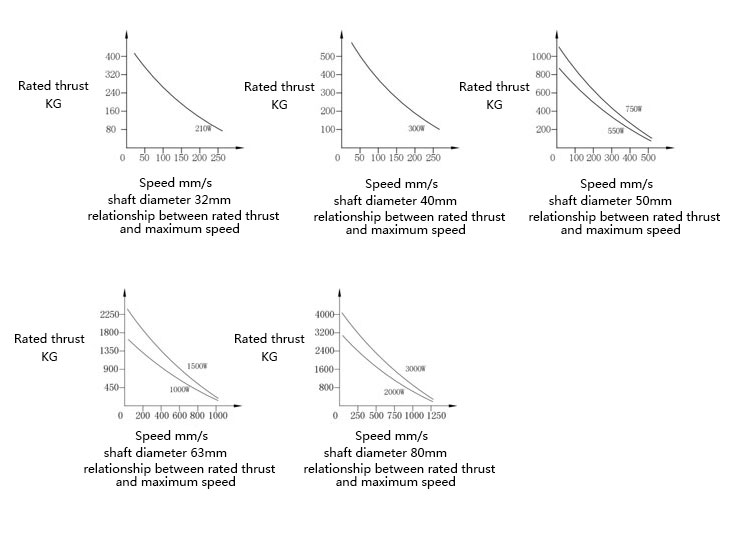

Rated Thrust/KG
|
320KG, 240KG, 80KG
|
450KG, 330KG, 110KG
|
800KG, 600KG, 200KG,
120KG
|
1100KG, 800KG, 280KG,
150KG |
1450KG, 1100KG, 380KG,
190KG, 100KG |
2200KG, 1650KG, 550KG,
280KG, 150KG |
2800KG, 2100KG, 700KG,
350KG, 180KG, 150KG |
4000KG, 3000KG, 1000KG,
500KG, 250KG, 200KG |
|||
Standard Stroke/mm
|
5-400mm
|
5-400mm
|
5-500mm
|
|
5-600mm
|
|
5-800mm
|
|

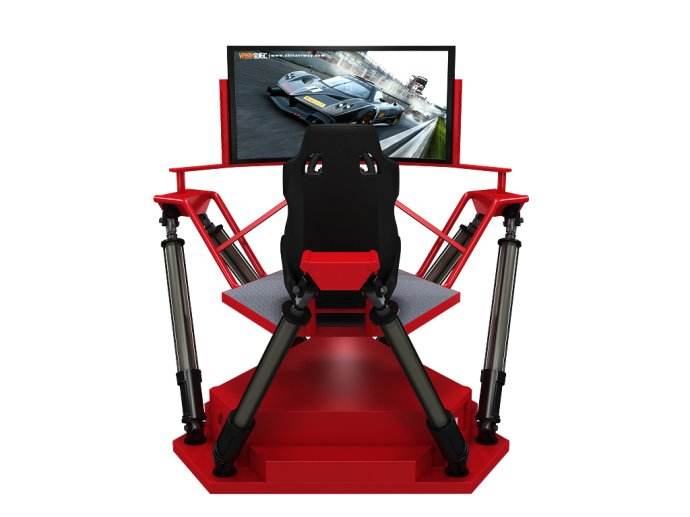

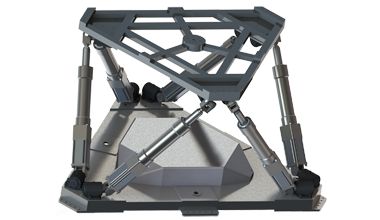

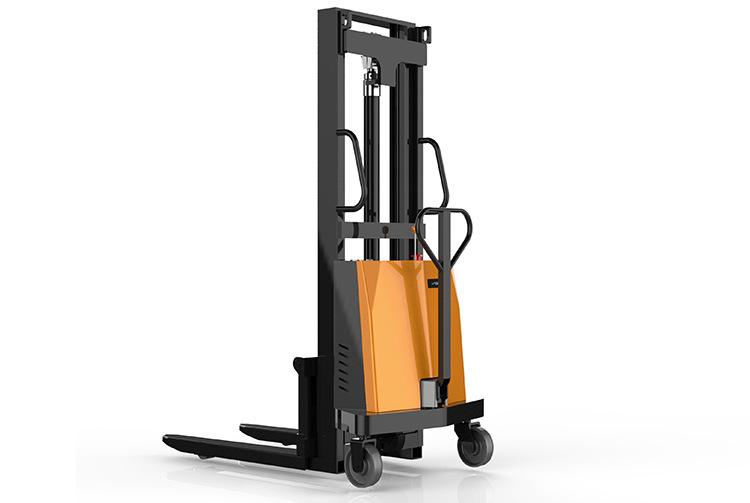

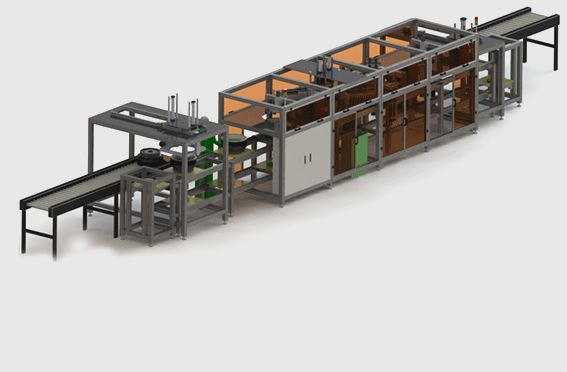

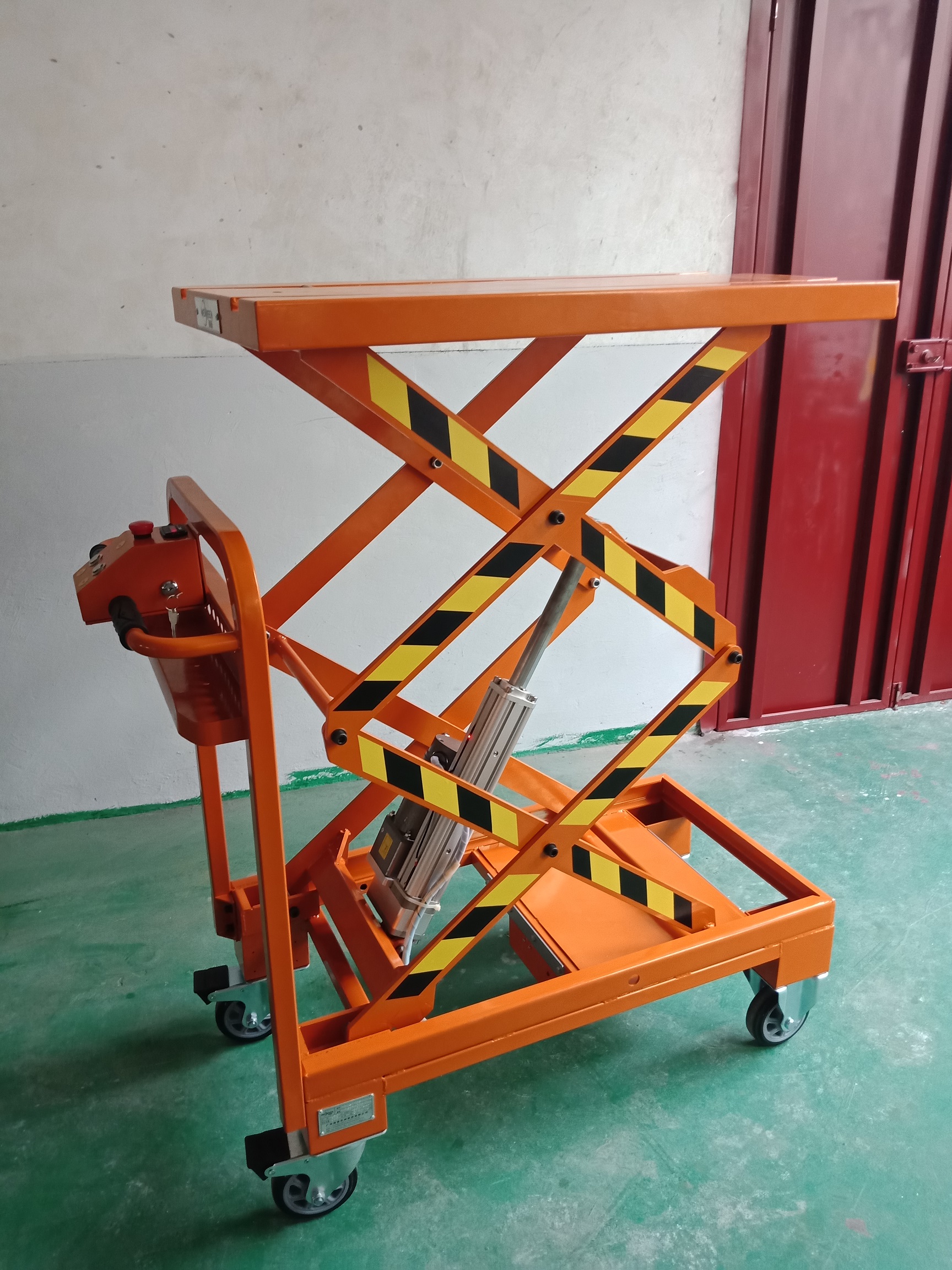

Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

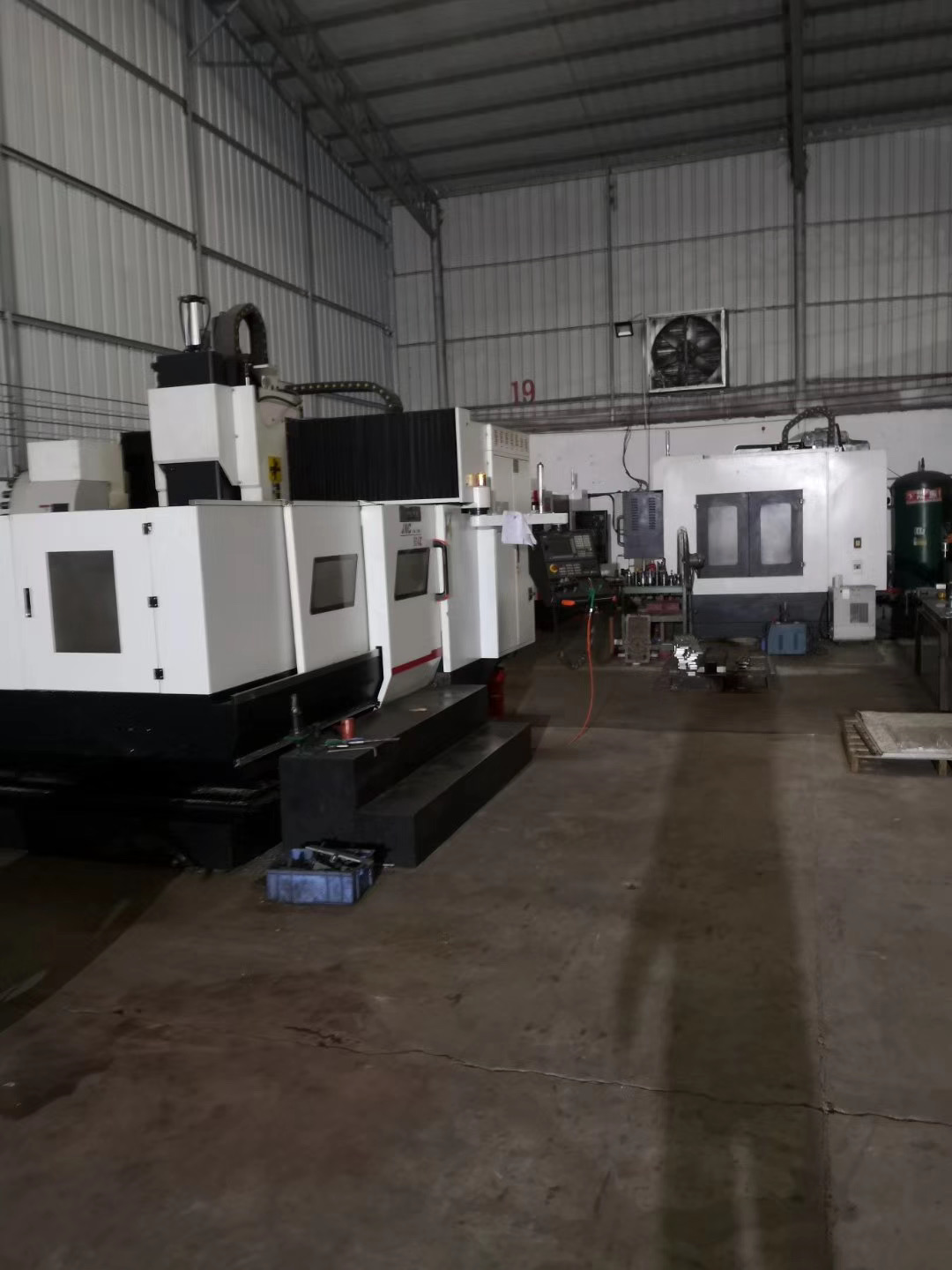

Company Profile
