Professional Factory 12mm laser galvo scanner laser galvo scan head for laser marking machine

$457.08$587.08

SKU: 3452078018651 Category:

Description

Manufacturers supply  Zbtk high performance 12mm aperture galvo scanner for laser marking machine

Product Description

    ZB2D123 series galvanometer scanners are ultra-high cost-effective galvanometer scanners. In addition to competitive prices, it also has good performance, which inherits the outstanding performance of the Zbtk high-end galvanometer scanner series. It has the characteristics of good linearity, small temperature drift, high precision, fast speed, good stability and strong anti-interference ability. It can meet 90% of the requirements of fiber laser applications, is one of the very widely used galvanometer scanners, and enjoys a good reputation and satisfaction among many users.





SPECIFICATIONS FOR ZB2D123 SERIES GALVO SCAN HEAD
Optical Performance Reflection Wavelength 1064nm,10600nm,355nm
Input Aperture 12mm
Typical Scan Angle ±0.35rad
Nonlinearity <0.8mrad
Dynamic Performance Tracking Error 0.22ms
1% of full Scale Step Response time 0.45ms
Repeatability <15urad
Gain Drift <50ppm/k
Offset Drift <50urad/k
Long-term drift over 8 hours <0.1mrad
Marking Speed 2m/s
Positioning Speed 10m/s
Input Signal Digital Interface xy2-100
Power Requirements ±15VDC,≥3A
Others Outline Dimension LWH(mm):114x96x94
Weight 1600g
Operation Temperature 10℃ ~50℃

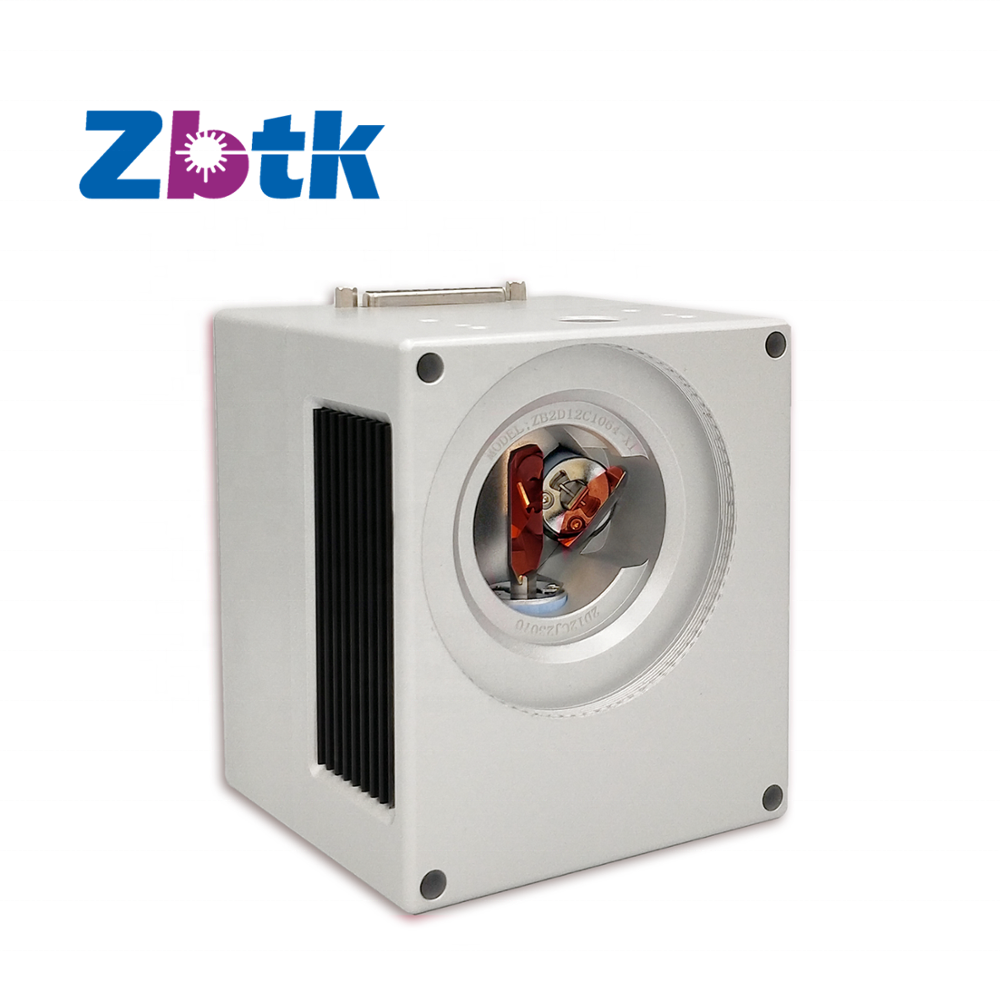

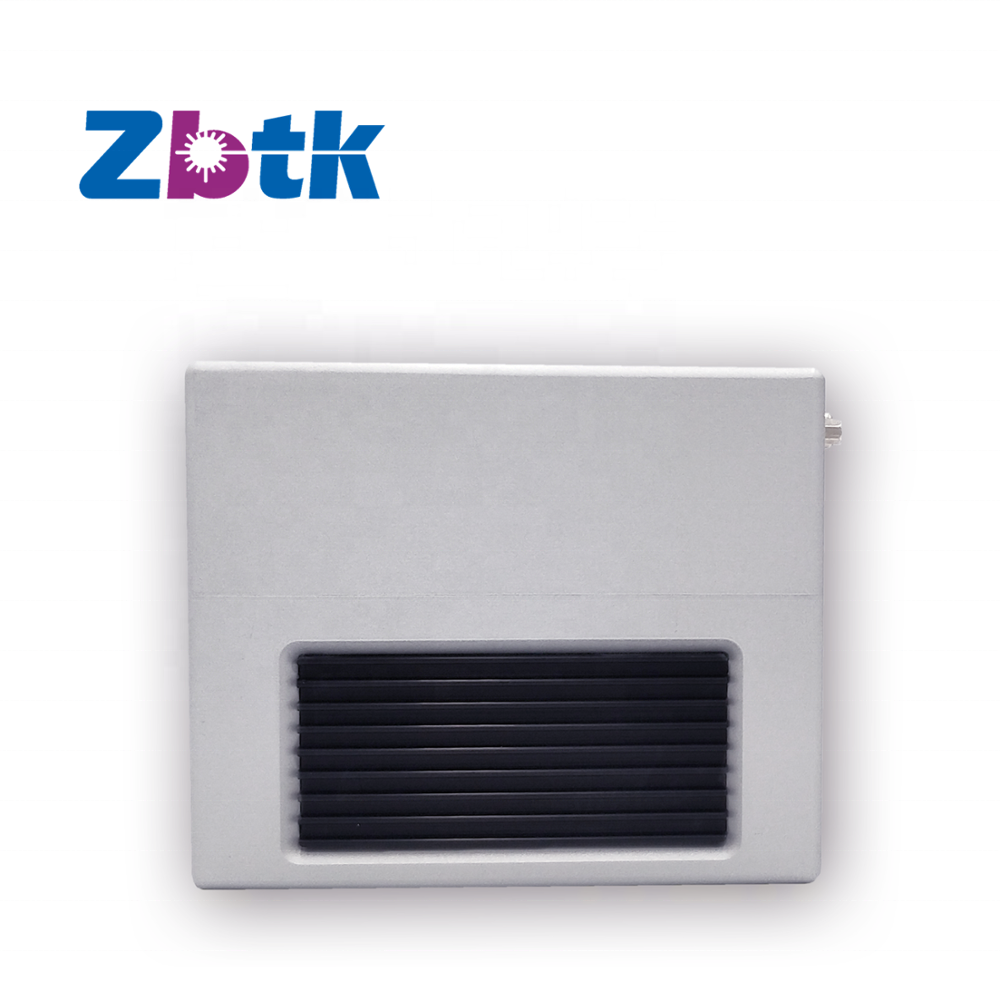

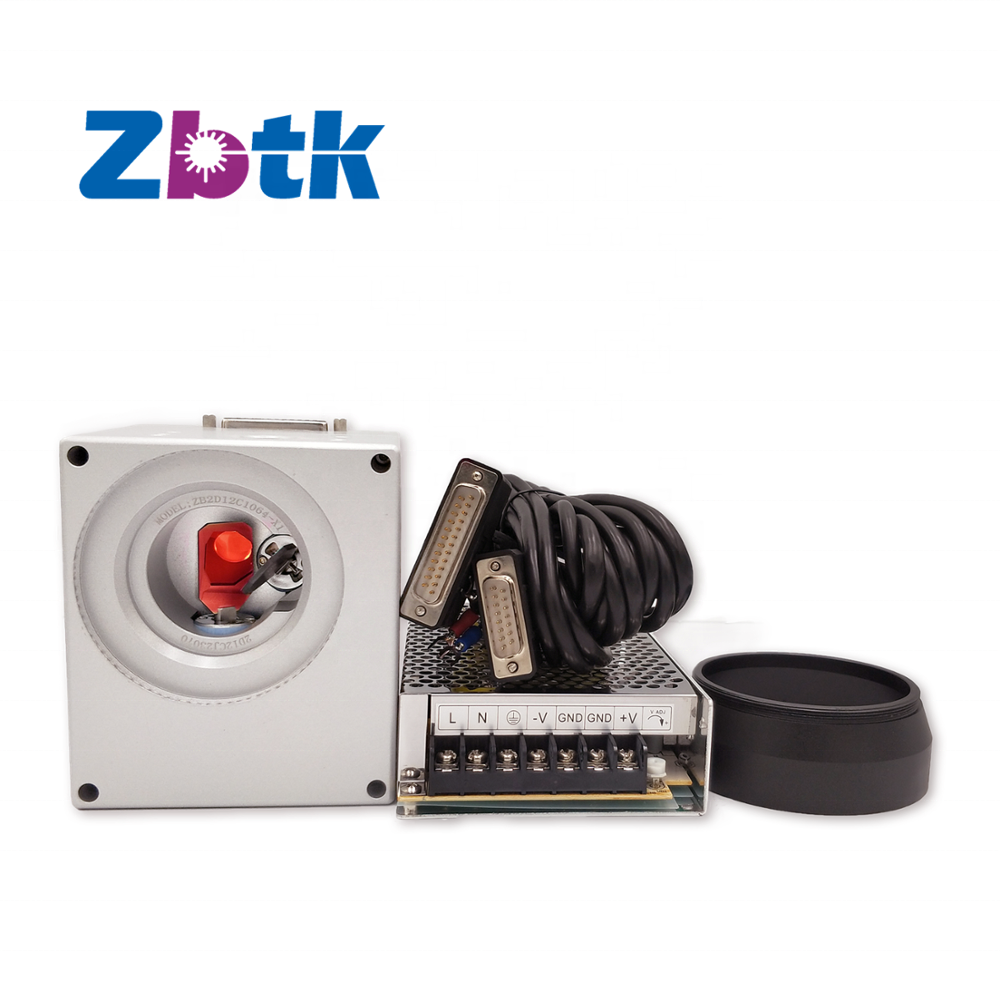

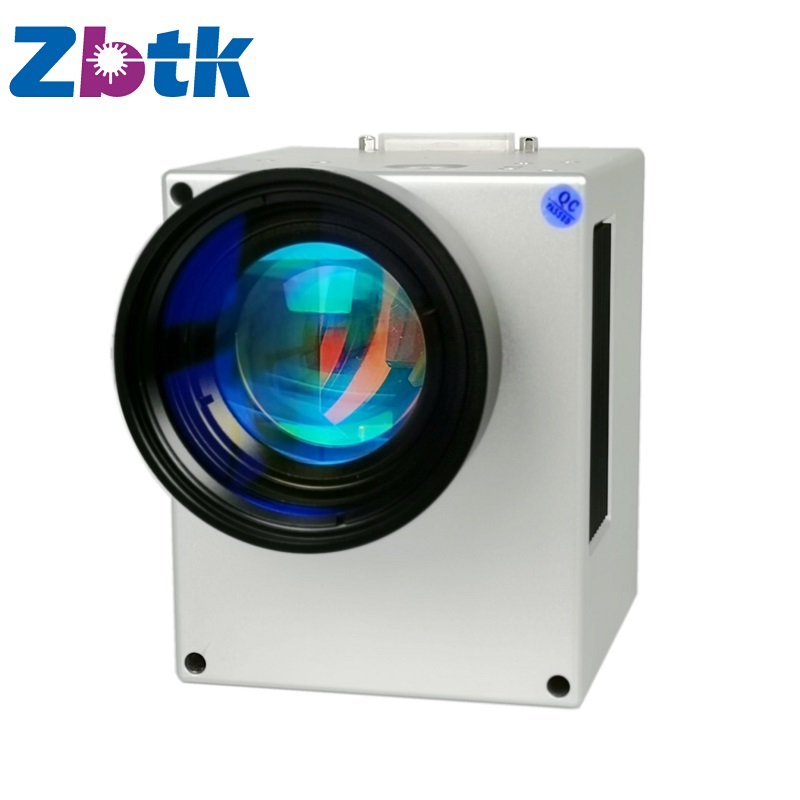

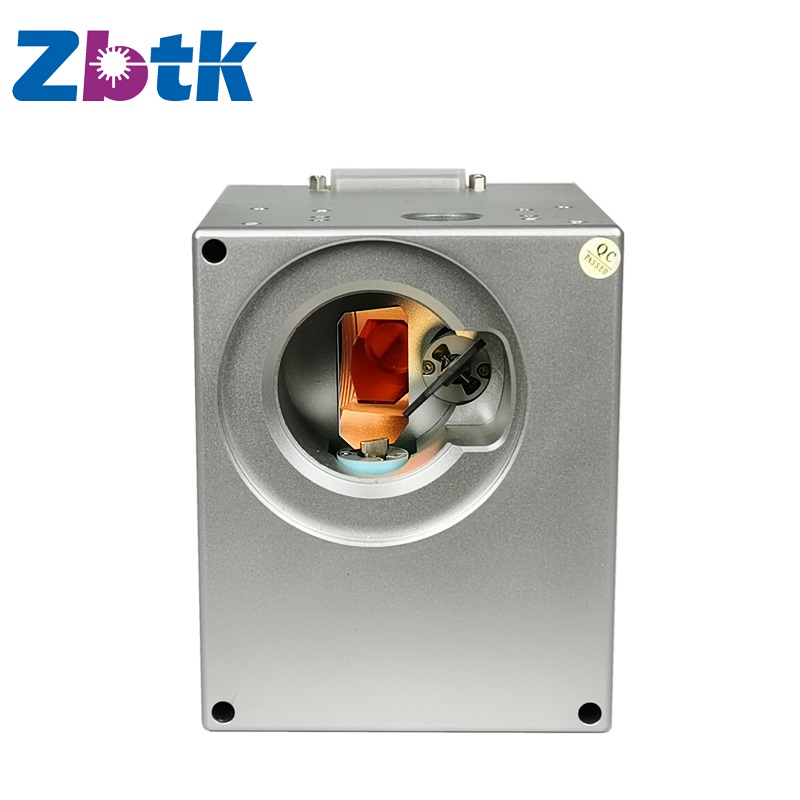

Detailed Images




.jpg
