Description
- Brand Name: Rabotec
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: RTM-1325
- CNC or Not: CNC
- Is Smart Device: YES
- Item: cnc router
- working size: 1300*2500mm
- color: as your need
- spindle: 3.0KW
- Software: Ucancam/ArtCam/TYPE3
- Control system: DSP/Mach3
- Spindle speed: 0-24000/rpm
- Drive system X-Y axis: rack and pinion
- Drive system Z axis: Taiwan TBI ball screw
Professional 4×8 Ft Cnc Router 1325 Wood Cutting Machine For Wooden Doors Cabinets Woodworking CNC Machine For Metal Engraving

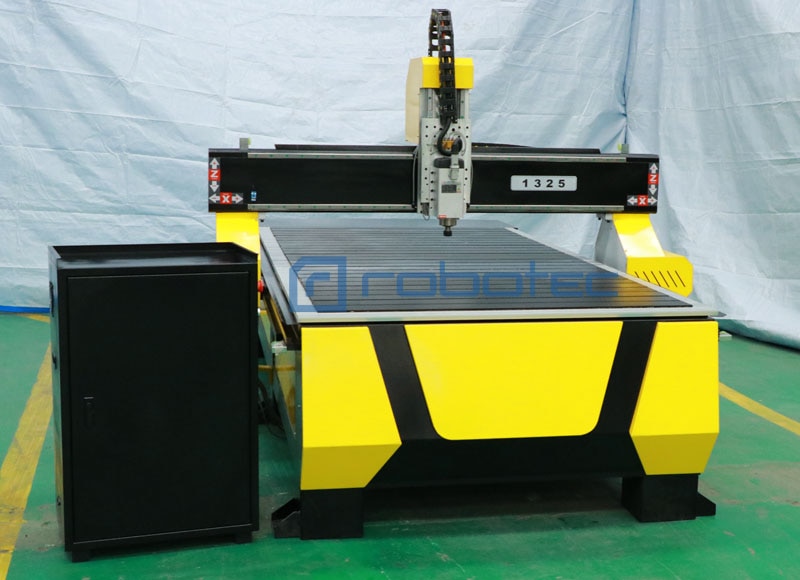

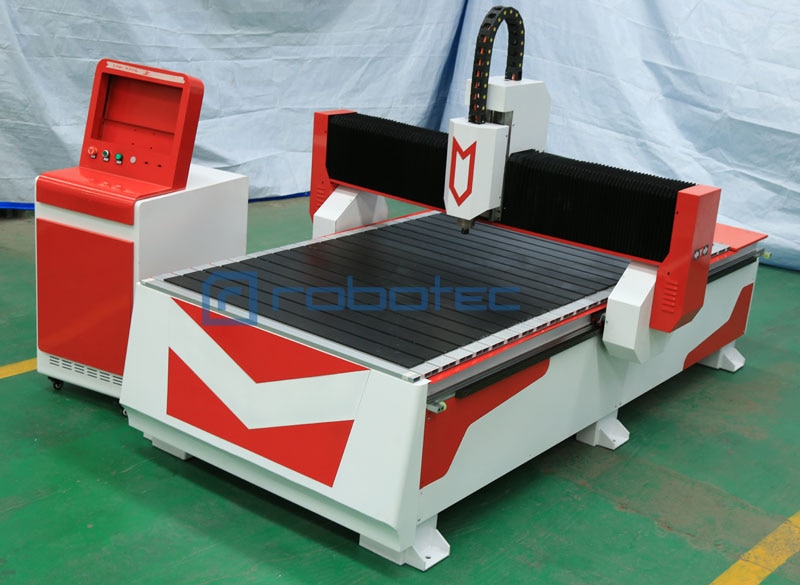

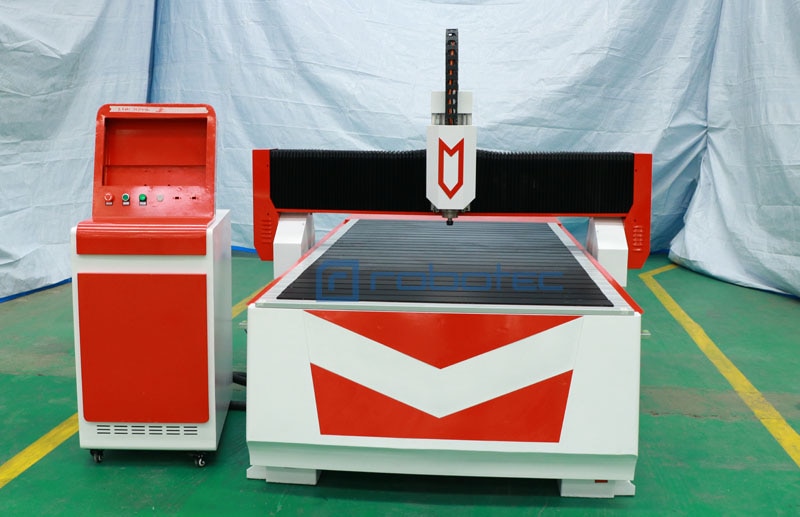

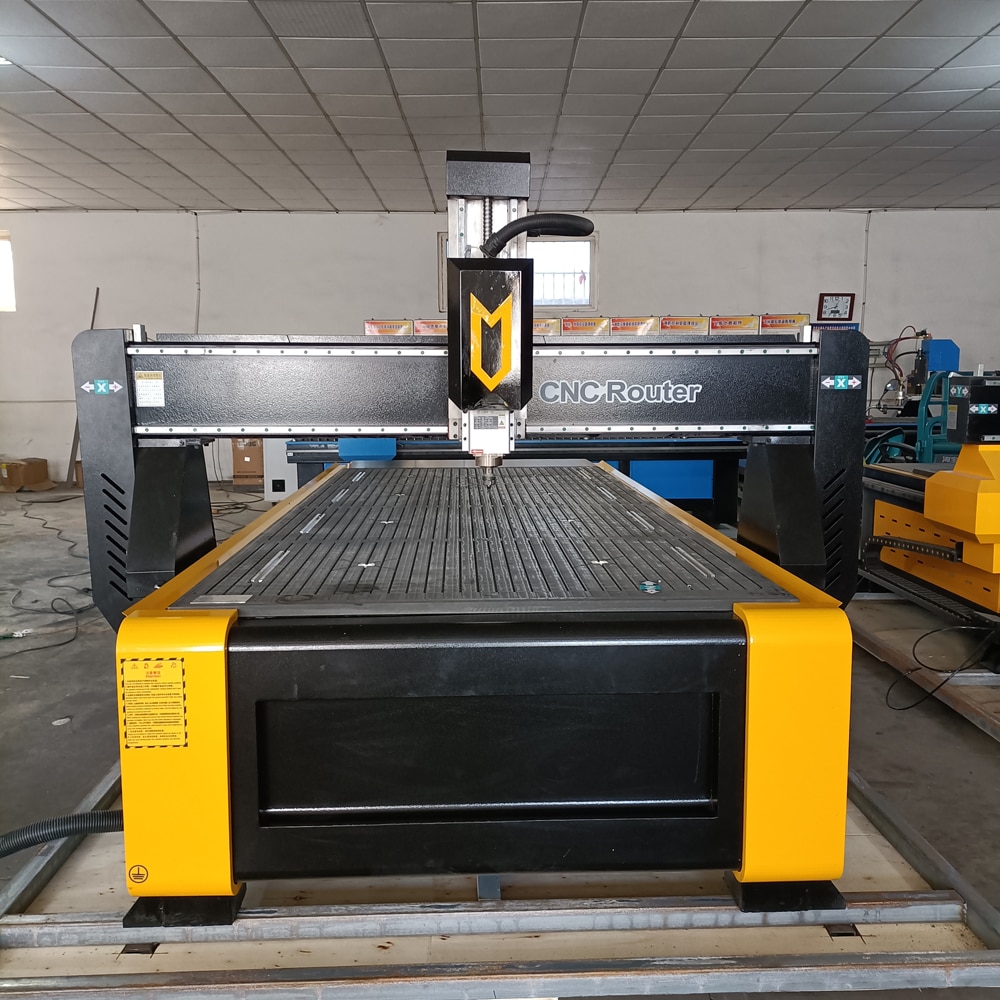

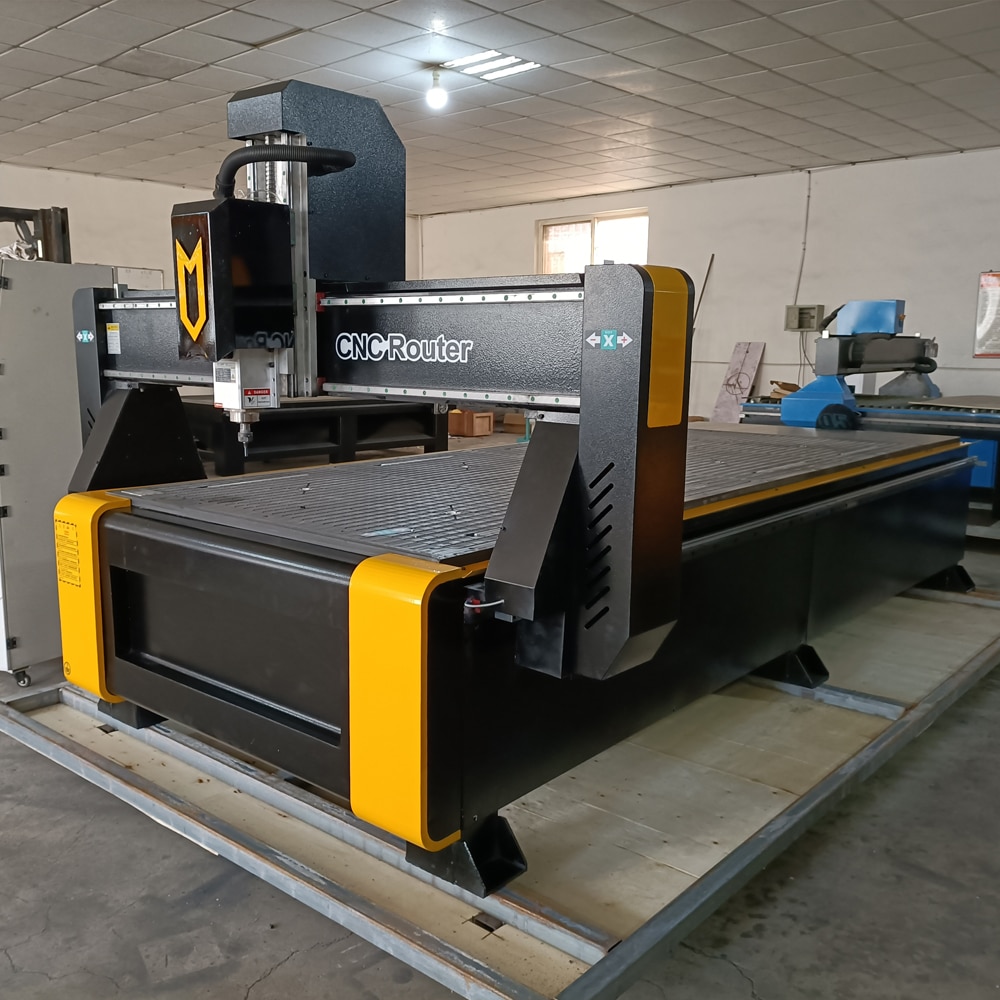

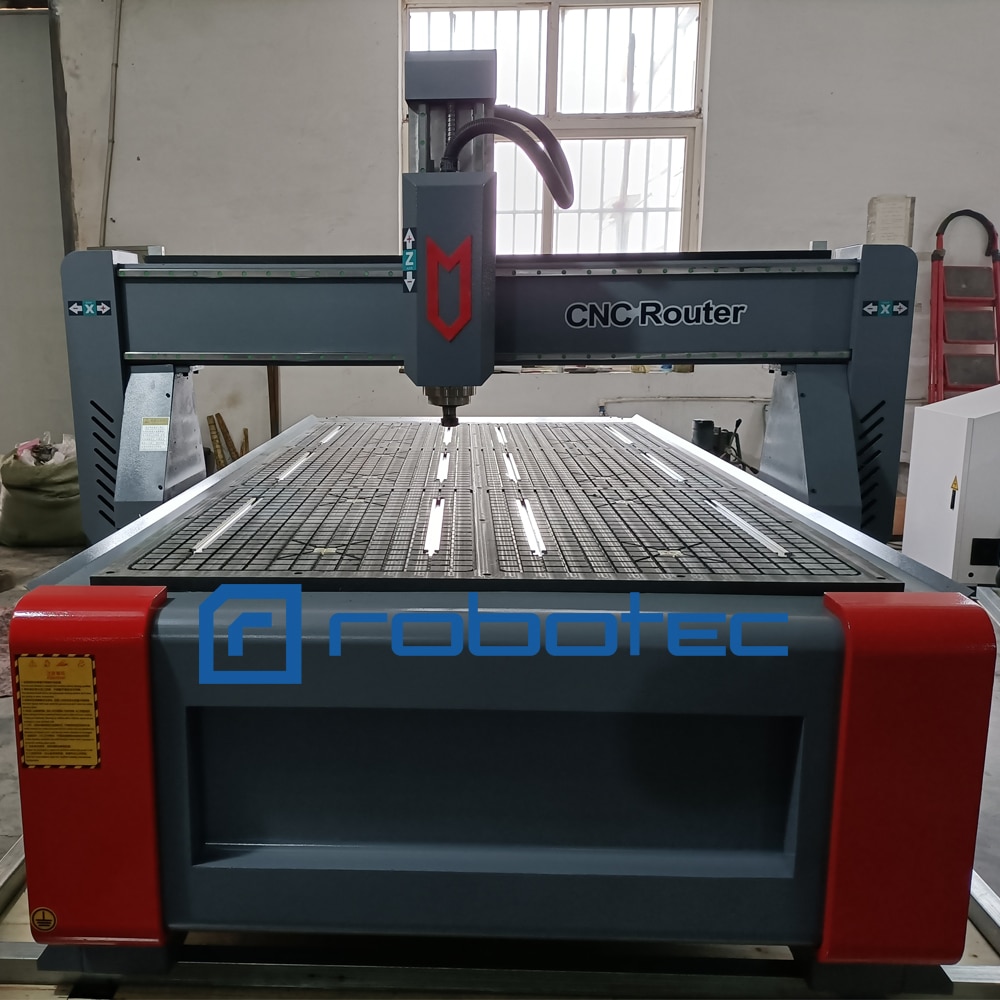

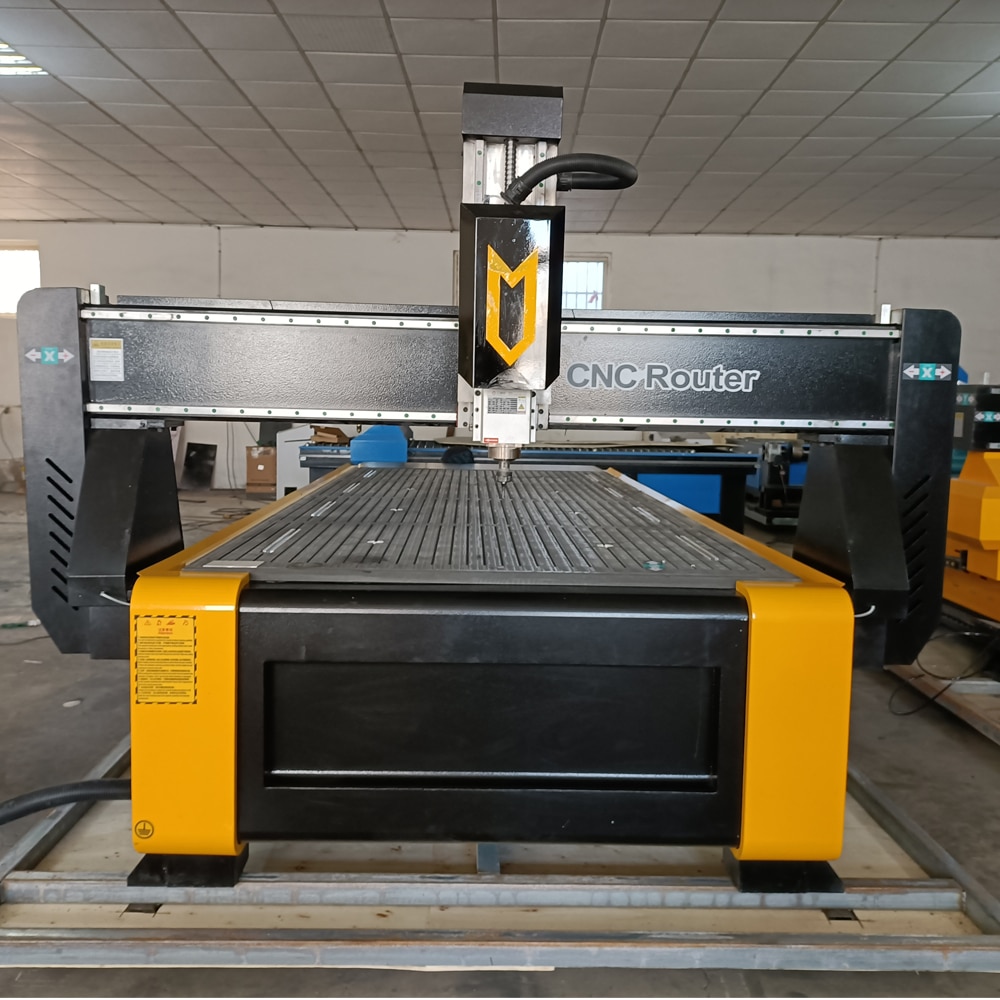

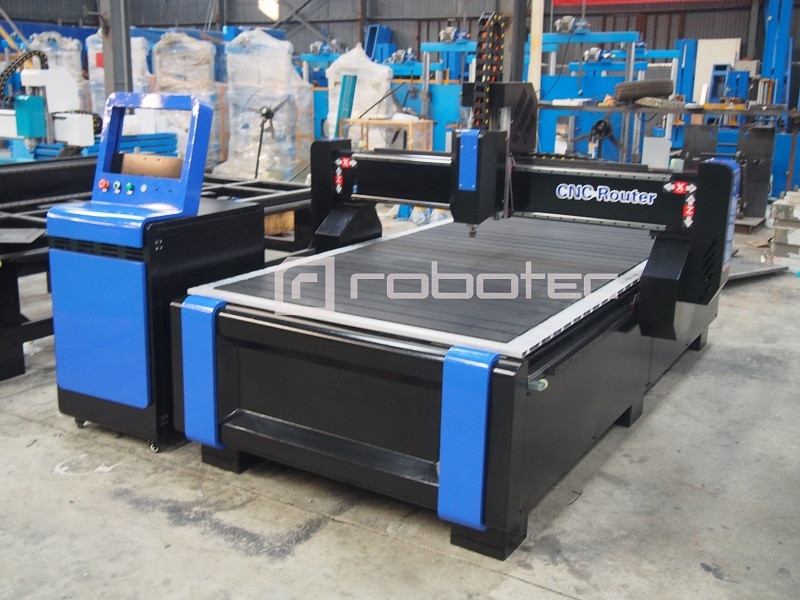

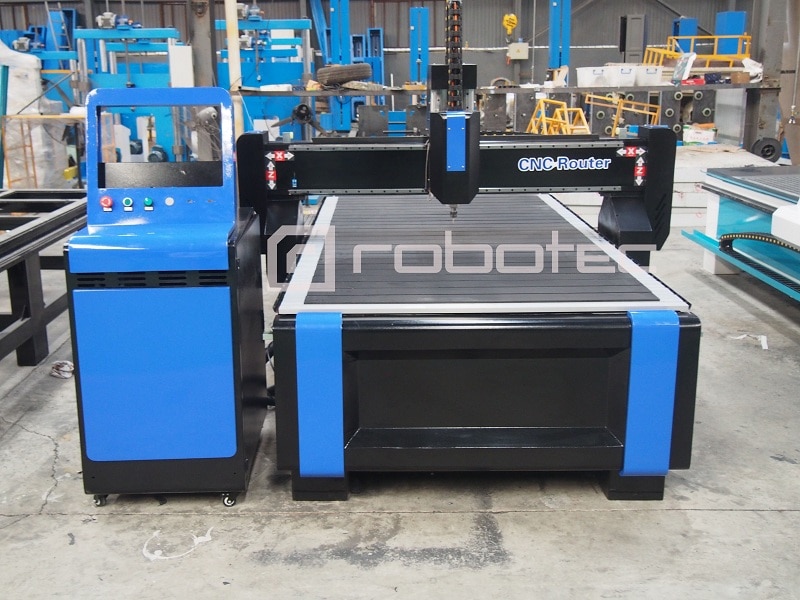

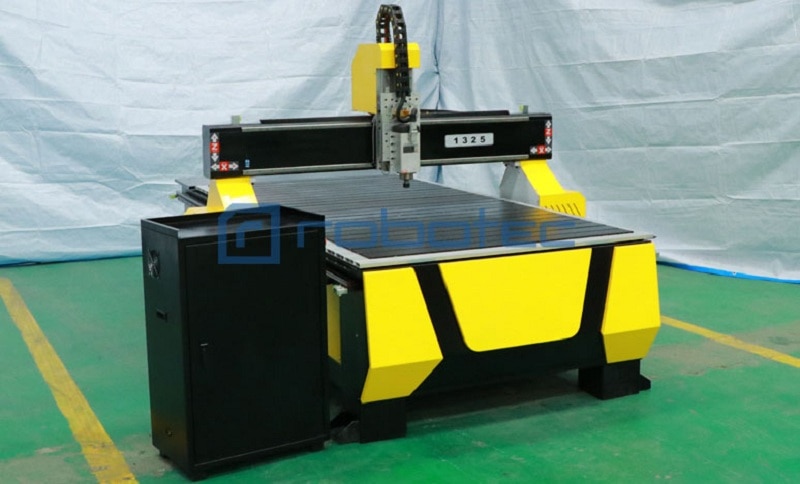

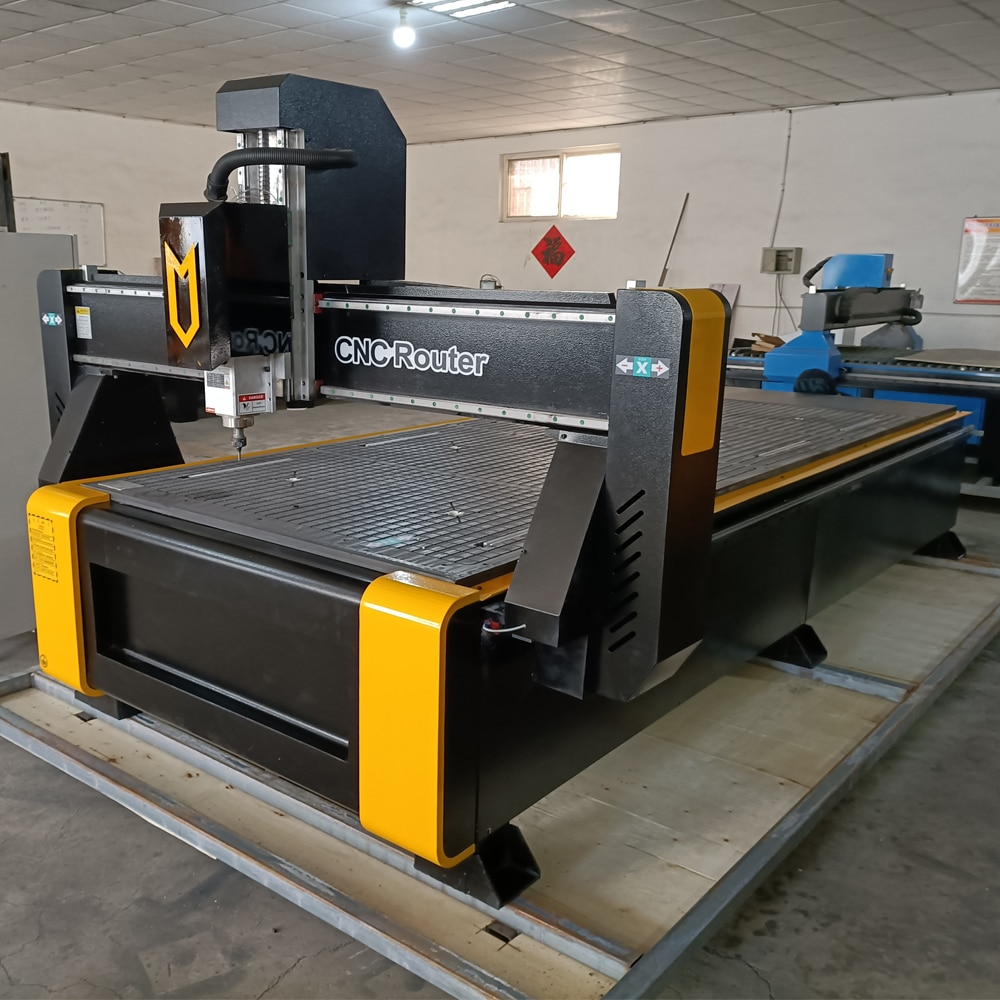

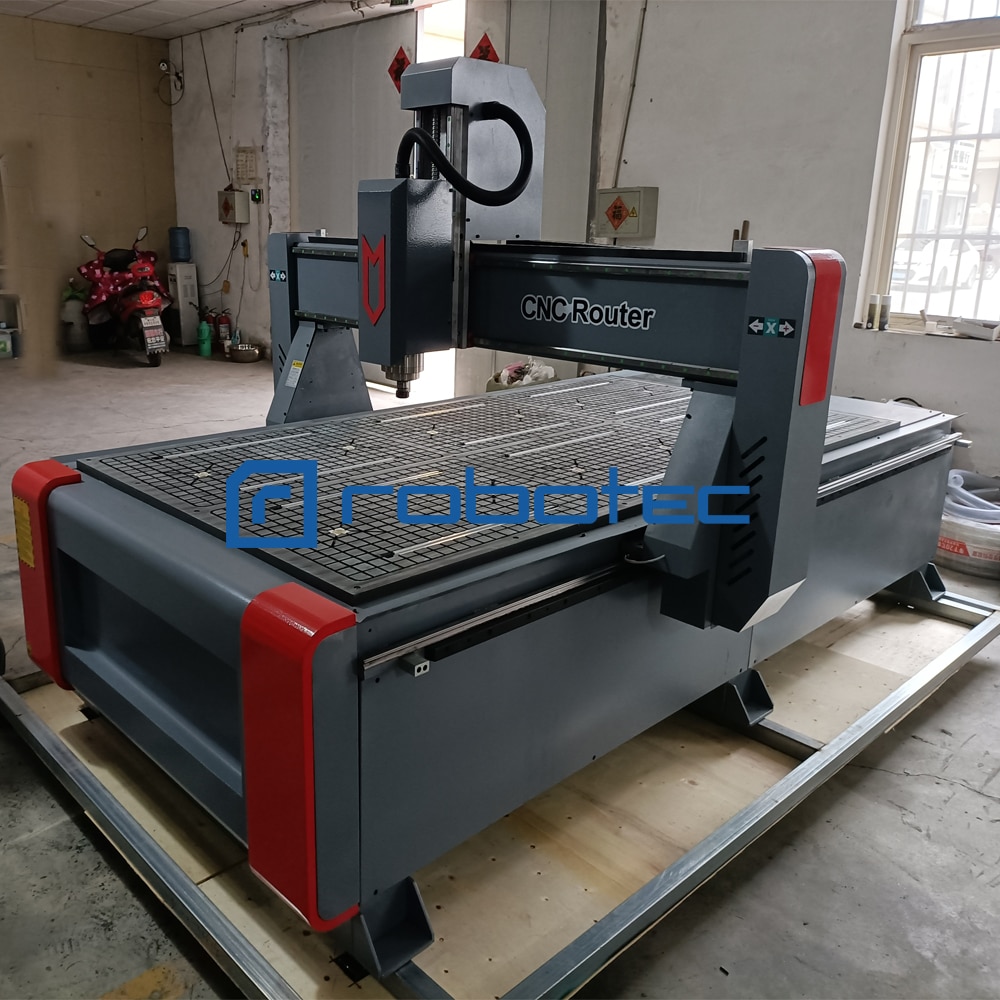

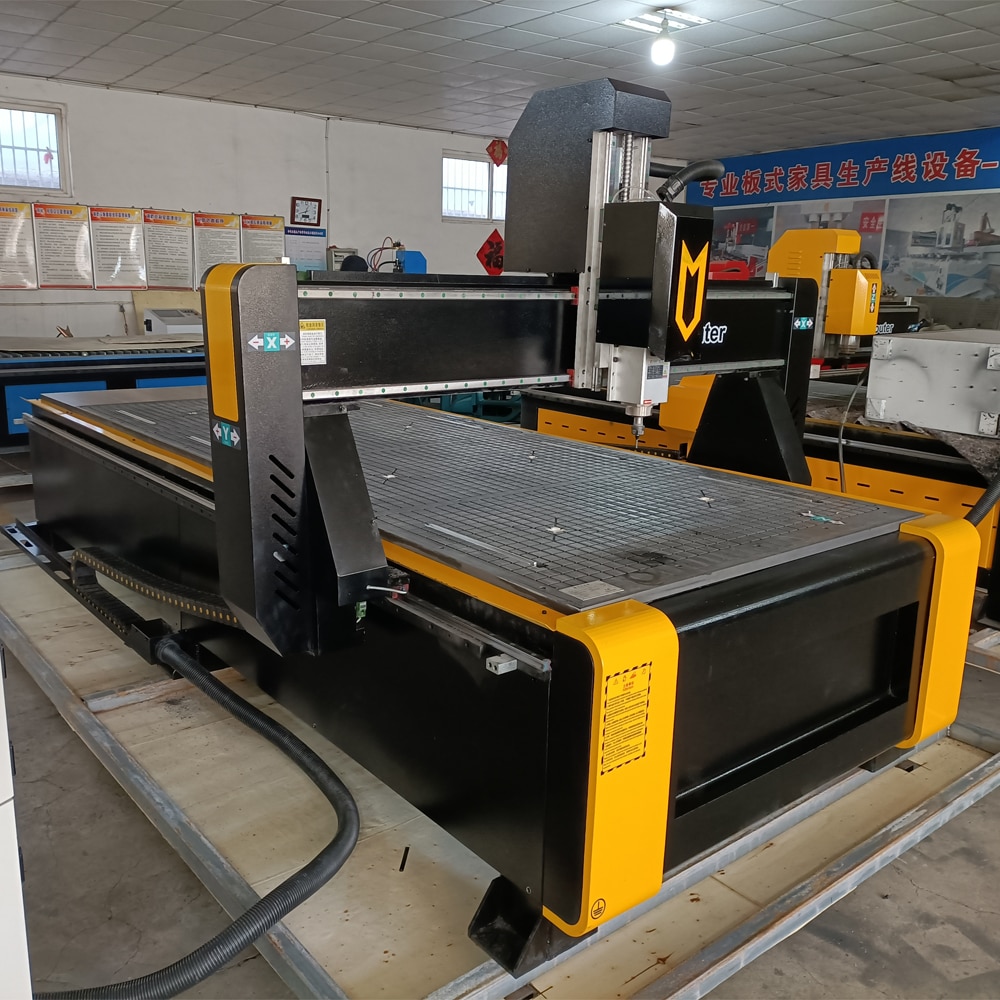

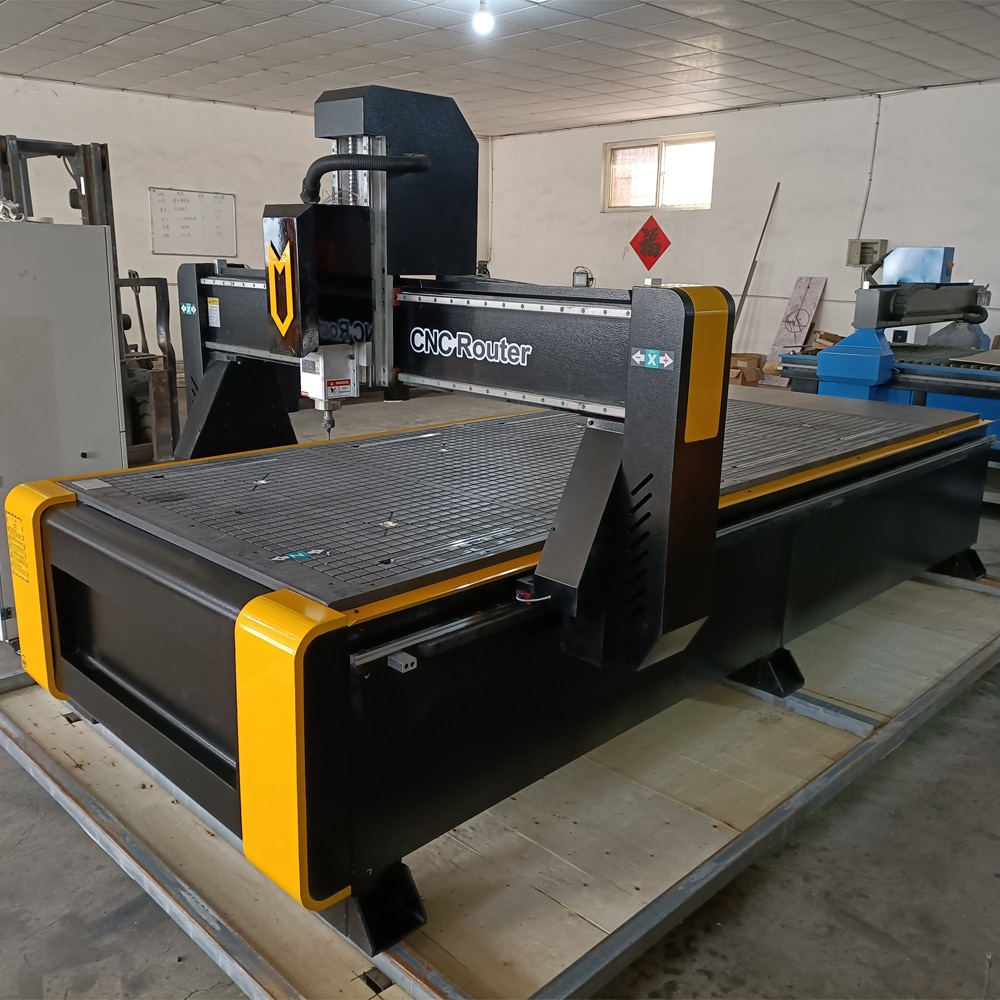

1325 wood cnc router pictures:
1325 wood cnc router parameters:
Model |
RTM-1325K |
Working area (X*Y*Z) |
1300*2500*200mm |
Table size |
1750*3050*1740mm |
Body structure |
Thicken steel made |
X, Y Structure |
Rack and pinion |
rails |
Taiwan 25 size hiwin square rails |
Z Structure |
Taiwan TBI ball screw |
X, Y Resolution |
<0.01mm |
Max Moving Speed |
60000mm/min |
Max Engraving Speed |
30000mm/min |
X,Y,Z traveling positioning accuracy |
±0.01mm |
X,Y,Z repositioning accuracy |
±0.01mm |
Spindle power |
3.0kw water cooling spindle |
Spindle Speed |
0-24,000rpm |
Voltage |
380v/3phase or 220V/1ph/50hz |
Drive type |
Big stepper motors and drivers |
Working Dictate |
G Code |
Operating system |
Mach3(Option DSP or Ncstudio) |
Tool sensor |
Yes |
Auto oil lubricator |
Yes,included |
Wire protect |
Yes,included |
Running Environment |
Temperature: 0℃~45℃ |
package |
Export wooden box |
After packed size |
3300*2200*1900mm |
G.W |
1000kgs |

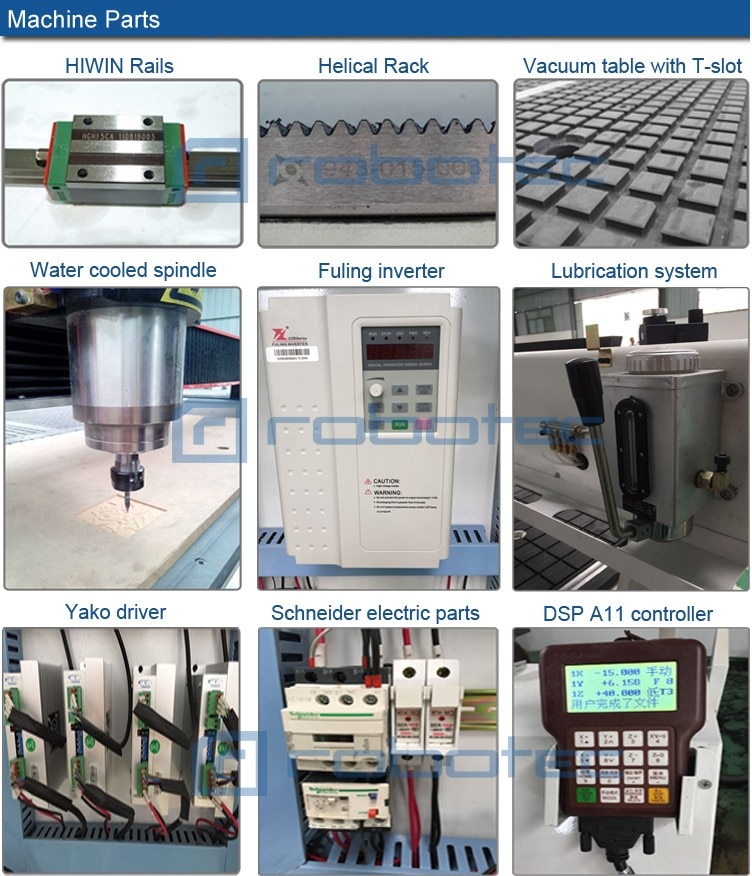

1325 wood cnc router parts:
wood cnc router 1325>>Standard Configuration:
1) Mach3 control system:Popular and easy operation, with USB port to transfer program;
2) Water cooling Spindle:Long working life, easy maintenance;
3) Big Stepper Driving Moto:With highly control precision and high speed, reliable and stable;
4) Taiwan Hiwin Guide and Block:Guaranteed genuine rail with good quality, realizing smooth movement;
5) Taiwan TBI ball screw:linear motion with high precision and and in high speed
6) Helical rack and pinion:quiet running, greater accuracy, smoother cutting and allows greater acceleration and feeding rates, longer lifetime because of smaller wearing force.
7) Taiwan Delta Inverter:Guarantee the variety working speed and protect the spindle very well;
wood cnc router

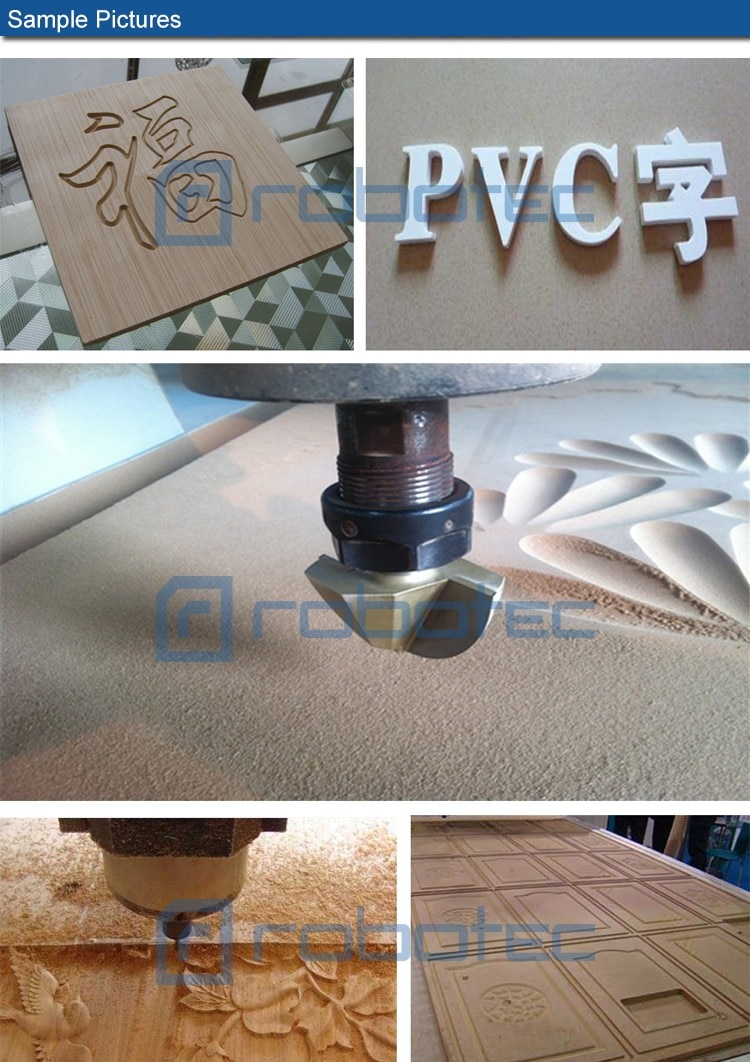

>>Applicable Material:Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
>>Applicable Industry:Woodworking industry, stone industry, advertising industry, artwork or decoration industry, electronica industry, mold industry and music industry etc.
1.Service before order:our salesman will try to know more about your demands , including the max working size, main processing materials and the thickness , so we will offer you suit machine.
2.Service during production: we will send the production the machine pictures for customer in time , customer can know more the detailed machine parts.
3.Service before shipping: the machine parts will be installed and tested by our professional.
technician, send the test video according to customer’s processing materials for customer confirmations.
4.Service after shipping: we will check when the machine arrive your sea port or the approximate arrival date, so that the customer can know the arrival date and to prepare to pick the machine up
5.Service of training: the English manual and operating video will be sent to customers with the machine together, it will help customer how to operate the machine , it there is any question about the operation , we will have the professional technician to help them how to operate by online ,until the customer can use it freely.
6.Service of warranty: we guarantee the machine forTwo Years, some machine parts ( quality problems ) can be free charge to replace it within warranty.
