Description
- Item Type: Stage Lighting Effect
- Occasion: Home Entertainment
- Model Number: 450md-50
- Style: Mini
- Brand Name: Q-BAIHE

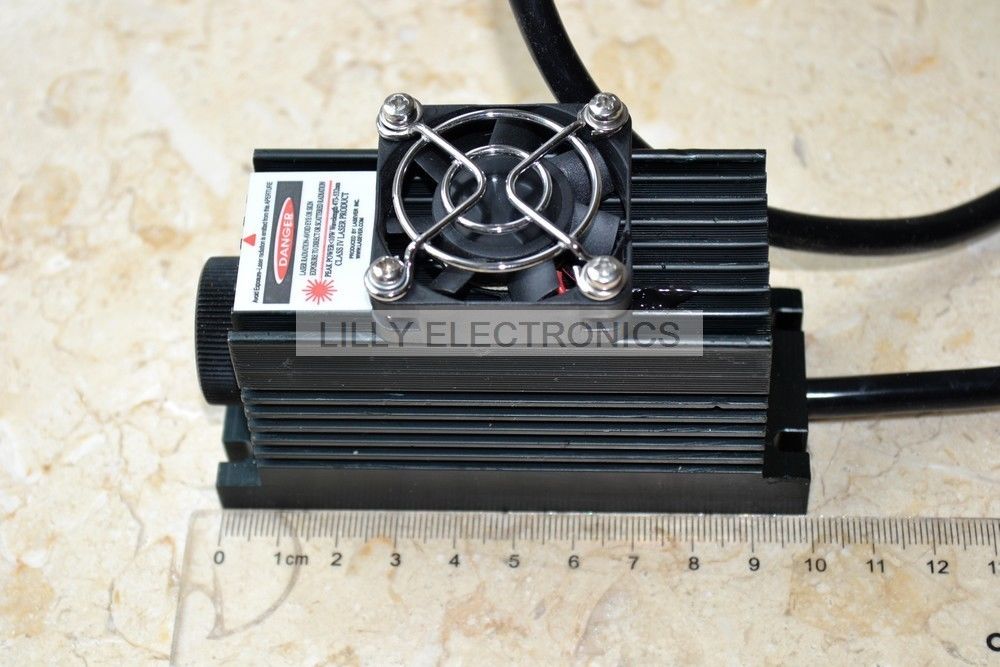

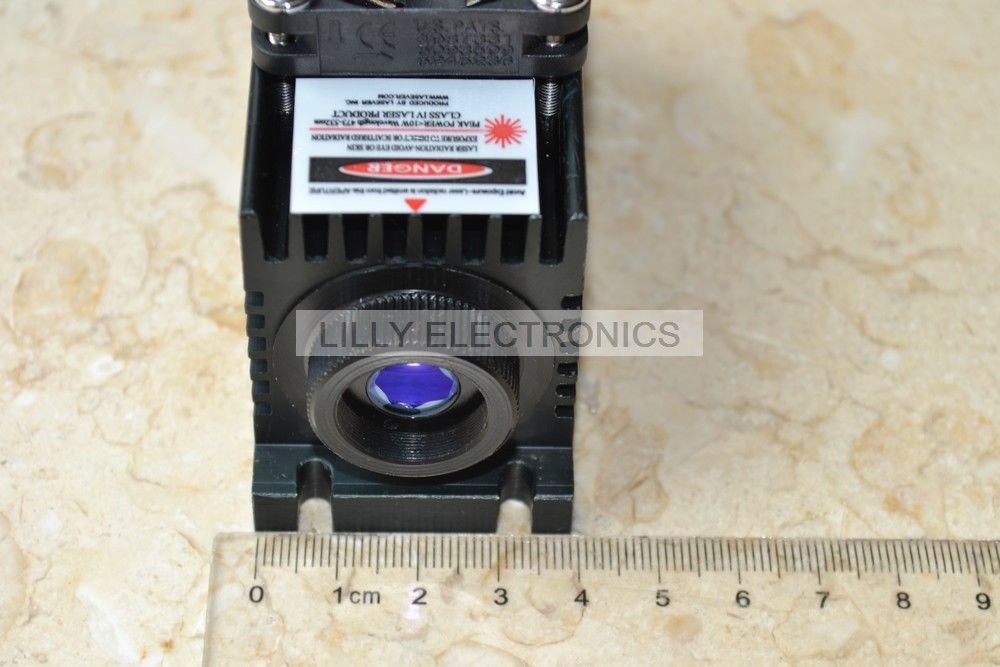

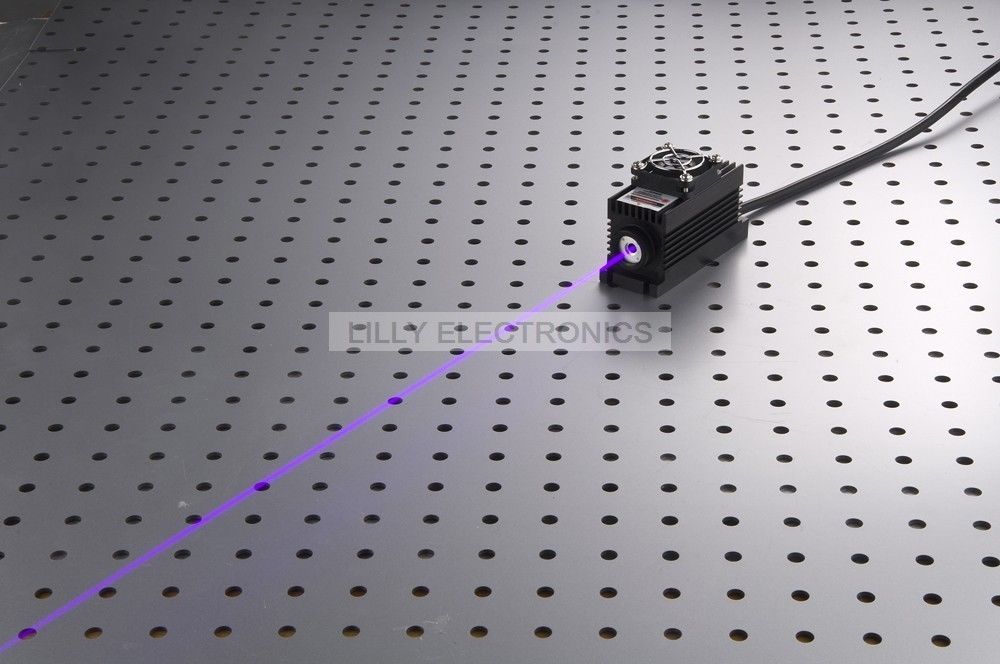

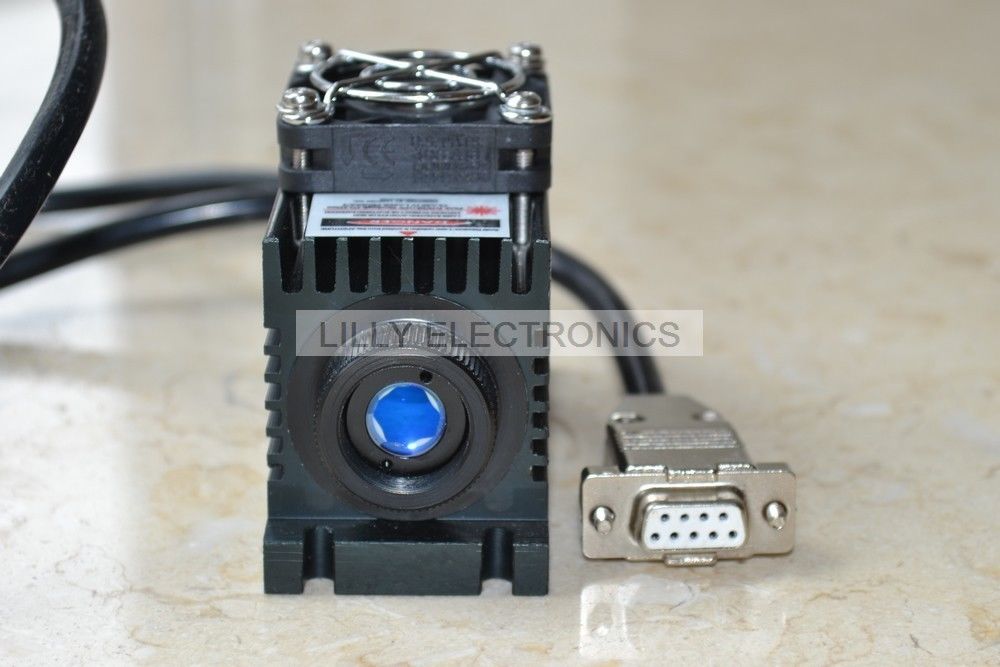

Detailed Description of Laser Diode
Model No. |
LSR405NL |
Wavelength |
405±5 nm |
Spatial Mode |
TEM00 |
Output Power |
50mW |
Operation Mode |
CW or Modulation |
Modulation |
0~30khz Analog or TTL(Optional, note to us which one you need, we will ship Analog one as default) |
Pointing Stability |
<0.05 mrad |
Height |
25mm |
Beam Diameter(1/e2) |
4 mm |
Beam Divergence(full angle) |
0.5 mrad |
Power Stability |
<3% over 4 hrs |
Cooing Method |
TEC (can work long time ) |
Warm Up Time |
<2 minute |
MTTF |
10,000 hrs |
Working Temp |
20-30 degree |
Laser head dimensions |
100(L)x40(W)x50(H)mm3 (fan adds 15mm height) |
Power Supply (Optional, note to us which one you need) |
A. OEM type LSR-PS-I: 100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input |
B. Lab type LSR-PS-IIS: 104(W)x128(D)x89(H)mm3 85~265V 50/60Hz input |
|
C. Lab Adjustable type LSR-PS-IIS: 179(W)x148(D)x56(H)mm3 85~265V 50/60Hz input |
