Precise Colorimeter WF30 8 MM  For Textile , Printing,plastic and toy



Description:



Precision colorimeter  is a professional R & D and production of national standards based on the relevant standards of the International Commission on Illumination CIE colorimeter. The chromatic meter adopts the brand-new imported key components, through elaborate design, stable precision, simple operation and easy to understand, economical and practical characteristics.



The colorimeter used in textile, printing and dyeing, clothing, footwear, leather, chemicals, plastics, plastics, pigments,paints, inks, printing, metal, photography, toys, etc. The color quality control, color control, color analysis, sample testing,production-line testing, is also suitable for injection molding, ink, paint, spraying auxiliary colors.WF30 precision colorimeter 8mm caliber version is a universal colorimeter, considering all walks of life and general method of detecting the color to apply customary and considered a variety of materials in the measurement of the measurement aperture size requirements and developed. WF30 precision colorimeter 8mm caliber version of its versatility and its own tiny difference between units, measurement stability for all sectors for the industry, cross-industry color exchange offer great convenience and trustworthy and reliability.

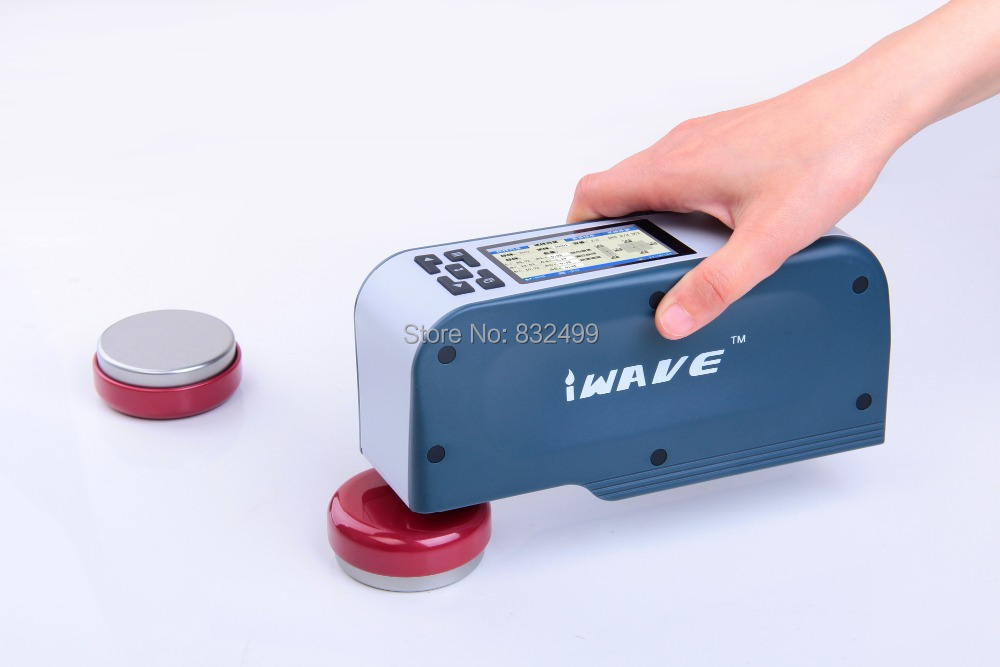

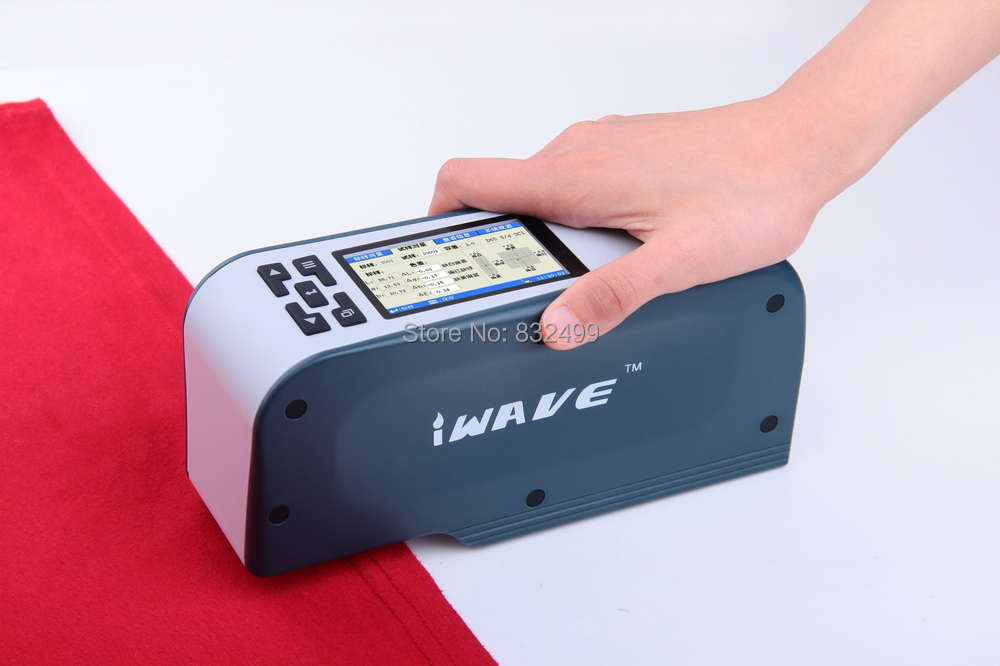

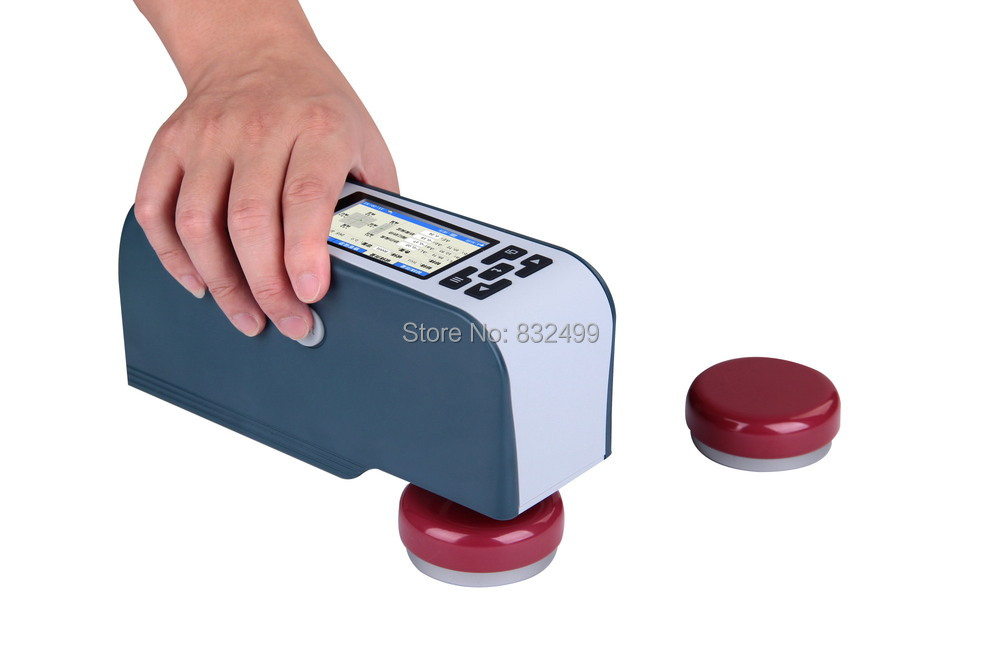

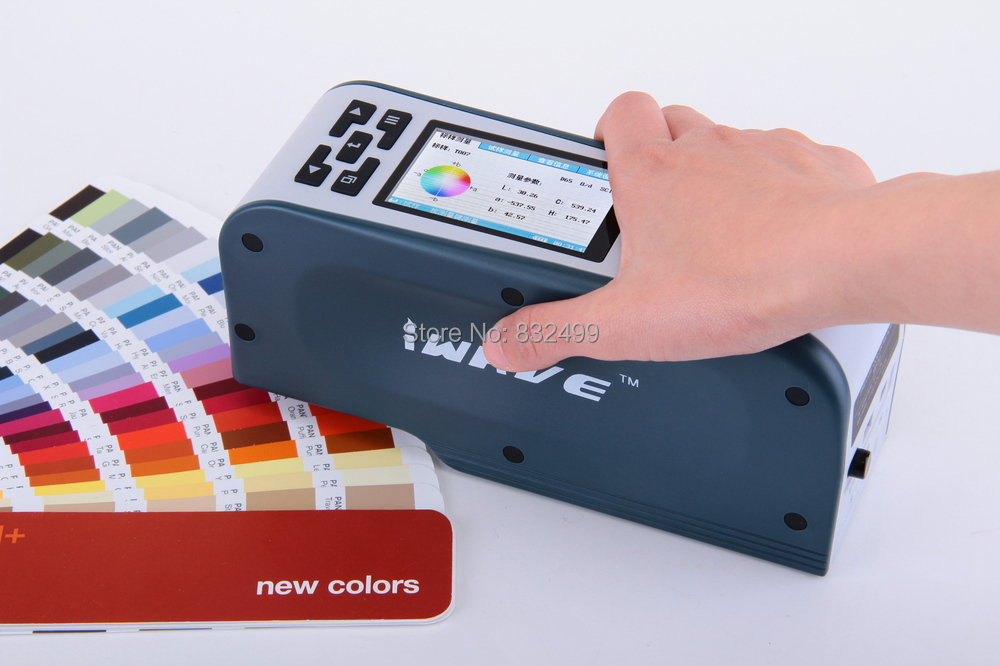

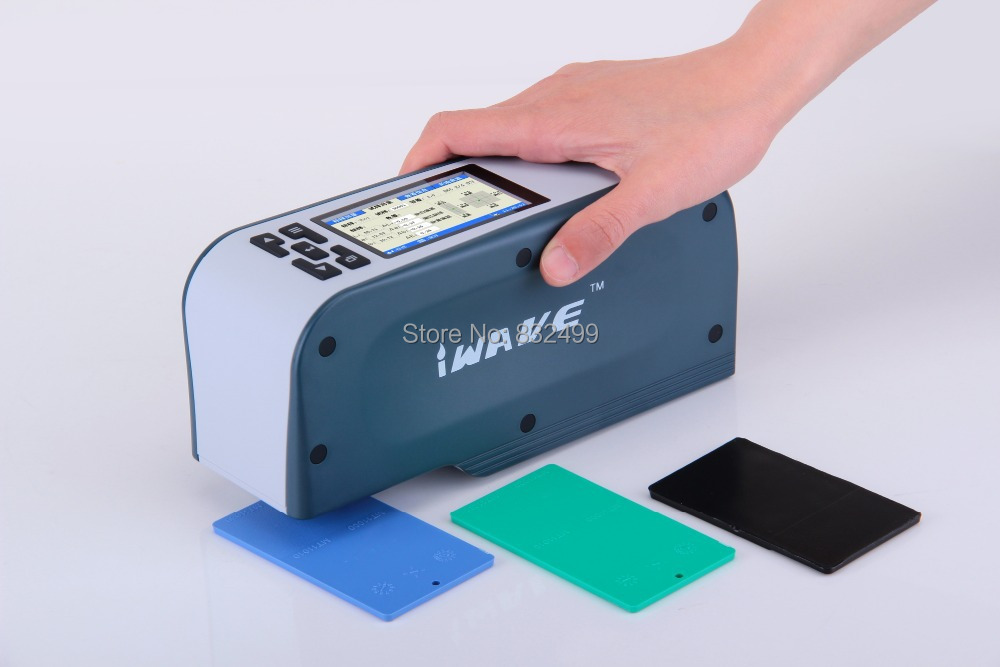

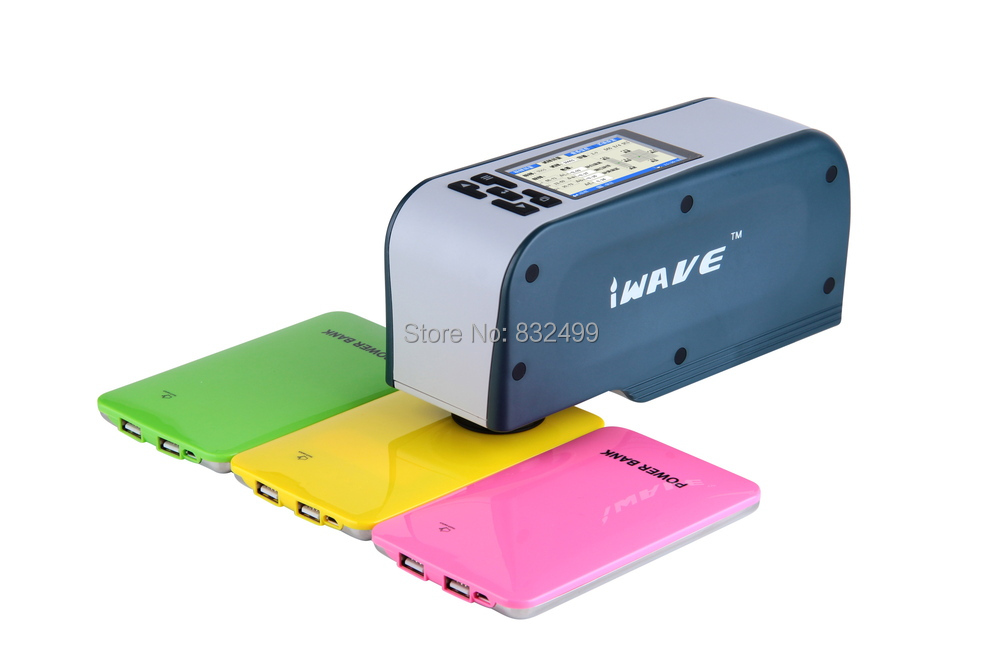

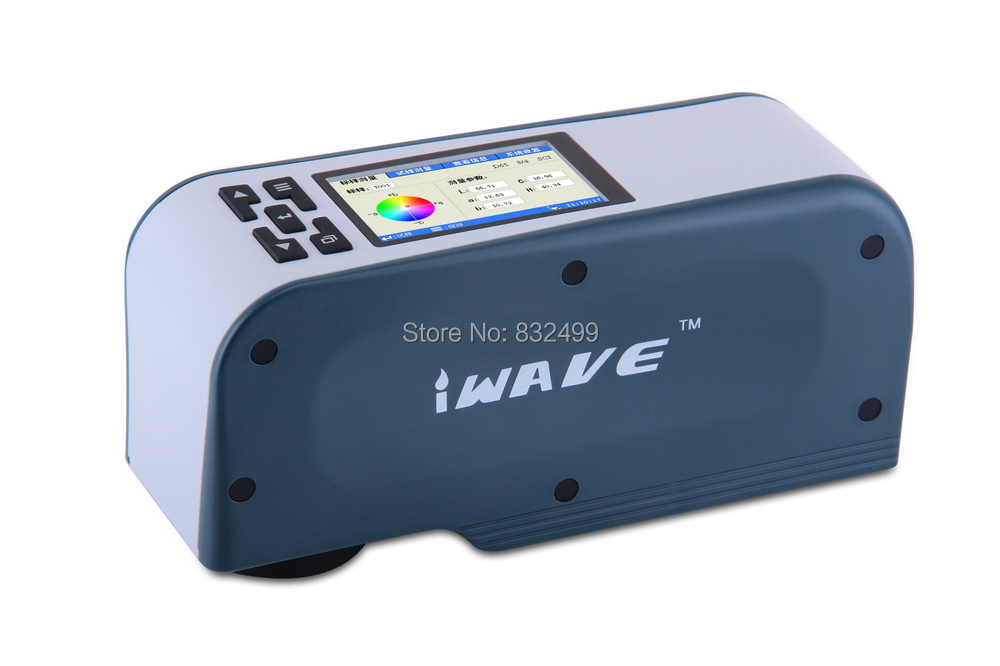

WF30 Precise Colorimeter
Model Number	WF30
Display mode	CIELAB,CIELCH
Color difference formula	ΔE *ab
Illumination Condition	CIE Recommendation:8/d
Light Source	The LED blue light excitation
Sensor	Photodiode array
Measuring Aperture	Φ8mm
Measuring Condition	Observer:CIE 10° Standard observer    Light source: D65 D50 F11 (TL84)   Contain light way:SCI SCE
Measuring Range	L:0-100
Repeated Accuracy	ΔE<0.05(take the deviation average after 30 times measuring the whiteboard)
Table Difference	ΔE <0.2
Measurement Time	0.5 second
Storage Capacity	100 standard samples and 20000 test sample
Battery Power supply	Li-ion battery, 5000 times Measurement
Lifetime of Bulb	5years more than 160 million measuring
Display screen	TFT true color 2.8inch@(16:9)  Resolution ratio:400×240
Interface of External	USB2.0 (USB-B)-DATA communication with “color analysis system” software RS-232 (115200bps)- connected with micro printer
Working Temperature Range	0°C-40°C (32°F-104°F)
Storage Temperature Range	-20°C-50°C (-4°F-122°F)
Humidity Range	Relative humidity less than 85%,without condensation
Net Weight	700g
Dimension	199x68x90mm
Demension after package	400x240x340mm

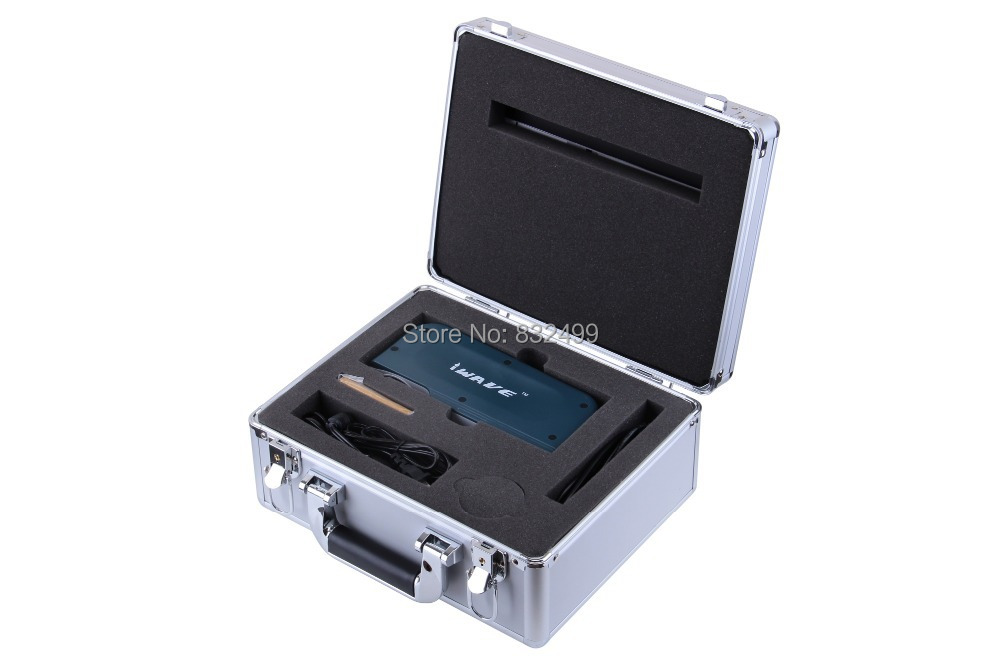

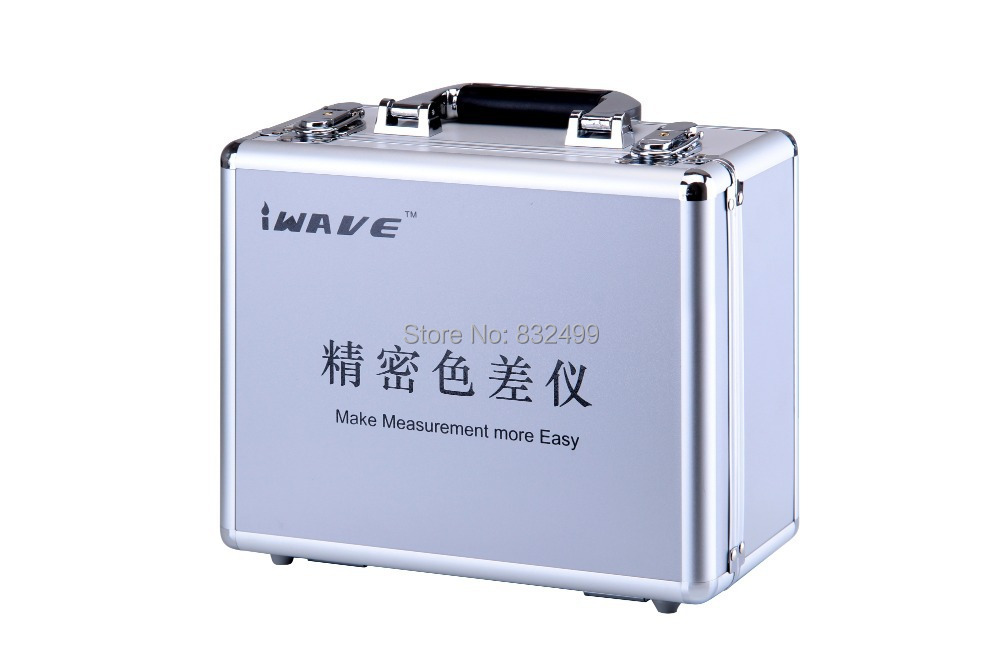

Standard Accessory	3000mAH Li-ion battery/AC adapter/User manual/Warranty card
Optional Accessory	Flour measuring device/Liquid measuring device/Micro printer





Feature:



1.Through the SCM test

2.Simple, accurate, easy-to-use, convenient

3.Analysis the best assistant of the color, the simplest operation chromatic meter

4.Chromaticity diagram, color difference bias Figure directly imply larger font display, be clear at a glance

5.The design of human engineering mechanics

6.High repeat accuracy:  ΔE <0.05

7.Through National Metrology (SCM)

8.Advanced Power Management



Advantage

1. Built-in whiteboard automatic correction function (patent No.: 201220680846.0)

2. Measurements port positioning function (Patent No.: 201220680847.5)

3. New optical structure to achieve a more stable measurement (Patent No.: 201220680441.7)

4. Existing market colorimeter most intuitive, fast and simple operation interface

5. Design in line with industry norms, good feel, easy to grasp, Steady body.

6. Clear and bright screen, large font display, intuitive chromaticity diagram,

color difference bias figure shows color simulation.

7. The number of independent national innovation patent intellectual property rights, to ensure that the instrument’s leading position in the domestic color difference measurement, and to catch up with the international brand strength.

8. Advanced Power Management

9. High stability

10. High accuracy





Application :The colorimeter is applicable in textile, printing and dyeing, clothing, footwear, leather, chemicals, plastics, plastics, pigments, paints, inks, printing, metal, photography, toys, and other industry color quality control, color control, color analysis, sampletesting, production line testing, also suitable for injection molding, ink, paint, spray and other auxiliary color
