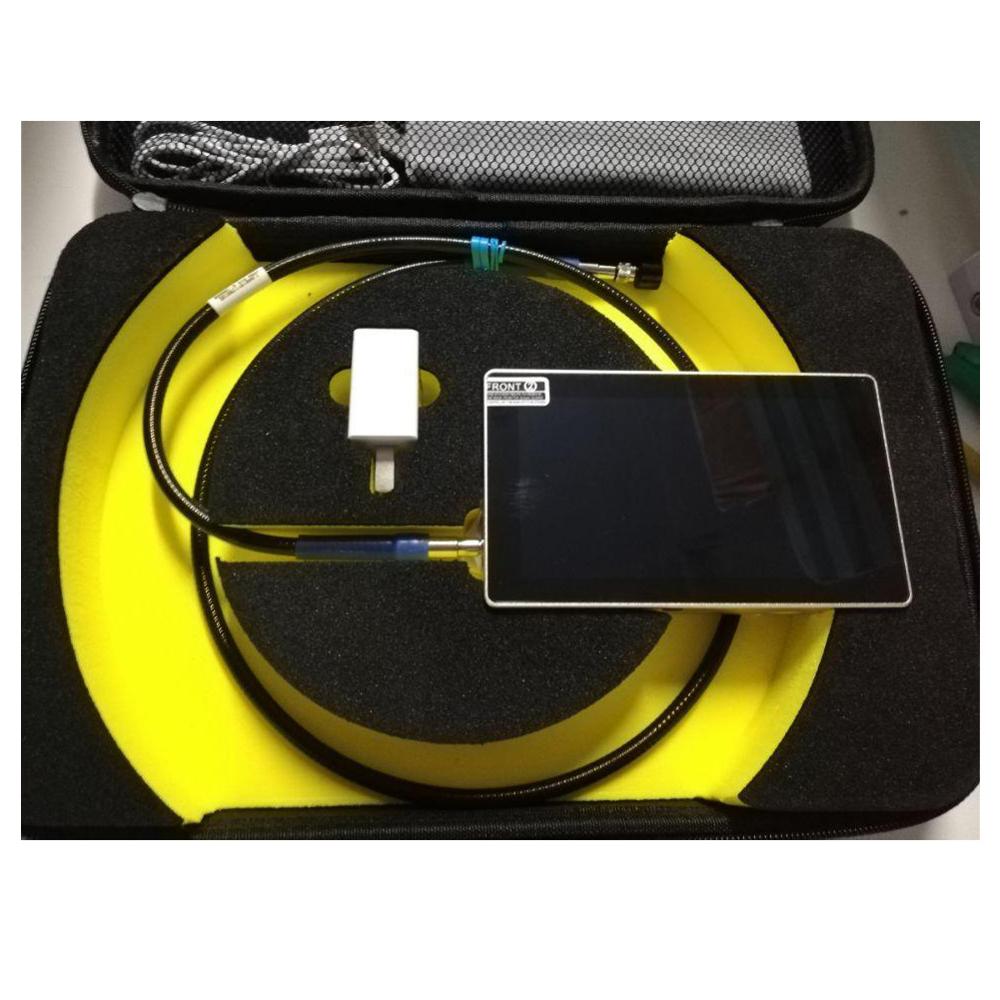

Portable PAR PPFD spectrometer
Wavelength range :350nm-800nm. PPFD test range : more than 4000umol/m2/s PC software English/Russian Language operation

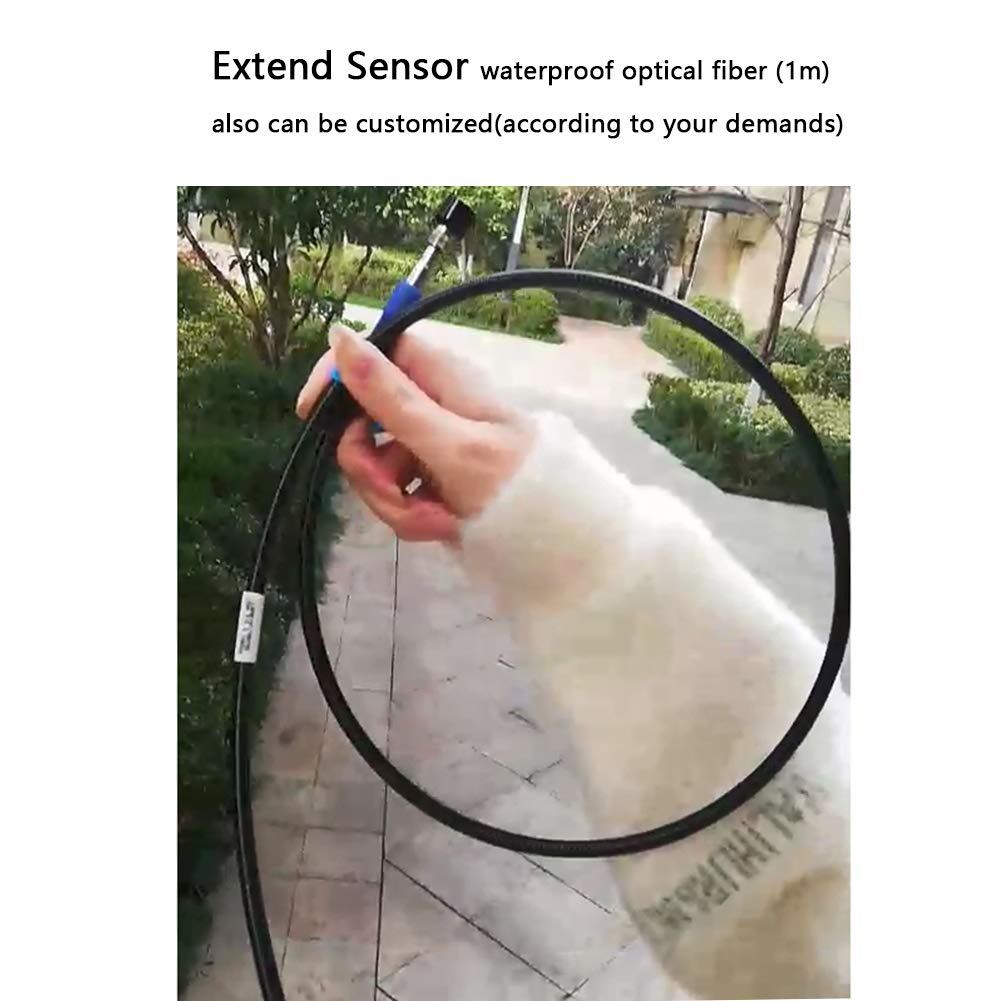

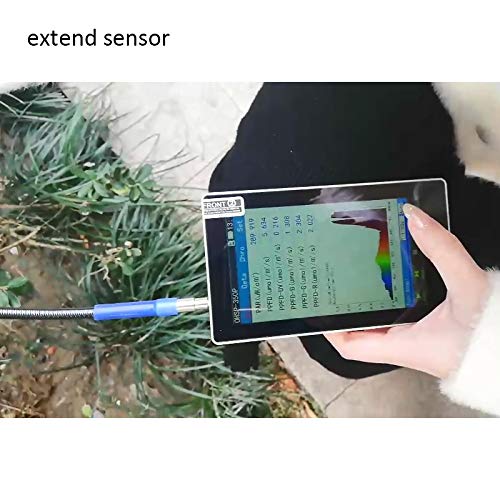

Application: Agriculture, greenhouse, planting, hydroponics Waterproof sensor, length 1.0m or more(according to your demand)

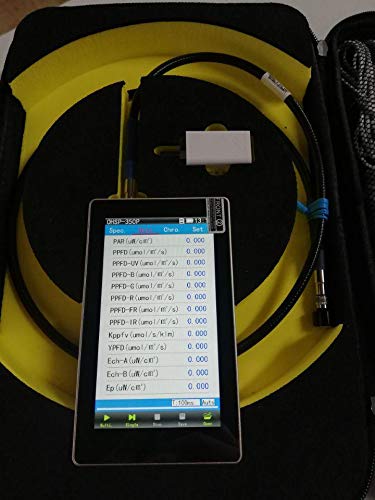

Meas parameters Wave range:350-800nm
| PPFD(umol/m2/s) | Illuminance E(lx) | PPFD |
| YPFD(umol/m2/s) | CCT(K) | SDCM |
| PAR(mW/cm2) | Candle Light E(fc) | coordinate x,y |
| Kppfv(umol/s/klm) | CRI Ra | coordinate u,v |
| Ech-A (mW/cm2) | Spectral Power Distribution | coordinate u’,v’ |
| Ech-B (mW/cm2) | Irradiance Ee(W/m2) |
OHSP350 bacis parameters |
TEST PARAMETER
| Model | OHSP350P Plant Light Version |
| Wavelength range |
350nm ~800nm |
| Light Splitting Mode |
long focal cross section |
| Sensor |
High precision CCD |
| Spectral Bandwidth (FWHM) |
2nm |
| Spectral Resolution |
0.2nm X, Y repetitive ±0.0005 |
| Wavelength Accuracy |
+ 0.5nm |
| Illuminantion Accuracy |
(±4% Reading +1 Digital) |
| Lighting Area |
10mm |
| Integrating Time |
50μs~10000ms |
|
Chromaticity Coordinate Accuracy |
±0.0025. |
|
CCT Range |
1,000K~ 100,000K |
|
Stray Light |
≤0.3% |
|
Illuminance Range |
5lx~200klx |
