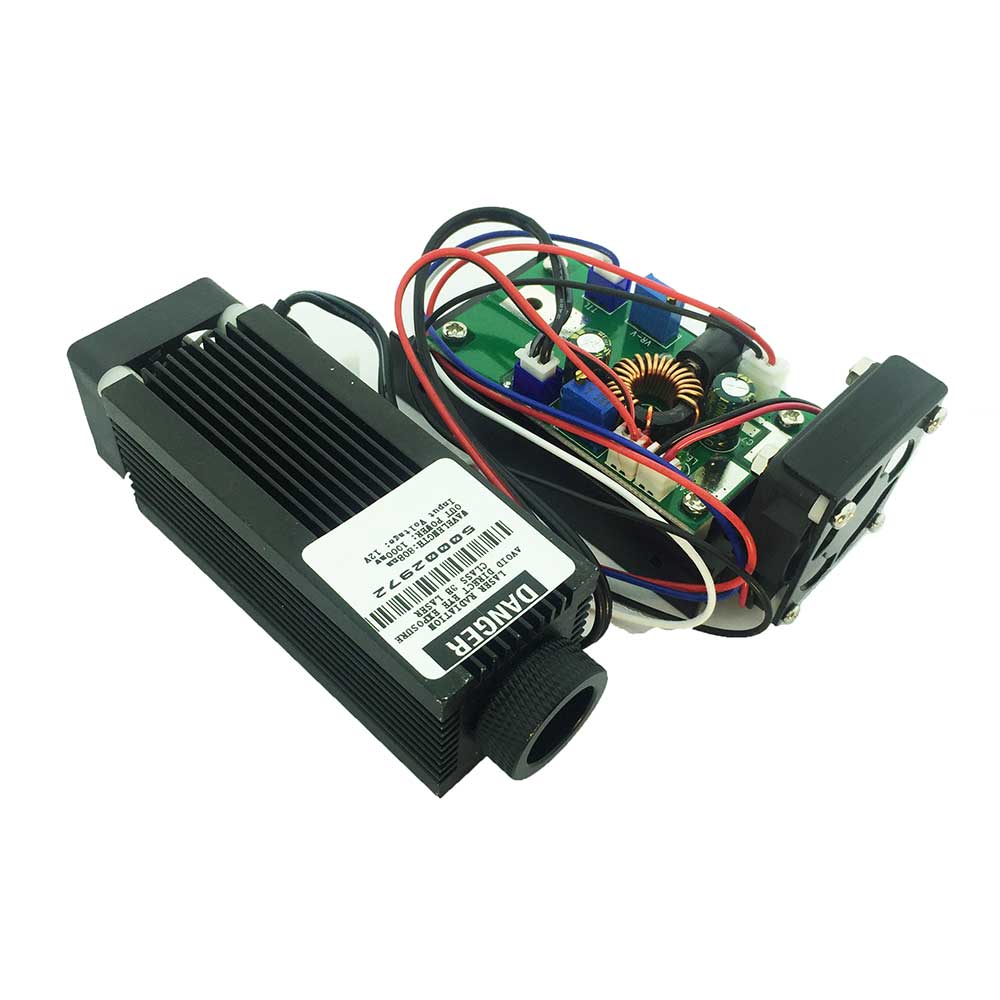

Powerful Focusable 808nm 1000mW Infrared Laser Module Invisible 1W IR Laser cnc Diode Lazer with TTL driver board Cooling Fan

$290.97

46 in stock

SKU: 32564711245 Category:

Description

  • Brand Name: tgleiser
  • Style: Mini
  • Model Number: TGLM-IR808-1
  • Power: 1W
  • Item Type: Stage Lighting Effect
  • Occasion: Professional Stage & DJ
  • Voltage: 12V
  • Color: Infrared Light
  • wavelength: 808nm
  • High Power: 1W 1000mW 1 w 1000
  • Laser: Invisible IR Laser
  • Type: Laser 808nm
  • Laser module: Inrared Laser

Powerful Focusable 808nm 1000mW Infrared Laser Module Invisible 1W IR Laser cnc Diode Lazer with TTL driver board Cooling Fan

​Description OF PRODUCTS:

Focal Length: Can adjust
Laser Beam: Focusalbe Beam, Collimated Beam
Wavelength: 808nm
Output Power: 1W / 1000mW
Drive mode: external ACC constant current drive

Modulation:
TTL Modulation (TTL/PWM)
TTL/PWM logic:
Low level (0V):  OFF,
High level (5V) or Unconnected:  ON,
Frequency <20Khz

Operating Voltage: DC 12V
Power supply current: >2A

Lifespan: >10000hours

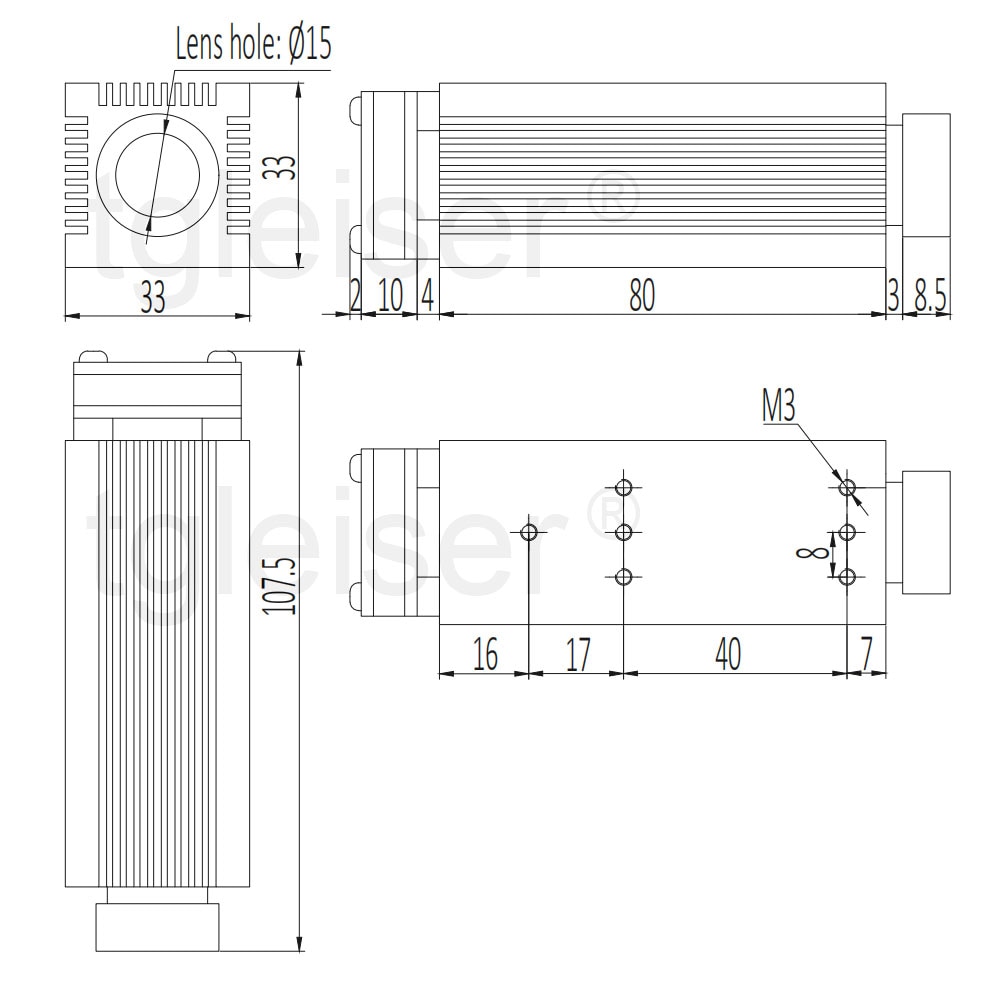

Module Size:  33mmx33mmx110mm
Driver board:  92mmx46mmx45mm


Material: hard aluminum + brass
Finish: Black anodized + sandblasting
Heat dissipation: Fan cooling

1. High power output. Can adjust the focus. (With fingers)
2.  Wood carving can light matches, pop balloons, black plastic
3. Coated glass lens, constant current and voltage, high quality.
4. Good cooling, with TTL / PWM (0~20KHz, White cable at + and Blue cable at -)
5. the output light beam is very small. Focus diameter <1mm
6. The output beam is IR . human eye can only see the weak red color or see nothing.

Tip:
Dry and black wood is the best. Not suitable for long distance burn. about within 300mm. You can set the focus.
can be carved materials: balsa wood, plywood, wood, bamboo, leather, plastics, etc.
the darker the color, the better effect, enhancing the effect may require multiple operations.
the effect depend on the material color, reflectivity, transparency, density, thermal conductivity, etc.
different materials have different effects. and reflected light reflected from highly reflective materials may cause damage to the module.


Attentions:
1. Voltage Input: DC 12V.
2. Please make sure input voltage polarity is correct and does not exceed 12V, and TTL / PWM input signal is correct, otherwise it will burn laser module.
3. Prevent high voltage electrostatic damage.
4. It is recommended to install on a metal plate with good heat dissipation.
5. The light beam can not shoot to anyone or any flammable, otherwise It can result in injury or fire!!!
6. A high proportion reflected beam reflecting to the module itself may cause damage.
7. Please keep the lens clean, smoke and dust can damage the lens.



Package: 1 x 808nm 1W Laser Module with TTL / PWM
