Description
- Certification: CE
- Certification: NONE
- Origin: CN(Origin)
- Model Number: 15W blue laser module
- Laser Type: diode blue laser
- Spot type: retangle spot
- Output wavelength: 445nm ~ 450nm
- Output power: pulse 15W average 8W

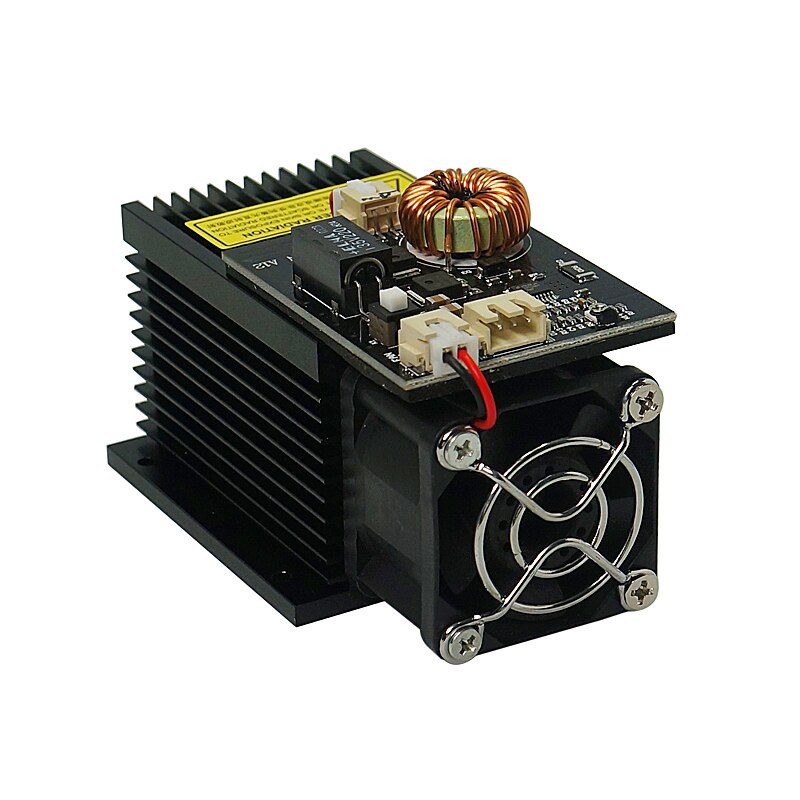

15000MW desktop diode Laser Module 450NM Focusing Blue Laser Head Laser Engraving Machine Tools Laser Tube
Specification:
- Spot type: retangle spot (fixed focus, NOT FOCUSABLE)

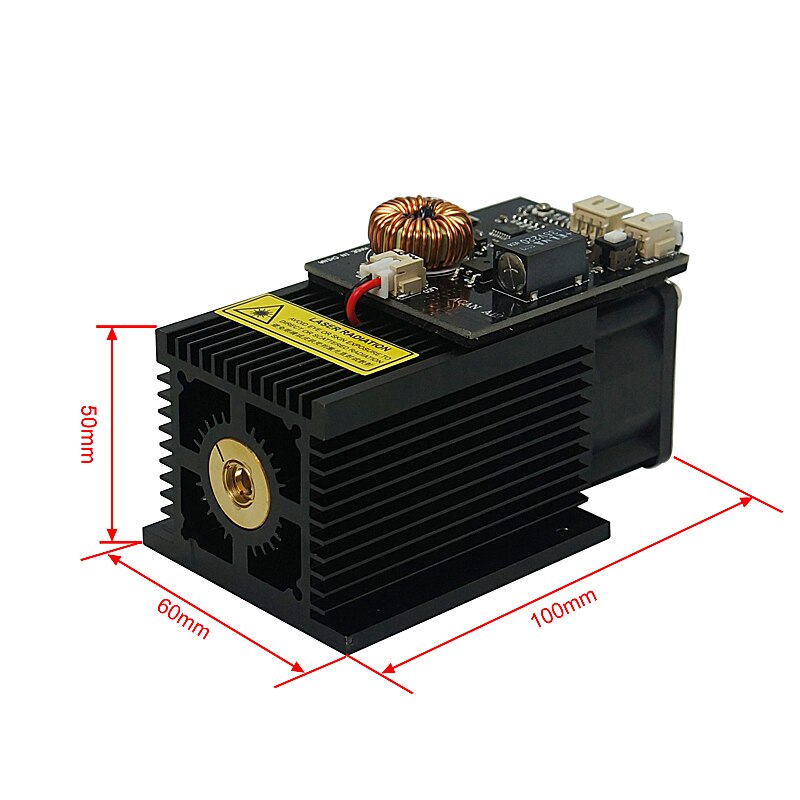

- Main body size: 50mm long * 50mm wide * 100mm high
- Output wavelength: 445nm ~ 450nm
- Output power: pulse 15W average 8W
- Drive mode: external ACC constant current drive
- Cooling method: forced air cooling
- Shell material: aluminum, surface anodized
- Collimator lens: optical glass coating
- Modulation frequency: TTL can modulate 0v- off 5v PWM frequency <9Khz
- Working voltage: DC=12V
- Working current: I<3A
- Focus: not adjustable
- Working temperature: 15 ℃ ~ 45 ℃
Packing List:

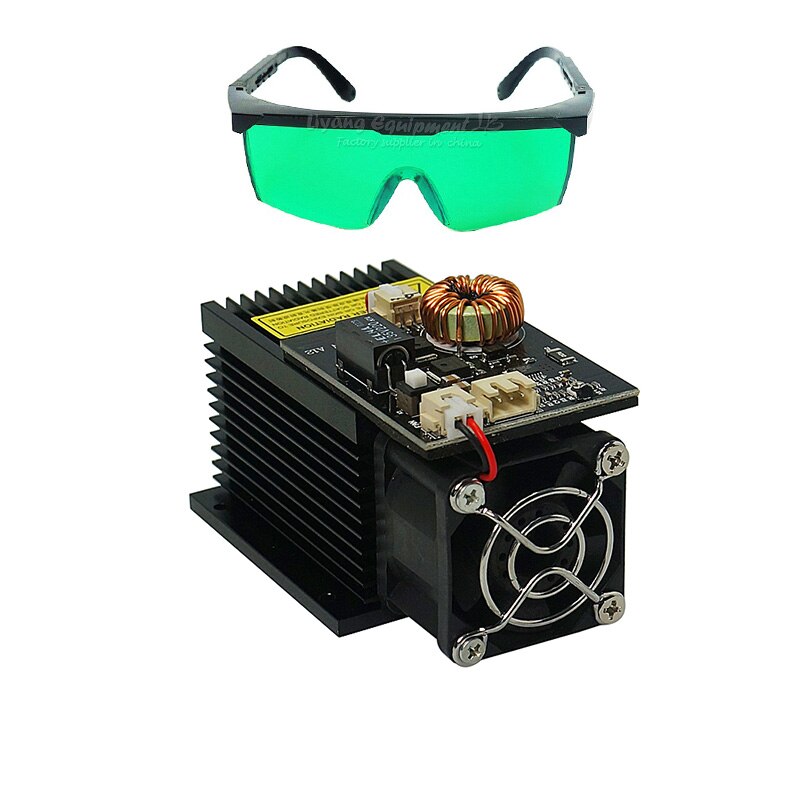

1 x 15w blue laser module
1 x glasses
(RE: Due to batch difference,maybe PCB board color maybe little different with picture,but module is correct power,if mind don’t buy please,or will cause unnecessary dispute.)
