Description
Product Description
The optical fiber sensor is fixed, you cannot remove by yourself, and the optical fiber is 1m, if you need longer, pls feel free to contact me: sales2@hopoocolor.com
Specification
|
PPFD(umol/m2/s)
|
PAR（mW/cm2）
|
Kppfv(umol/s/klm)
|
YPFD(umol/m2/s)
|
|
Ech-A (mW/cm2)
|
Ech-B (mW/cm2)
|
S/P
|
Dominant wave(nm）
|
|
Illuminance E(lx)
|
Candle Light E (fc)
|
Spectral distribution
|
Purity（%）
|
|
CCT(K)
|
CRI Ra
|
Irradiance Ee(W/m2)
|
SDCM
|
|
Coordinate x,y
|
R1-R15
|
Duv
|
CIE1931
|
|
Coordinate u,v
|
Centroid (nm)
|
Half width(nm)
|
CIE1960
|
|
Coordinateu’,v’
|
Central wave(nm)
|
Peak wave(nm)
|
CIE1976
|
|
Blue ratio(%)
|
Green ratio(%)
|
Red ratio(%)
|
Colour Tolerance Ellipticgraph
|
|
Model
|

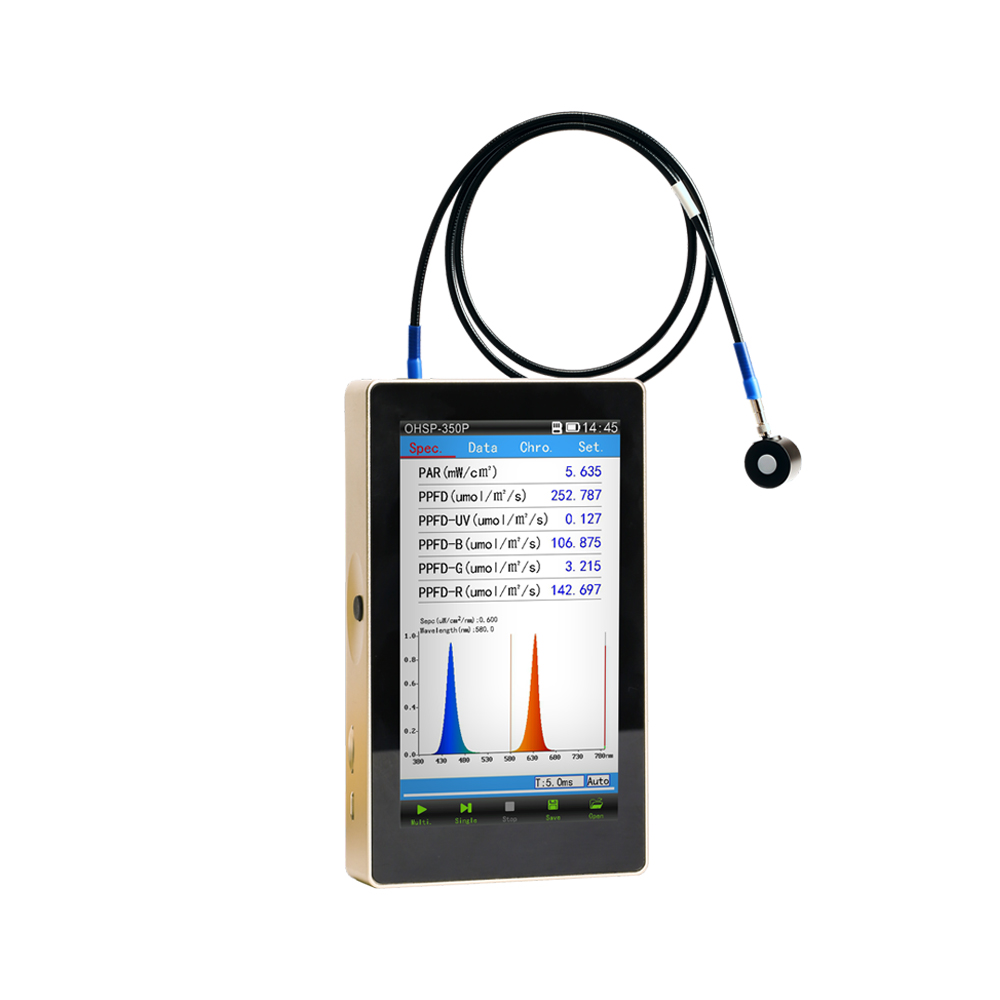

OHSP350P+ 1m optical fiber rectangular sensor
|
|
Wavelength range
|
350-800nm
|
|
Light Splitting Mode
|
long focal cross section
|
|
Sensor
|
High precision CCD
|
|
Spectral Bandwidth (FWHM)
|
2nm
|
|
Spectral Resolution
|
0.2nm X, Y repetitive ±0.0005
|
|
Wavelength Accuracy
|
+ 0.5nm
|
|
Illuminantion Accuracy
|
(±4% Reading +1 Digital）
|
|
Lighting Area
|
Ф10mm
|
|
Integrating Time
|
50μs～10000ms
|
|
Chromaticity Coordinate Accuracy
|
±0.0025.
|
|
CCT Range
|
1,000K~ 100,000K
|
|
Stray Light
|
≤0.3%
|
|
Illuminance Range
|
5lx～200klx
|
