Description
- Item Type: Dimmers
1. Application Scope: Measuring Co2 laser, YAG laser, ,DPSS lasers, laser lights, medical laser and fiber optic light and so on. Error is small, high accuracy!

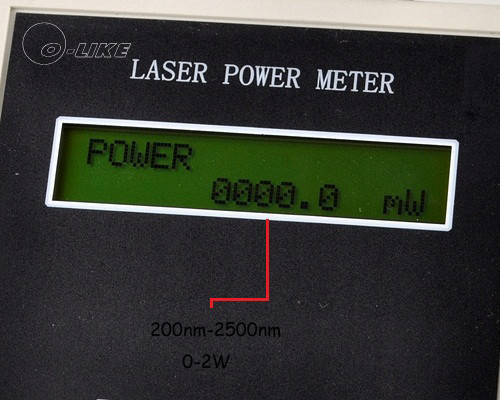

2. Accuracy display: 20mW power meter minimum display digits: 0.001mW, 200mW minimum display digits: 0.01mW, 2W ~ 200W minimum display digits: 0.1mW
3. Features:. This power meter is in a wide wavelength range (0.19-11μm), flat spectral response, so the power response rate is not wavelength-dependent, pro cost savings, eliminating the wavelength correction trouble. . B absorbing surface can withstand high power density: 100mW / cm2, @ 10ns pulse can be directly measured light, reducing the use of attenuators trouble. c, high sensitivity, resolution 1μW. d. Natural cooling, no water cooling.
4.This power meter is no USB computer display
If you need USB computer display and rechargeable power function, we can made for you, after conversion, You don't need to find that a 220V power supply, easy to carry, and connected to your computer and displayed on the computer power),Pls let me know if you need this function
Operation method

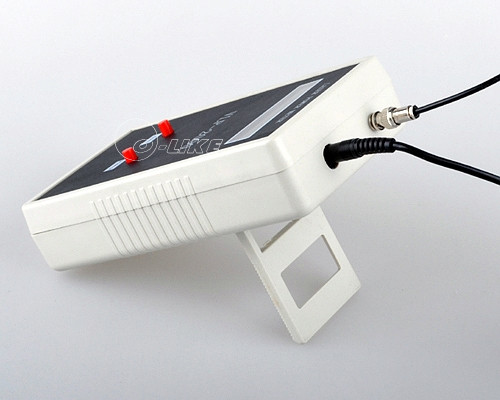

1 laser power meter and meter detector connected, and connected to AC110~220V power supply 50Hz.
2 the laser beam on the probe, 1~2 seconds after the power reading, please refer to the stability of the reading on the power meter.
3 in order to get more accurate power measurement, please pay attention to the operation and before operation:
1) after the power supply, if the background light is strong, the power meter reading is not 0, please press the "zero" key to clear, and then the measurement

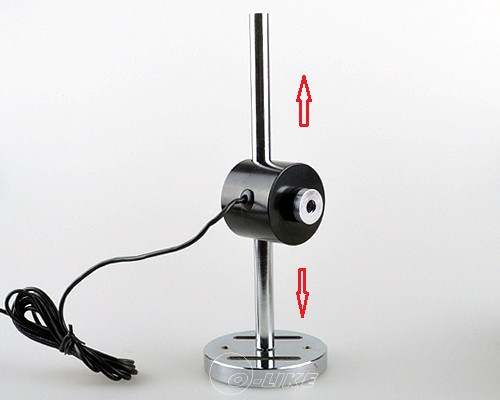

2) the probe should be on the laser beam to ensure that the laser is fully and vertically into the probe.
3) in the measurement of high power laser, the detection time should not be too long, to ensure that the power meter probe does not heat.
