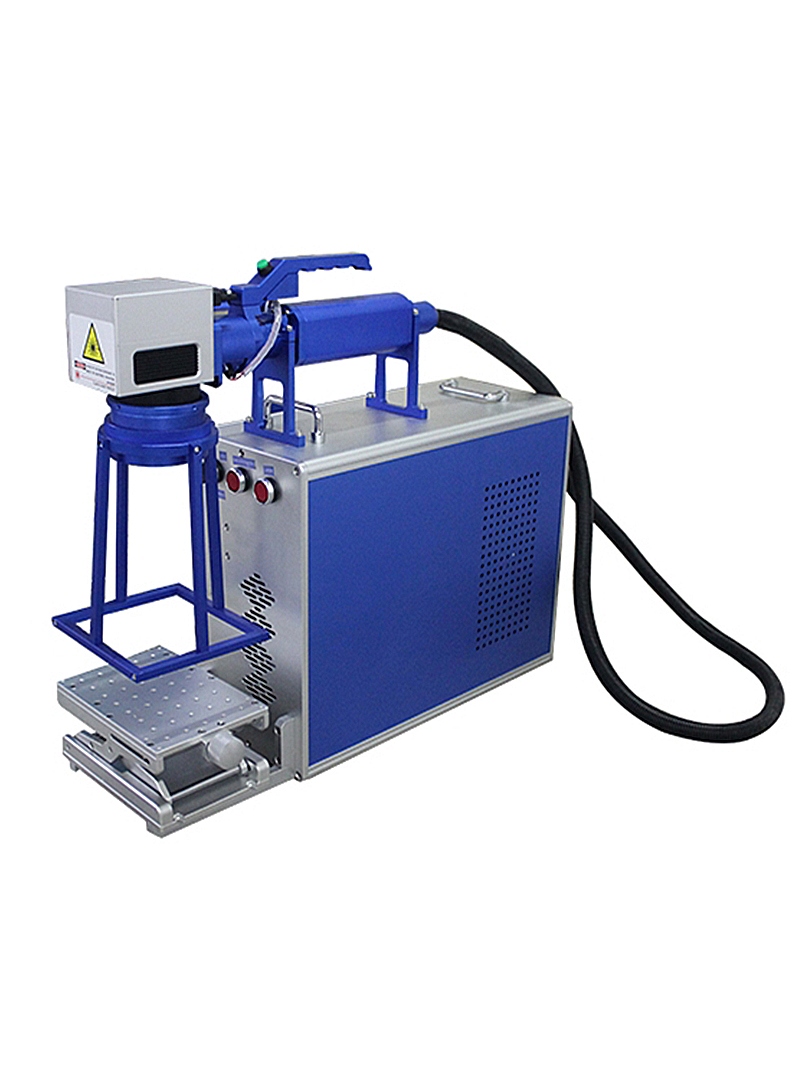

Portable Fiber Laser Nameplate Marking Machine 20W 30W 50W Super-laser Max Raycus Fiber Laser Source Optional Suitable

$3,519.67$5,979.93

SKU: 1005004198696675 Category:

Description

  • Brand Name: LYBGACNC
  • Origin: CN(Origin)
  • Certification: CE
  • Certification: ce
  • Model Number: Fiber laser marking machine

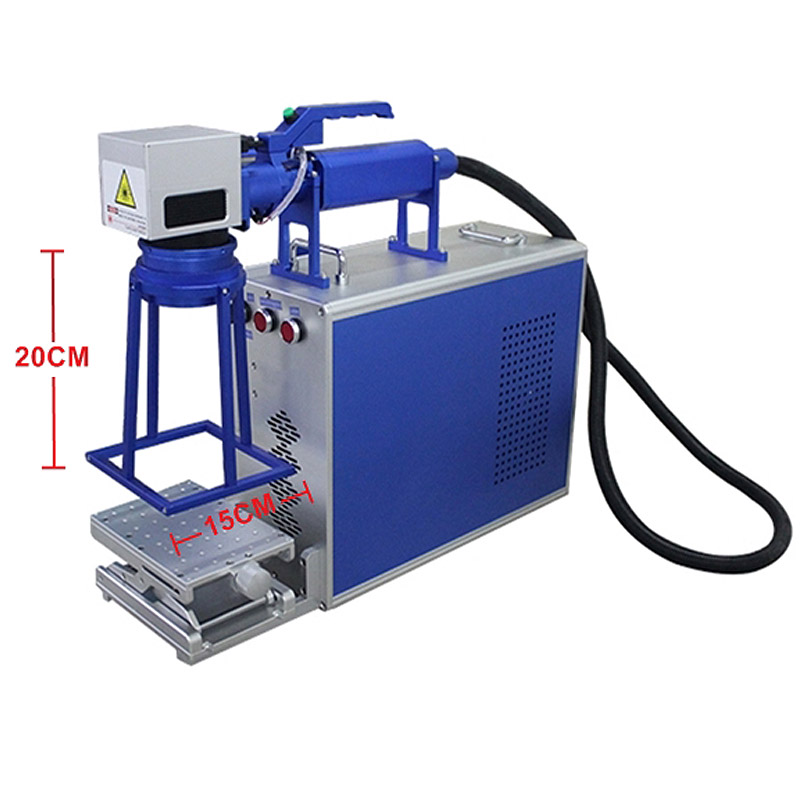

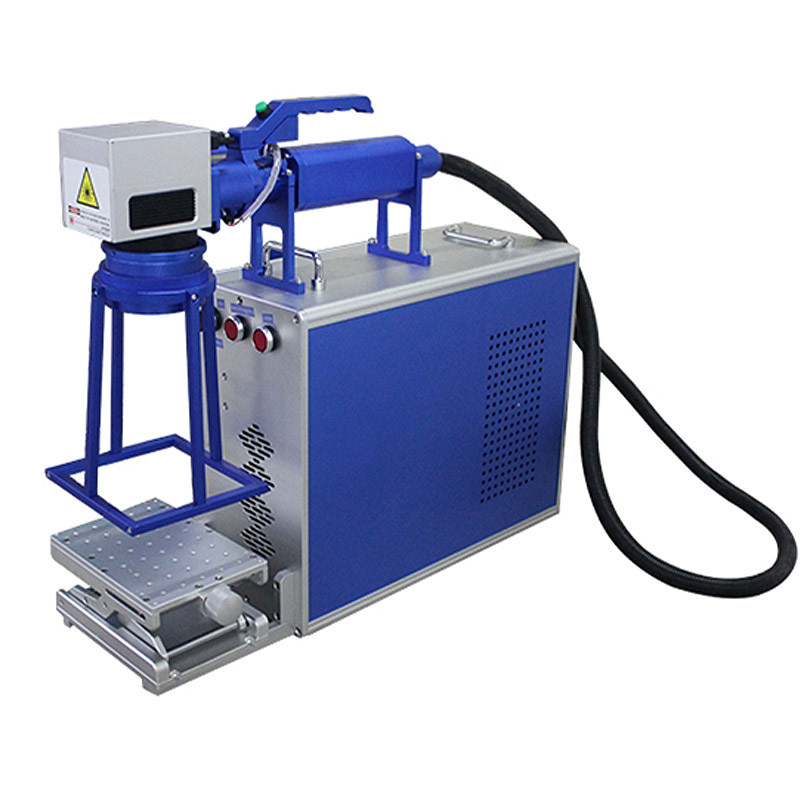

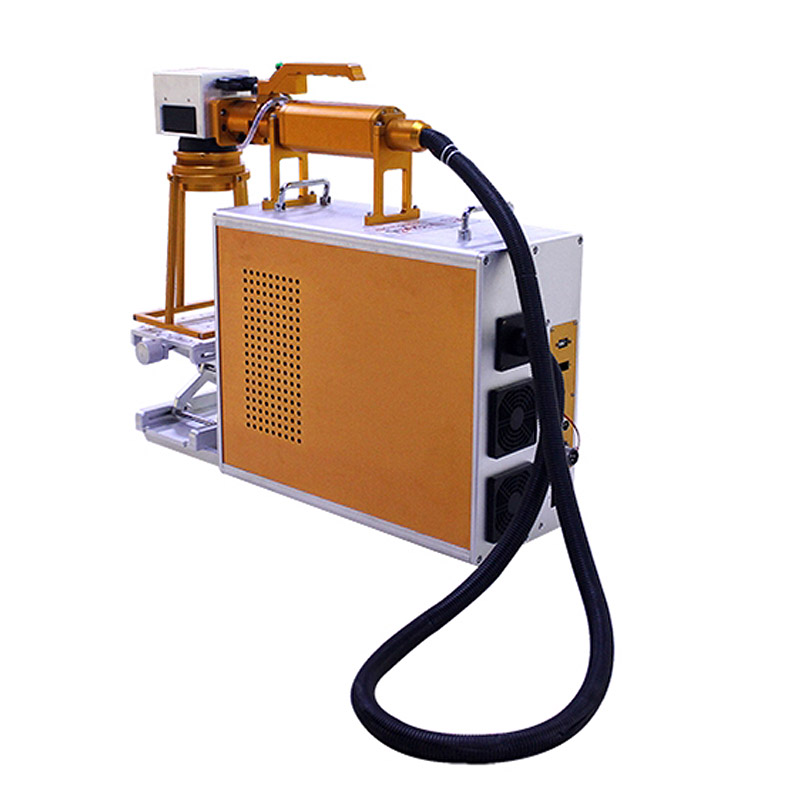

LY Portable Fiber Laser Nameplate Marking Machine 20W 30W 50W Super-laser Max Raycus Fiber Laser

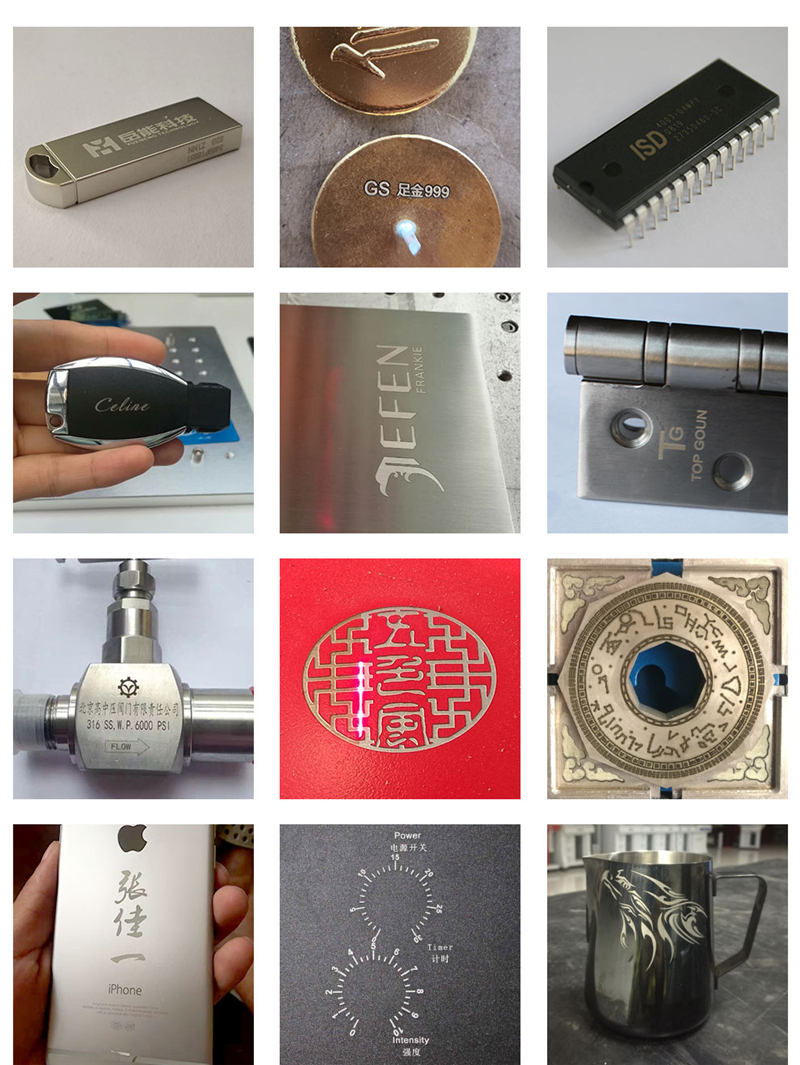

Source Optional Suitable For Non-Glare Metal Iron Stainless Steel Gold Silver Copper

RE:This fiber laser marking machine with 2 working modes:

A.Sports Mode

People can take fiber parts by hands, and put it on target surface to Make laser marking.(Usually for big device,

and surface is flat.) Just put fiber laser metal cover on target area, then RUN machine is OK.

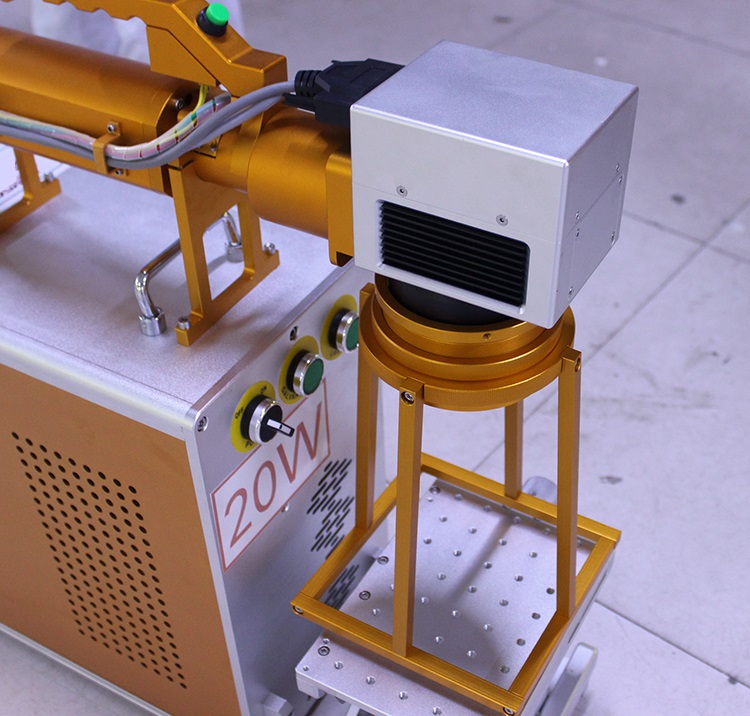

B.Static Mode

Just keep fiber parts on machine base to RUN, can also take off metal cover & Install bigger field mirror to use.

(Initial field mirror is 150MM)

Technical Parameter

Model

Fiber Laser power

20W/30W/50W

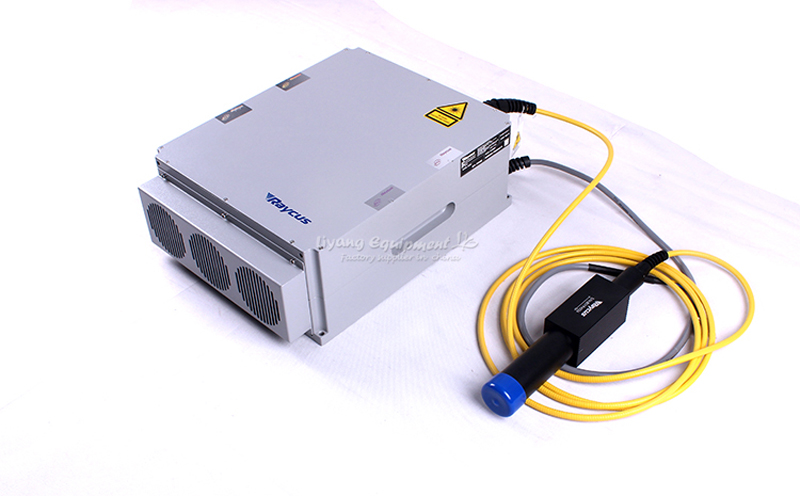

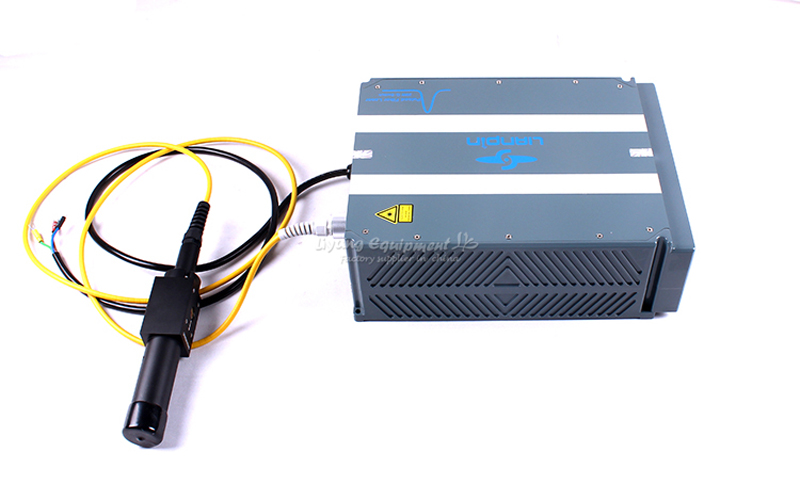

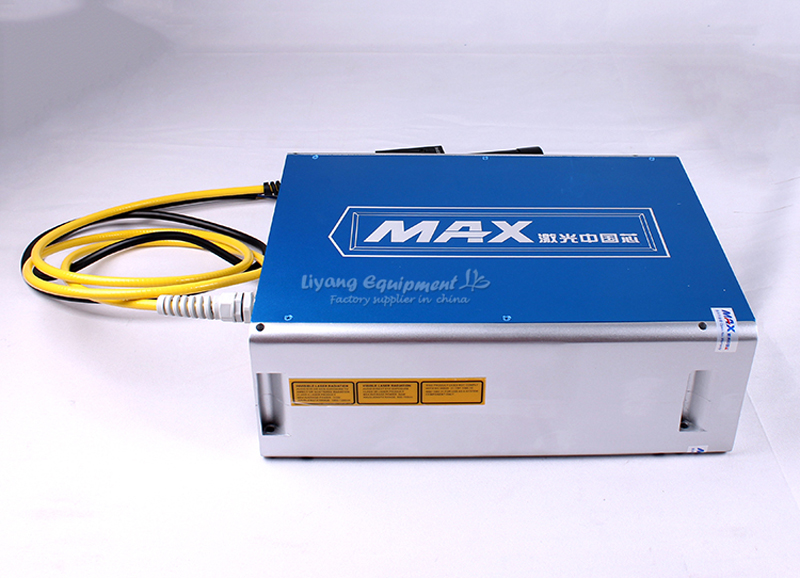

Fiber Laser Brand

Super-Laser/MAX/RAYCUS

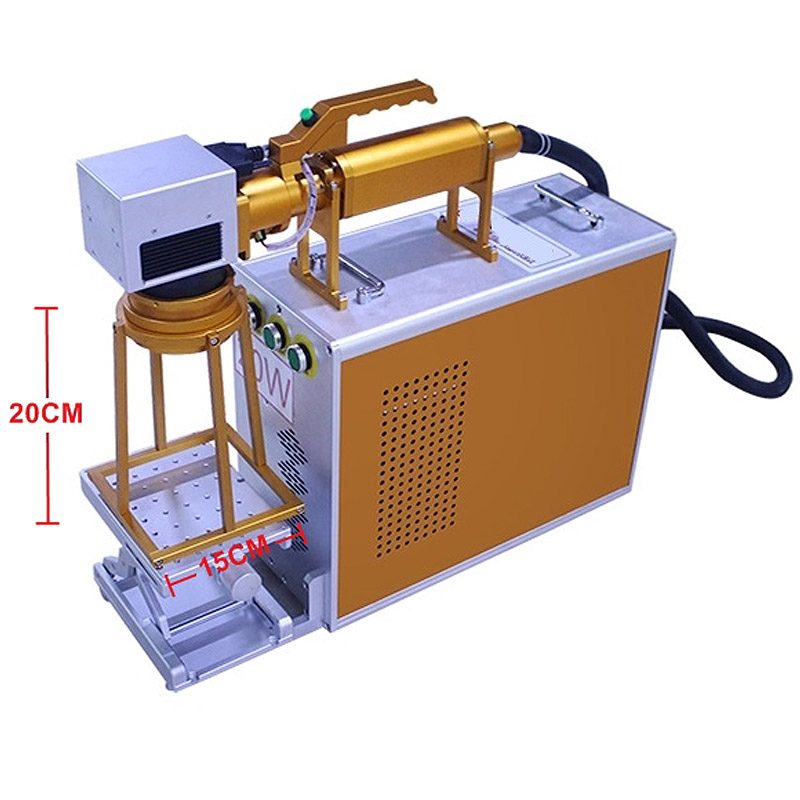

WorkingArea/Length

150*150mm (Optional 110MM/200MM/300MM.

RE: Portable Mode use 150*150MM.

200MM/300MM field mirror will use in Static Mode only.)

Galvanometer

SG7110(Double Red light Align Version)

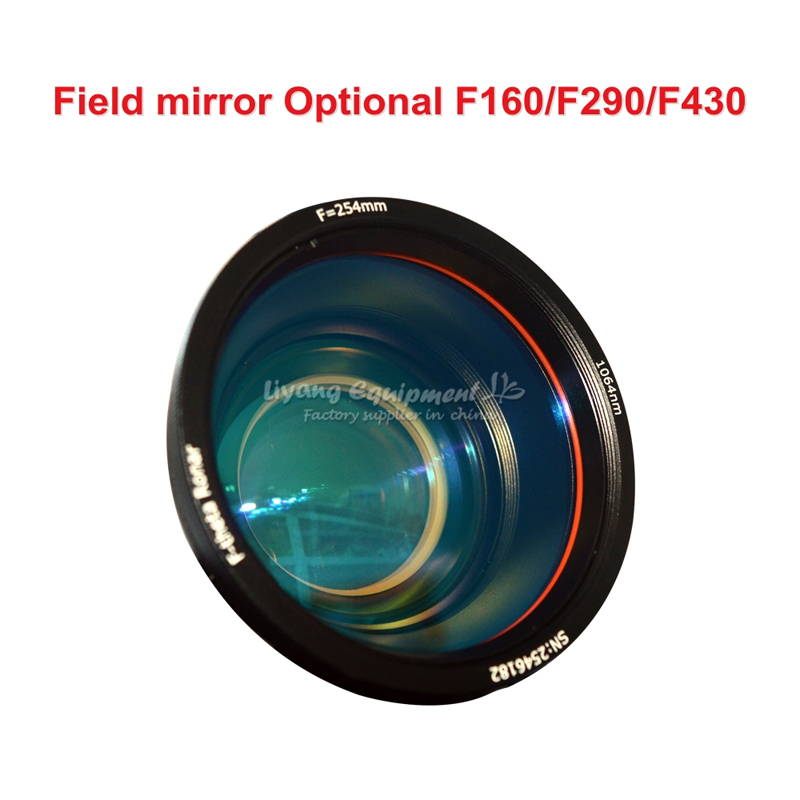

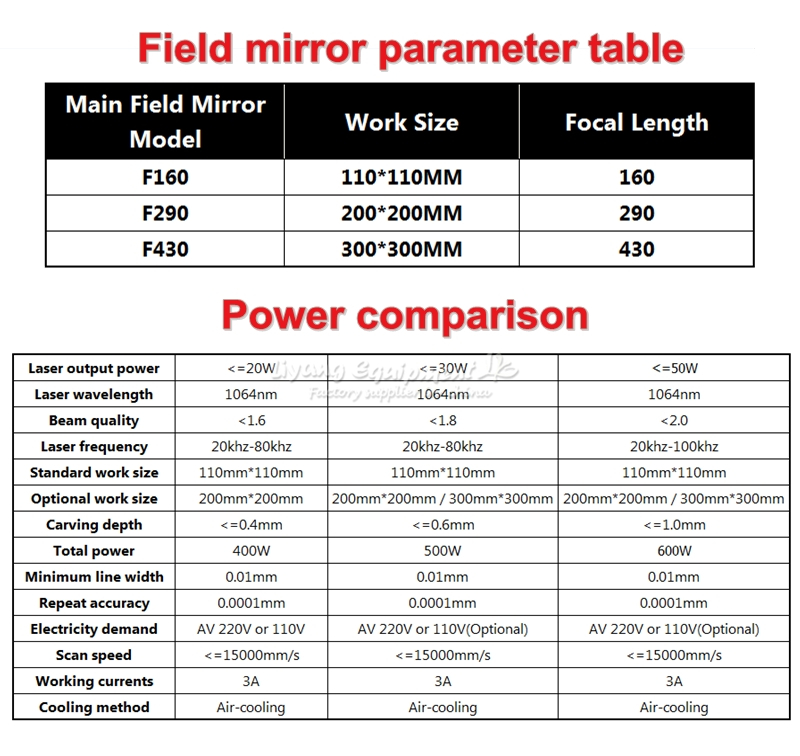

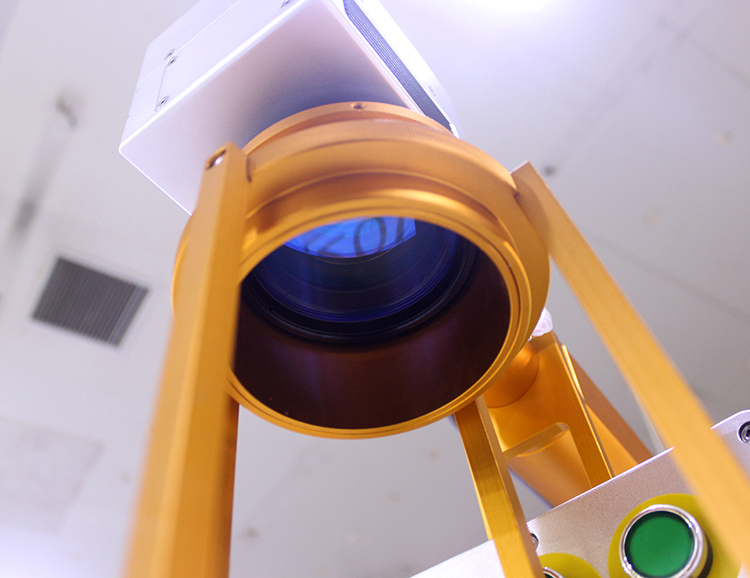

Field Mirror

F200(150MM)/Optional:F160(110MM)/F290(200MM)/F430(300MM)

Power supply

MeanWell (Original)

Cooling Mode

Air Cooling

Laser Wavelength

10.64 um

Frequency of pulse

20-100 KHz

Marking Depth

0.3 mm

Marking Speed

8000 mm/s

Marking Lines

1-10 lines

Minimum Line Width

0.01 mm

Minimum Character

0.15 mm

Repeatability
Accuracy

±0.002 mm

Resolution Ratio

0.1 mm

Marking Content

Text, pattern, date, bar code, etc

Operation System

Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10

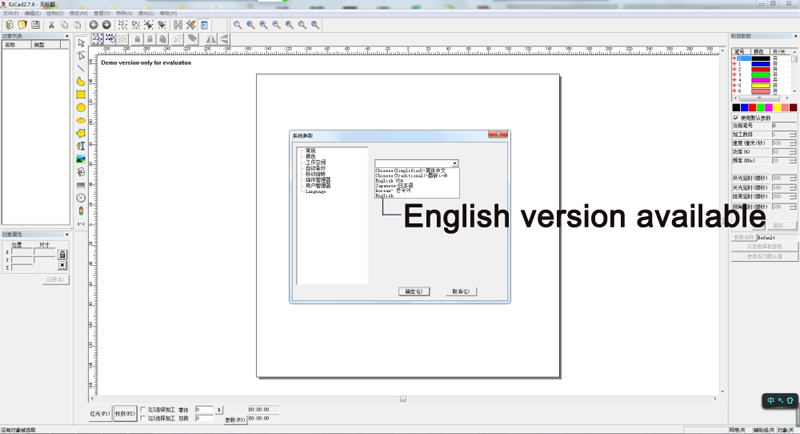

Control Software

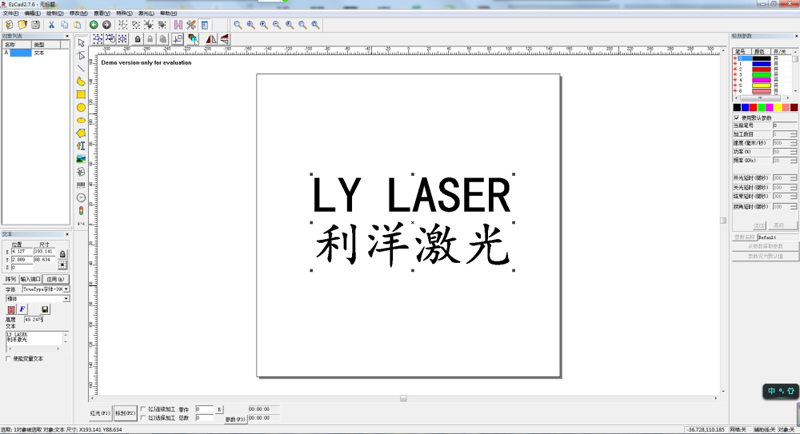

EZCAD ENGLISH Control
Software

Graphic Format Supported

BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.

Unit Power

0.9 KW

Operation Temperature

5°C-40°C

Relative Moisture

90%, no fog

Dimensions(L*W*H)

65 x 55 x 35 cm

Power supply requirements

220 V or 110V

Portable Fiber Parts Weight

6KG

Gross Weight

60KG

Warranty

24 months

The motherboard supports win10 and supports 32-bit 64-bit.

1:Fully build the platform professional fiber laser marking machine shop, please

customers to patronize, do not just look at the price. To look at the quality of the machine,

use high-quality machine parts to give customers the best price and quality service!

Provide S/N coding for our machines, machine lifetime service,

2: Machine configuration:

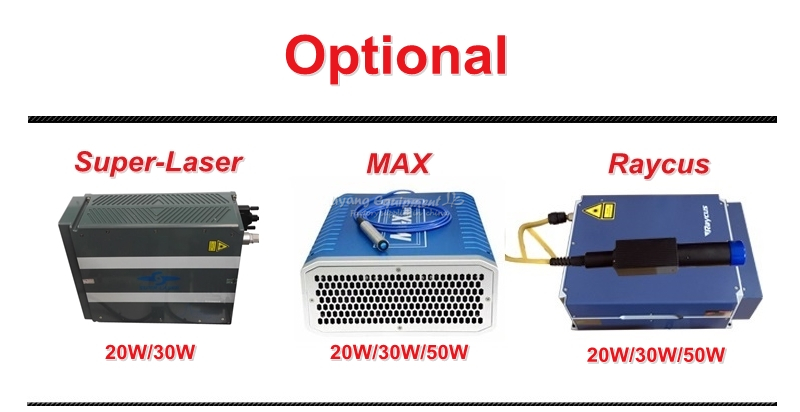

A;Fiber Laser brand:Lianpin/Raycus/Max

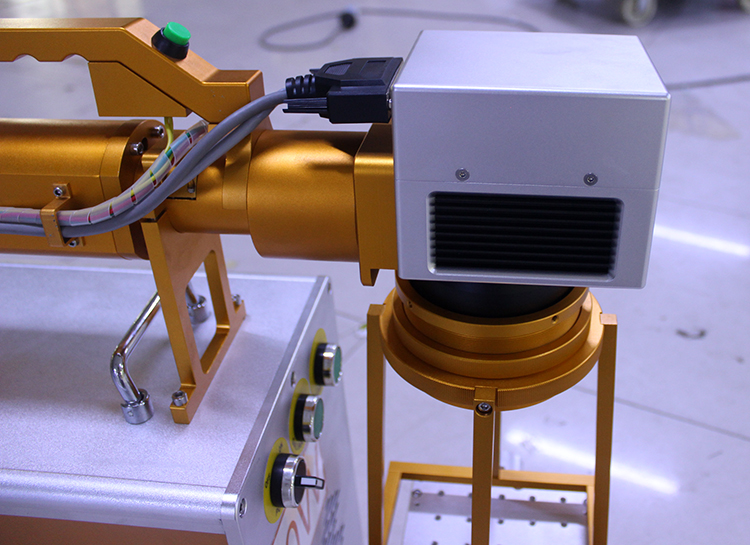

B; SINO-GALVO field mirror & galvanometer,

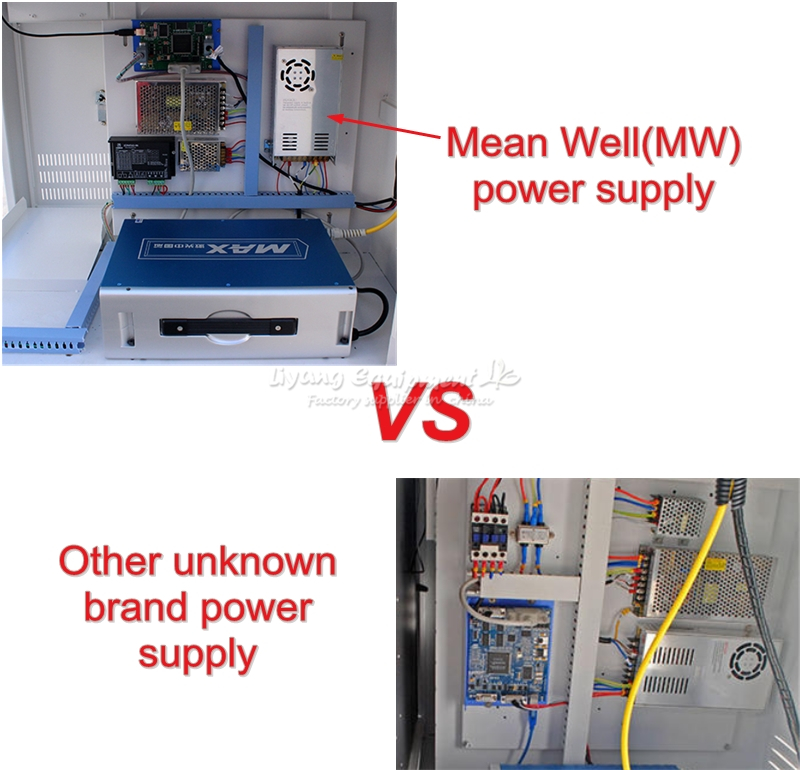

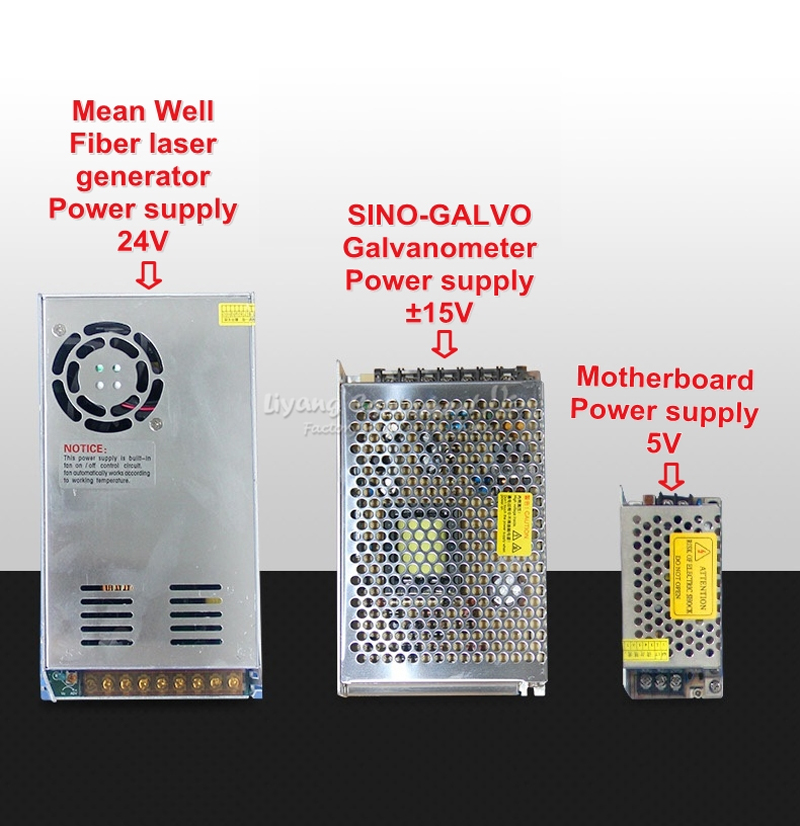

C; Taiwan Mingwell (MW) power supply,

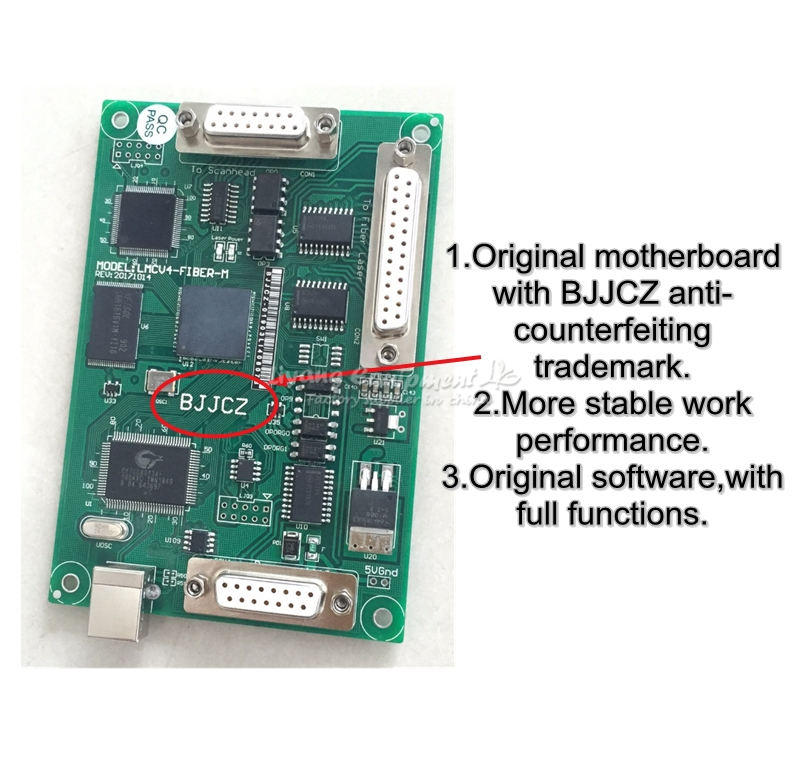

D;Original Golden Orange Board (supports genuine software, supports system-wide

operation)

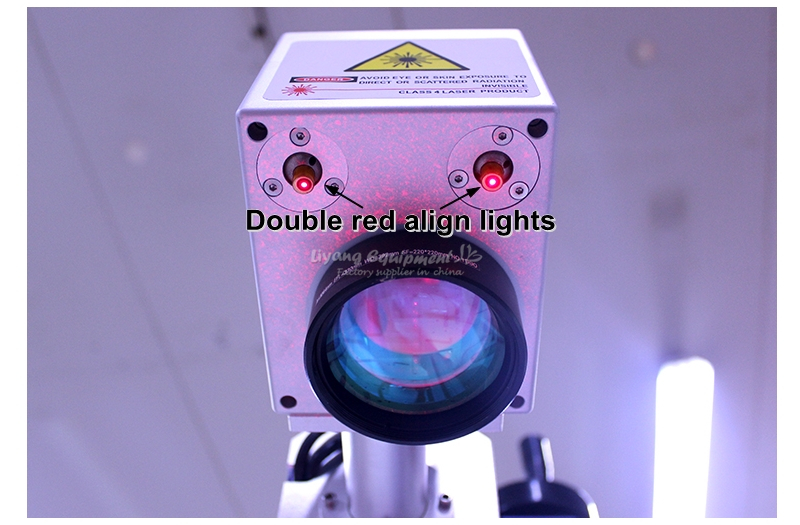

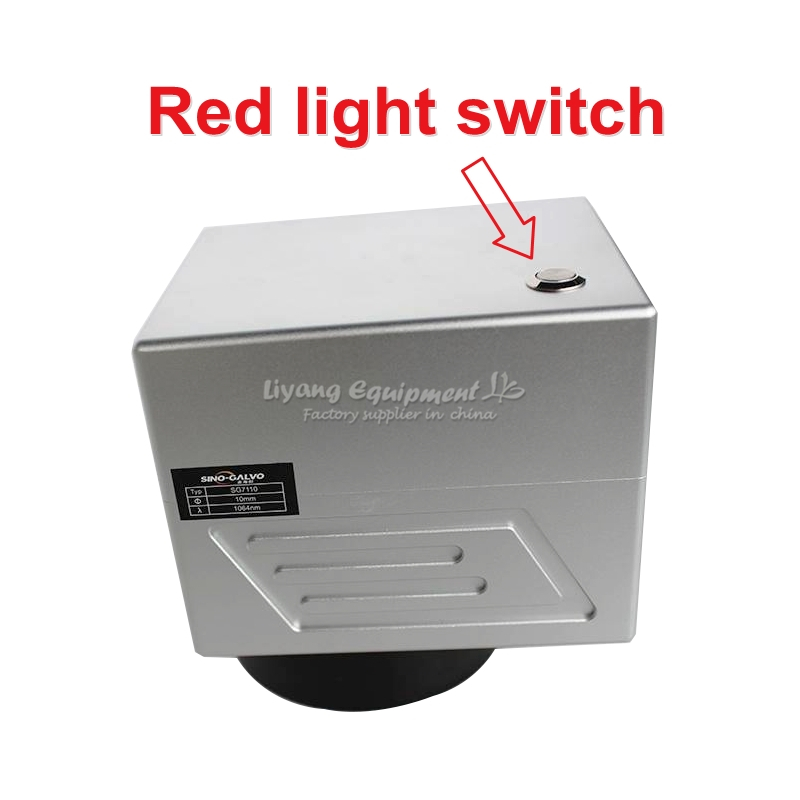

E: Double red lights assisted focusing

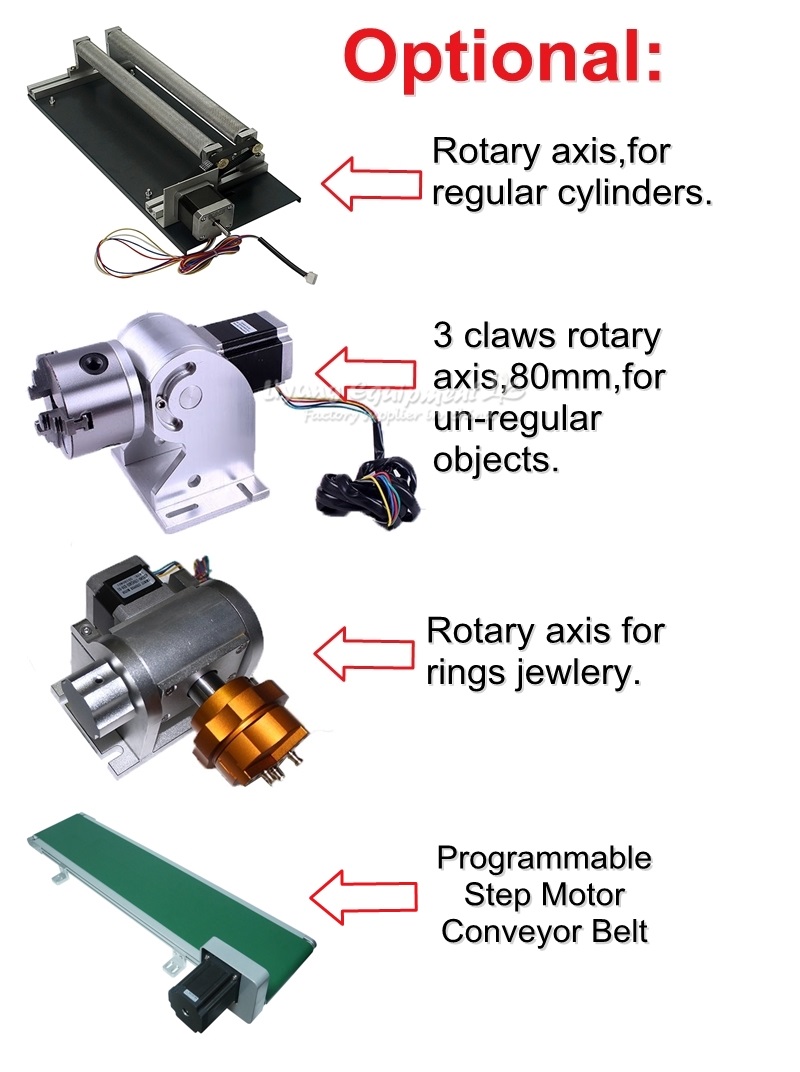

F:Rotary axis (Optoinal)

3: In addition to these main accessories, we can gain an in-depth understanding of

the machine configuration of the accessories and technical debugging of the main quality

of the machine. It only provides you with a machine that runs stably and has a low failure

rate. Machine accessories are related to the long life of the machine. In the short term, it is

impossible to compare the stability and failure rate of the machine!

4: Never let price become the only guiding factor for the company’s business marketing.

Expand your own marketing ideas and position high-quality markets.

5: Leopard and cat are similar, but different in quality. If you want a leopard or a cat, you

have the final say, I can provide it. Just the price is different!
