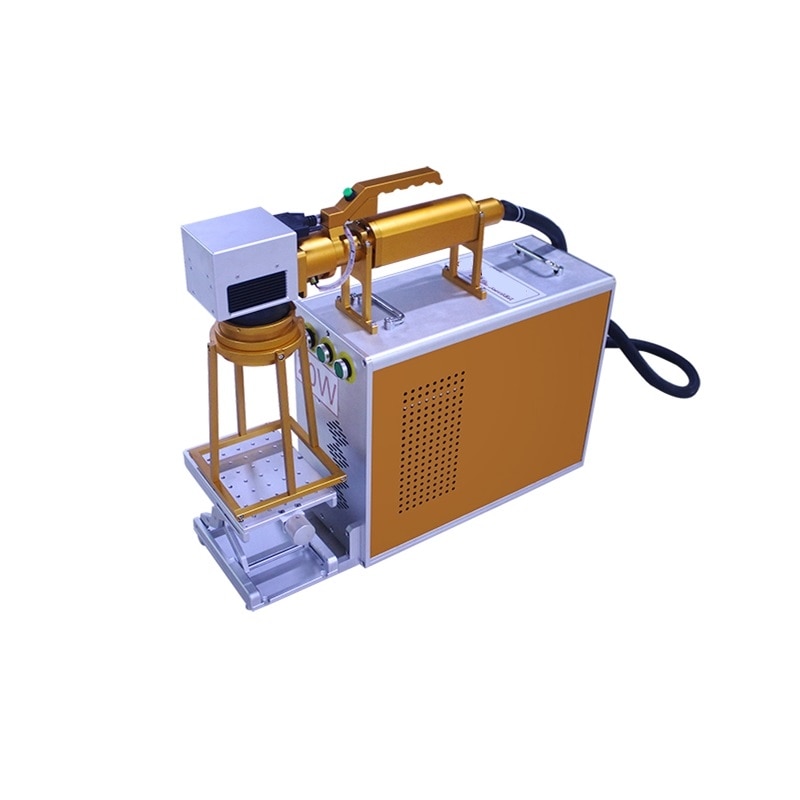

Portable Fiber Laser Nameplate Marking Machine 20W 30W 50W Max Raycus Source For Non-Glare Metal Iron Stainless Steel Gold

  • Home
  • Portable Fiber Laser Nameplate Marking Machine 20W 30W 50W Max Raycus Source For Non-Glare Metal Iron Stainless Steel Gold

Portable Fiber Laser Nameplate Marking Machine 20W 30W 50W Max Raycus Source For Non-Glare Metal Iron Stainless Steel Gold

$5,963.65$10,363.48

SKU: 1005002253671971 Category:

Description

  • Brand Name: NoEnName_Null
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: 20W/30W/50W
  • CNC or Not: Normal
  • Is Smart Device: No



LY Portable Fiber Laser Nameplate Marking Machine 20W 30W 50W Super-laser
Max Raycus Fiber Laser Source Optional Suitable For Non-Glare Metal Iron Stainless
Steel Gold Silver Copper



RE:This fiber laser marking machine with 2 working modes:



A.Sports Mode



People can take fiber parts by hands, and put it on target surface to
Make laser marking.(Usually for big device, and surface is flat.) Just put
fiber laser metal cover on target area, then RUN machine is OK.



B.Static Mode



Just keep fiber parts on machine base to RUN, can also take off metal
cover & Install bigger field mirror to use.(Initial field mirror is 150MM)



Technical
Parameter

Model



Fiber Laser power

20W/30W/50W

Fiber Laser Brand

Super-Laser/MAX/RAYCUS

WorkingArea/Length

150*150mm

(Optional
110MM/200MM/300MM.

RE: Portable Mode use
150*150MM.

200MM/300MM field
mirror will use in Static Mode only.)

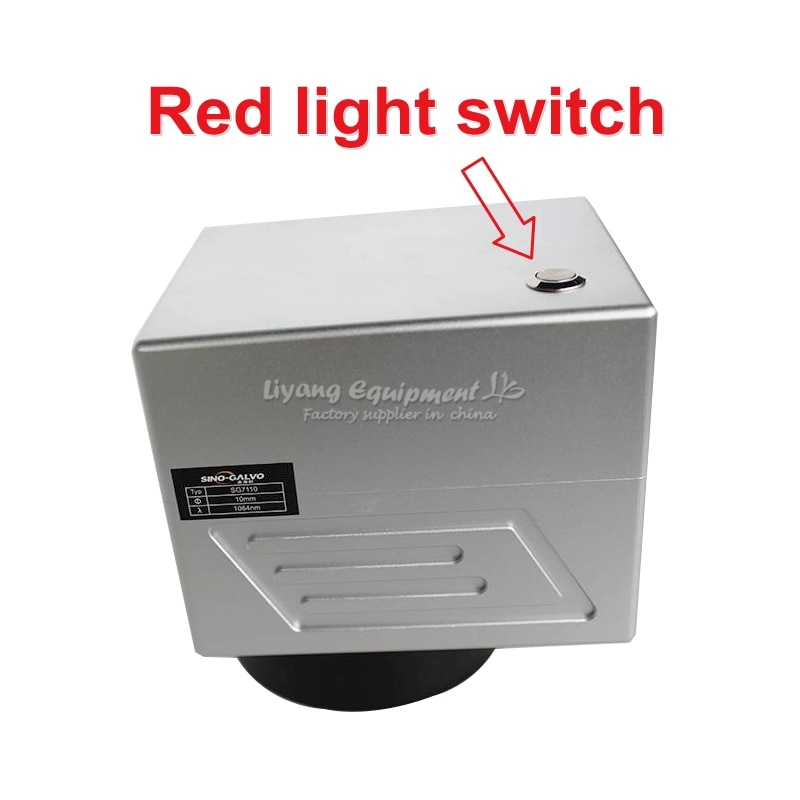

Galvanometer

SG7110(Double Red light
Align Version)

Field Mirror

F200(150MM)/Optional:F160(110MM)/F290(200MM)/F430(300MM)

Power supply

MeanWell (Original)

Cooling Mode

Air Cooling

Laser Wavelength

10.64 um

Frequency of pulse

20-100 KHz

Marking Depth

0.3 mm

Marking Speed

8000 mm/s

Marking Lines

1-10 lines

Minimum Line Width

0.01 mm

Minimum Character

0.15 mm

Repeatability
Accuracy

±0.002 mm

Resolution Ratio

0.1 mm

Marking Content

Text, pattern, date,
bar code, etc

Operation System

Microsoft Windows XP
or Windows 2000,WIN 7, WIN8, WIN 10

Control Software

EZCAD ENGLISH Control
Software

Graphic Format
Supported

BMP, JPG, GIF, TGA,
Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.

Unit Power

0.9 KW

Operation Temperature

5°C-40°C

Relative Moisture

90%, no fog

Dimensions(L*W*H)

65 x 55 x 35 cm

Power supply
requirements

220 V or 110V

Portable Fiber PartsWeight

6KG

Gross Weight

60KG

Warranty

24 months



The motherboard supports win10 and supports 32-bit 64-bit.

1:Fully build the platform professional
fiber laser marking machine shop, please customers to patronize, do not just
look at the price. To look at the quality of the machine, use high-quality machine
parts to give customers the best price and quality service! Provide S/N coding
for our machines, machine lifetime service,



2:
Machine configuration:

A;

Fiber Laser brand:Lianpin/Raycus/Max

B;
SINO-GALVO field mirror & galvanometer,

C;
Taiwan Mingwell (MW) power supply,

D;

Original Golden Orange Board (supports genuine software, supports system-wide operation)

E:
Double red lights assisted focusing

F:

Rotary axis (Optoinal)



3:
In addition to these main accessories, we can gain an in-depth understanding of
the machine configuration of the accessories and technical debugging of the
main quality of the machine. It only provides you with a machine that runs
stably and has a low failure rate. Machine accessories are related to the long
life of the machine. In the short term, it is impossible to compare the
stability and failure rate of the machine!



4:
Never let price become the only guiding factor for the company’s business
marketing.

Expand
your own marketing ideas and position high-quality markets.



5:
Leopard and cat are similar, but different in quality. If you want a leopard or
a cat, you have the final say, I can provide it. Just the price is different!
