Description
- Brand Name: NoEnName_Null
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: desktop laser machine
- CNC or Not: Normal
- Is Smart Device: No
- Material: aluminum
- Iput voltage: AC 100V-240V, 50 / 60Hz
- working voltage: DC 12V 3A
- Support image format: jpg, bmp, PXIG, GIF, ICO, png, gcode, etc
DIY CNC laser desktop Portable 2417 4036 engraving machine 15w label marking wood metal Stainless steel cup Optional rotary axis
Note:Cylindrical products can only be engraved with a rotary axis,If you need to buy 15w, please contact the seller.
2417/4036:
Features:
– The maximum engraving area of 24 x 17 cm or 40 x 36 cm.
– Mobile gantry table sculpture, carved objects does not limit the size of the height, can be placed directly on top of the work
– Aluminum material and acrylic simultaneously produced on a more solid look tall
– The software is easy to use, free upgrades. Software support Windows XP, WIN 7, WIN 8, WIN10
– We have assembled the machine into 2 parts: the base and the arm, you just need to install two parts together, and connect the cables. Then it’s ready to use
– Adjust laser power via software. You can adjust the laser power via the software according to different materials, which perfectly meet most requirements of laser engraving
Specifications:
Material: aluminum
Iput voltage: AC 100V-240V, 50 / 60Hz
working voltage: DC 12V 3A
Engraving area: 24 x 17 cm or 40 x 36 cm (maximum)
Laser power: 500mW / 1000mW / 2500mW / 5500mw / 10000mw
Support image format: jpg, bmp, PXIG, GIF, ICO, png, gcode, etc.
Parameter:
Model |
LYBOT-ARM 2417/4036 |
Support |
All windows system |
Machine stuff |
High strength arylic+aluminum alloy |
Engraving area |
240*170mm/400*360mm |
Max height |
No limited |
Power |
0.5W/1W/2.5W/5.5W/10W |
Laser lifetime |
10K hours |
Max resolution |
2265*2665 |
Net weight |
2.5KG/3kg |
Gross weight |
5KG |
Machine size |
370*360*140mm /600*470*145mm |
Package size |
440*285*135mm /641*323*140mm |
Support file |
JPEG,BMP,JPG,PNG |
Main Advantages : |
|
1.Unique one arm design |
|
2.Open printing area,no limitation on item height |
|
3.Smart software,easy to operate,power adjustable |
|
4.V guide rail with W guide rail,work silence,high accuracy |
|
5.USB link,can coordinate deep or shallow |
|
6.90% Assembled delivery,can use directly when got.(Just link 2 parts into 1 is ok) |
Application:
This laser engraving machine is not available for the following materials:
Metals (regardless of thickness), stone, ceramics, jewelry, reflective material, colorless, transparent materials, soft materials.
This laser engraving machine can engrave the following materials:
Wood, plastic, paper, bamboo, horn, part of the cortex (purse), plastic phone shell, rubber stamp, photosensitive chapter, sponges, paper.
Note:
– In the process of using, please wear professional protective glasses.
– Forbid children to play.
– Suggested that the laser light in the case of focus, the power is too strong, do not use strong light to illuminate the skin.
– Avoid using flammable solids or gases to avoid fire or explosion.
– Metal, ceramic, glass, and stone cannot be directly engraved. Can be lacquered and engraved, the depth of engraving is limited to the paint surface.
– Drag the text or image to be printed directly into the software, and then adjust it to engrave it, just as easy as using a printer.

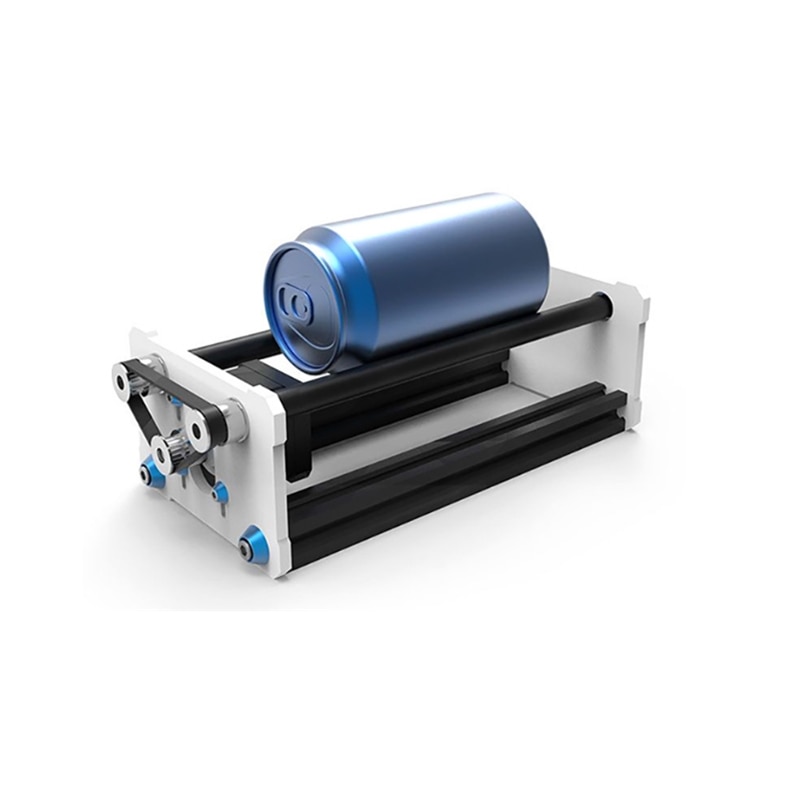

Rotary axis:
Specifications:
Product size:30*22.5*11cm
Package size:40*30*20cm
Weight:2KG
Parameter:
Two roller for engrave bottle,cup and other cylinder
How to use it?
This rotary connect with desktop laser mainborad y axis, it can working

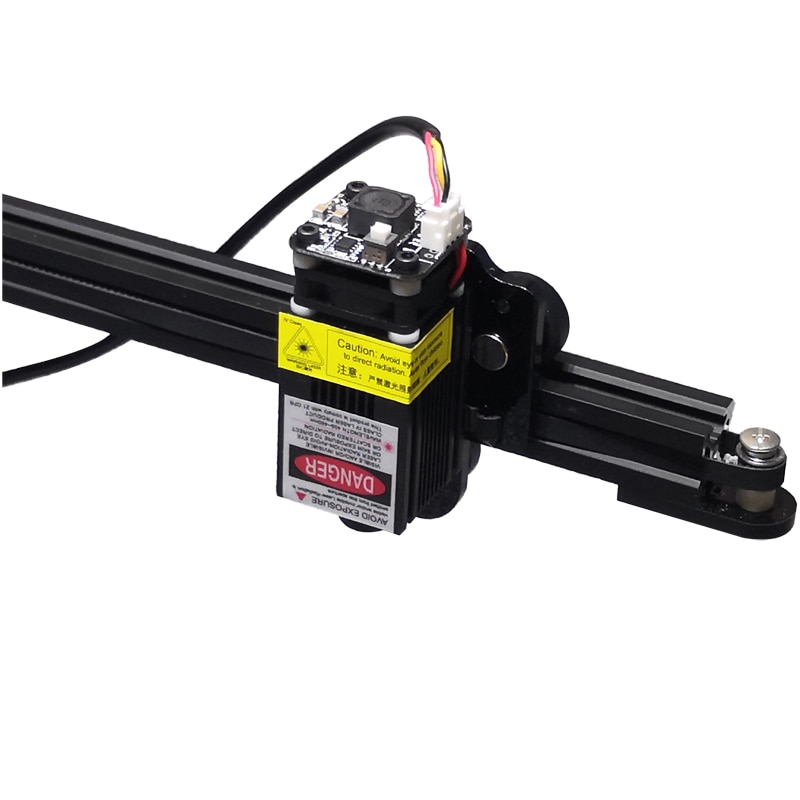

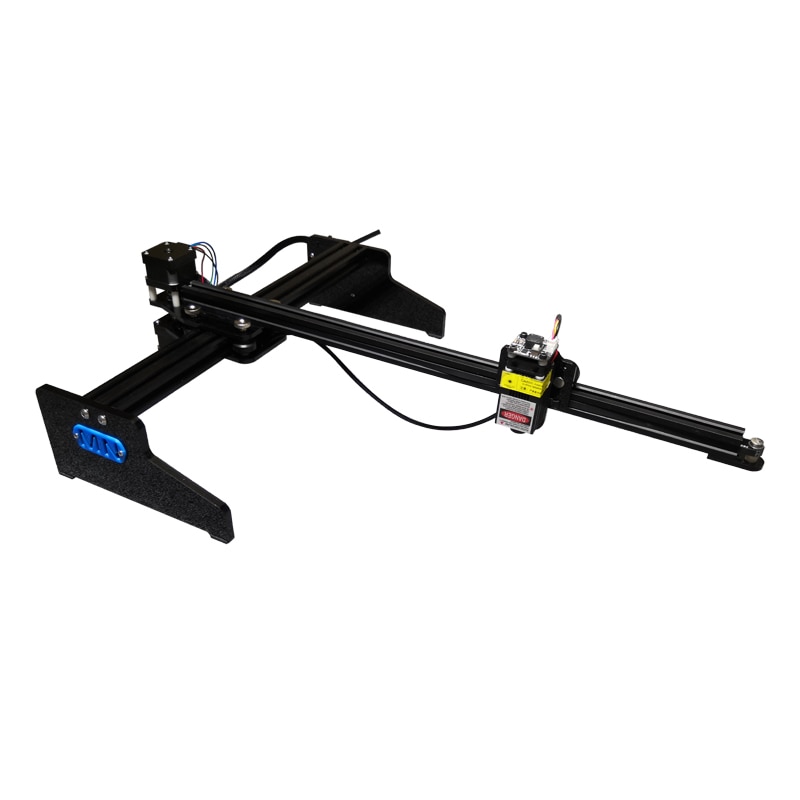

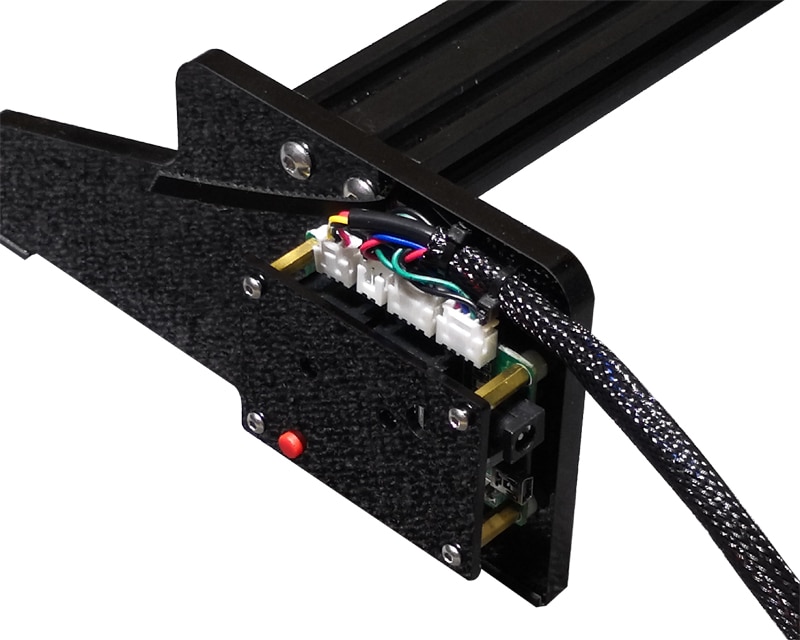

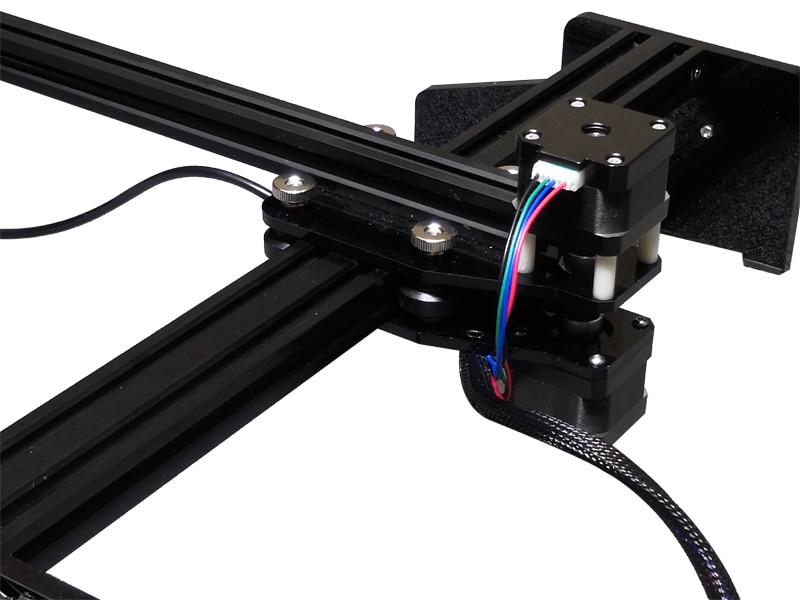

Product Pictures:
