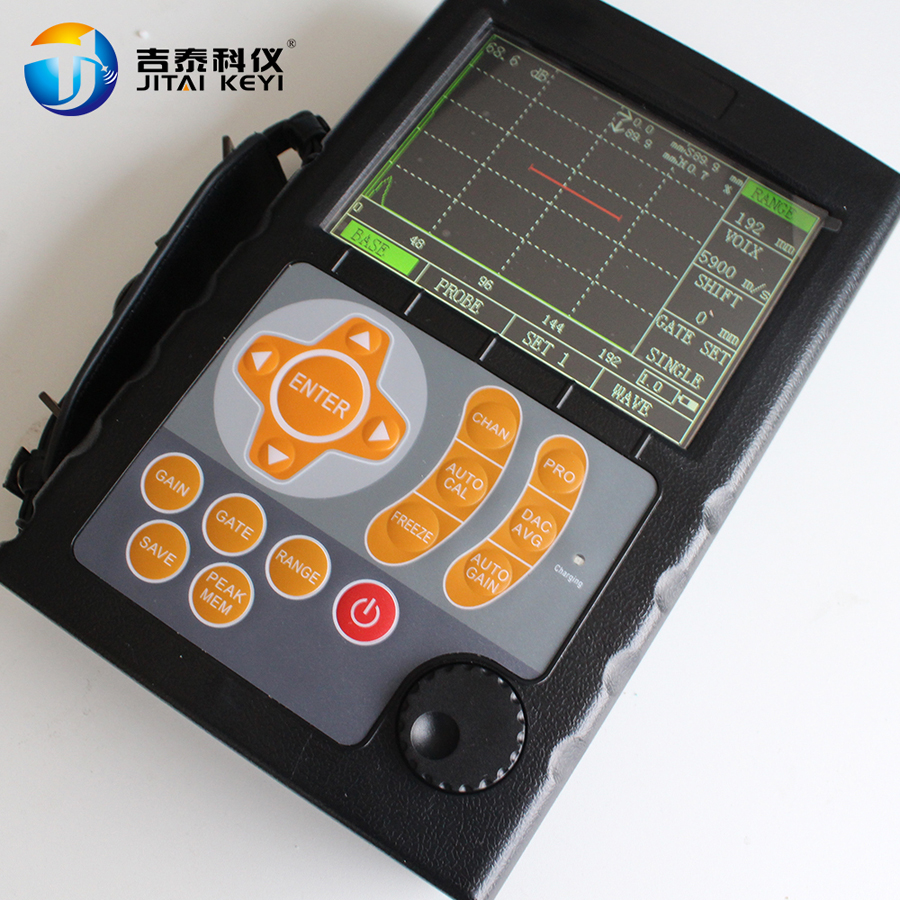

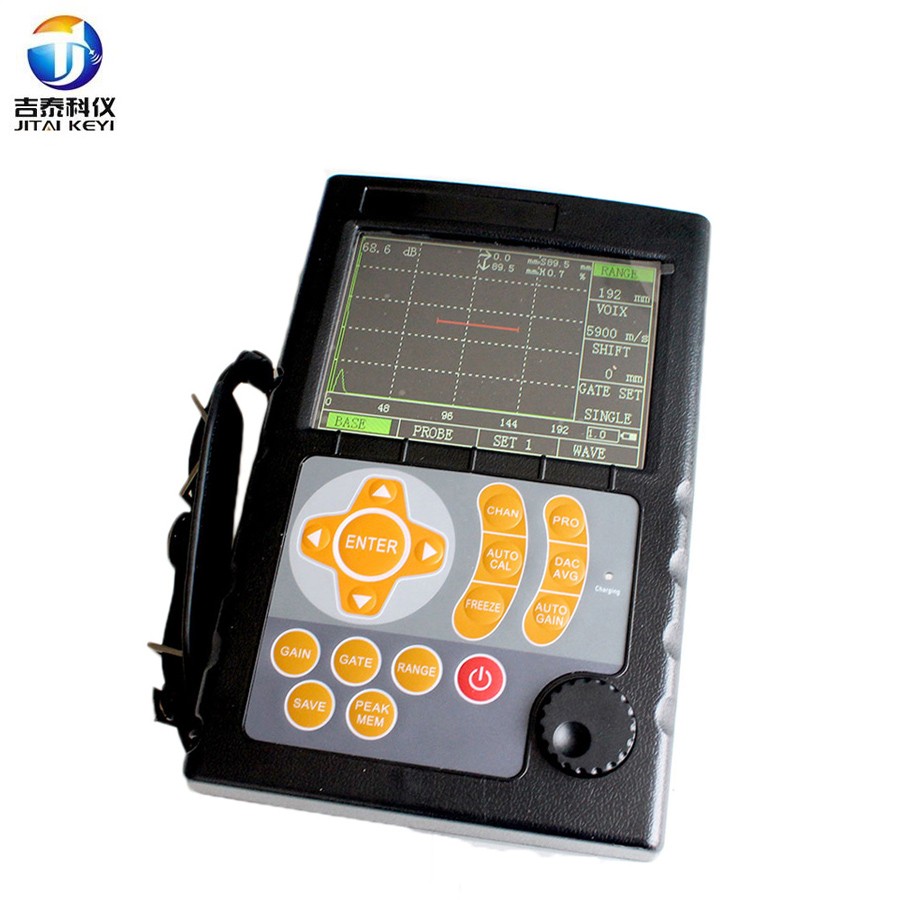

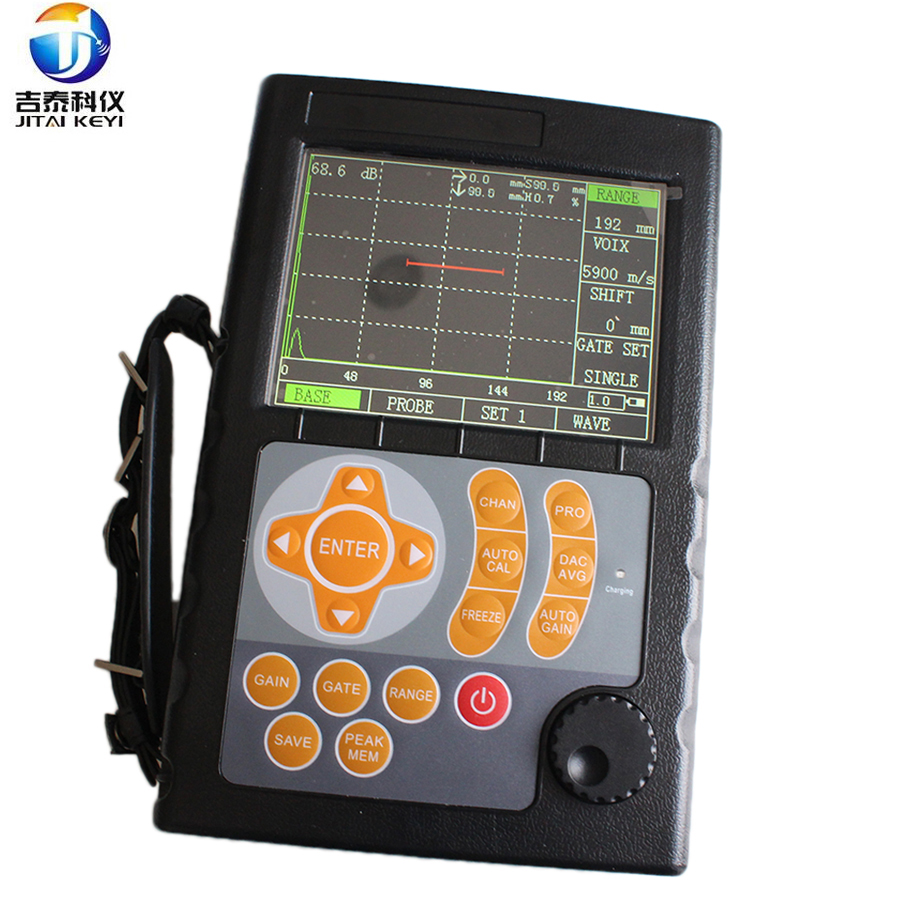

Portable Digital Ultrasonic Flaw Detector Metal Leak Detector Meter

$2,600.40

88 in stock

SKU: 1005004275349650 Category:

Description

  • Brand Name: MLHJ
  • Origin: CN(Origin)
  • Place of Origin: China, Zhejiang, China (Mainland)
  • Brand Name: JTKY, JITAI
  • Model Number: Jut
  • Measuring Range (mm): 0-10000mm
  • Channels: 100
  • Frequency Range (MHz): 0.5 ~15MHz
  • Material Velocity (m/s): 1000 ~9999m/s
  • Vertical Linearity Error: ≤3%
  • Horizontal Linearity Error: ≤0.1%
  • Sensitivity Leavings: ≥62dB
  • Dynamic range: ≥32dB
Product Description

Technical specification

-Measuring Range (mm):0 ~10000mm
-Channels: 100
-Frequency Range (MHz):0.5 ~15MHz
-Material Velocity (m/s): 1000 ~9999m/s
-Vertical Linearity Error: ≤3%
-Horizontal Linearity Error: ≤0.1%
-Sensitivity Leavings: ≥62dB
-Dynamic range: ≥32dB
-Resolving Power: ≥36dB
-Gain (dB): 0 ~100dB
-Measurement Mode: Single,Dual,Thru
-Reject: 0~80%
-Pulse Displacement (μs): -20 ~+3400
-Zero (μs): 0.0 ~99.99
-Port Type: BNC(Q9) or Lemo 01(C9)

-Operating Temperature (℃): -20~70
-H*W*D(mm): 240*156*48
-Weight (kg):1.0(with battery)
Our advantage

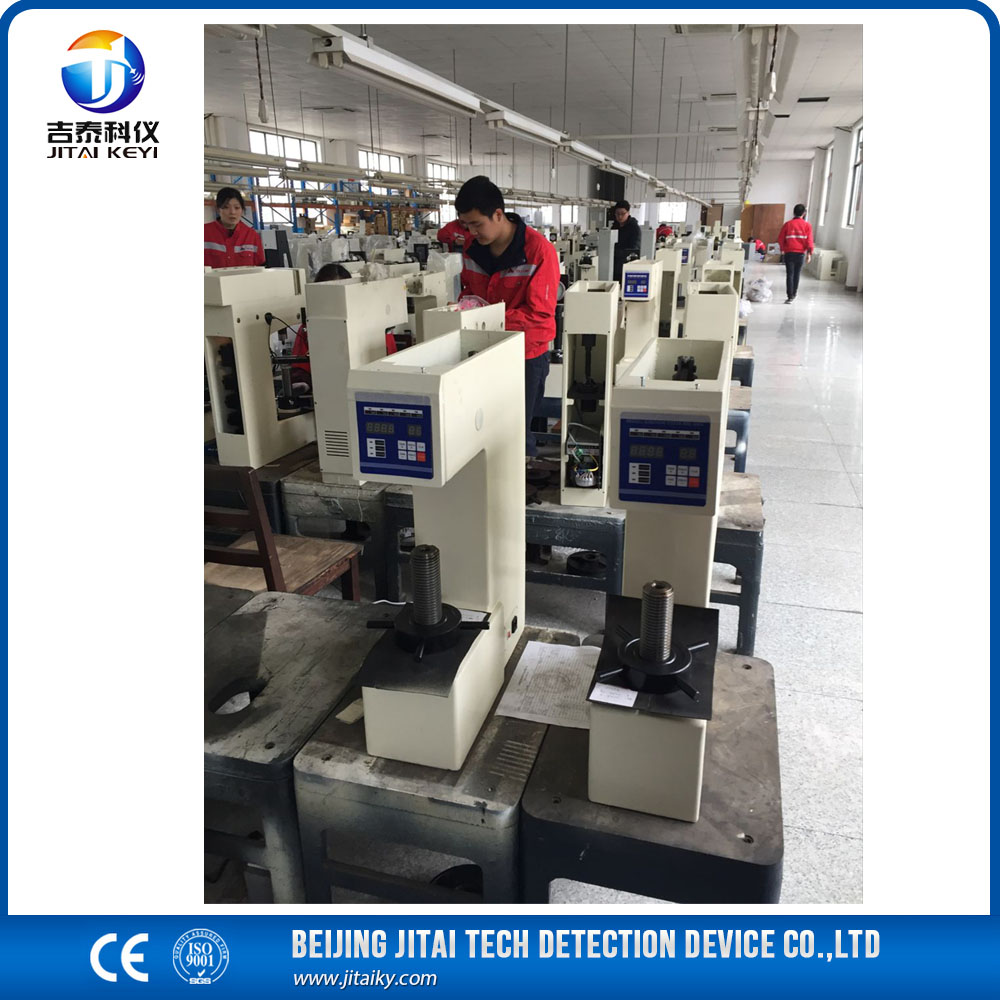

1.We have our own factory with competitive price
2.Quality is our culture
3.time is gold,we have professional team produce the product with short time.
4.with us your money in safe

Model Size
JUT500
JUT600
JUT800
Measuring range
0-6000mm
0-10000mm
0-10000mm
Gain
0-100dB
0-120dB
0-130dB
D-Delay
-20µs~+3400µs
-20µs~+3400µs
-20µs~+3400µs
Resolution
0.1mm(2.5mm~100mm) 1mm(>100)
0.1mm(2.5mm~100mm) 1mm(>100)
0.1mm(2.5mm~100mm) 1mm(>100)
P-Delay
0µs~99.99µs
0µs~99.99µs
0µs~99.99µs
Material Velocity
1000 m/s~9999m/s
1000 m/s~15000m/s
1000 m/s~15000m/s
Temperature
-20℃~50℃
-20℃~50℃
-20℃~50℃
Humidity
20%~90%RH
20%~90%RH
20%~90%RH
Power
7.4V 4800mAh
7.4V 4800mAh
7.4V 4800mAh
Working time
>8 hours
>10 hours
>10 hours
Display
LED true color
LED true color
LED true color
Size
238mm*160mm*50mm
238mm*160mm*50mm
238mm*160mm*50mm
Weight
1.0kg
1.0kg
1.0kg
Detailed Images
No.

Item

Quantity

1

Main Body
1

2

Straight Beam Probe
1

3

Angle Probe
1

4

Machine-probe Cable
1

5

Power Adapter (Charger)
1

6

Data proceeding Software
1

7

USB communication Cable
1

8

Manual
1

9

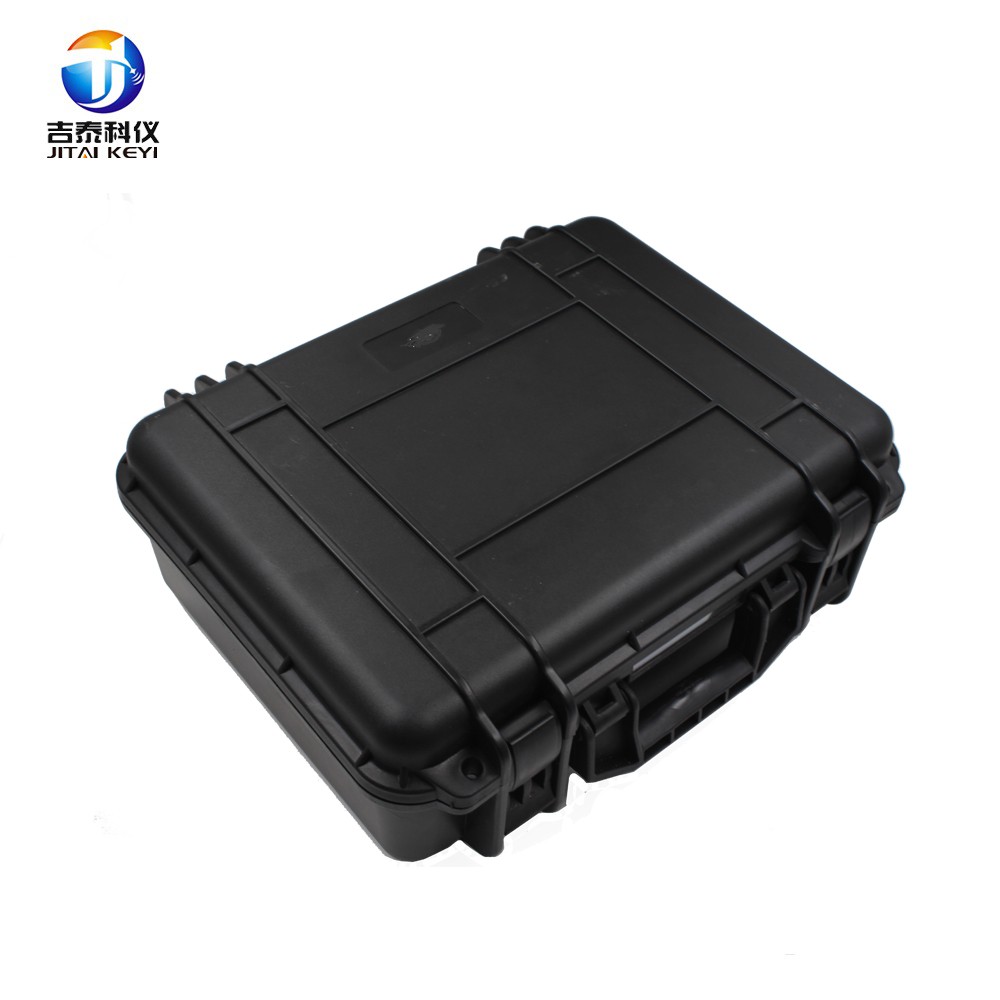

Instrument Case
1

10

Guarantee Card
1

11

Packing List
1
