Portable 3018 3Axis Mini DIY CNC Router Adjustable Speed Spindle Motor Wood Engraving Machine Milling Engraver 400x330x240mm

  • Home
  • Portable 3018 3Axis Mini DIY CNC Router Adjustable Speed Spindle Motor Wood Engraving Machine Milling Engraver 400x330x240mm

Portable 3018 3Axis Mini DIY CNC Router Adjustable Speed Spindle Motor Wood Engraving Machine Milling Engraver 400x330x240mm

$539.55$587.55

SKU: 33050881365 Category:

Description

  • Brand Name: EleksMaker
  • Origin: CN(Origin)
  • Certification: NONE
  • Condition: New
  • Model Number: Mini CNC3018 (Without Laser Module)
  • CNC or Not: CNC
  • Working Area: Approx. 300 * 180 * 40mm
  • Product Weight: 4.5kg


Specification:

General Specification
Model Mini CNC3018 (Without Laser Module)
Frame Material Aluminum Alloy
Color Silver
Table Area Approx. 400 * 330 * 240mm

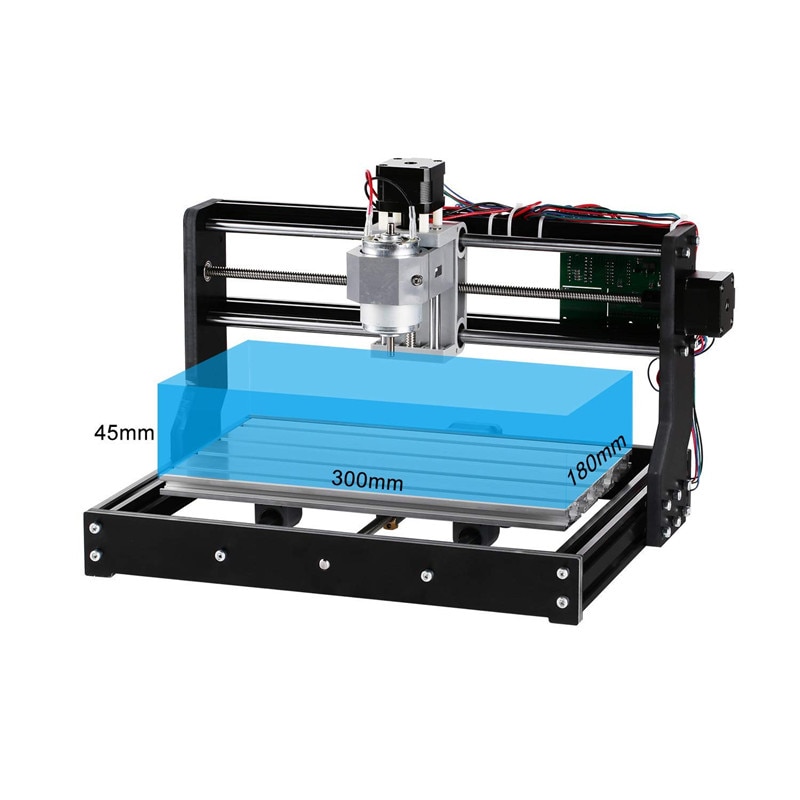

Working Area Approx. 300 * 180 * 40mm
Product Weight 4.5kg
Control Software for Spindle GrblControl
Control Software for Laser Litefire
System Requirements Windows XP , Win7, Win8, Win10.
Adapter Plug 2-Pin US Plug
Adapter Input Voltage AC 110-240V 50/60Hz
Adapter Output Voltage DC 24V 4A
Features 1. Aluminum-profile Stable Construction
2. 3Axis Movable, Adjustable Speed Spindle Motor
3. Contains Quickstart Guide of GRBL Software
4. 300 x 180 x 40mm Working Area, Meet Most Amateur DIY Needs
5. Engrave Wood, Plastic, Acrylic, PCB, or Similar Material
Can Not Engrave Metal, Steel, Aluminum.
Technical Parameters
Working Voltage DC 24V
Interface USB
Stepper Motor 42 Stepper Motor, Voltage: 12V, Phase Current 1.3A, Torque 0.25N.m
Spindle Motor 775 Spindle Motor (12-36V) 24V: 10000r/min,36V: 12000r/min


Features:

– Assembly requires a certain mechanical skill. All assembly components are included.

– Engraving Materials: The machine can carve wood, plastic, acrylic, PCB, or the like materials.

– Can Not Engrave: Hard metal (such as brass, steel, iron, etc), jade and other very hard texture items.


Note:

1. Instructions & Software: Assembly instructions, control software and further information please CLICK HERE

2. This item contains the spindle motor, but no laser module. If you want to use laser for engraving, you can buy it additionally. Thanks for your understanding, and please note that the input interface (Should be XH2.54-3P or XH2.54-2P) and input voltage (Should be DC 12V) of the laser module should be compatible with the control board on 3018. Besides, the original motor holder is round, please make sure the shape of your laser module is suitable for installation.


Package Included:

1 x Wood Engraving Machine Full Set (Unassembled Delivery)

(Comes with plug adapter according to your country)








Reviews

There are no reviews yet.

Be the first to review “Portable 3018 3Axis Mini DIY CNC Router Adjustable Speed Spindle Motor Wood Engraving Machine Milling Engraver 400x330x240mm”
