Description

Specification:

General Specification

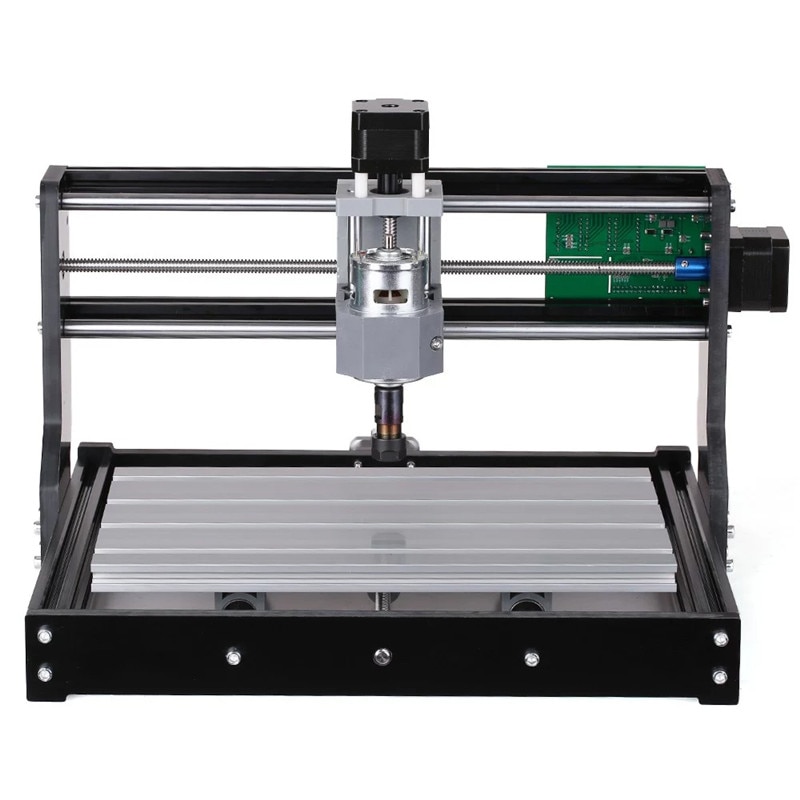

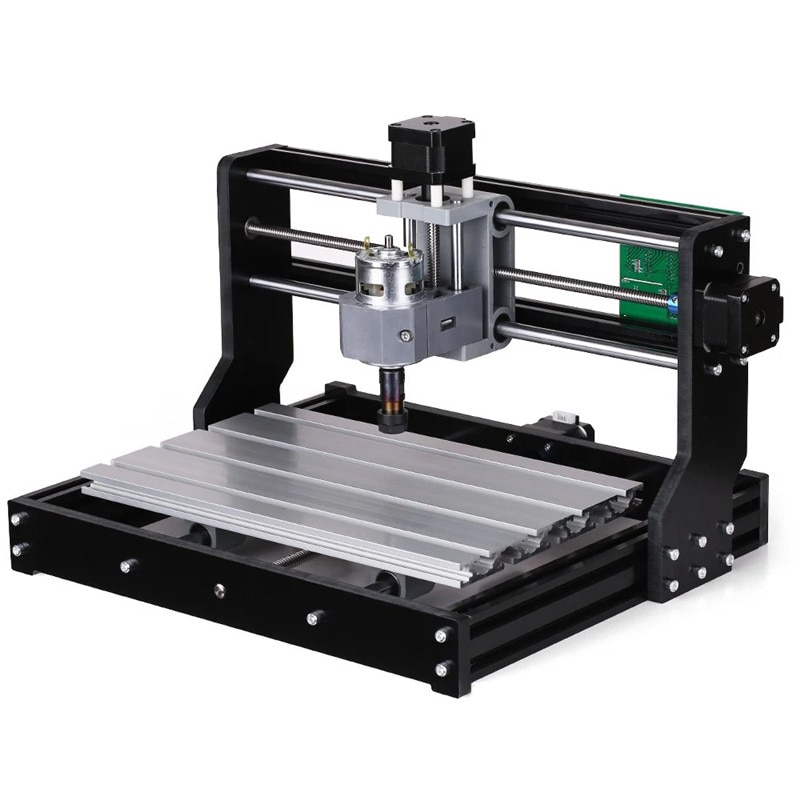

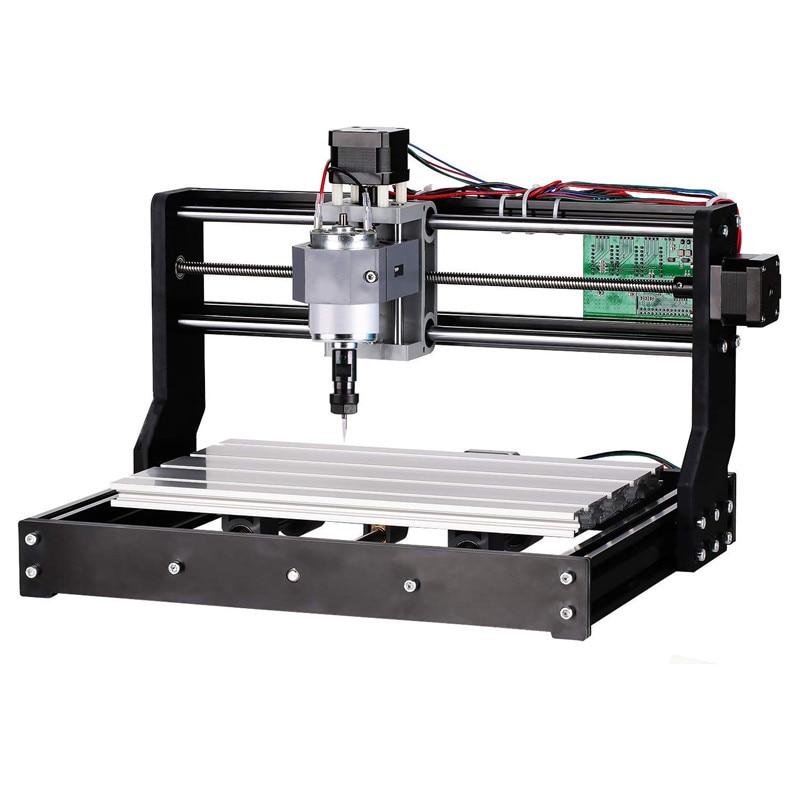

Model	Mini CNC3018 (Without Laser Module)
Frame Material	Aluminum Alloy
Color	Silver
Table Area	Approx. 400 * 330 * 240mm
Working Area	Approx. 300 * 180 * 40mm
Product Weight	4.5kg
Control Software for Spindle	GrblControl
Control Software for Laser	Litefire
System Requirements	Windows XP , Win7, Win8, Win10.
Adapter Plug	2-Pin US Plug
Adapter Input Voltage	AC 110-240V 50/60Hz
Adapter Output Voltage	DC 24V 4A
Features	1. Aluminum-profile Stable Construction 2. 3Axis Movable, Adjustable Speed Spindle Motor 3. Contains Quickstart Guide of GRBL Software 4. 300 x 180 x 40mm Working Area, Meet Most Amateur DIY Needs 5. Engrave Wood, Plastic, Acrylic, PCB, or Similar Material Can Not Engrave Metal, Steel, Aluminum.
Technical Parameters
Working Voltage	DC 24V
Interface	USB
Stepper Motor	42 Stepper Motor, Voltage: 12V, Phase Current 1.3A, Torque 0.25N.m
Spindle Motor	775 Spindle Motor (12-36V) 24V: 10000r/min,36V: 12000r/min

Features:

– Assembly requires a certain mechanical skill. All assembly components are included.

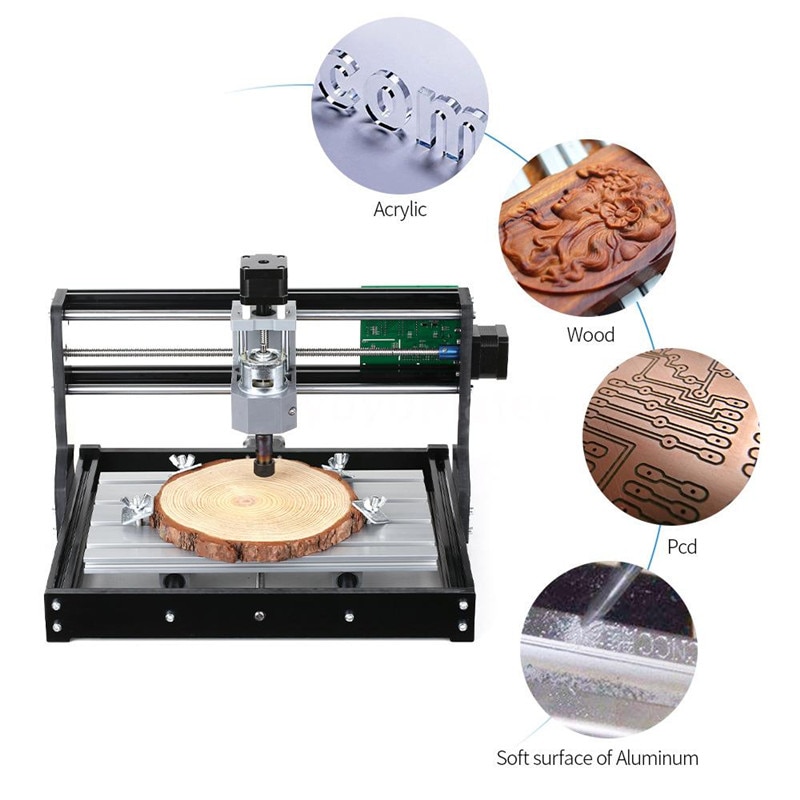

– Engraving Materials: The machine can carve wood, plastic, acrylic, PCB, or the like materials.

– Can Not Engrave: Hard metal (such as brass, steel, iron, etc), jade and other very hard texture items.

Note:

1. Instructions & Software: Assembly instructions, control software and further information please CLICK HERE

2. This item contains the spindle motor, but no laser module. If you want to use laser for engraving, you can buy it additionally. Thanks for your understanding, and please note that the input interface (Should be XH2.54-3P or XH2.54-2P) and input voltage (Should be DC 12V) of the laser module should be compatible with the control board on 3018. Besides, the original motor holder is round, please make sure the shape of your laser module is suitable for installation.


Package Included:

1 x Wood Engraving Machine Full Set (Unassembled Delivery)

(Comes with plug adapter according to your country)
