Specification

Specifications	Diode laser	Nd: Yag laser
Lifespan	20 million shots	3 million shots
Power	808 – 800W for laser; Triple – 960W for laser 2000W for power	500W
Spot Size	15*15mm	1-10mm
Wavelength	808nm Triple (755+808+1064)	532nm 1064nm 1320nm
Energy Density	808 – 1-166J/cm2 Triple – 1-125J/cm2	1000mJ/cm2
Pulse Frequency	1-10Hz	1-10Hz
Pulse Duration	808 – 10-400ms Triple – 10-300ms	20-30ns
Laser Bars/ Lamp	US Coherent laser bars 808 – 10 Pure AuSn bars Triple – 12 Pure AuSn bars	Φ6 rod + UK Xenon lamp
Cooling Level	Sapphire Crystal + Air + Closed Water Circulation + Semiconductor +TEC
Display	10.4 inch True Color LCD touchable Screen
Continue Working	Continuous stand-by working for 10-12hours
Electrical	100/110V, 50~60Hz, /230V~260V,50~60Hz
Net Weight	36 KG	Gross Weight	40KG
Packing	64*58*53cm (W*D*H)	Volume Weight	46KG

Advantages

• Most advantage technology, combining diode laser, Nd:yag laser 2 in one.

• Independent power supply for each system, high and stable quality.

• Intelligent interface, with preset treatment parameters, very easy to operate.

• Advanced monitoring and alarming system, protecting machine every second.

• Password lock function makes renting business much easier to control.

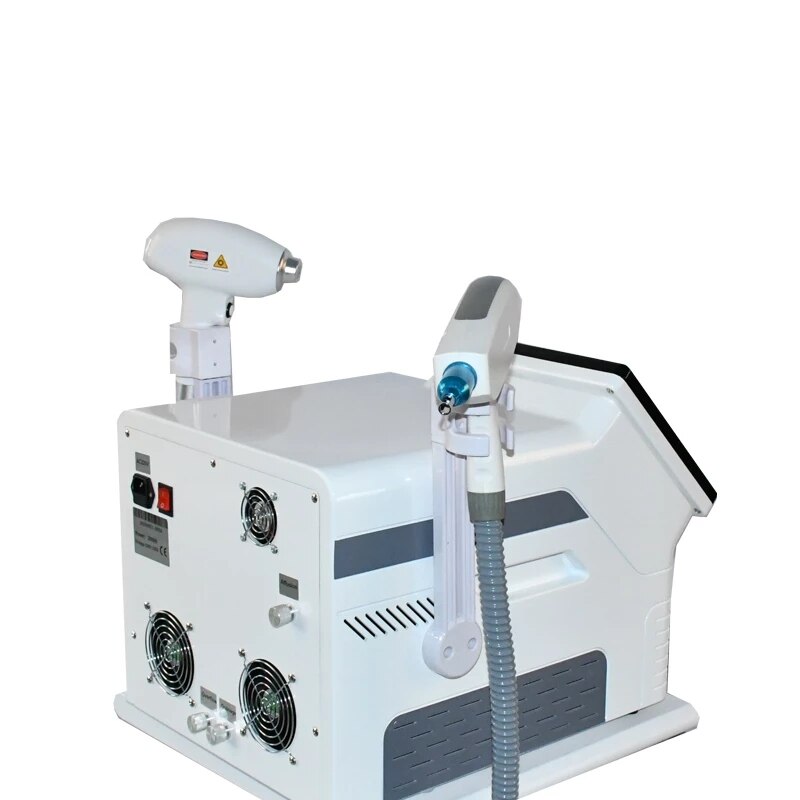

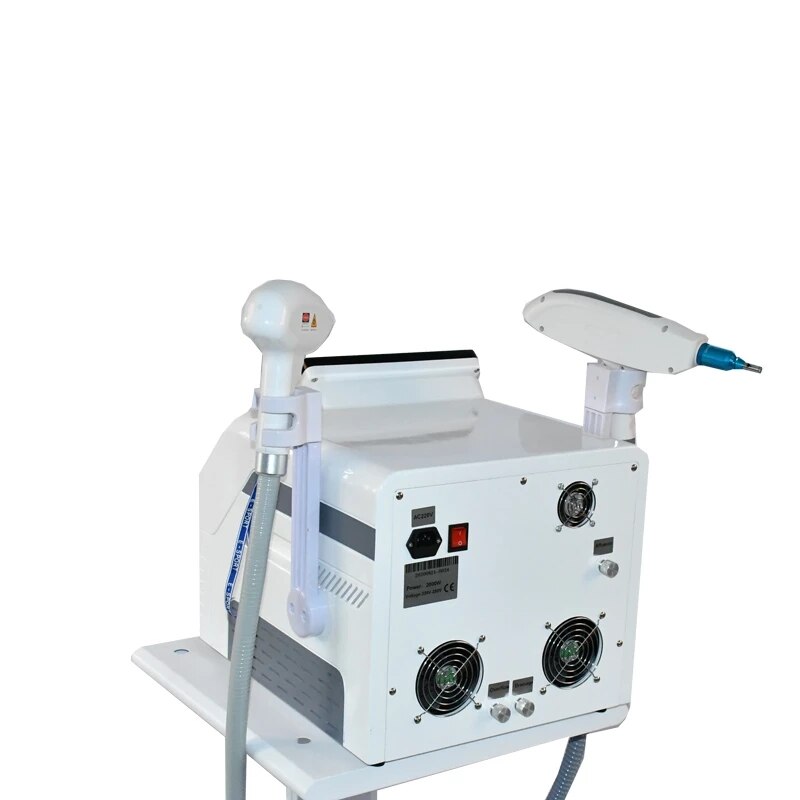

Machine Details

Can do 2 handles(DIODE+NDYAG/IPL/SHR/E-light/RF) free match.

Independent power supply for each system:

• 2000W power supply for diode laser system

• 2000W power supply for E-light (IPL SHR E-light) system

This well ensures each system has strong and stable energy.

Inside structure is very reasonable and every line is clear.

All the spare parts are fixed to metal shelf, reduce the harm of the collision to least during shipping.

• UK lamp, US laser bars

• 6L big water tank with water level monitor

• Korea imported water filters

• Schneider brand switch

• 2 Japan imported big fans + 1 big radiator

• Latest brushless DC water pump with lift 15m

• Pulse water switch to monitor water flow

• Stainless steel board between connector and interna

• Easy to change water filter

Handle details

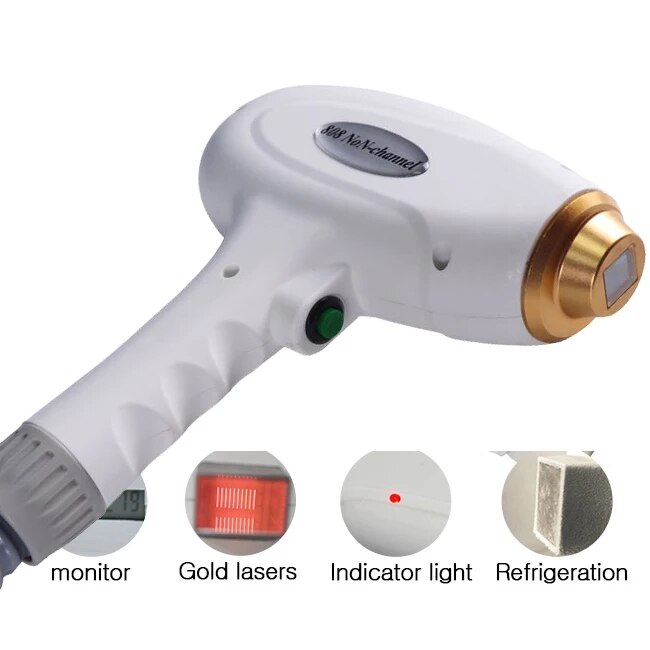

Diode laser

Both 808nm and triple wave 755 808 1064nm available!

• Big spot size 15*15mm

• Extra cooling head 25*25mm

• Cooling system: air + water + TEC + Sapphire

• Super good cooling effect, truly painless

CIA™ Technology- Cooling In Advance

It uses 25mm * 25mm TEC cooling tips to cool the skin before, during and after treatments. It can protect the epidemis from hurt, reduce the pain during hair removal, and increase the comfort for patients.

ICE™ Technology – Simultaneous contact cooling

It is an advanced technology that cools the skin continuously during treatments. It minimizes the risk of burns on the epidermis while maintaining heat to penetrate dermis where hair follicles are.

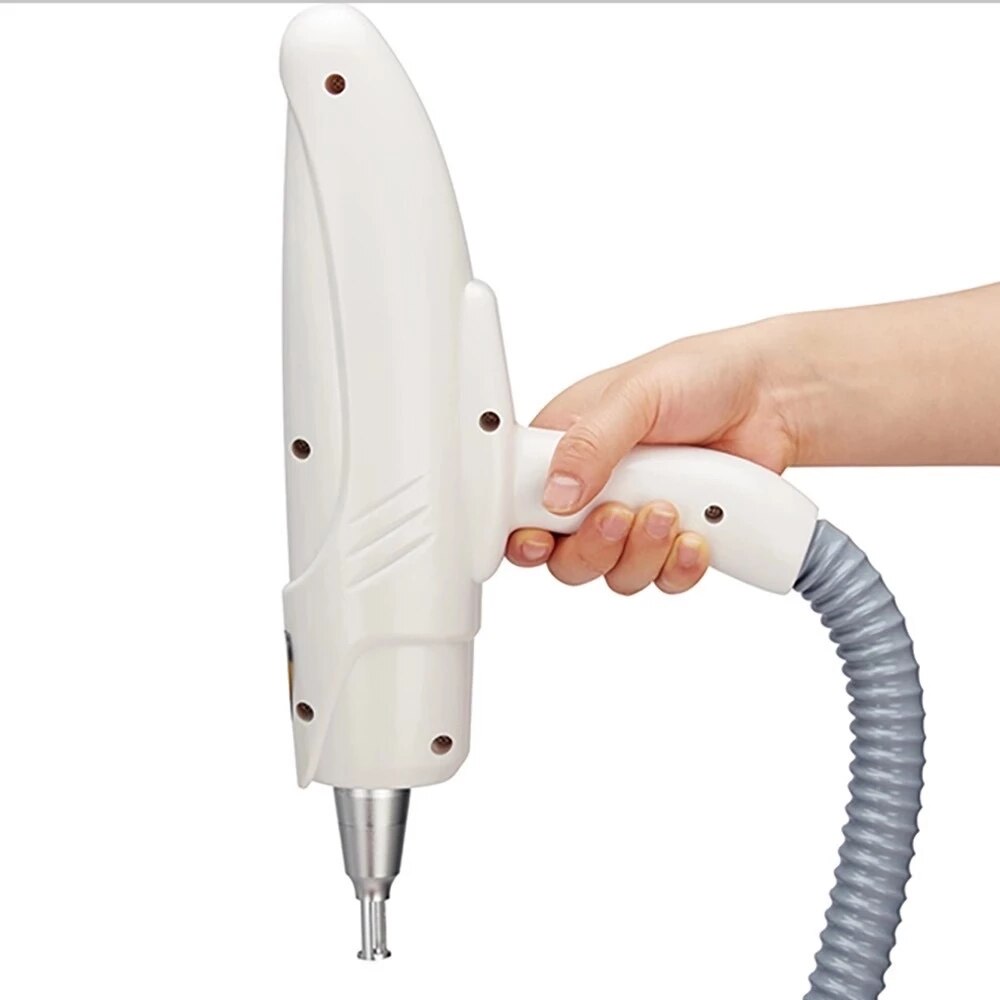

Nd yag laser

• Super long life of 3 million shots, at least 5-10 times longer than others!

• UK xenon lamp + Φ6 rod

• Big and round spot size, very uniform energy output

Other only offer 2 tips while we offer 3 tips to cover all customer needs.

532nm wavelength: get rid of freckles, eyebrow tattoo, failed eye line tattoo, tattoo , lips line, pigment, telangiectasia in shallow red, brown and pink and etc. light color

1064nm wavelength: get rid of freckles and yellow brown spot, eyebrow tattoo, failed eye line tattoo, tattoo, Birthmark and Nevus of Ota, pigmentation and age spot, nevus in black and blue, scarlet red, deep coffee and etc. deep color.

1320nm wavelength: shrink pores removal, poblackhead removal, skin tightening and whitening, skin rejuvenation, wrinkle removal .

• 10.4’ true color touch screen.

• Easy operate interface.

• Can save 4000 customer treatment records, very convenient for salon.

• 12 languages available

• Impectable alarming system.

• Free interface OEM service.

• Can add your Logo

Impeccable Alarming System:

Each line stands for a specific part in the machine.

Each of our machine has been stricktly tested before dispatching to you, but in case there is any problem after a period's using, you can check this interface.

If there is any line turns to yellow, it means the part it refers to has problem, so that we can send a new alternate to you immediately to reduce the repairing time for your client.

Password Lock System

Newly added Password Lock function is a great function for renting business. It allows distributor to control the machine from a distance!

For example, Lily has rented this machine for 1 month, you can set a 1 month password for her. After 1 month the password will be invalid and machine will be locked. If Lily wants to continuously use machine, she must pay for you first. If she pay you 10 days, you can offer her a 10 days password, if she pay you 1 month, you can offer her a 1 month password.

Before & After

Q1: Delivery methods ?

we can offer the door to door service by air or by sea, Such as DHL, UPS, TNT, FEDEX…by air; and the sea transportation to all over the world, including America, Canada, Brazil, Russia, Mexico etc.

Q2: What's package ?

strong and beautiful aluminum alloy box for long distance transportation.

Q3: Delivery time ?

after we get the payment  within 3-7 working days.

Q4: After sale service or technology supports ?

we have a professional technology supporting team for your timely services. We prepare the technical documents for you, also you can contact us by telephone, online chat (Skype, Google talk, MSN, Yahoo…).

Q5: OEM & ODM service ?

we offer professional services on software & hardware design
