Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Model Number: TM70B-OV1, Touch screen PON power meter
- Type: FTTx Solutions
- Place of Origin: Guangdong, China
- Brand Name: OTOP
- Use: FTTX
- LCD: 480*800, True color touch screen
- Battery: 3.7V 6600mAH rechargeable Lithium battery
- Working temperature: -10~60°C
- Storage Temperature: -25~70°C
- Dimensions(mm): 185*80*50cm
- Weight(g): About 370g
- No. of Fiber: 1.

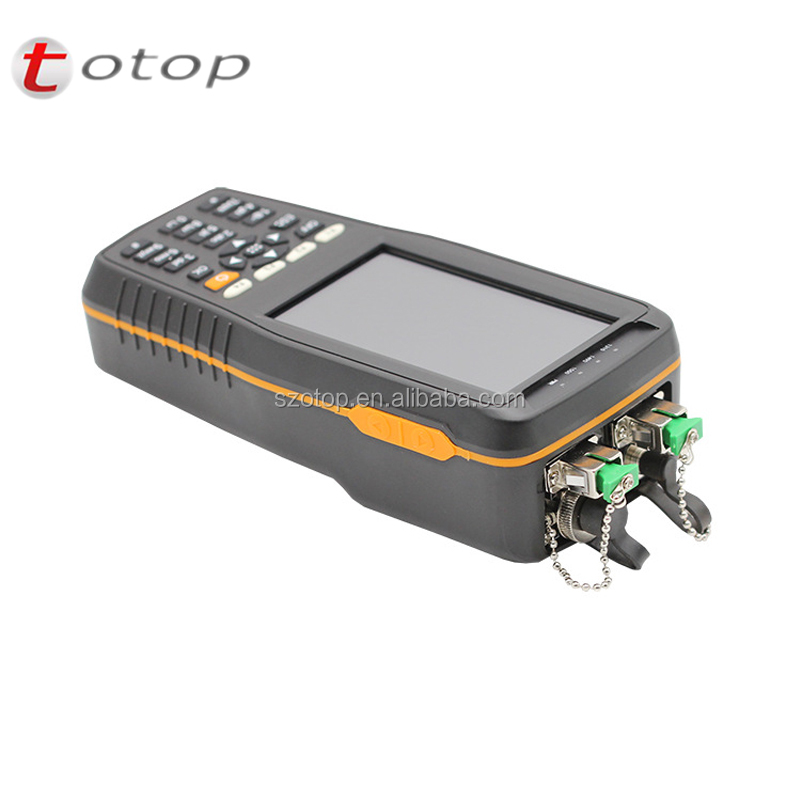

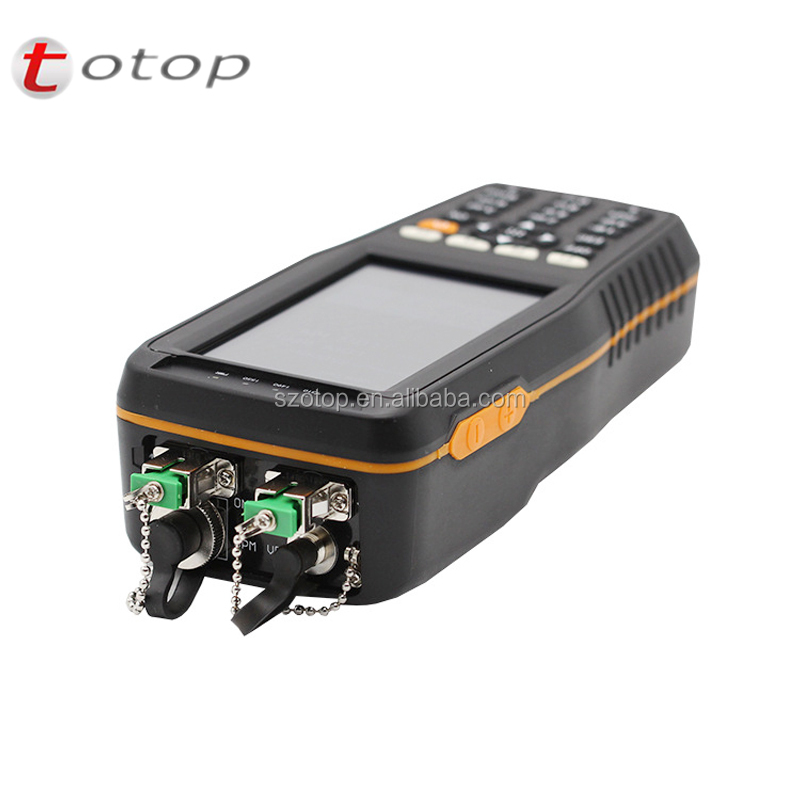

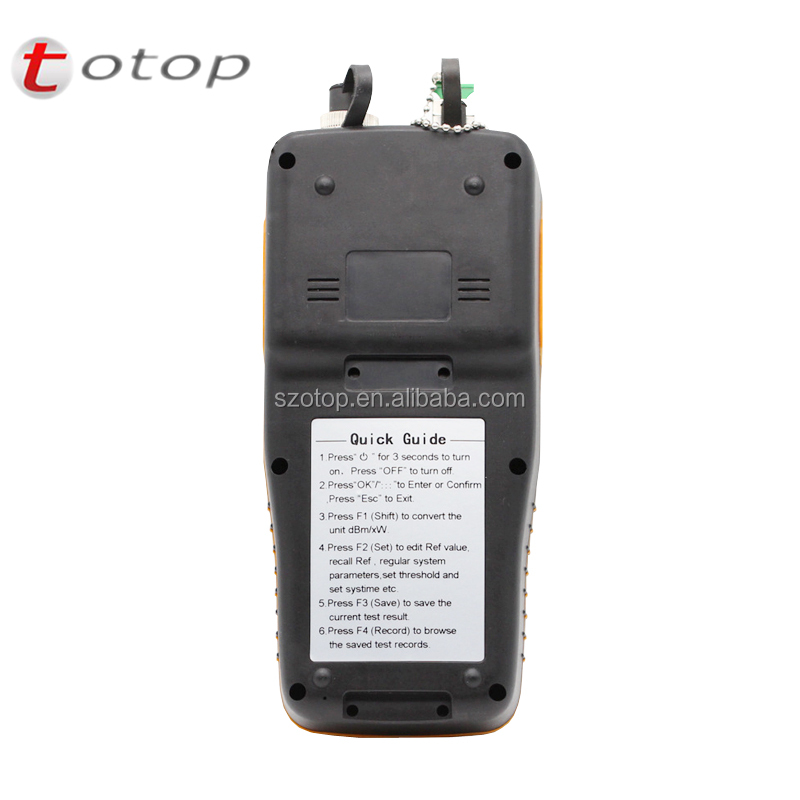

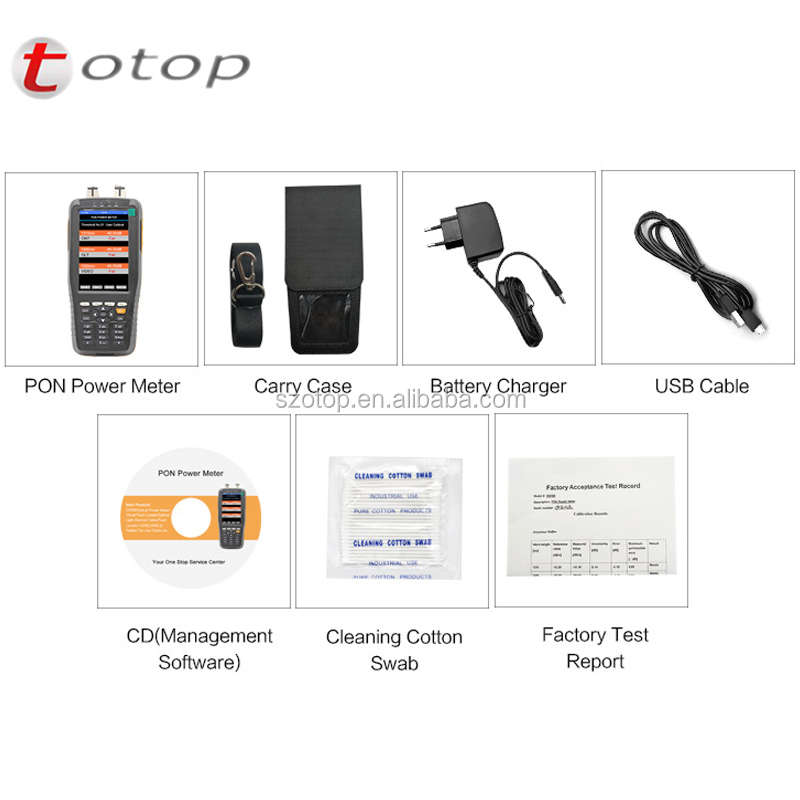

PON Optical Fiber Power Meter With 1mw VFL And Optical Power Meter TM70B-OV1
Order Option
| TM70B | Only PON Power Meter |
| TM70B-OV1 | PON+1MW VFL+optical power meter(850,1300,1310,1490,1550,1625nm) |
Description

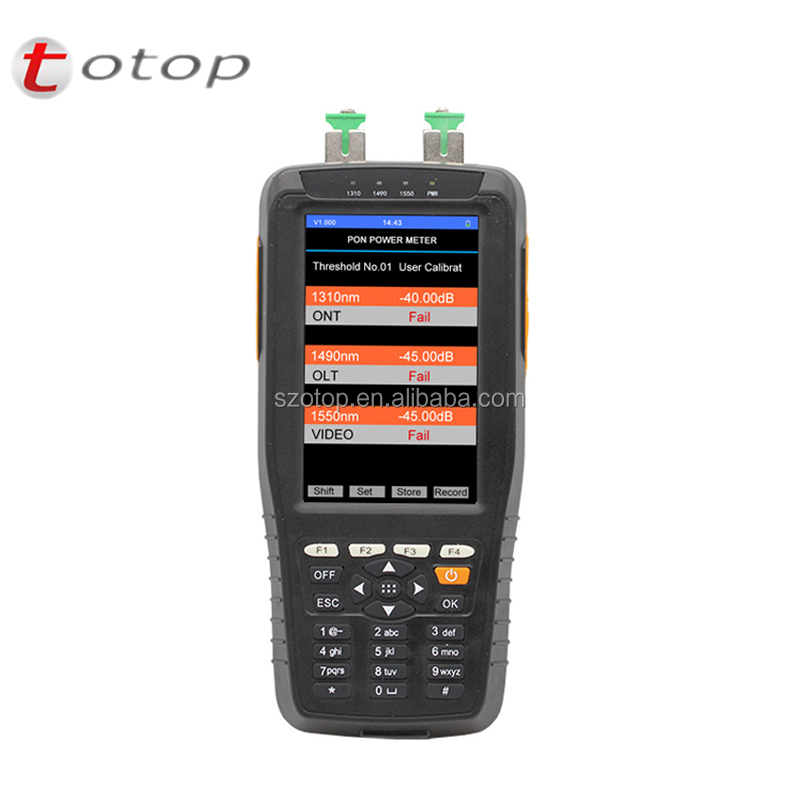

TM70B PON Power Meter (pon test instrument) is specially designed for PON network construction and maintenance which can be connected between OLT and ONT. The voice, data, video signal (1310/1490/1550) online can be measured synchronously and optical power value (1310/1490/1550) can be displayed with this meter. It’s a useful site test tool for the engineers of PON network and maintenance operators.
Main Features
1. Handheld, easy to operate
2. Can test 3 wavelengths’ power of PON system synchronously: 1310nm, 1490nm, 1550nm,
3. Can test the burst mode signal of 1310nm
4. True color screen
5. Friendly operation interface, human message management and operation function

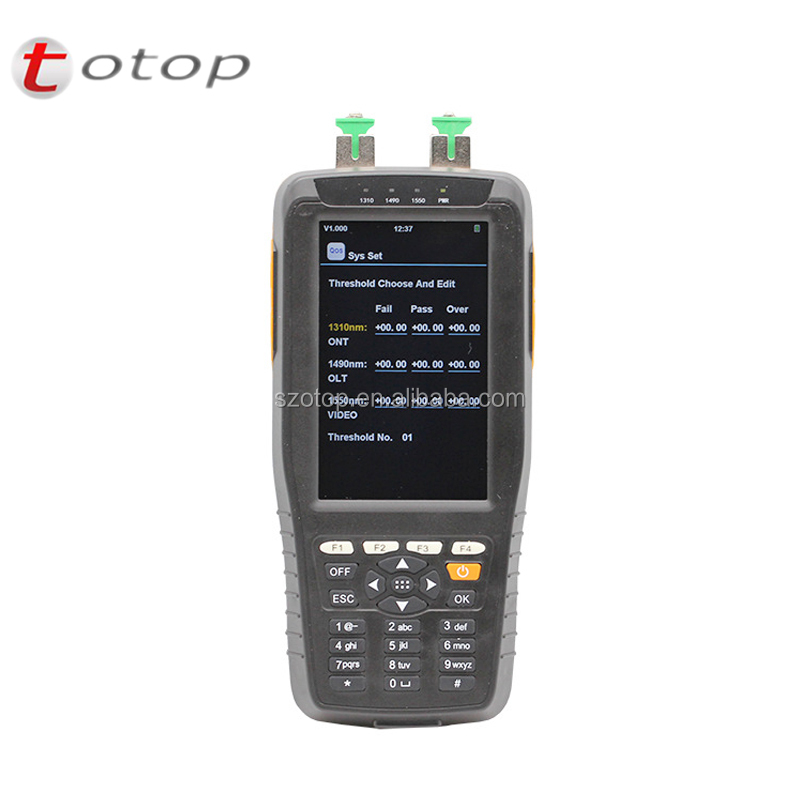

6. Supply 10 groups of threshold values for operator’s choice, analyze and display pass and fail status
7. Relative value choice and edit function
8. Can set the threshold value, upload data, and calibrate wavelength through management software
9. Auto shut off (according to set value)
10. Auto backlight off(according to set value)

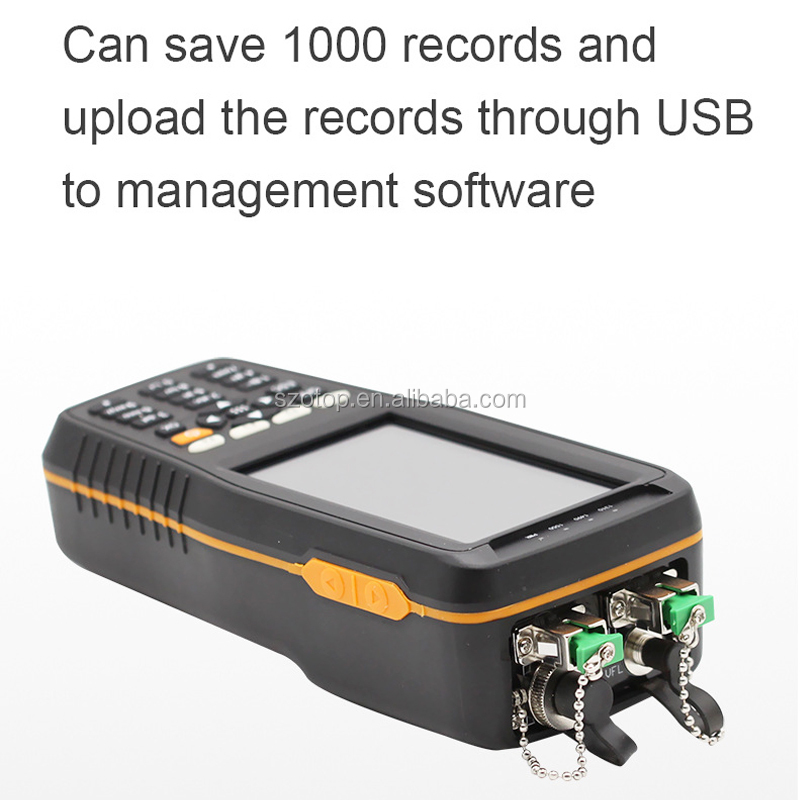

11. 6600mAh Lithium battery
12. Power saving design (Low voltage self check and power off)
13. Real-time clock display
14. Optical Power Meter ( Optional Function)
15. Visual Fault Locator ( Optional Function
Specifications
PON Power Meter
| Standard wavelengths | 1310 | 1490 | 1550 |
| (upstream) | (downstream) | (downstream) | |
| Pass zone(nm) | 1260~1360 | 1470~1505 | 1535~1570 |
| Range(dBm) | -50~+10 | -50~+10 | -45~+23 |
| Isolation @1310nm(dB) | >40 | >40 | |
| Isolation @1490nm(dB) | >40 | >40 | |
| Isolation @1550nm(dB) | >40 | >40 | |
| Accuracy | |||
| Uncertainty(dB) | ±0.5 | ||
| Polarization Dependent Loss (dB) | <±0.25 | ||
| Linearity(dB) | ±0.1 | ||
| Through Insertion Loss(dB) | <1.5 | ||
| Resolution | 0.01dB | ||
| Unit | dBm/xW | ||
LCD: 480*800, True color touch screen
Battery: 3.7V 6600mAH rechargeable Lithium battery
Working temperature: -10~60°C
Storage Temperature: -25~70°C
Dimensions(mm) : 185*80*50
