Description

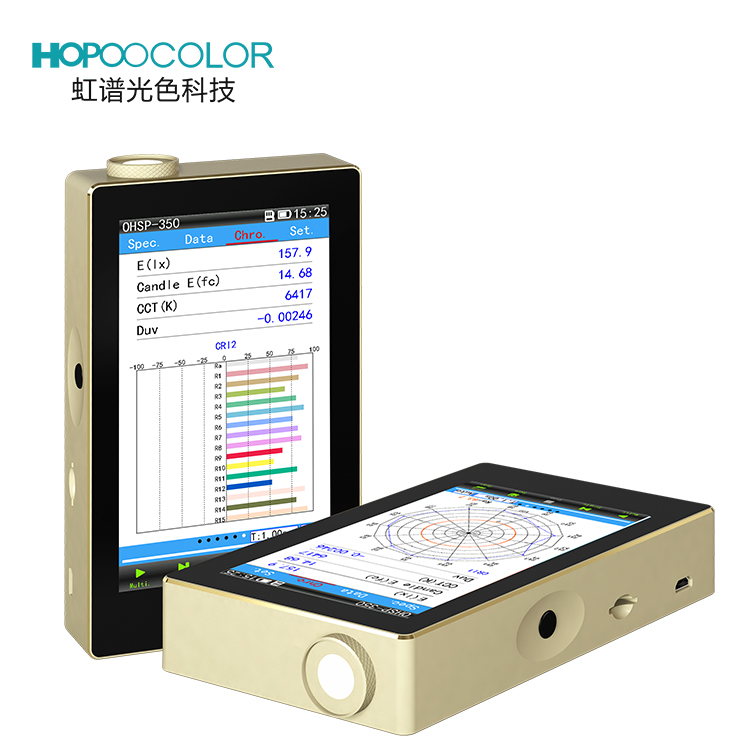

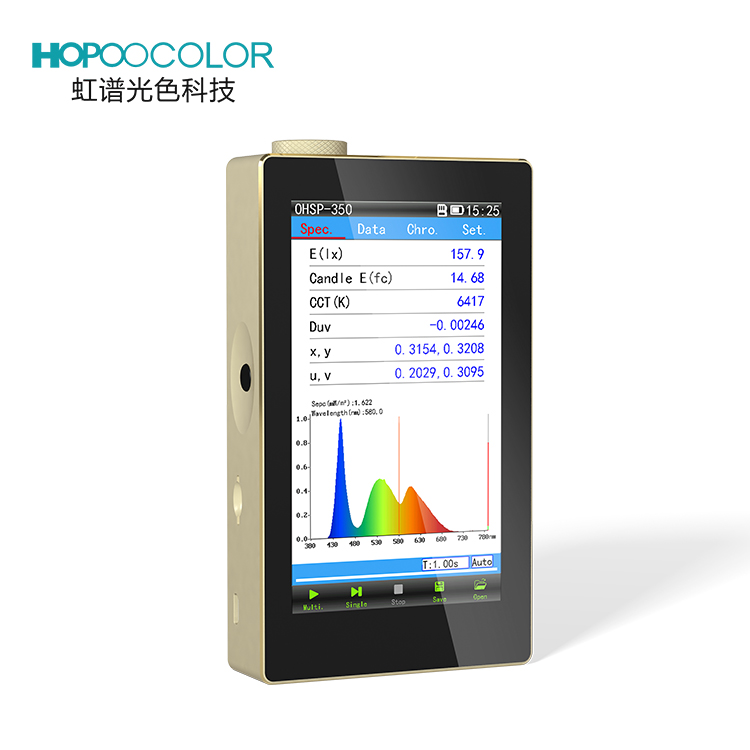

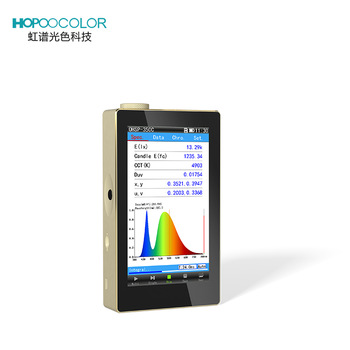

OHSP350C Portable Spectrometer
Application: the illumination and spectrum measurement of light source like LED,OLED,CFL energy saving lamp and HID high low pressure sodium lamp etc.
1. characteristic:

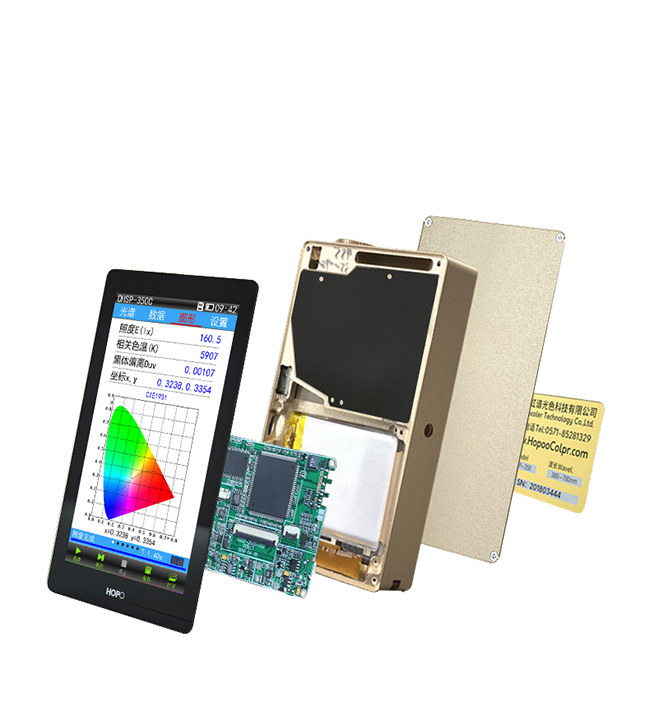

- Long focal length optical system, 2 nm optical resolution
- High performance linear CCD sensor 3648 points;
- Automatic zero and zero compensation technology, boot no manual zero;
- Electronic shutter technology, the minimum integration time 50 us, measurable stronger light signal;
- Quick switch machine, a key test, the use of more convenient

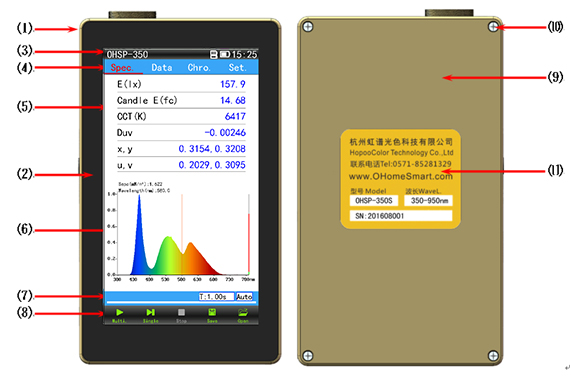

- 5 inch high-definition IPS screen, capacitive touch screen, display more content;
- Bring 4000mAh large-capacity lithium battery, 24 hour long test time;
- Illumination and radiation measurement
- CCD with long focal length and wide spectrum, intelligent and portable
- Automatic zero calibration
- Low power consumption large capacity battery
- Wide range of wavelengthscan test various types of light sources
- SD cardcan save a variety of formats Excel data analysis
- Be Suitable for different site test
- A millisecond key switchingmakes it more convenient forusing
2. CHARACTERISTICS AND SPECIFICATIONS
- Correlated color temperature (CCT) Illumination candlelight Spectral Irradiance
- Chromaticity Coordinates The Relative Spectral power distribution
- Color Rendering Index Rf,Rg as per IES TM-30
- SDCM Color Tolerance Dominant Wavelength Peak Wavelength
3. Application:
Application: Plant growth lamp, LED plant growth light,LED, OLED measurement, CFL energy saving lamp and high and HID low pressure sodium lamps etc
4. Meas Parameters:
CCT(K) |
illuminance(lx) |
Irradiance(W/m2) |
CIE1931 |
Coordinate x,y |
Candlelight(fc) |
Duv |
CIE1960 |
Coordinate u,v |
CRI (Ra) |
R1-R15 |
CIE1976 |
Coordinateu’,v’ |
SDCM |
Red ratio(%) |
Colour Tolerance Elliptic graph |
Peak wave(nm) |
Purity%) |
Green ratio(%) |
CRI circular graph |
Half width(nm) |
Dominant(nm) |
Blue ratio(%) |
Spectral Power Distribution |
Central wave(nm) |
Centroid (nm) |
S/P |
CIE1931 X,Y,Z |
Model | OHSP350C |
Wavelength range |
380nm ~780nm |
Light Splitting Mode |
long focal cross section |
Sensor |
High precision CCD |
Spectral Bandwidth (FWHM) |
2nm |
Spectral Resolution |
0.2nm X, Y repetitive ±0.0005 |
Wavelength Accuracy |
+ 0.5nm |
Illuminantion Accuracy |
(±4% Reading +1 Digital) |
Lighting Area |
Ф10mm |
Integrating Time |
50μs~10000ms |
Chromaticity Coordinate Accuracy |
±0.0025. |
CCT Range |
1,000K~ 100,000K |
Stray Light |
≤0.3% |
Illuminance Range |
5lx~200klx |
