Description
Luminance/ Brightness Meter

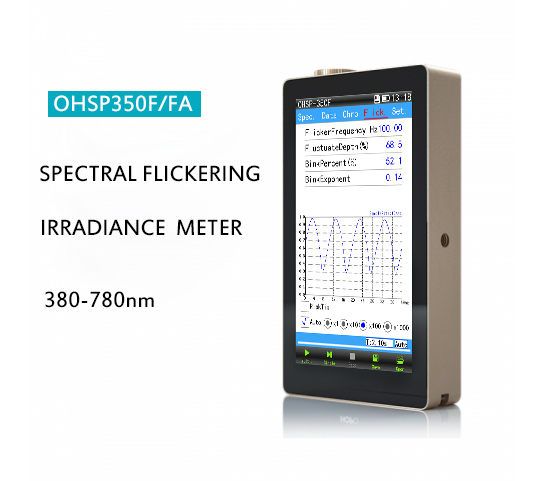

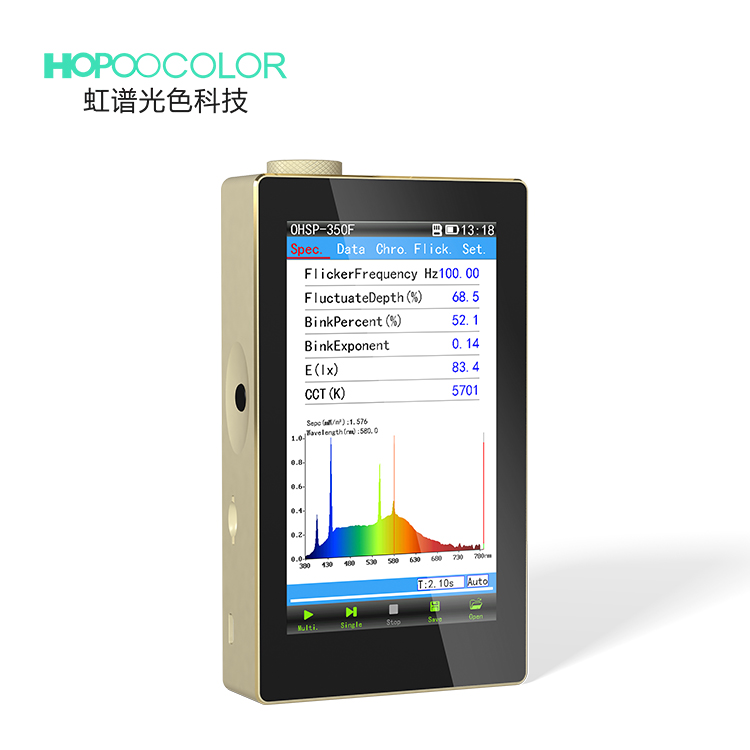

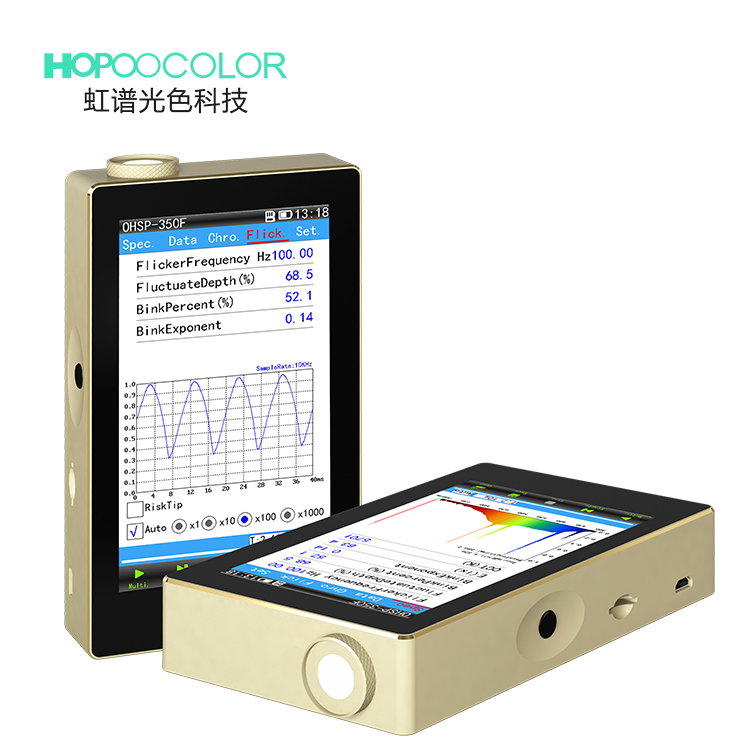

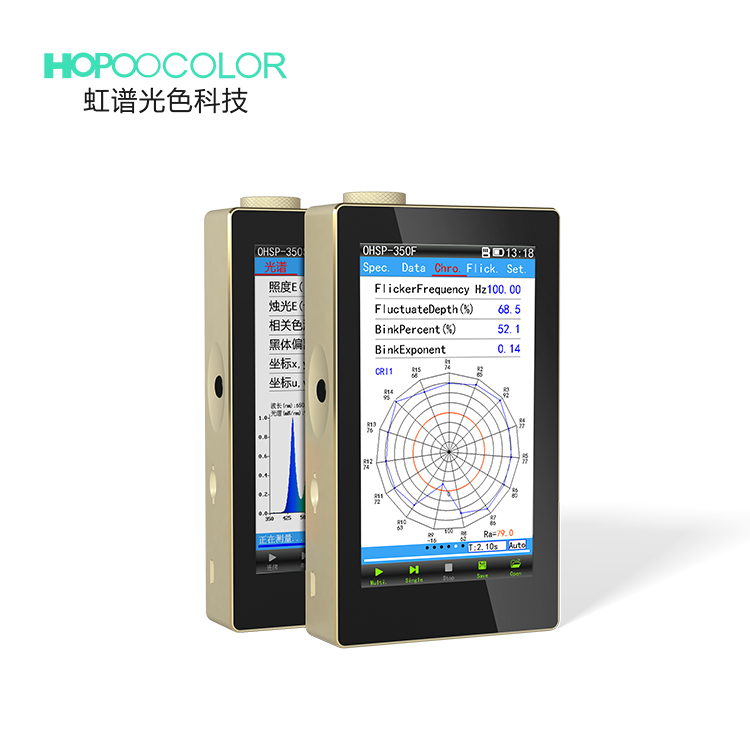

OHSP-350 series handheld spectral colorimeter illuminance meter set of measurement function Spectrum, illumination, chromaticity, light flicker in one. Using 5 inch screen, the measurement parameters and curves are displayed in real time. It is convenient to use and can be directly tested in the lighting field.,Not only measurable LED wide spectrum light source, but also can measure the narrow spectrum light sources, such as CFL, HID, and so on.,It can also be used to test the environmental light of stage design, building light, plant growth lamp, engineering application and so on.
OHSP-350C: Spectral irradiance colorimeter, integrated spectrum, CCT, CRI, Lux, irradiation. etc parameters in one. With 5 inch touch screen, Real-time display of measurement parameters and curves, use convenient and fast, not only measure LED wide spectrum light source, but also measure CFL, HID narrow spectrum light source.

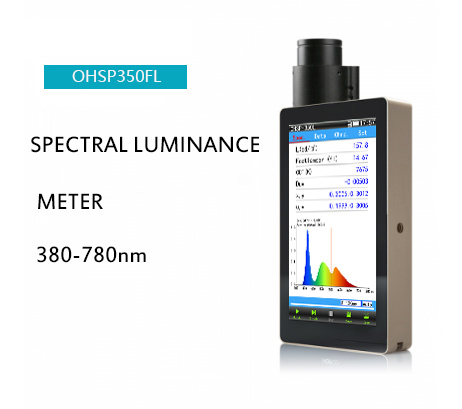

The OHSP-350FL: Spectral luminance meter ,equipped with optical imaging brightness lenses with laser alignment, suitable for mobile phone LCD screen, OLED, Cinema screen, projector and others.
OHSP-660T: Spectral Transmittance Tester, integrated Spectrum, Transmittance, L*A*B in one, can test material and lens immediately.
Meas parameters Wave range:380-780nm
Luminance(Cd/m2) | CRI(Ra) | Dominant(nm) |
Radiance mW/cm2/sr | S/P | Coordinate x,y |
Spectral Power Distribution | CCT(K) | Peak wave(nm) |
(fl) | Duv | OHSP350 basic parameters |
Application
TEST PARAMETER
Model | OHSP350FL Brightness Version |
Wavelength range |
380nm ~780nm |
Light Splitting Mode |
long focal cross section |
Sensor |
High precision CCD |
Spectral Bandwidth (FWHM) |
2nm |
Spectral Resolution |
0.2nm X, Y repetitive ±0.0005 |
Wavelength Accuracy |
+ 0.5nm |
Illuminantion Accuracy |
(±4% Reading +1 Digital) |
Lighting Area |
10mm |
Integrating Time |
50μs~10000ms |
Chromaticity Coordinate Accuracy |
±0.0025. |
CCT Range |
1,000K~ 100,000K |
Stray Light |
≤0.3% |
Luminance Range |
1cd/m2~10000cd/m2 |
