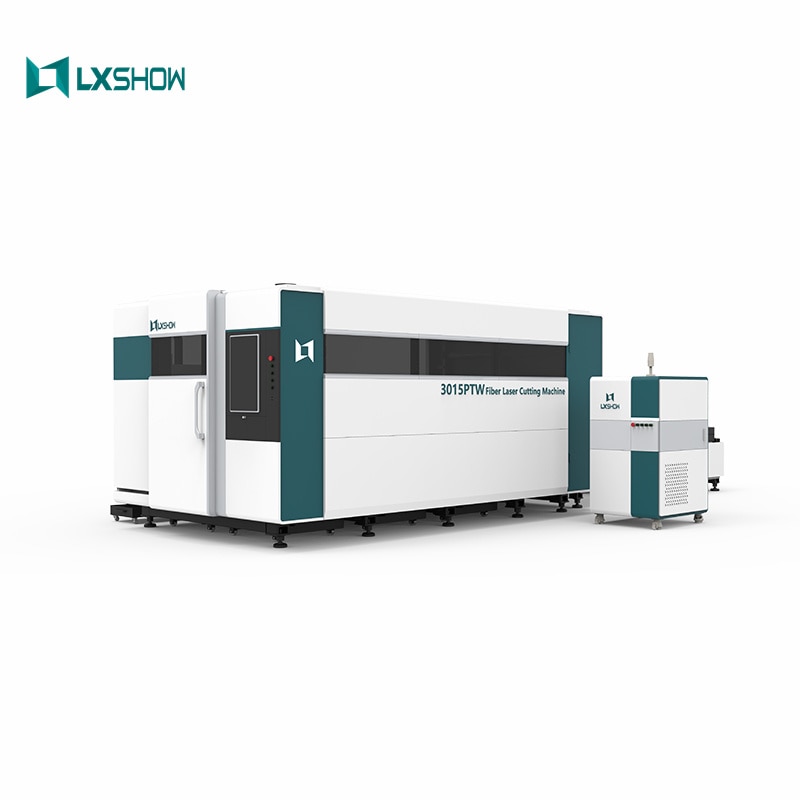

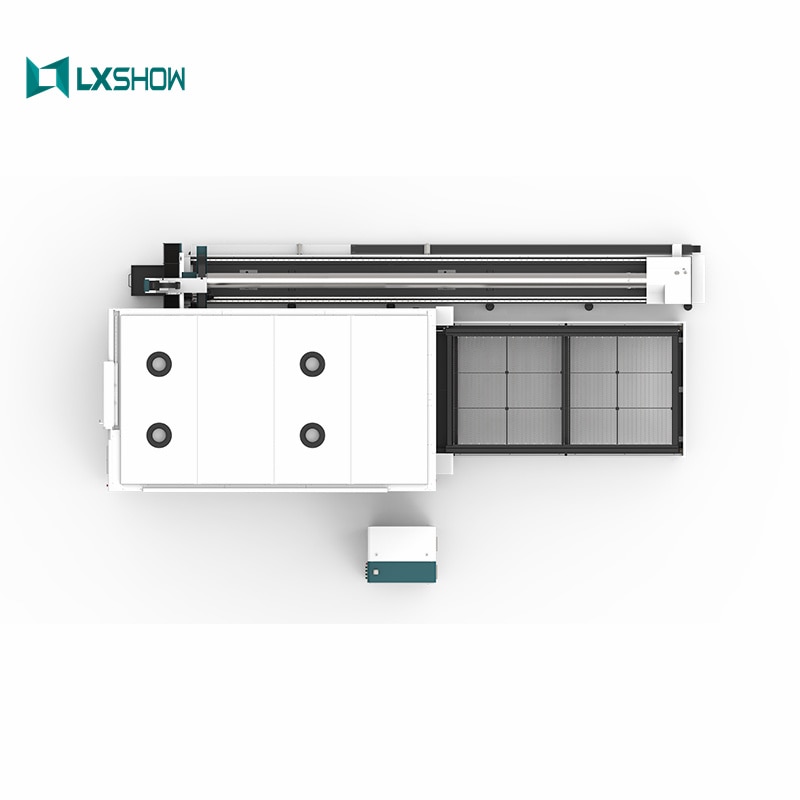

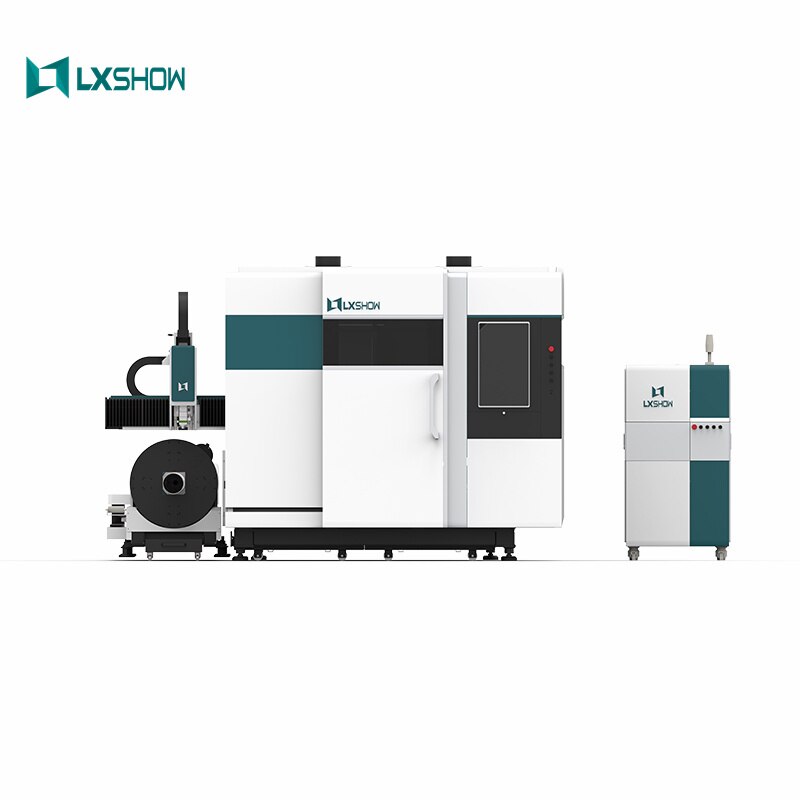

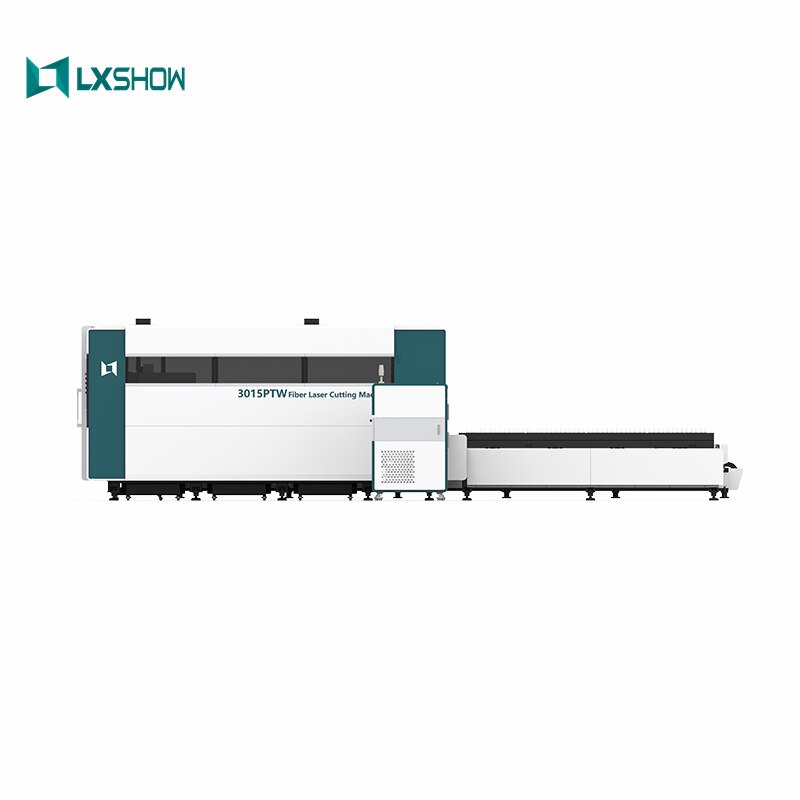

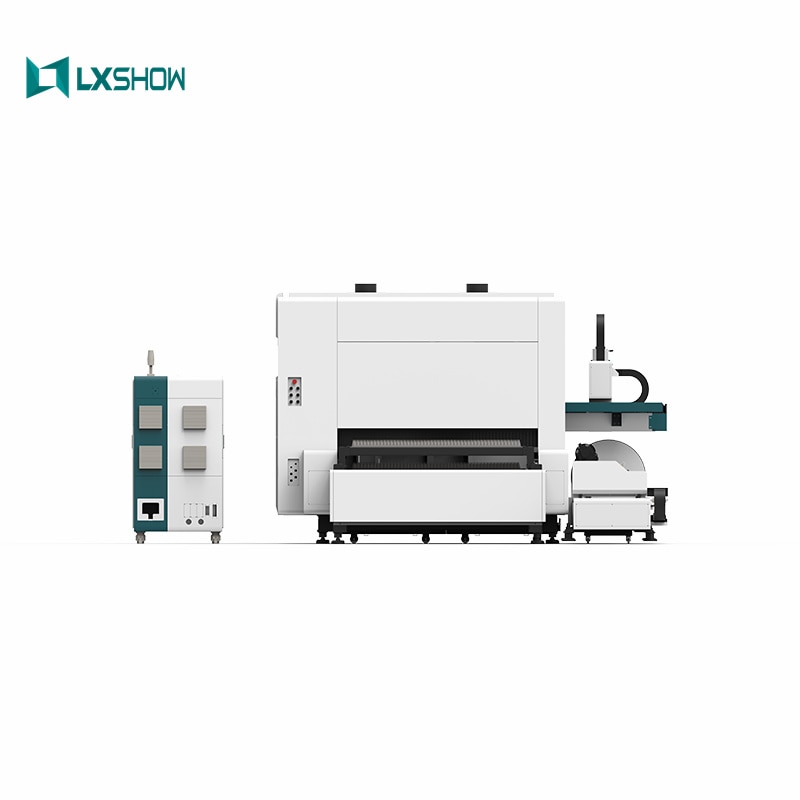

Pipe And Plate Fiber Laser Cutting Machine With Cabinet Protection 1000w 2000w 3000w

$142,500.00

100 in stock

SKU: 1005002467567835 Category:

Description

  • Brand Name: UNICHCNC
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: LX3015PTW
  • CNC or Not: CNC
  • Machine working area: 3000*1500mm
  • Laser brand: Raycus/IPG/MAX/JPT
  • Controller: Bochu controller
  • Laser head: Raytools/ WSX laser head
  • Linear square rails: Hiwin/ THK
  • Gear: YYC/APEX
  • Working area: Fuji/ YASKAWA Servo motor
  • Reducer: Motovario reducer
  • Chiller: S&A

Pipe And Plate Fiber Laser Cutting Machine With Cabinet Protection 1000w 2000w 3000w

PRODUCTION DESCRIPTION
DOUBLE TABLE  CLOSED FIEBR LASER CUTTING MACHINE
FOR METAL PLATE & TUBE CUTTING
cutting thickness 2mm-30mm ,diameter for tube /square 20mm-350mm

Applied materials and Industry:

Fiber cutting head (Metal Material):
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
Fiber cutting head (Metal Industries):
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
DETAILS
Protective enclosure
1.The shell insulates workers and cutting heads, making it safer for novices to operate the machine
2.Two platforms exchange work to save working time
RAYTOOLS CUTTING HEAD ,WSX/PRECITEC optional
BOCHU FSCUT CONTROL SUSTEM
RAYCUS GENERATOR 3000W-12000W
INSIDE MONITOR
INDEPENDENT CABINET
S&A WATER CHILLER
YASKAWA SERVO MOTOR
DOUBLE PALTEFORM
PAEX/YYCGEAR +HIWIN RAILS
Rotary legth support 3m-12m
Partition dedusting,reduce dust
Slamless Clamping ,More precisely
CONFIGURATION
1
Machine Name
High Power Metal Plate & Pipe Fiber laser cutting machine
2
Model
LX3015PTW
3
Laser machine cutting area
1500×3000/2000X4000/2500X6000mm
(other can be customed )
4
Fiber Laser Power
4000w 6000/8000/12000/25000/30000W
5
Laser wave length
1064nm
6
Transmission system
Gear + rails
(we have standard brand,we can also produce as your requirements)
7
X.Y axis location accuracy
±0.01mm
8
X.Y axis repeat location accuracy
±0.01mm
9
X.Y axis max moving speed
200m/min
10
Max cutting speed
1–200m/min(it will according to metal material and laser power)
11
Cutting thickness
Detailed in the following cutting thickness
12
Application Material
Metal sheet
Iron/CS/SS/Aluminum/Copper and all kinds metal
13
Advantages
>Excellent beam quality
>Simple , compact, electrically and optically efficient
>Compatibly powerful and reliable
>Maintenance free
>multilingual, more than 11 foreign languages
>3 years warranty .
14
Gross weight
8000KG
15
Net weight
8000KG
16
Machine size
2850*8850*2310mm/3350*10800*2310mm/3800*14800*2310mm(withexchange platform)
SAMPLES
What materials are suitable ?
Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, aluminized zinc plate, pickling plate, copper, silver, gold, titanium and other metal plates and pipes.thickness range 0.02mm -30mm
PACKING & SHIPPING
Quick delivery
The factory will arrange production quickly after receiving the order and ship it within 30 days .
The last customer who bought 10 set machines only took40 daysto get all finished products.
WHY CHOOSE US
JINAN LXSHOW MACHINERY CO.,LTD
LXSHOW is a laser equipment manufacturing factory established in Jinan, China in 2004, Our main products are laser cutting machine, laser cleaning machine, laser welding machine, laser marking machine, Our mission is to use the latest laser technology to help metal processing work more convenient, more intelligent and more economical,
In 2020, LXSHOW laser has more than200employees, and the company's annual turnover exceeds US$100million, owns more than500square meters of researching and office space, more than32000square meterssuper factory.We have provided21314machines for laser processing practitioners in156countries and regions, Super factory and experienced workers can guarantee excellent quality and fast delivery.
WELCOME TO OUR FACTORY!
Support production visualization, and the quality of each production link is controllable!
FREE SAMPLES SERVICE !
You can tell us the cutting materials and patterns you need. Our factory will cut a sample for free first. You can decide whether to buy the machine or not according to the cutting sample

SUPPORT FREE TRAINING !

Do not worry that you do not have skilled staff, we can teach you how to install, debug and use the machine in our factory for free .
Click to make an appointment!
CERTIFICATION
FAQ
Q1 :Our workers can't operate the machine, how to train the staff?
A1:We will send you the teaching video of the machine and 24-hour online service,we alsosupportfree trainingservice, engineers can train your workers for free in our factory for 1-3 days,if you wantdoor-to-door service,We can arrange local service in 48 hours
Q2 : I don’t know which one is suitable for me ?
A2:Please tell me your
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Popular cut thickness

Q3 :It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do？
A3:We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service.

Q4 :Why the machine price not include fiber source?
A4:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.

Q5 :I don’t know how to use after I receive Or I have problem during use,how to do?
A5:
1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2) If have any problem during use,you need our technician to judge the problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
