Photorealistic RGB TOF Depth camera CS30 Large viewing Angle solid state liDAR robot navigation obstacle avoidance

$548.90

99999 in stock

SKU: 1005003974789623 Category:

Description

  • Brand Name: FaseLase
  • Certification: CE,RoHS
  • Origin: Mainland China
  • Model Number: CS30

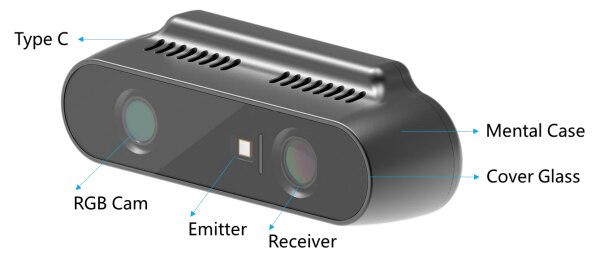

RGB photorealistic depth camera -CS30

Product introduction

CS30 is equipped with a TOF depth sensor with a resolution of 640*480 and a color image sensor with a resolution of 1920*1080. It uses TOF technology to obtain three-dimensional information of objects and space. It has excellent performance such as long distance and low power consumption, providing users with convenient and efficient 3D perception ability.

The product is powered by Type C interface and output depth and color image information at the same time, supporting depth and color image registration.

Product features

High precision

Typical measurement range 0.1 — 5 m @90% reflectivity

High dynamic measurement range

Support depth, color image synchronization

Adjustable range and frame rate

Applicable scenario

Robot obstacle avoidance

Industrial visual

Live testing

Somatosensory interaction

3 d modeling

Security monitoring

Technical parameters

Depth map resolution: 640*480/320*240

Color map resolution: 1920*1080/640*480

Measuring range: 0.1-5m, indoor

VCSEL wavelength: 90nm

Accuracy: 1%@90% reflectivity

Depth FOV: H100°*V70° (Receiver)

Size: 90 mm * 25 mm * 25 mm

Data output :USB 2.0 protocol, Type C interface

Power supply mode: 5V, average 0.6A

Power consumption: average 3W

Operating system: Win10, Ubuntu,ROS

Operating temperature: -10~50℃

Security: TBD
