Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Warranty: 1 YEAR
- Customized support: OEM, ODM
- Place of Origin: Fujian, China
- Brand Name: Probest

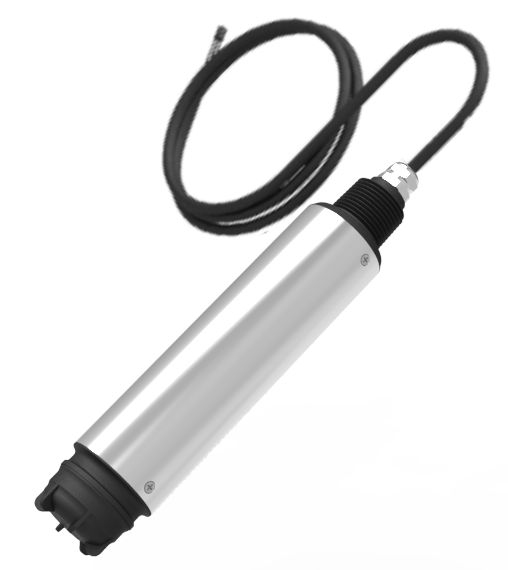

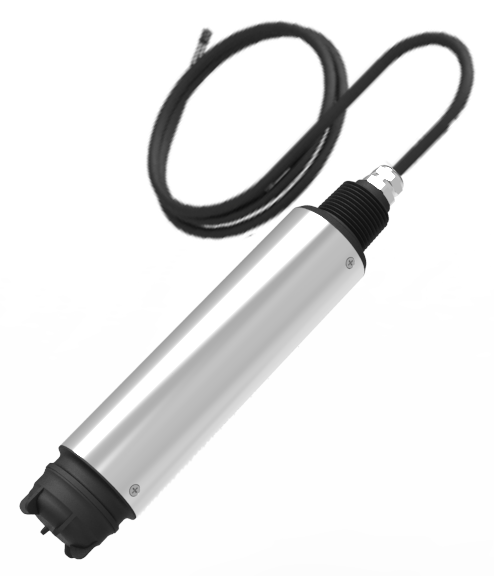

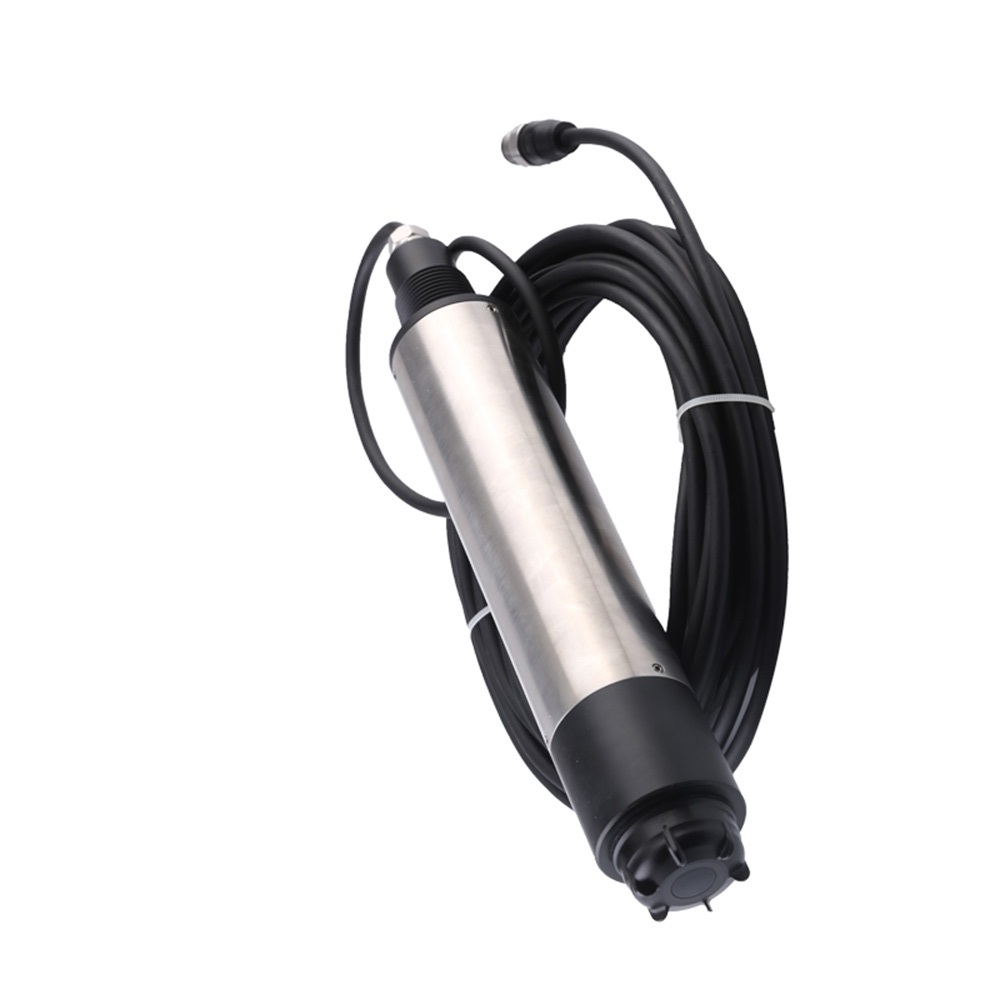

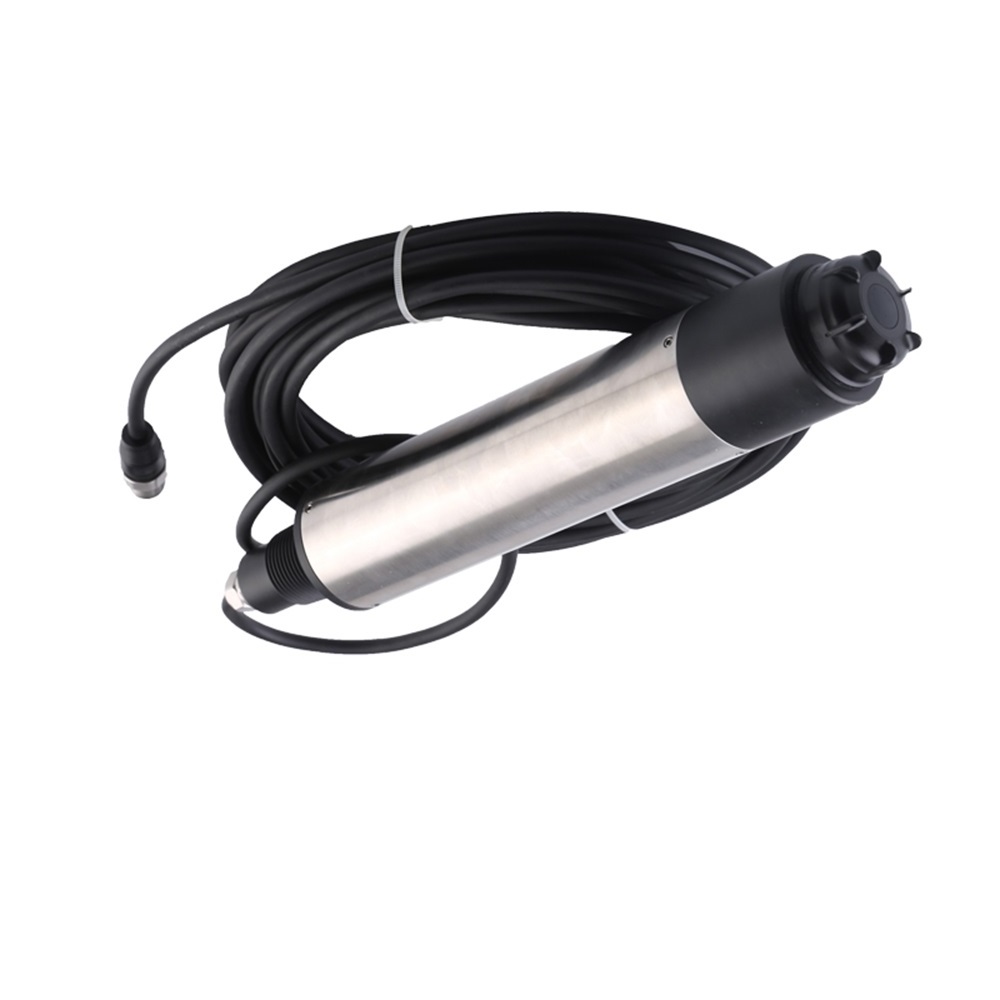

- Model No.: PFDO-700-0-FW DO Fluorescence Dissolved Oxygen Sensor
- Measurement range: DO:0-20 mg/L or 0-200% saturation;
- Measurement Accuracy: DO:±3% ;Temperature:±0.5℃
- Pressure range: ≤0.3Mpa
- Calibration: Air automated calibration,sample calibration
- Main material: Body:SUS316L(fresh water);Cover:PPS glass fiber;Cable:PVC
- Power supply: AC:100-240VAC (50/60HZ) DC:9~36VDC
- Output: 3-way 4-20mA controller optional
- Communication protocol: MODBUS RS485
- Test item: River aquaculture water testing
- Certification: CE, ISO
Quality is our culture, A professional water sensors manufacturer to make water analysis to be right for you!
PFDO-700-0-FW Probest Fluorescence Probest Fluorescence concentration meter Oxygen dissolved oxygen electrode analzyer
| Model No. |
PFDO-700-0-FW Probest Fluorescence Probest Fluorescence concentration meter Oxygen dissolved oxygen electrode analzyer |
| Measurement range | DO:0-20 mg/L or 0-200% saturation; |
| Temperature:0-45℃ | |
| Measurement Accuracy | DO:±3% ;Temperature:±0.5℃ |
| Pressure range | ≤0.3Mpa |
| Calibration | Air automated calibration,sample calibration |
| Main material |
Body:SUS316L(fresh water); Cover:PPS+glass fiber;Cable:PVC |
| Power supply | AC:100-240VAC (50/60HZ) |
| DC:9~36VDC | |
| Output | 3-way 4-20mA |
| Relay |
Setting three-way relays,programmed response parameter and response value. |
| Communication protocol | MODBUS RS485 |
| Storage temperature | -15-65℃ |
| Measuring temperature | 0-45℃ |
| Dimensions | Sensor:Dia49.5mm*L 251.5mm |
| Weight | Sensor:1.4KG; |
| Protective rate | Sensor:IP68/NEMA6P; |
| Cable length | Standard:10m, the maximum may be extended to 100m |

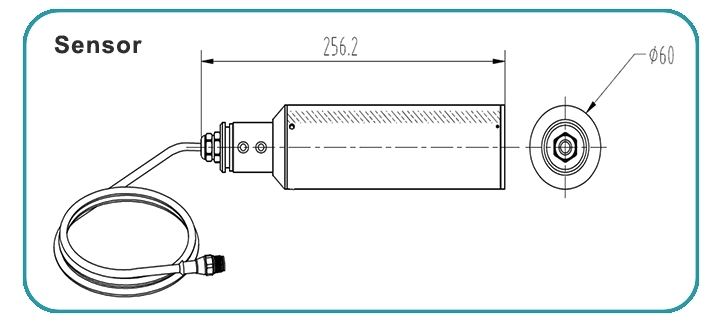

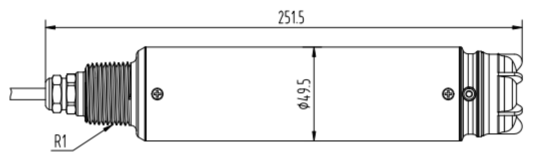

Dimention:
Why Choose Us:
Probest is a professional ISO9001 certificated manufacturer with many patents specializing in researching, developing, producing of water analysis instruments, including portable water analyzer, multi-parameter water quality analyzer, data acquisition and transmission terminal. The product can be applied to the fields of water quality monitoring of drinking water, waste water, surface water, aquaculture water, industrial process water, etc.
Probest is a reliable company including 30+ researcher, focusing on the development of sensor technology to make water analysis faster, simpler, greener and better.
Quality is our core advantages, providing stable and reliable water quality analysis.
