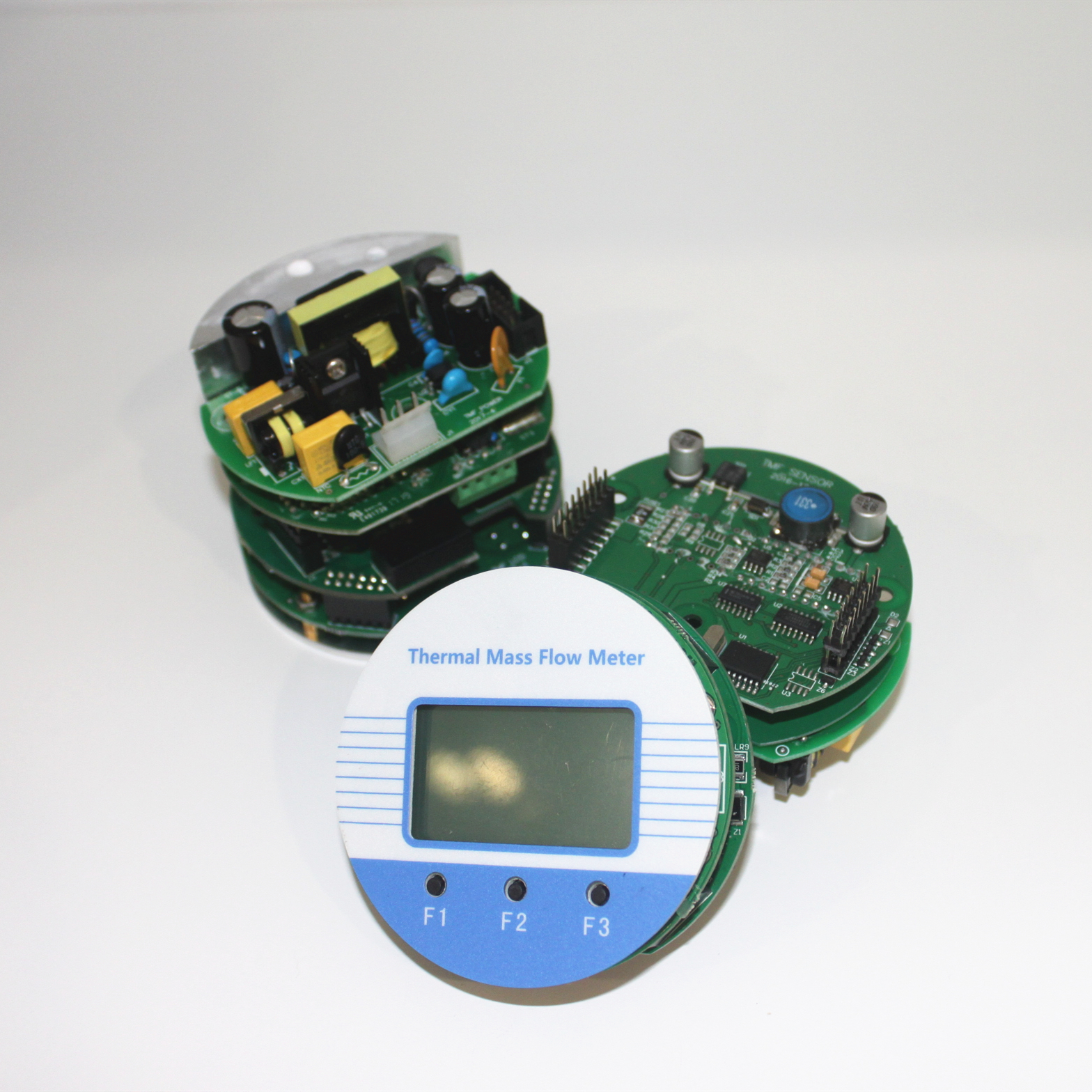

PCB board of thermal gas mass flow meter

  • Home
  • PCB board of thermal gas mass flow meter
Sale!

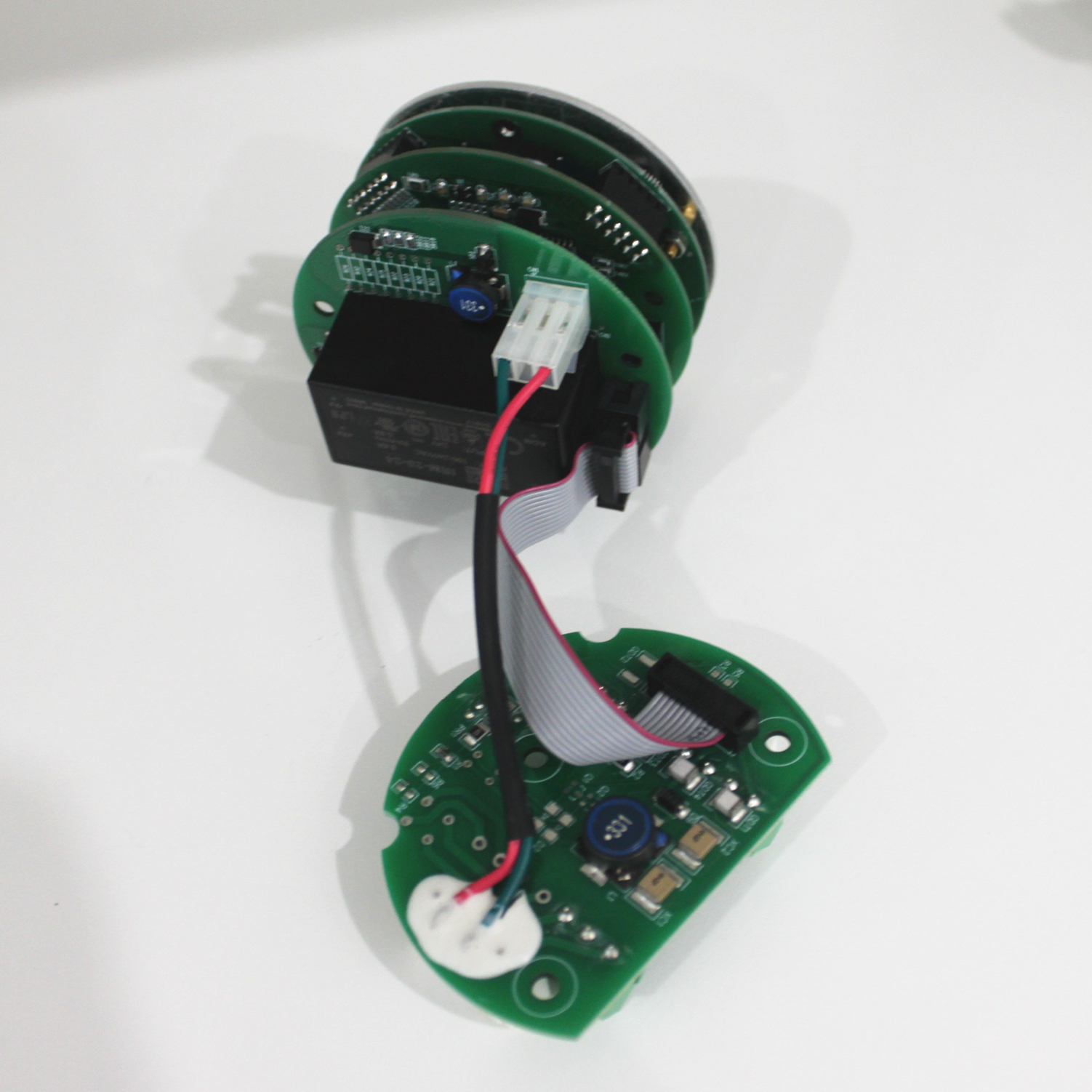

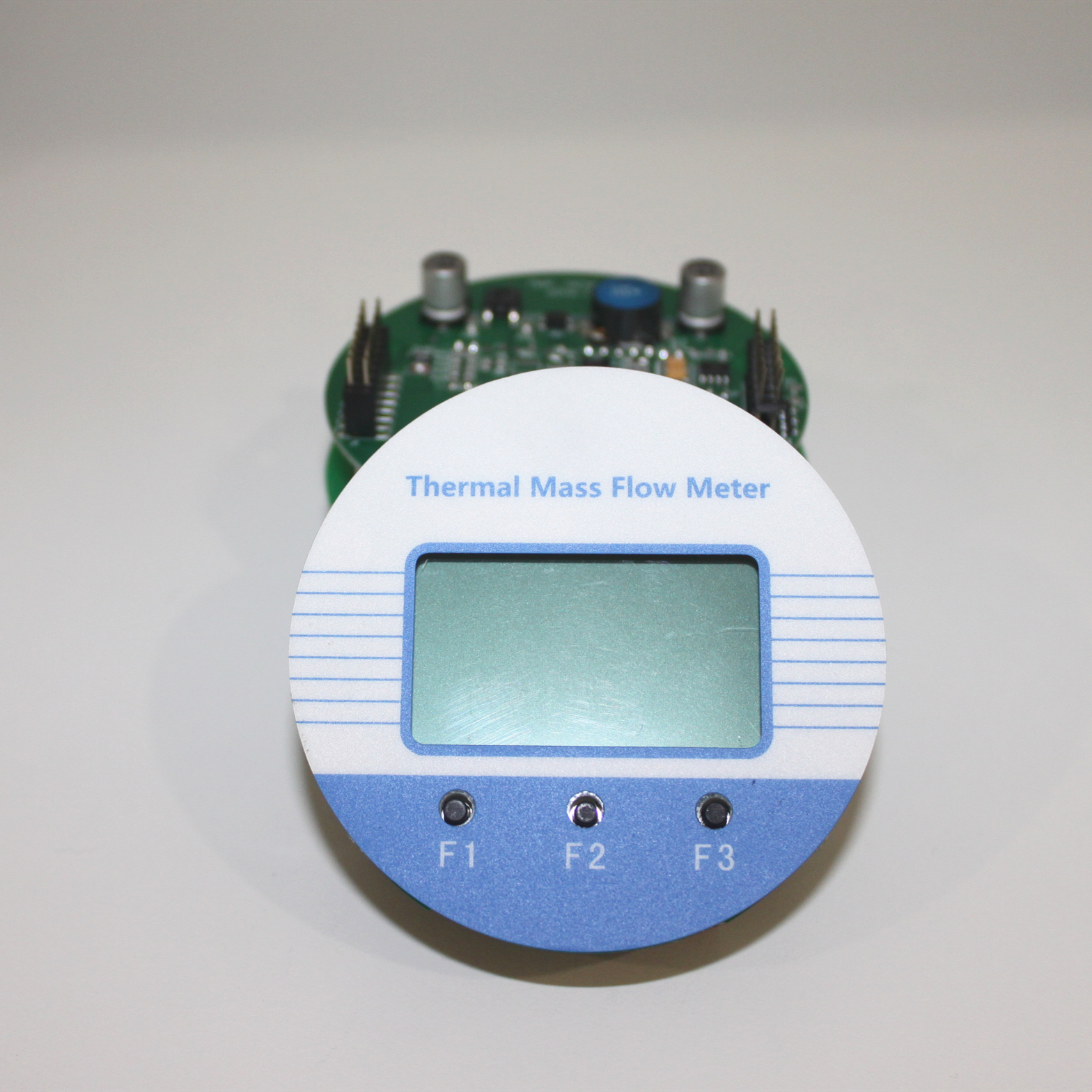

PCB board of thermal gas mass flow meter

$455.07

88 in stock

SKU: 1005004223152201 Category:

Description

  • Brand Name: NoEnName_Null
  • Certification: CE
  • Origin: CN(Origin)
  • Shape: Candle
  • Place of Origin: Shanghai, China
  • Brand Name: ANGJI
  • Model Number: TMF
  • Type: Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
  • Product Name: Thermal gas mass flowmeter
  • Output: 4-20mA/Pulse/RS485
  • Pipe size: DN10~DN4000mm
  • Accuracy: ±1~2.5%
  • Power Supply: 24VDC / 220VAC
  • Display: 4 lines LCD
  • Material: Stainless steel (316)
  • Protection Class: IP65
  • Construction: Compact and Remote
  • Working Temperature: Sensor: -40℃~ 220℃ Transmitter: -20℃~ 45℃
Product Description

   Thermal gas mass flow meter is designed on the basis of thermal dispersion, and adopts method of constant differential temperature to measuring gas flow. It has advantages of small size, easy installation, high reliability and high accuracy, etc.

Product Overview

Features

Measuring the mass flow or volume flow of gas

Do not need to do temperature and pressure compensation in principle with accurate measurement and easy operation.

Wide range: 0.5Nm/s~100Nm/s for gas. The meter also can be used for gas leak detection

Good vibration resistance and long service life. No moving parts and pressure sensor in transducer, no vibration influence on the measurement accuracy.

Easy installation and maintenance. If the conditions on site are permissible, the meter can achieve a hot-tapped installation and maintenance. (Special order of custom-made)

Digital design, high accuracy and stability

Configuring with RS485 or HART interface to realize factory automation and integration





Description

Specifications

Measuring Medium

Various gases (Except the acetylene)

Pipe Size

DN10~DN4000mm

Velocity

0.1~100 Nm/s

Accuracy

±1~2.5%

Working Temperature

Sensor: -40℃~+220

Transmitter: -20℃~+45

Working Pressure



Insertion Sensor: medium pressure≤ 1.6MPa

Flanged Sensor: medium pressure≤ 1.6MPa

Special pressure please contact us

Power Supply

Compact type: 24VDC or 220VAC, Power consumption ≤18W

Remote type: 220VAC, Power consumption ≤19W

Response Time

1s

Output

4-20mA (optoelectronic isolation, maximum load 500Ω), Pulse, RS485 (optoelectronic isolation) and HART

Alarm Output

1-2 line Relay, Normally Open state, 10A/220V/AC or 5A/30V/DC

Sensor Type

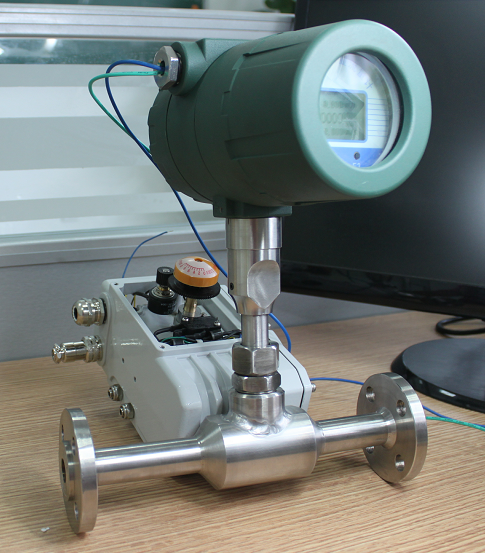

Standard Insertion, Hot-tapped Insertion and Flanged

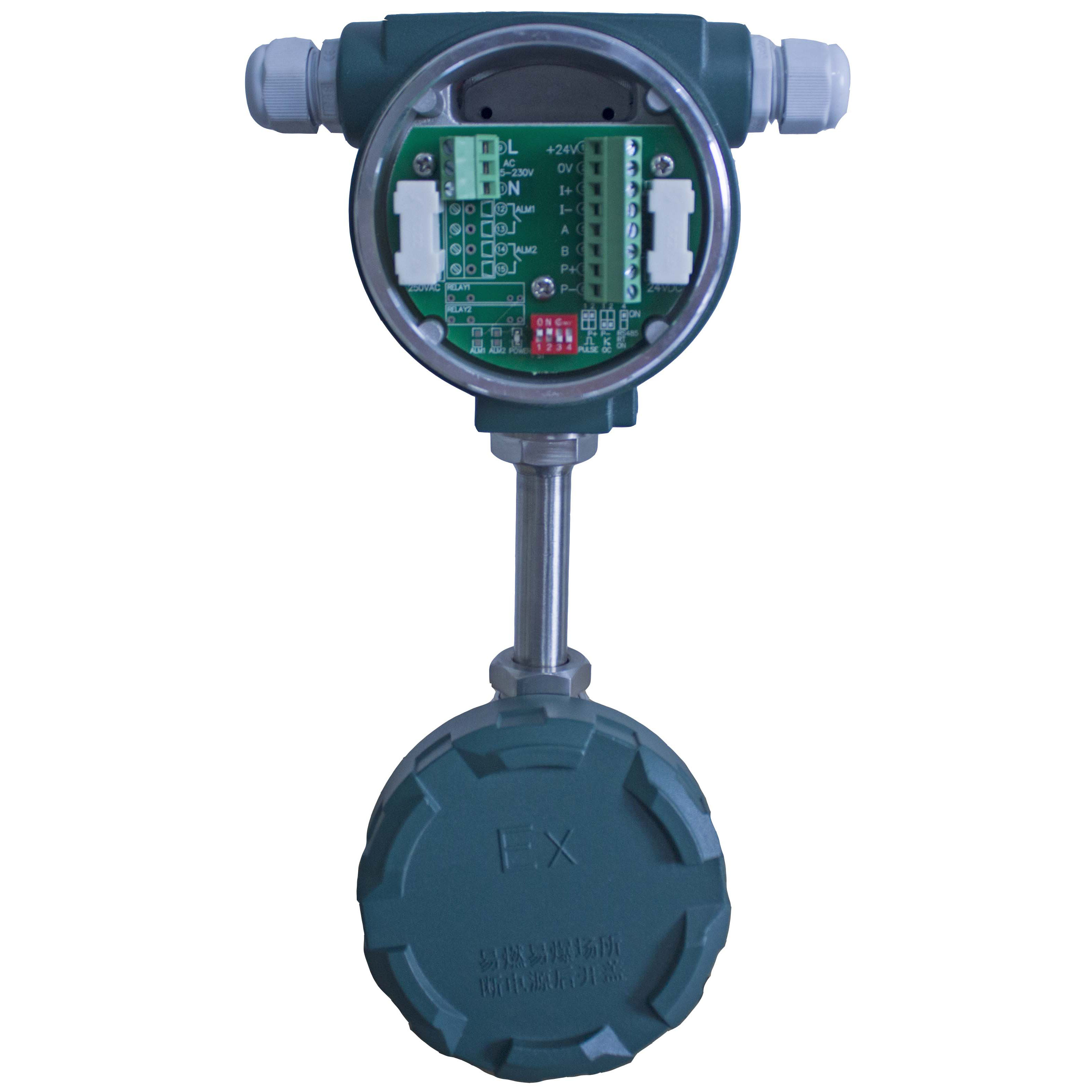

Construction

Compact and Remote

Pipe Material

Carbon steel, stainless steel, plastic, etc

Display

4 lines LCD

Mass flow, Volume flow in standard condition, Flow totalizer, Date and Time, Working time, and Velocity, etc.

Protection Class

IP65

Sensor Housing Material

Stainless steel (316)

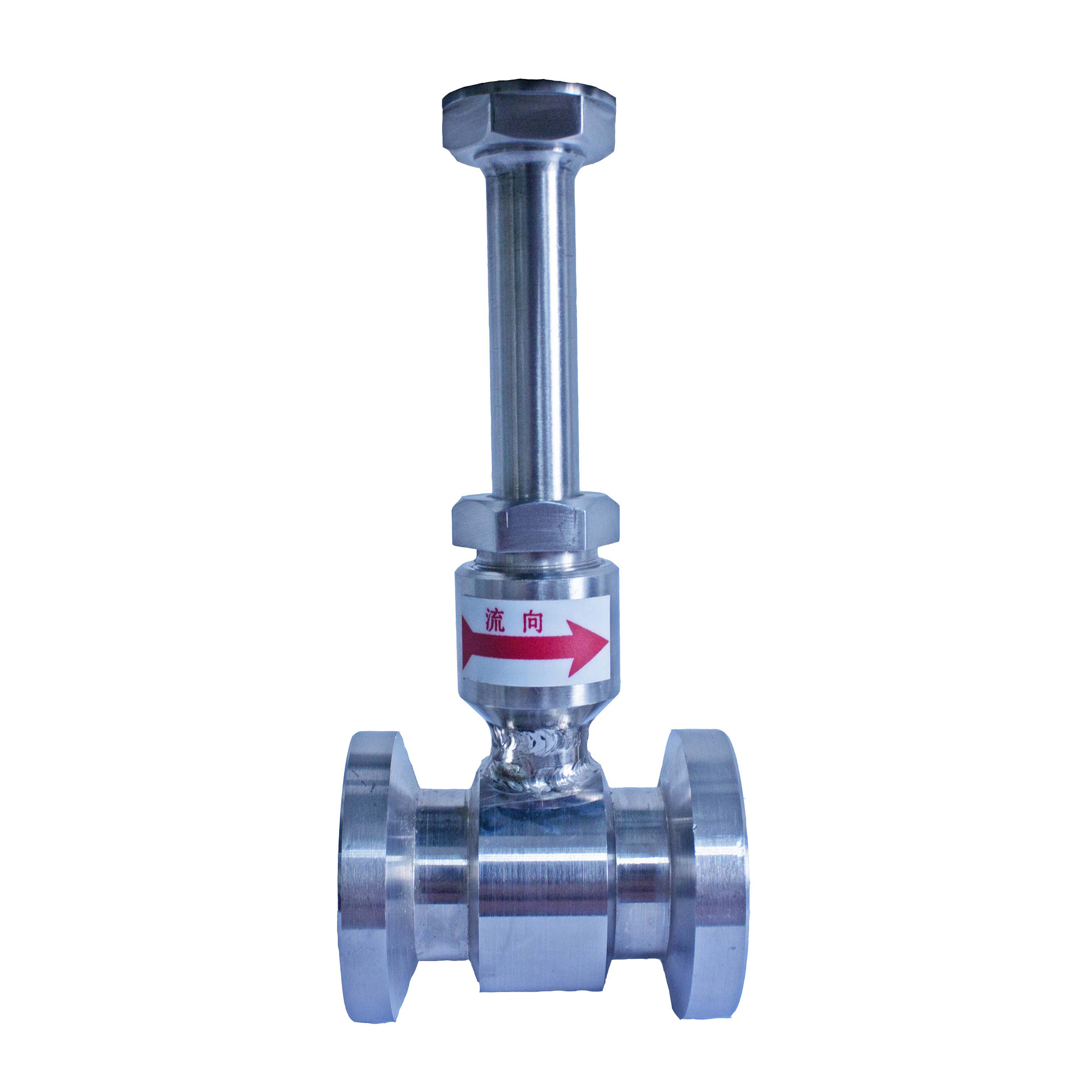

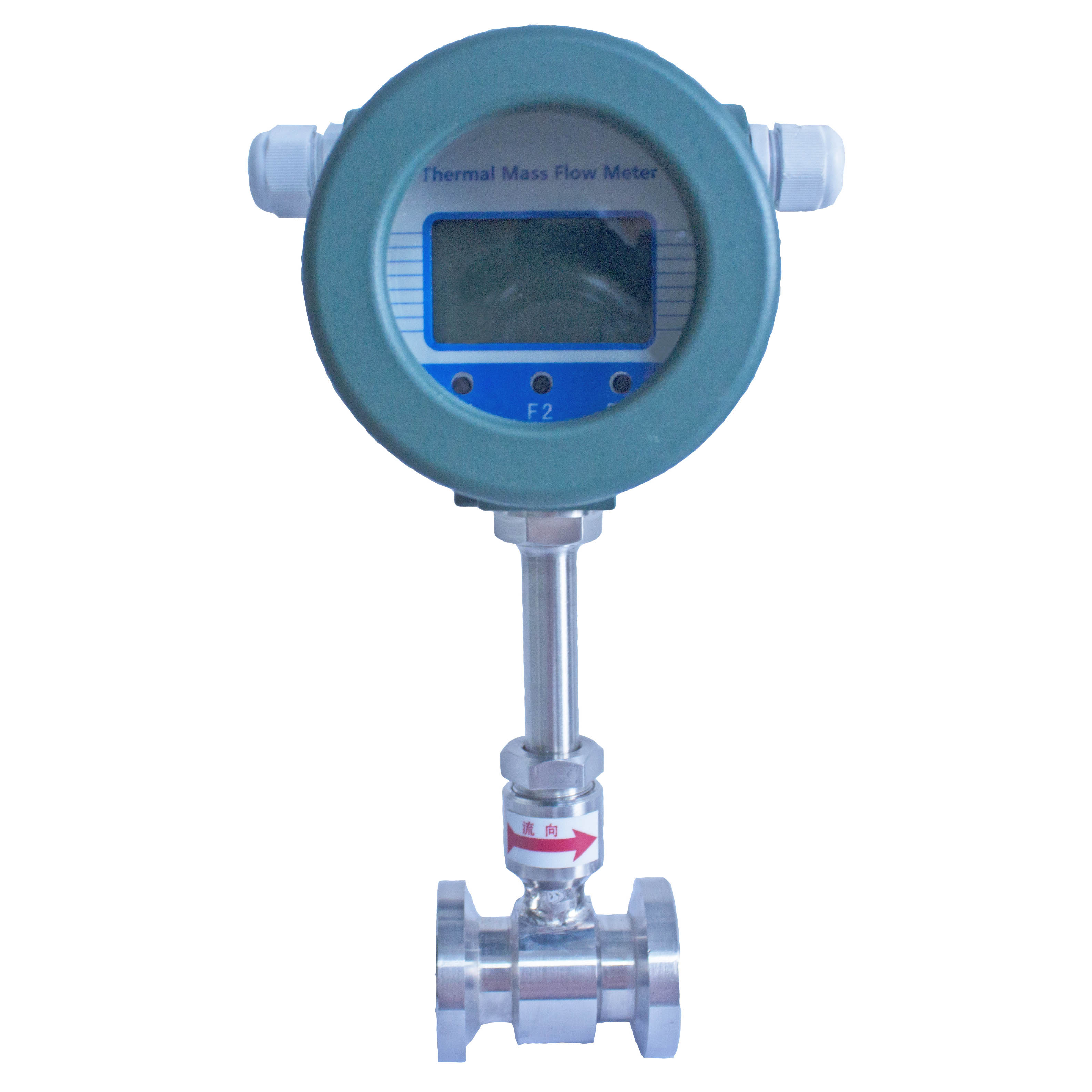

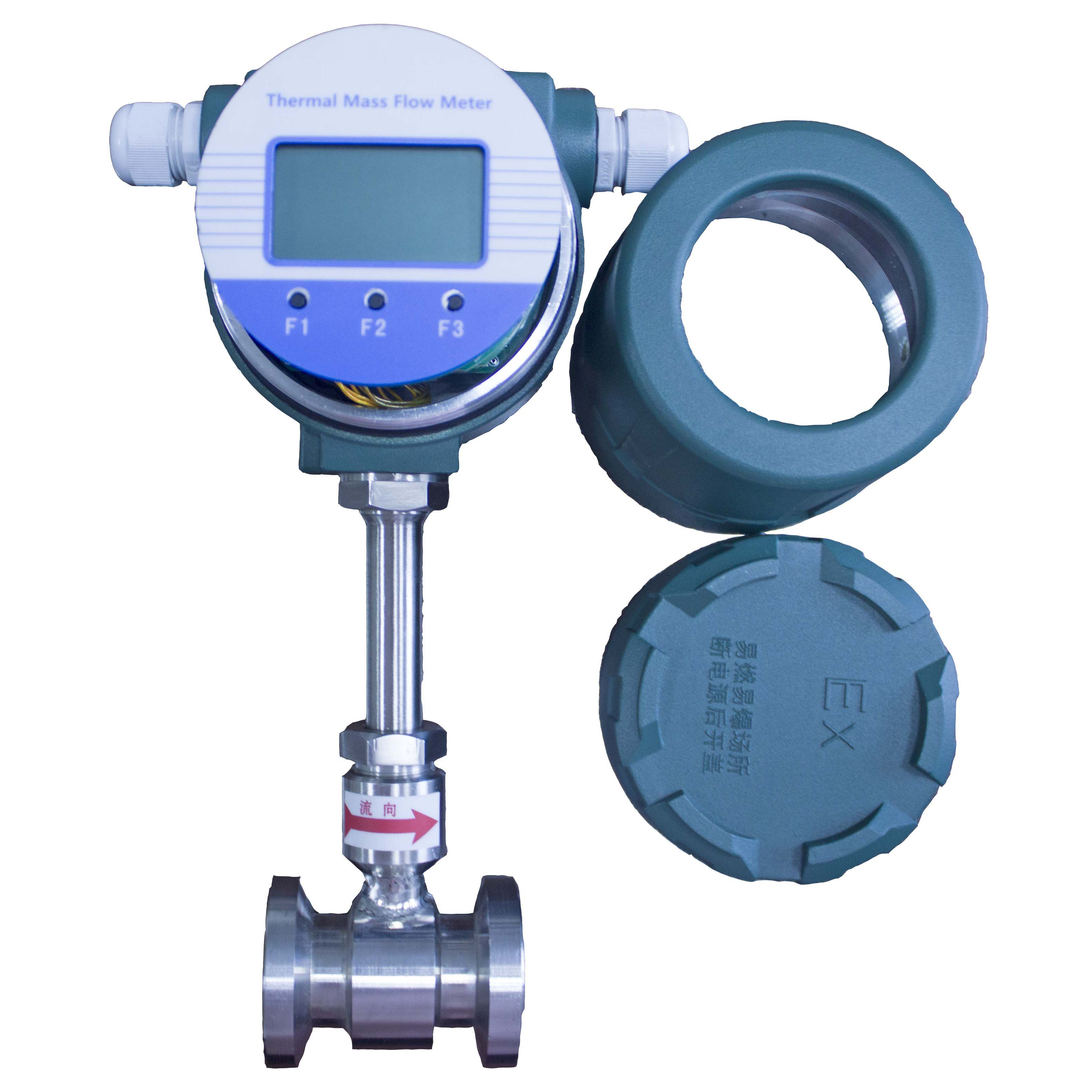

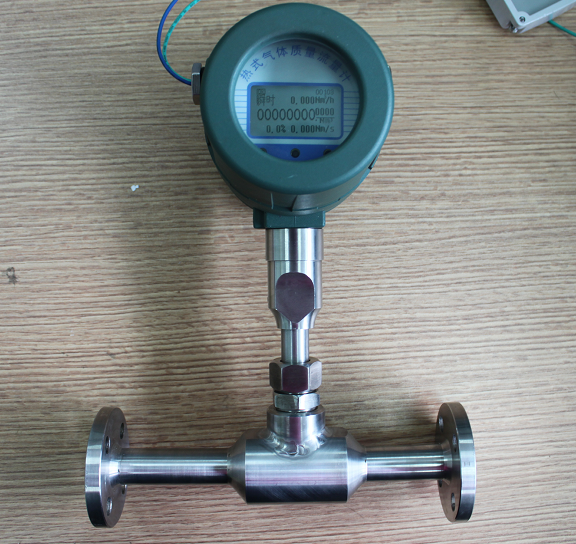

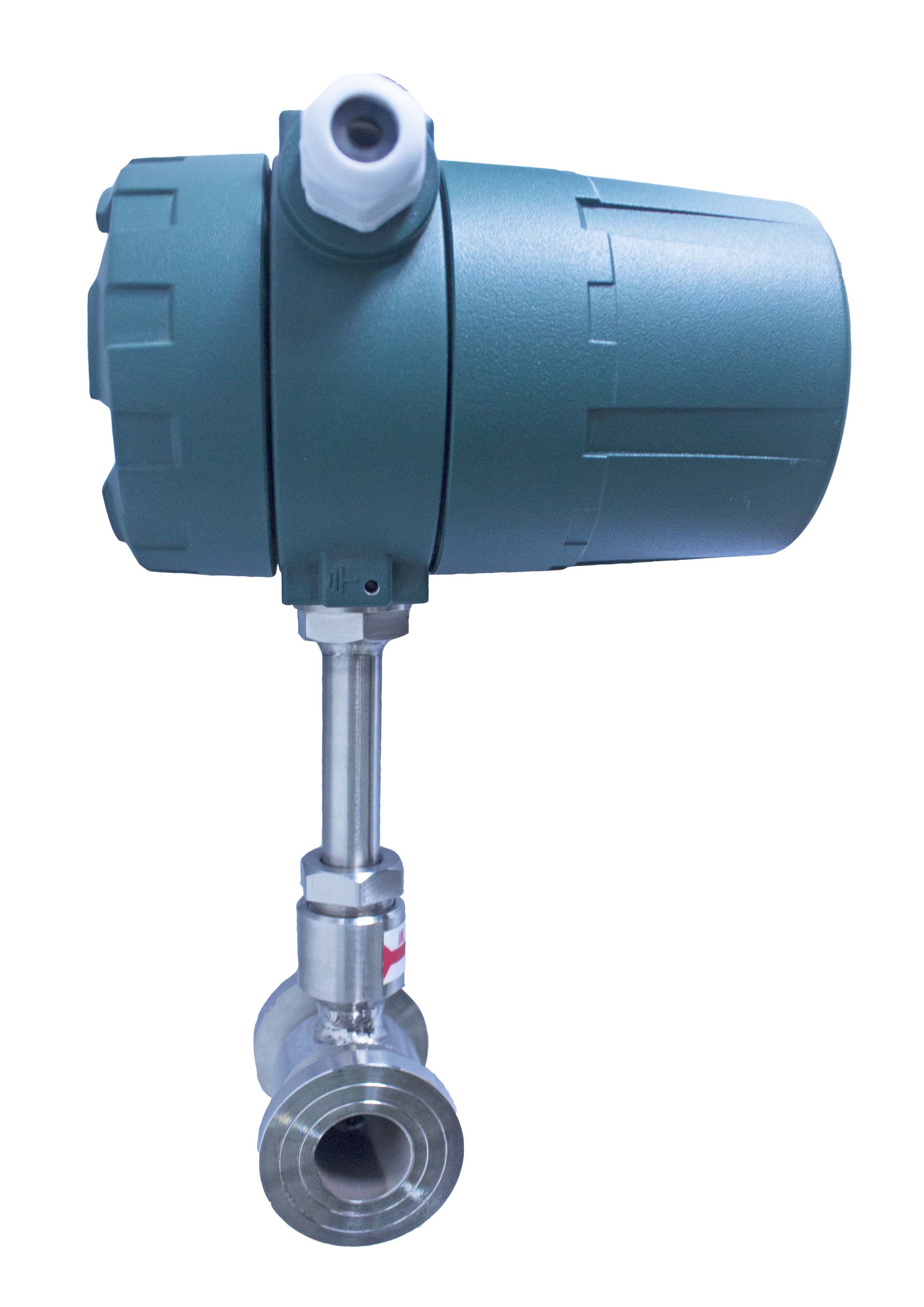

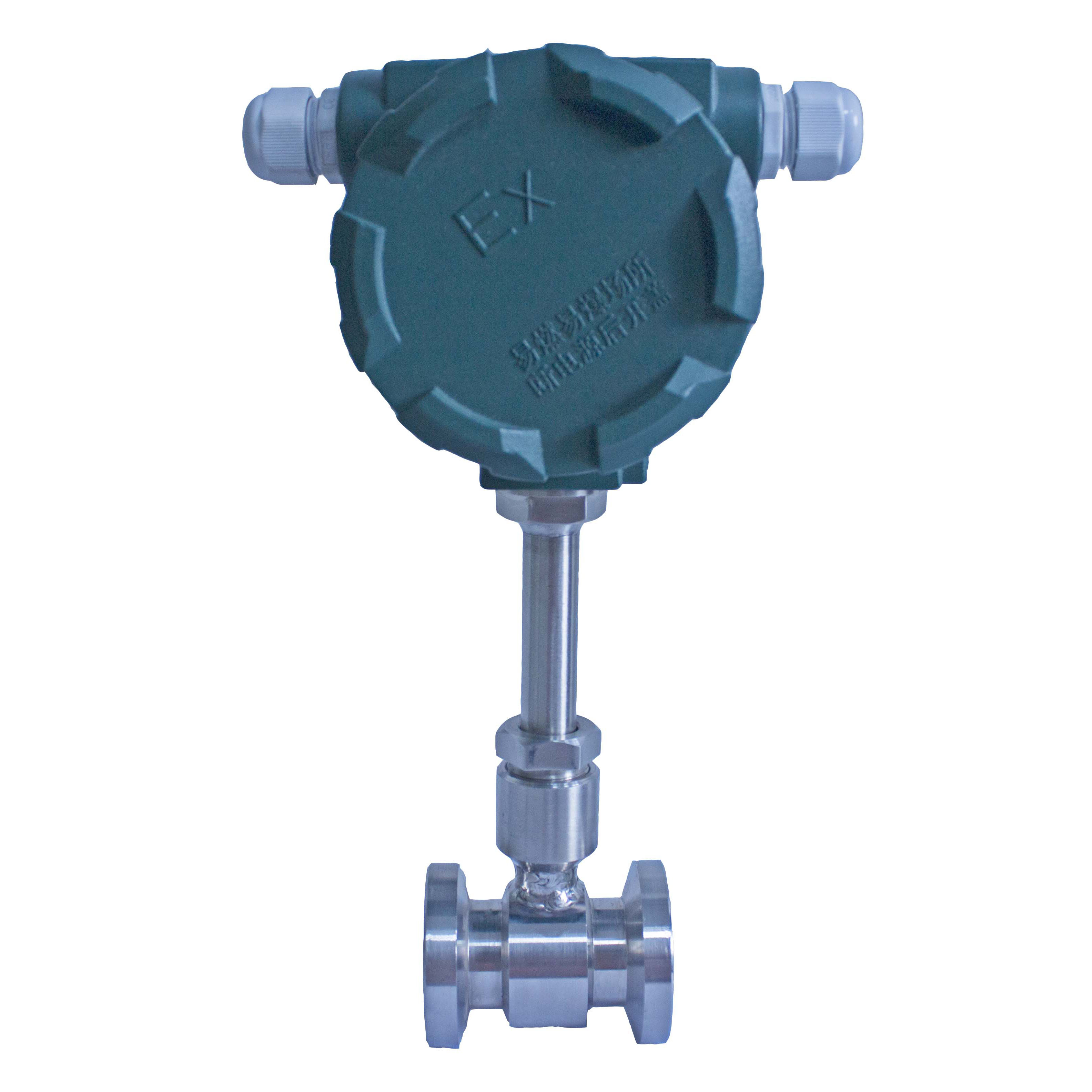

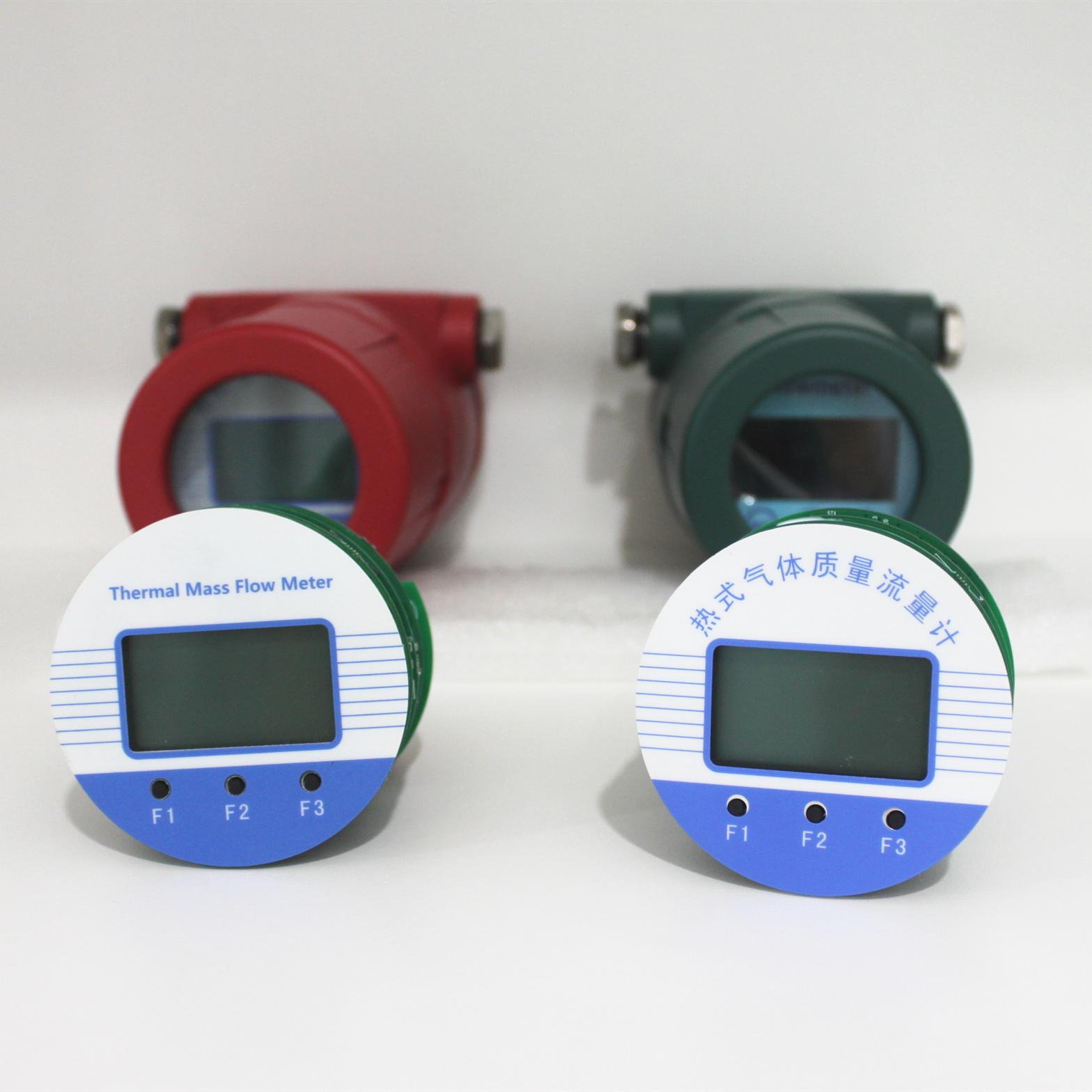

Detailed Image







FAQ

A: We are a manufacturer.

Q: Where are you located? How can we visit you?

A: We located in SHANGHAI,CHINA

Q: How can I choose suitable machine?

A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:

1) Medium, what is the medium that you want to measure?

2) Flow rate, what is the maximum / working flow rate ?

3) Temperature

4) Pressure

5) Pipeline size, what is the designed size of pipeline?

Q: What’s your payment terms? Delivery time and MOQ?

A: We accept T/T, L/C, Western Union, etc. Usually we need 30% as deposit, 100% paymment before shipment.

Delivery Time: 7-10 days after payment

MOQ: 1 set

Q: If I bought a machine, how could you make it safe while shipping.

A: We have a professional package suitable for oversea transportation. Machines will be protected well in the case.

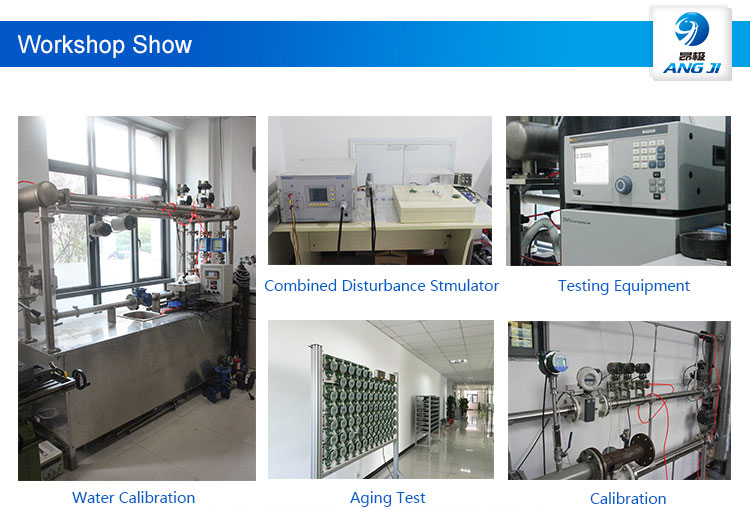

Q: What’s your quality control system?

A: All machines will be tested after finish. We have QC department reponse for this job. And we already got CE/ ISO approved.

Q: What’s your after-sales service?

A: 1) Warranty 1 year for whole machine.

2) Engineers available service machinery overseas

3) Full operator training

Q: If I don’t know how to use the machine, can you teach me?

A: 1) There’s a operational manual inside

2) Online- skype & phone

3) Demo Video

Q: This is my first time buy machines from China, how I buy machines from you ?

A: Choose suitable machine through talking with our sales manager→ Pay to usManufacture and testing the machine (about 3-5 work days)→Shipping to you
