Description

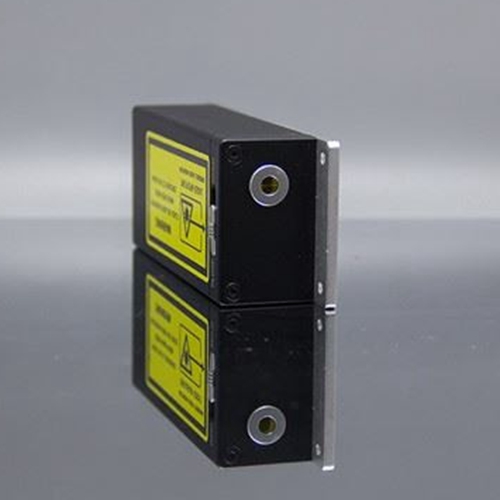

Passively Q-switched solid-state 266nm Microchip Laser MB Series MBseries microchip laser products have very ideal narrow pulse width, but also can achieve high single pulse energy. The product is a passively Q-switched solid-state laser based on semiconductor pump. The laser pulse is pure and tailless, the single pulse energy is stable, and the beam quality is good. The integrated design of semiconductor pump module and laser crystal makes the compact laser head easy to install and integrate. The system supports internal and external triggering. This series of products include four wavelengths of 1064nm, 532nm, 355nm and 266nm. The full sealing module inside the laser head can be used by customers for secondary development and application. The superior product performance index makes its application range very wide, especially in laser measurement, which can meet many different kinds of measurement needs, and also has excellent performance in the application of laser seeds.

APPLICATIONS

Seed source
Micromachining
Biomedical Science
Laser ultrasonic inspection
Laser ionization mass spectrometry
Non-linear optical measurement
OUTLINE SIZE(mm)



Dowload Datasheet

266nm-Microchip-Laser-System-of-MB-Series

Features:

Pulse energy up to 170uJ
External pump source fiber pump pulse
Charge energy up to 360uJ
Maximum repetition frequency up to 1kHz
Beam mode is TEM00
Fully sealed design, high reliability

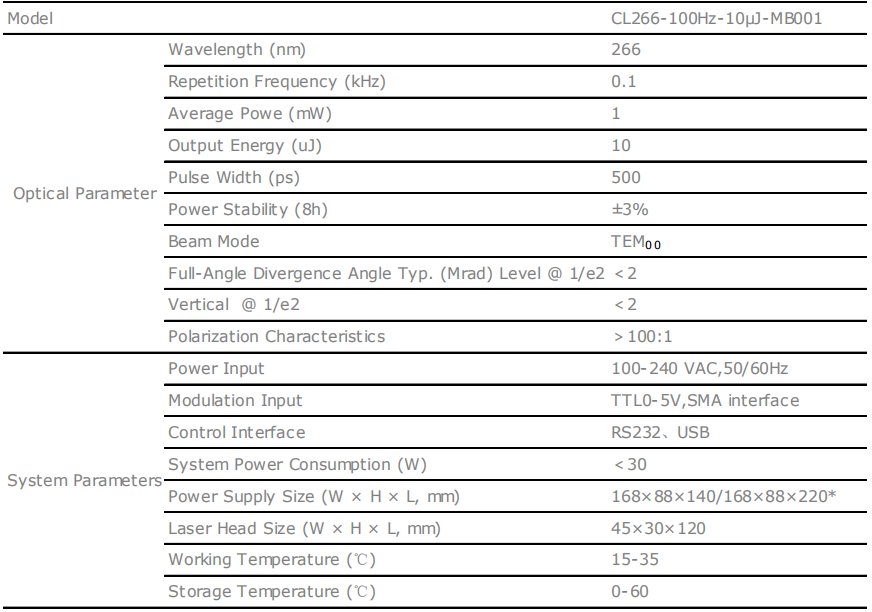

Model CL266-100Hz-10uJ-MB001
Wavelength (nm) 266
Repetition Frequency (kHz) 0.1
Average Powe (mW) 1
Output Energy (uJ) 10
Pulse Width (ps) 500
Power Stability (8h) +-3%
Beam Mode TEM00
Full-Angle Divergence Angle Typ. (Mrad) Level @ 1/e2 <2
Vertical @ 1/e2 <2 Polarization Characteristics >100:1
Power Input 100-240 VAC,50/60Hz
Modulation Input TTL0-5V,SMA interface
Control Interface RS232 USB
System Power Consumption (W) <30
Power Supply Size (W * H * L, mm) 168*88*140/168*88*220*
Laser Head Size (W * H * L, mm) 45*30*120
Working Temperature (C) 15-35
Storage Temperature (C)
