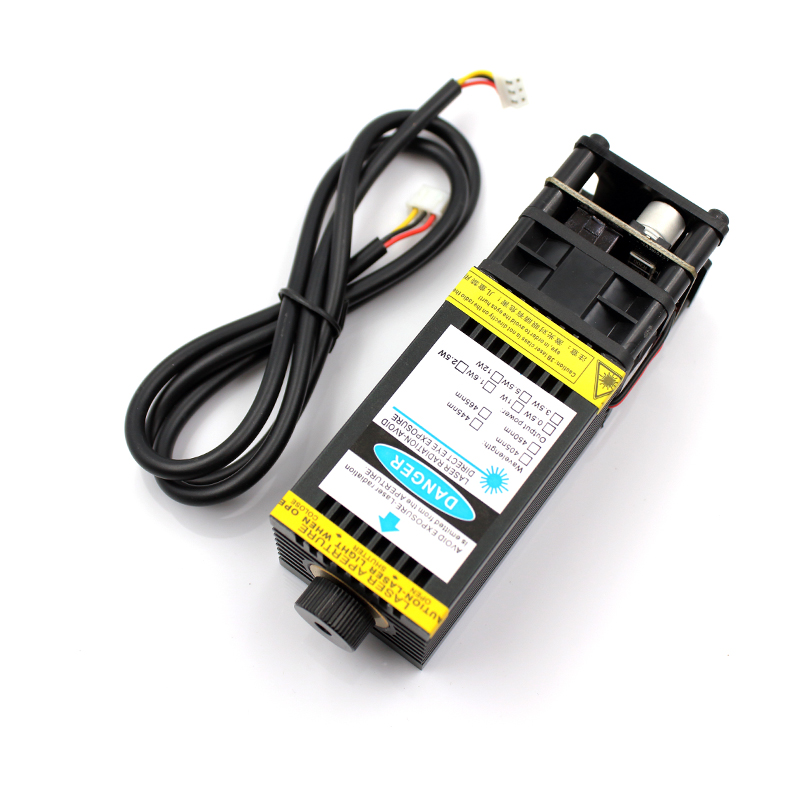

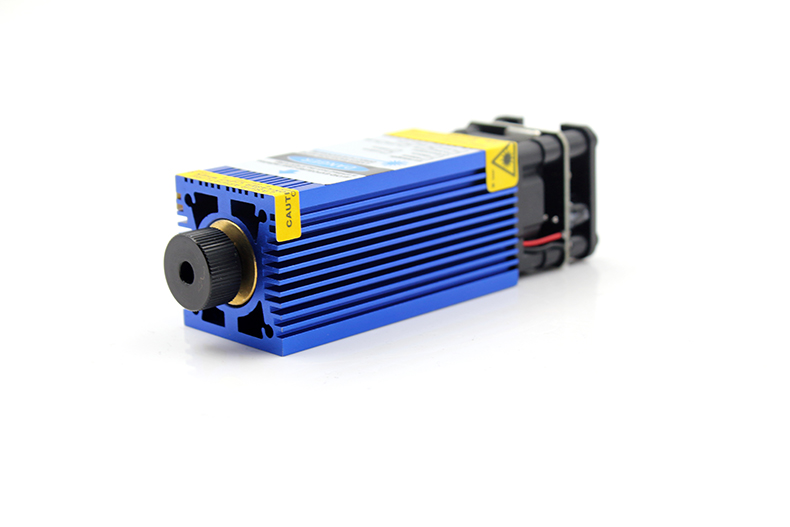

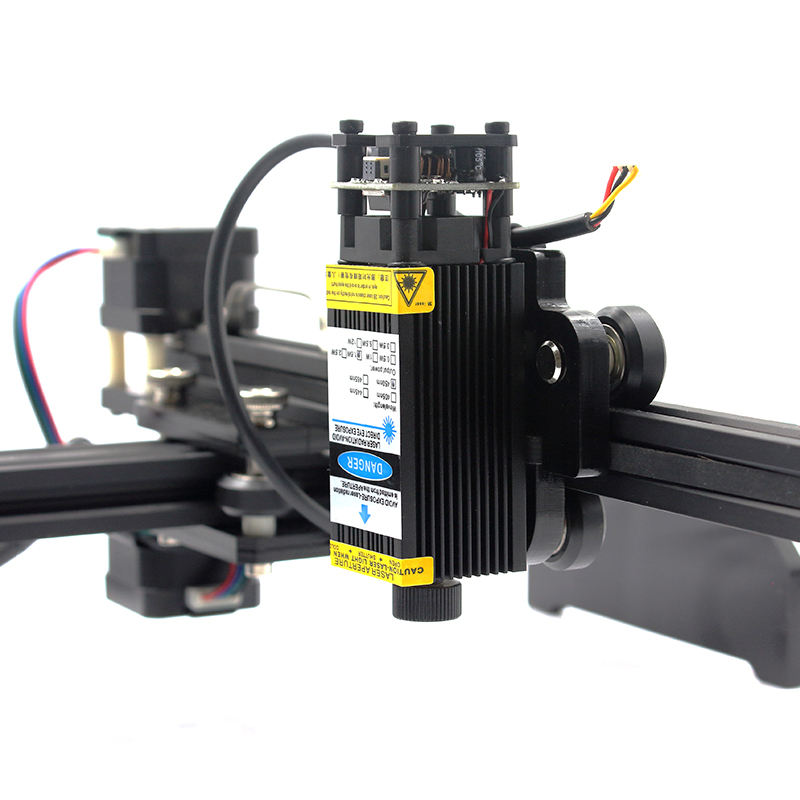

oxlasers TRUE 3W 5W 5500mW 445nm 450nm focusable blue Laser Module Laser Engraver part DIY Laser Head with PWM FREE SHIPPING

$85.80$176.00

SKU: 32958503779 Category:

Description

  • Brand Name: Oxlasers
  • Certification: CE
  • Certification: NONE
  • Origin: CN(Origin)
  • Model Number: 5.5W 445NM

Technical Parameters:

Laser wavelength: 445nm-450nm blue laser
Spot type: dotted (adjustable)
Output power: 2.5W, 3.5W, 5.5W

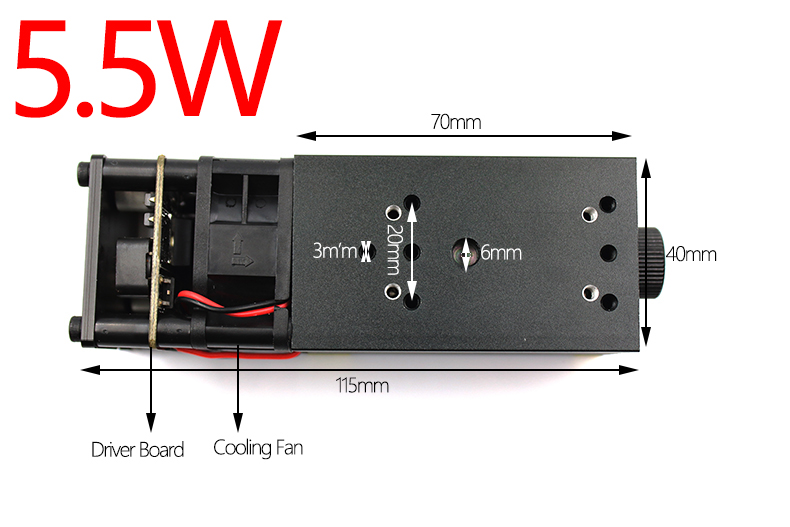

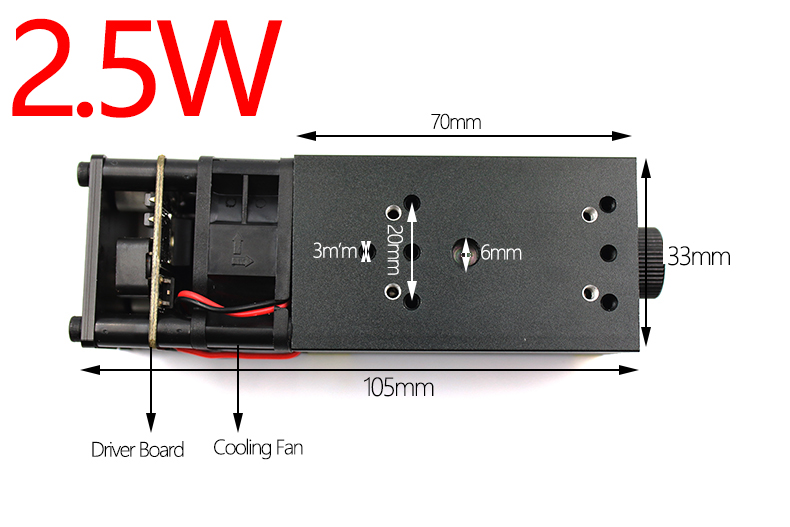

Size: 2.5W(33*70mm) , 3.5W(33*70mm)  5.5W(40*70mm)

Drive mode: external ACC constant current drive

Cooling method: forced air cooling
Operating voltage: 12V  DC
Control interface: 2 * 2.54 (TTL control switch, PWM control power)
Shell material: aluminum, surface anodized
Collimator lens: optical glass coating

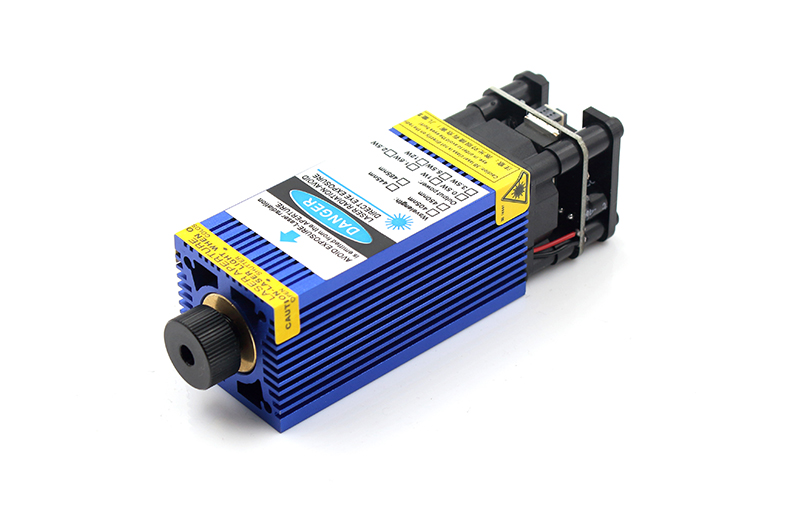

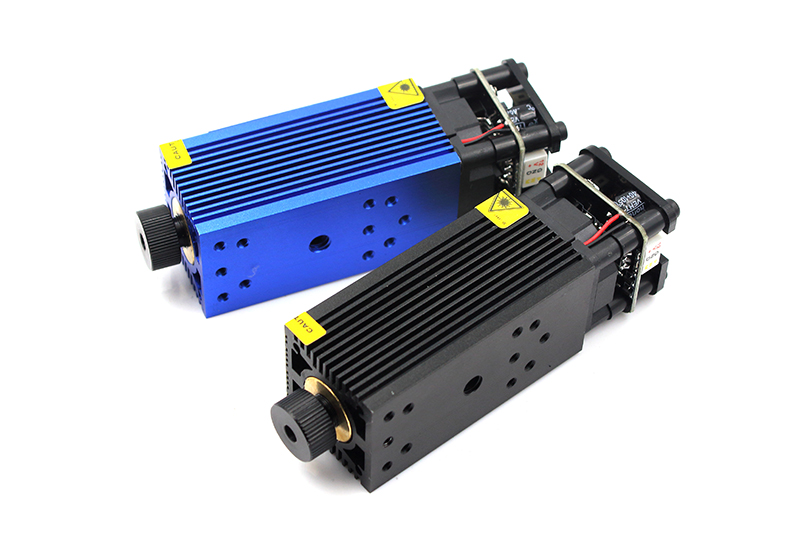

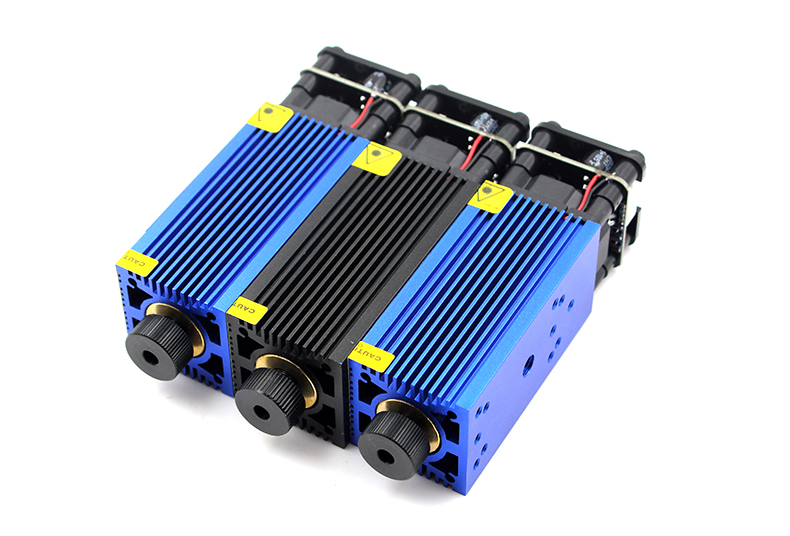

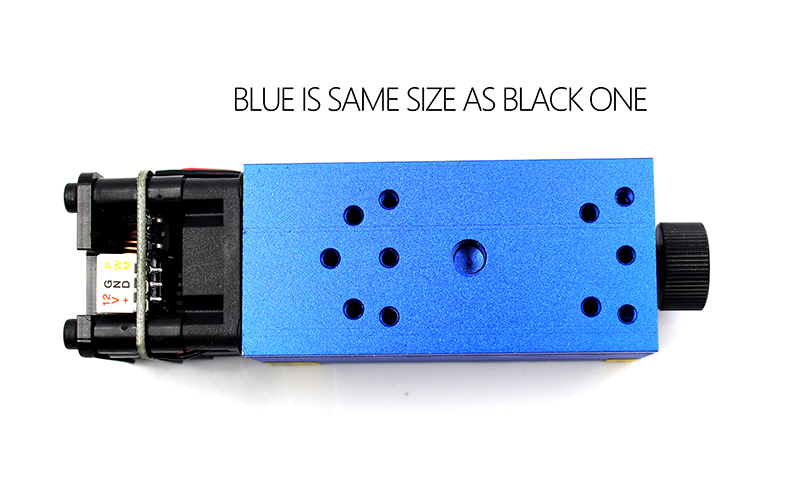

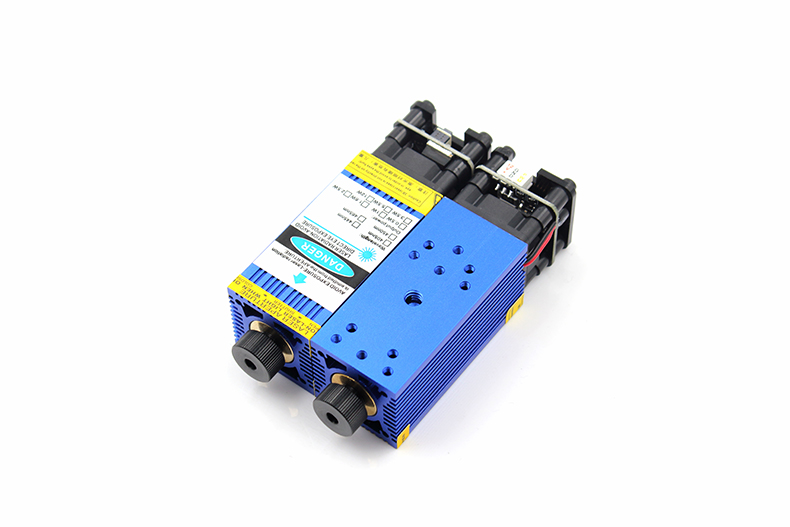

HEAT SINK COLOR: BLACK , BLUE (WE SEND COLOR RANDOMLY)

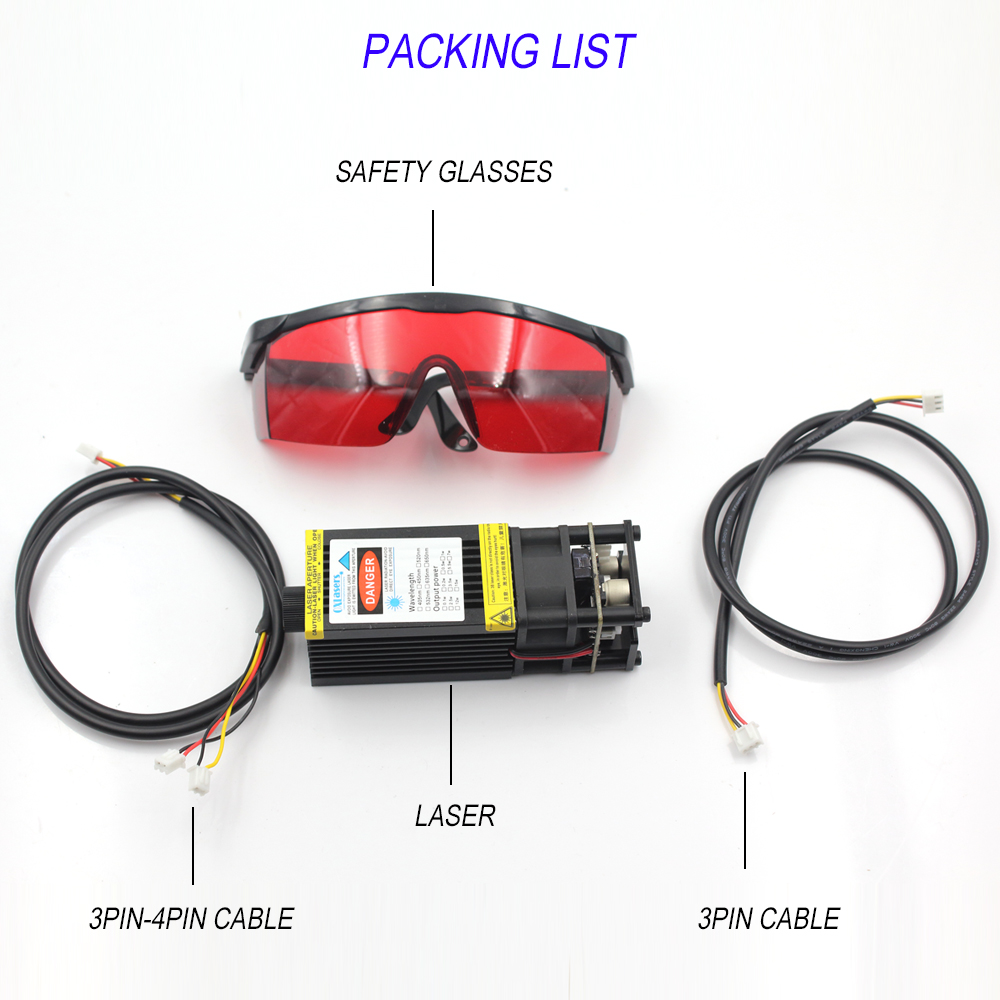

PACKING LIST:



LASER*1

3PIN CABLE*1

3PIN TO 4PIN CABLE*1

SAFETY GLASSES*1



ATTENTION:  5.5w CAN cut max 3MM PLYWOOD, with a speed of 100-150mm/Min, and cut it 3-4 PASSES!! it cant cut wood just 1 pass!



BUYER MUST READING:

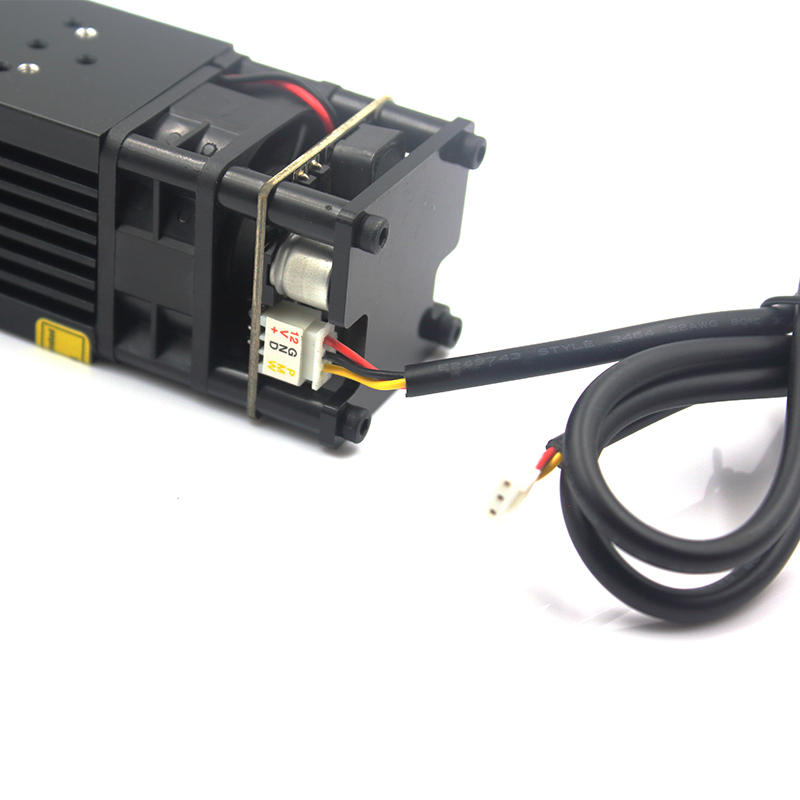

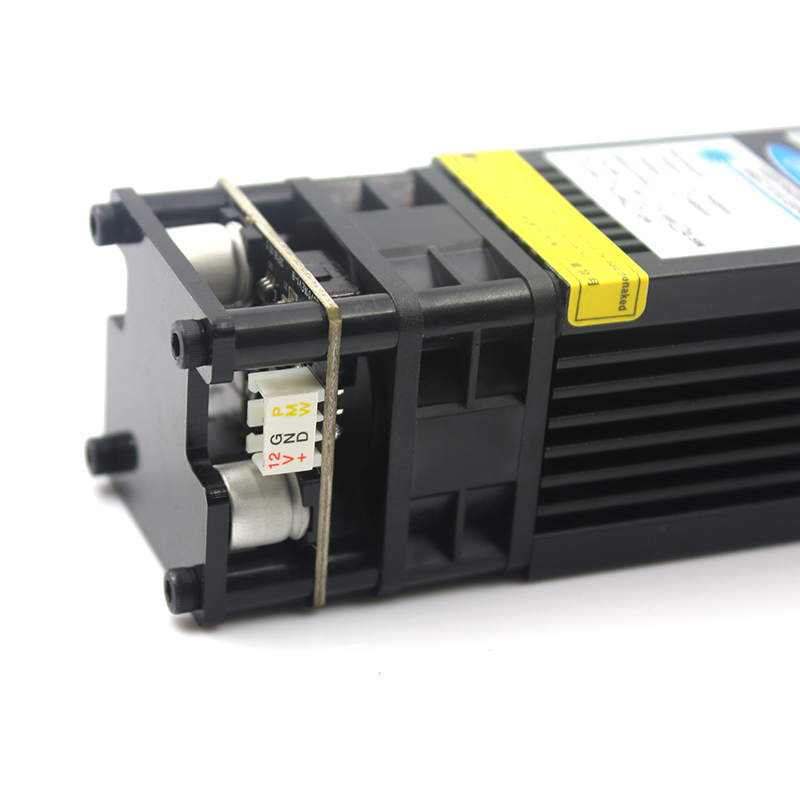

 When you connect laser to your controller board, please pay attention to the pin positions of 12v+ GND- and PWM/TTL,  red wire=12V+, black wire=GND-. Yello wire=PWM+, white wire=PWM-(3-4pin wire). So Red Wire must be connected to the 12v+ pin on your controller board’s interface, Black Wire Must be connected to the GND- pin and Yellow Wire must be connected to the PWM/TTL pin,  if you use 3-4pin wire, White wire should be connected to the PWM- pin.

if your controller board’s laser interface pins are in different position, please change the wires position to make it match the positions of + – PWM of your interface. If the wires connected wrong, it will damage the diode and the driver board.

Please add a fan when you engraving or cutting, in case smoke blur the lens damage the lens



IMG_4130IMG_41312.5W3.5W5WIMG_4723IMG_4715IMG_4718IMG_4725IMG_4726IMG_4731IMG_4147IMG_4149IMG_4152

IMG_222IMG_4670PACKING LIST2HTB1uCidaEjrK1RkHFNRq6ySvpXad

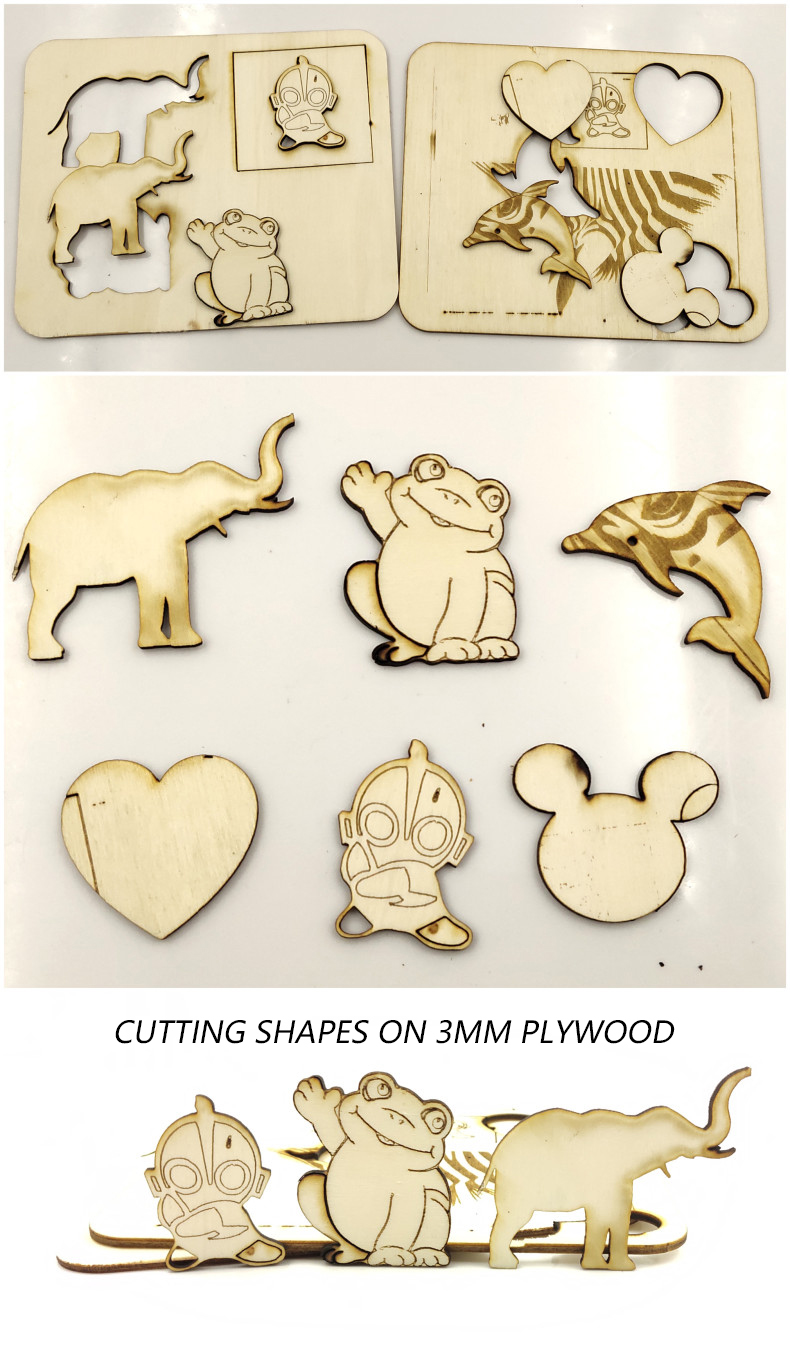

5.5W CUTTING SHAPES ON PLYWOOD

CUTTING
