Description
- Brand Name: Oxlasers
- Certification: NONE
- Origin: CN(Origin)
- Model Number: OX-45015P
Technical Parameters:
Laser wavelength: 445nm-450nm blue laser
Spot type: retangle spot (fixed focus, NOT FOCUSABLE)

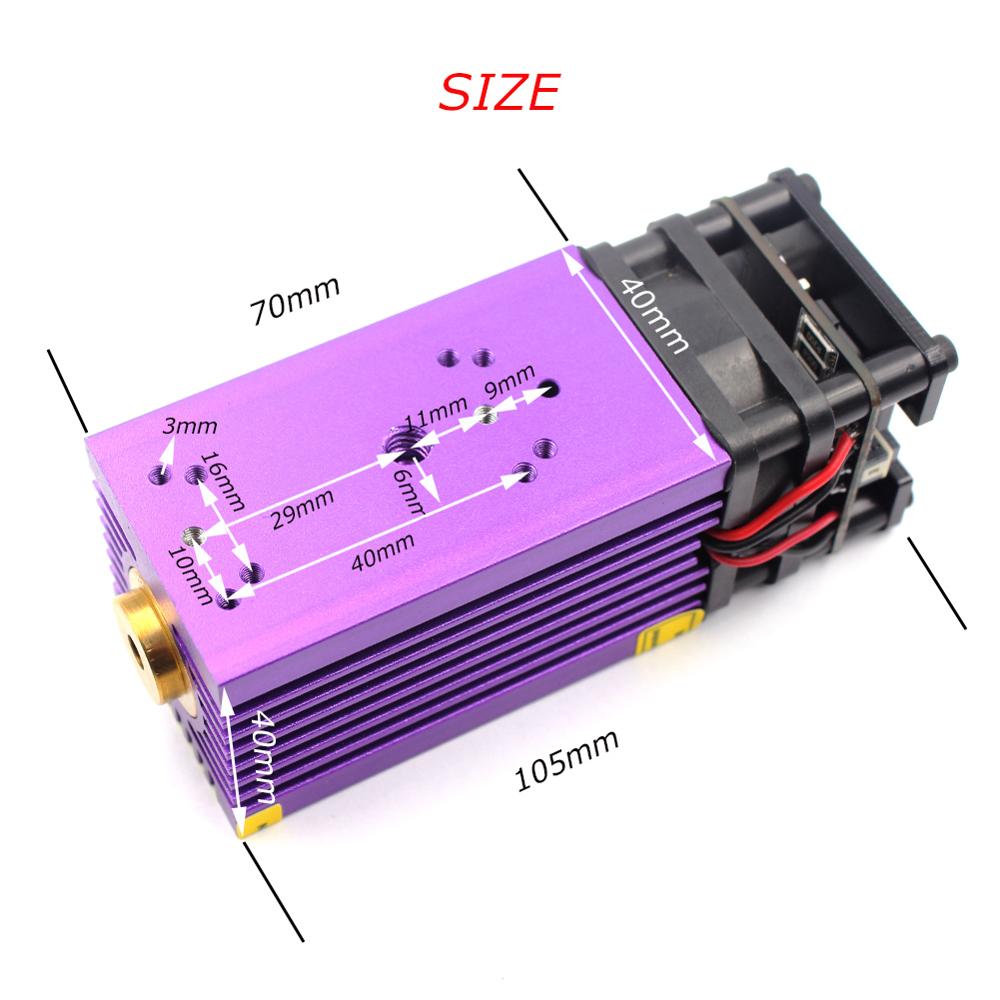

Size: 40*70mm
Drive mode: external ACC constant current drive
Cooling method: forced air cooling
Operating voltage: 12V DC
Control interface: 3Pin ( PWM 0-5V)
Shell material: aluminum, surface anodized
Collimator lens: optical glass coating
THIS IS NOT A FOCUSABLE LASER, this laser is for CNC laser engraving machine or laser cutter only!! This Laser is power enough to cut 3mm plywood(100-150mm/min,1-2passes), and making on Stainless Steel(100-150mm/min).

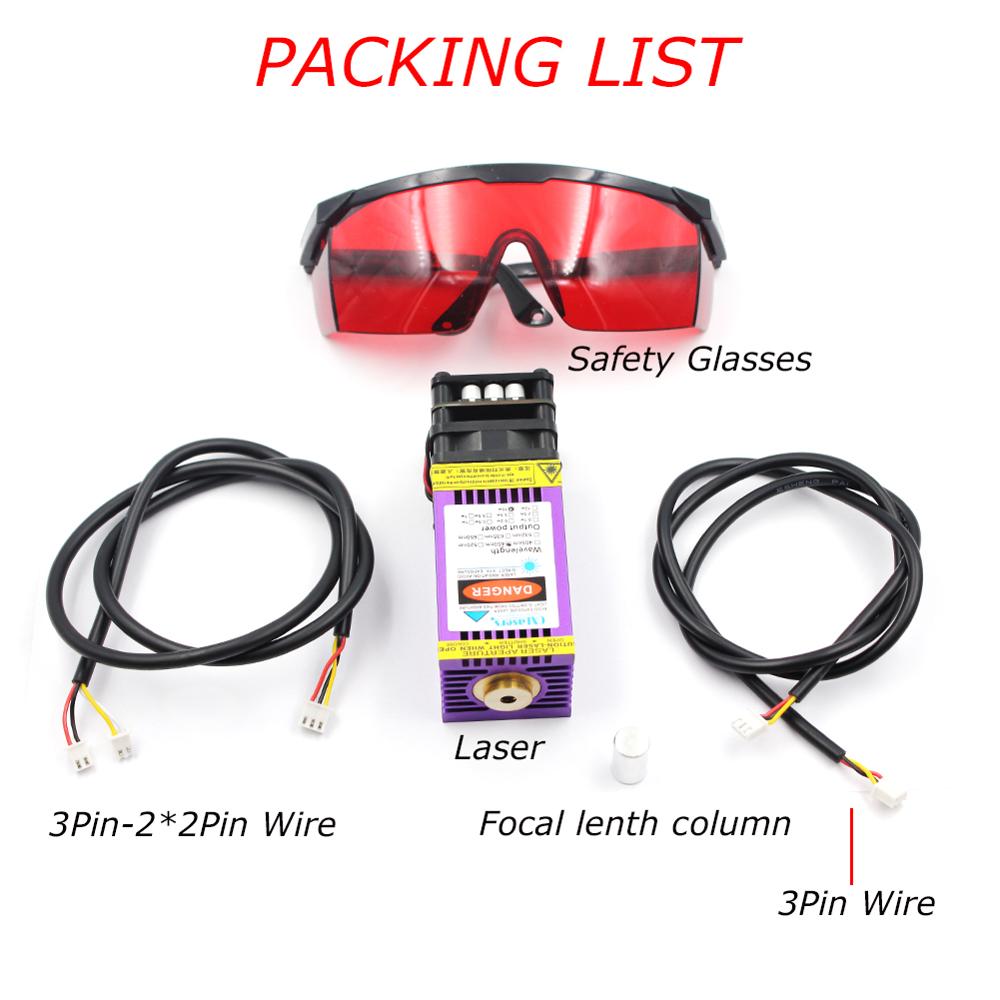

PACKING LIST:
LASER*1
3PIN CABLE*1
3pin-4pin cable*1
SAFETY GLASSES*1
BUYER MUST READING:

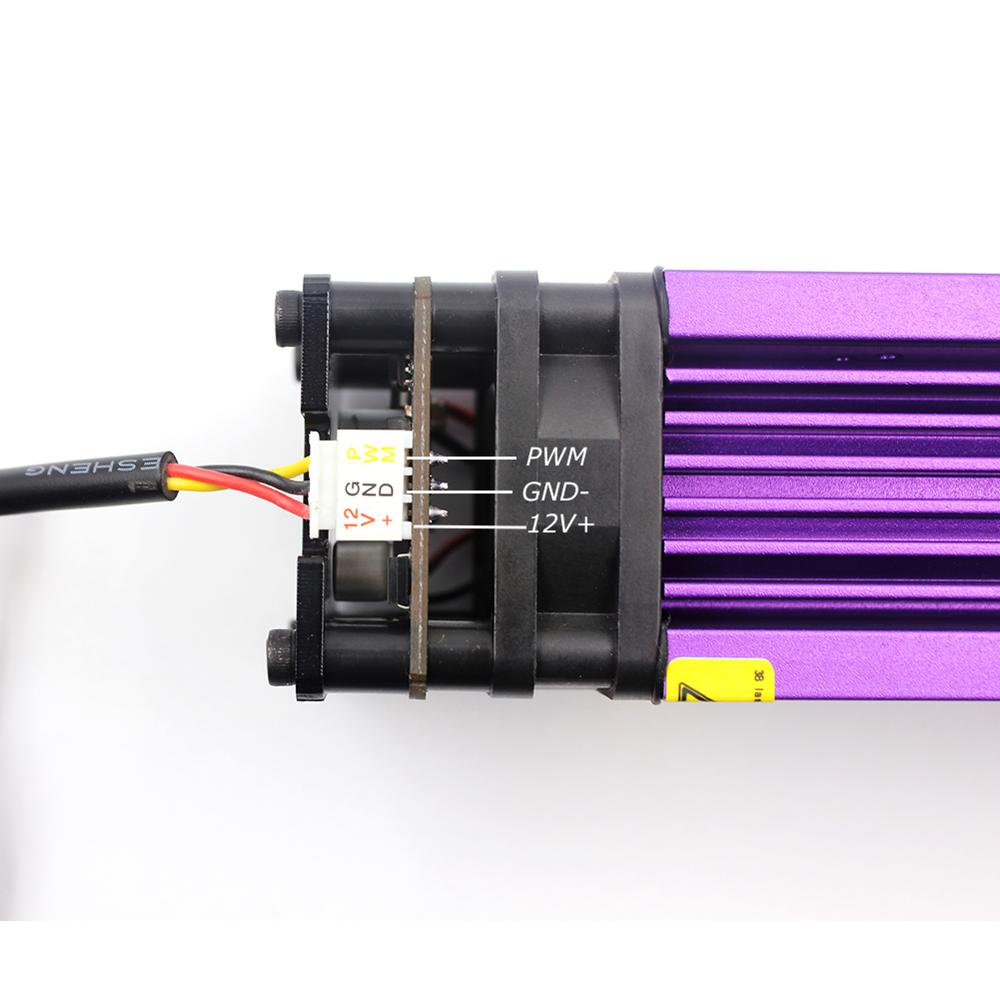

When you connect laser to your controller board, please pay attention to the pin positions of 12v+ GND- and PWM/TTL, red wire=12V+, black wire=GND-. Yello wire=PWM+, white wire=PWM-(3-4pin wire). So Red Wire must be connected to the 12v+ pin on your controller board’s interface, Black Wire Must be connected to the GND- pin and Yellow Wire must be connected to the PWM/TTL pin, if you use 3-4pin wire, White wire should be connected to the PWM- pin. PWM=0-5V
if your controller board’s laser interface pins are in different position, please change the wires position to make it match the positions of + – PWM of your interface. If the wires connected wrong, it will damage the diode and the driver board.
Please add a fan when you engraving or cutting, in case smoke blur the lens damage the lens
