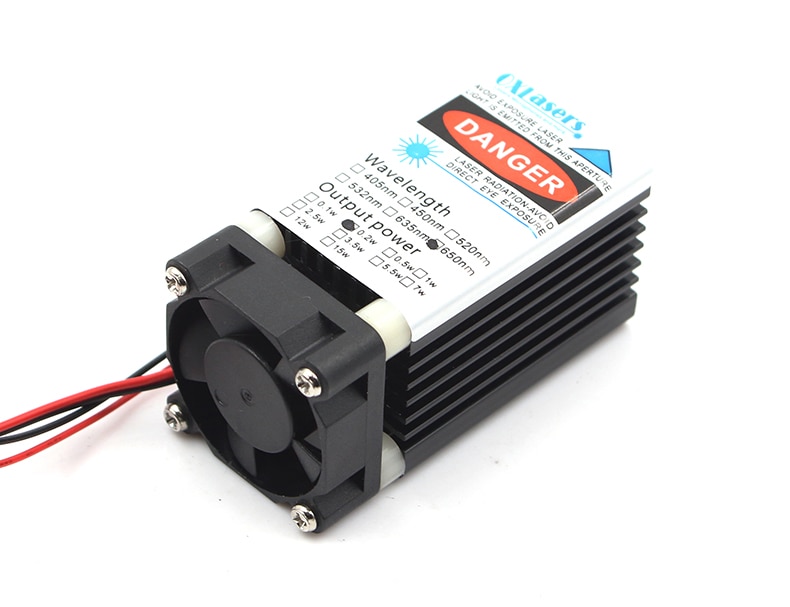

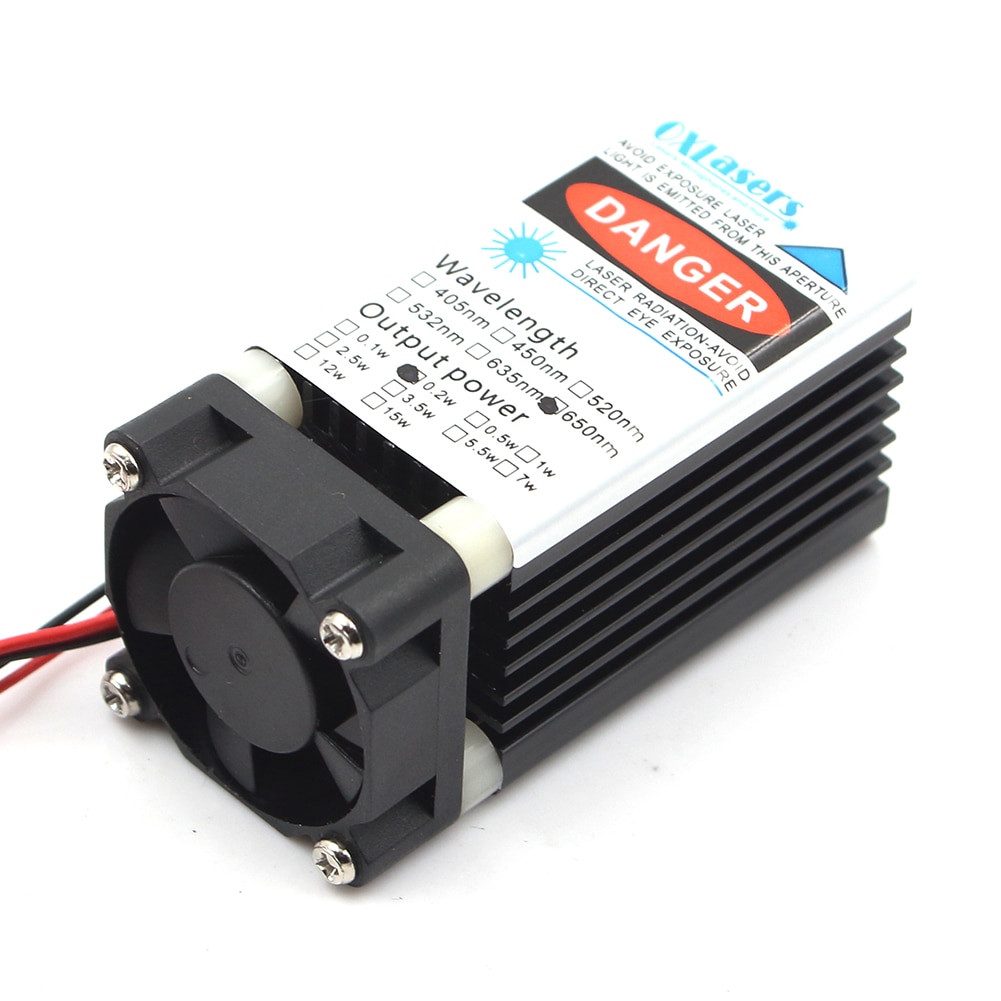

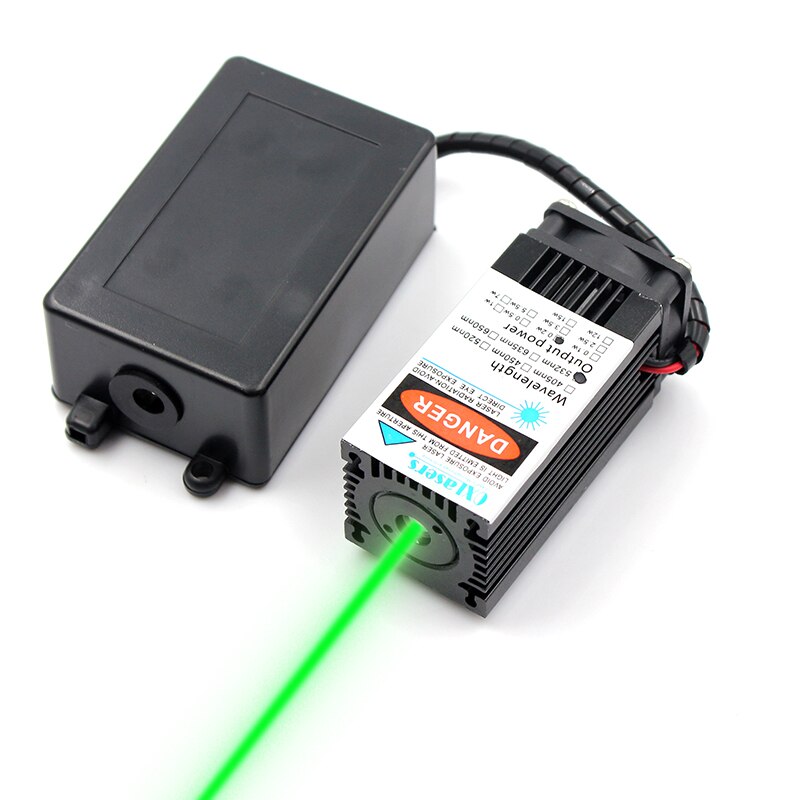

Oxlasers 200mW 532nm Green Laser Module 650nm 520nm 488nm 505nm 635nm TTL Red Laser 12V 450nm 405nm Blue Laser 500mW Fat Beam

$30.80$82.50

SKU: 1005003935823272 Category:

Description

  • Brand Name: NoEnName_Null
  • Certification: NONE
  • Origin: Mainland China
  • Item Type: Stage Lighting Effect
  • Style: Mini
  • Occasion: Home Entertainment
  • Power: 5W
  • Model Number: laser modules
  • Voltage: 12V

SPECS:

1 Brand: OXLasers
2 Wavelength and Output:  405nm: 500mW, 450nm: 100mW, 488nm: 100mW, 505nm: 100mW,    520nm: 100mW, 532nm: 200mW, 635nm: 100mW, 650nm: 100mW
3 Power can be adjusted by 0-5V PWM Signal, Frequence: 0-15kHz)

4 spot pattern: round dot
5 divergence angle ≤1-2mrad
6 Laser Class Class 3
7 modulation mode TTL modulation
8 input stability ±5%
9 Laser input voltage 7V
10 Recommended ambient temperature -10~40°C

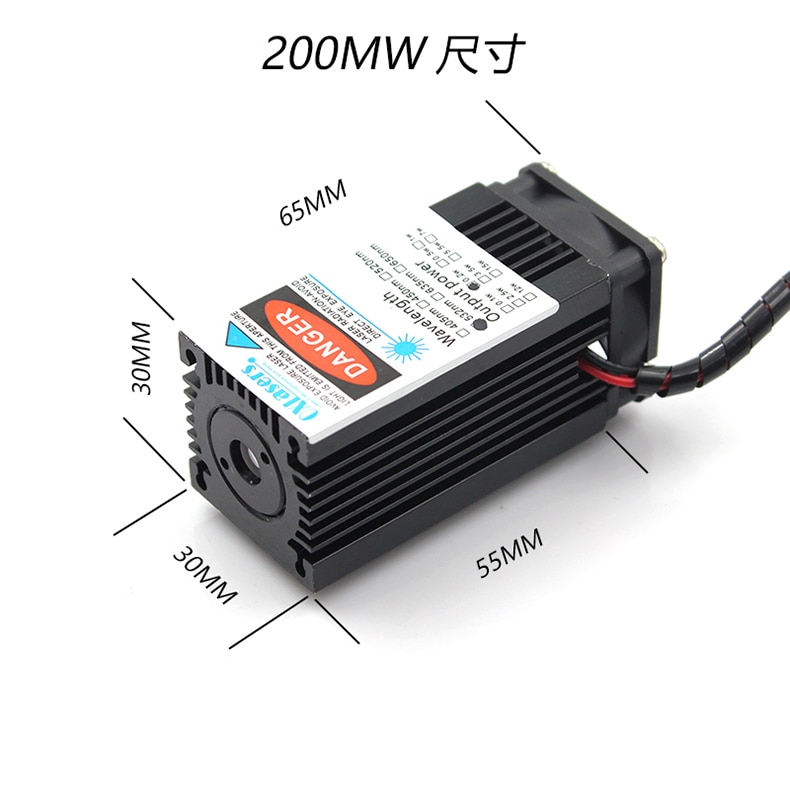

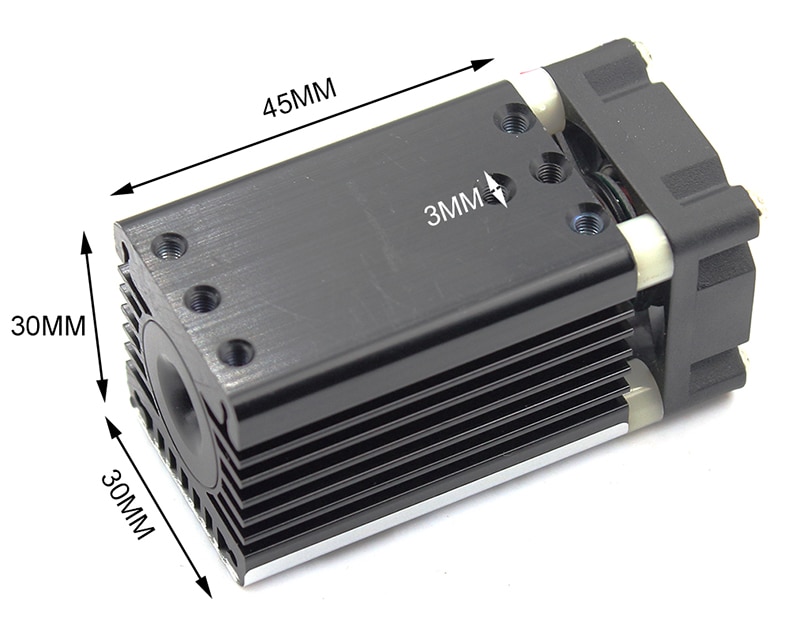

11 Heatsink size : 505nm/520nm/450nm/488nm/635nm/650nm:30*30*45mm , 532nm: 30*55mmm, 405nm: 33*55mm

12 Working Voltage: 12V DC

beam diameter of THIN BEAM: 2-3mm

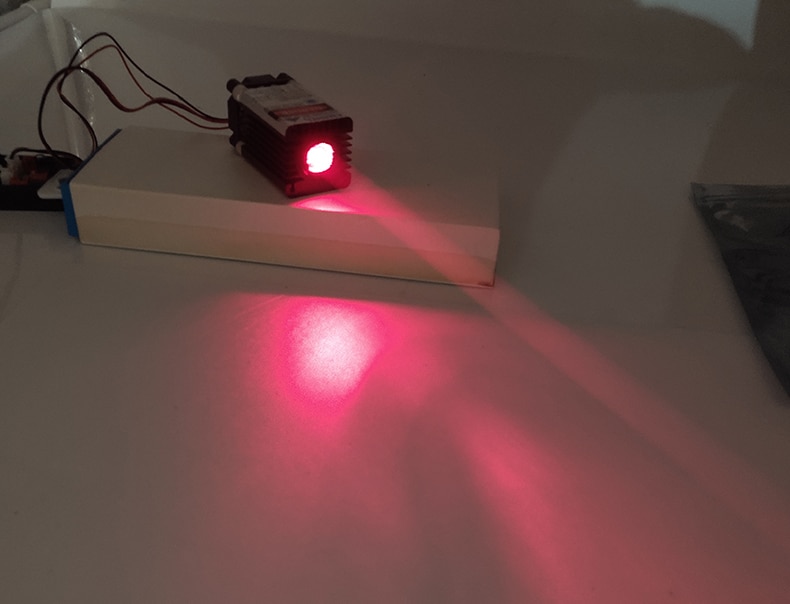

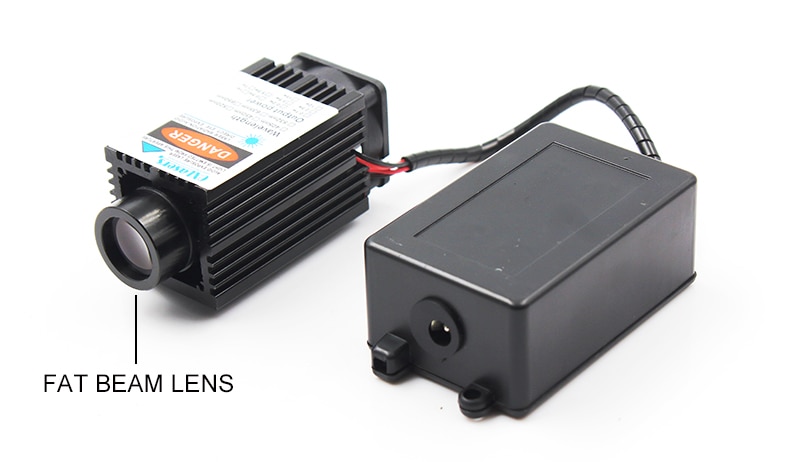

Beam Diameter of Fat Beam: 10-12mm

ONLY 500mW 405nm Laser is focusable, the others are all fixed focus!

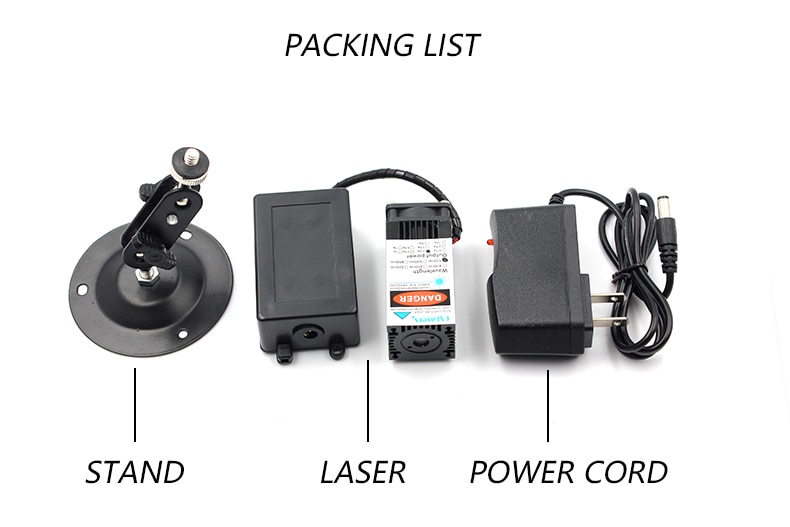

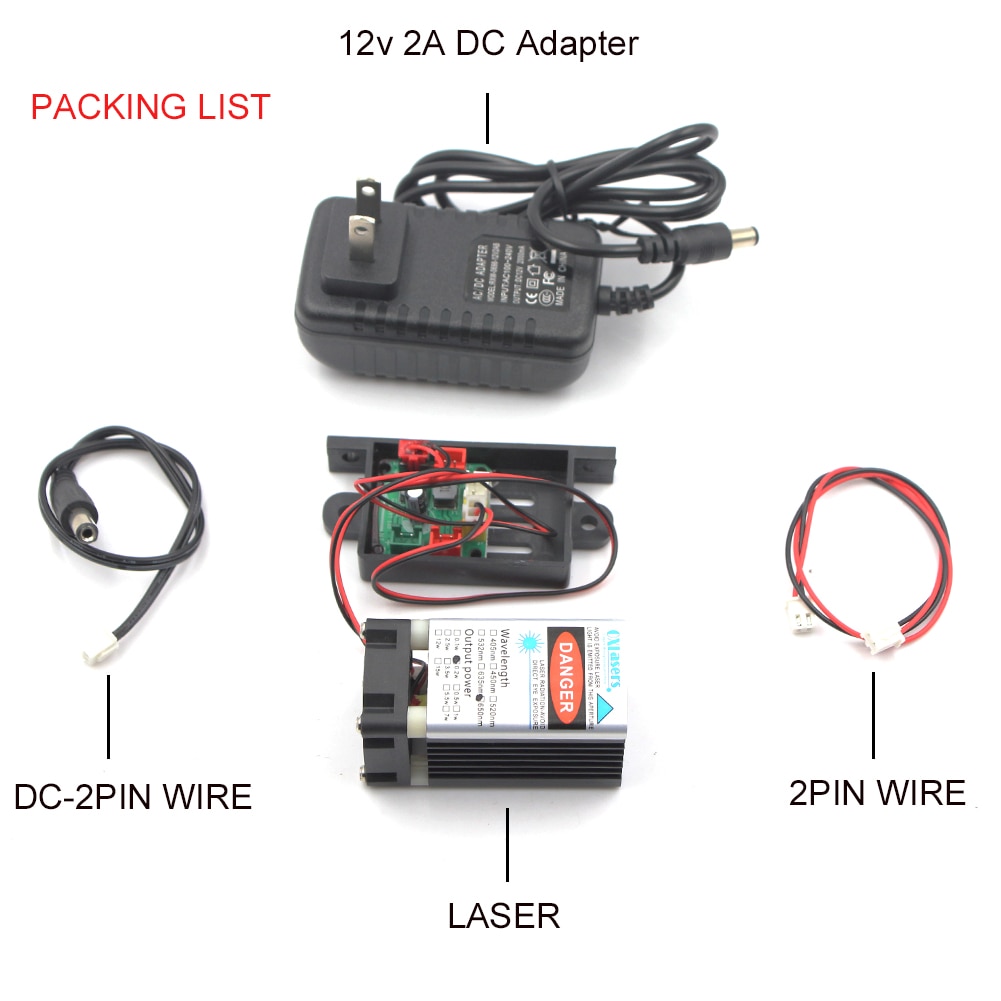

Packing List:

 laser*1

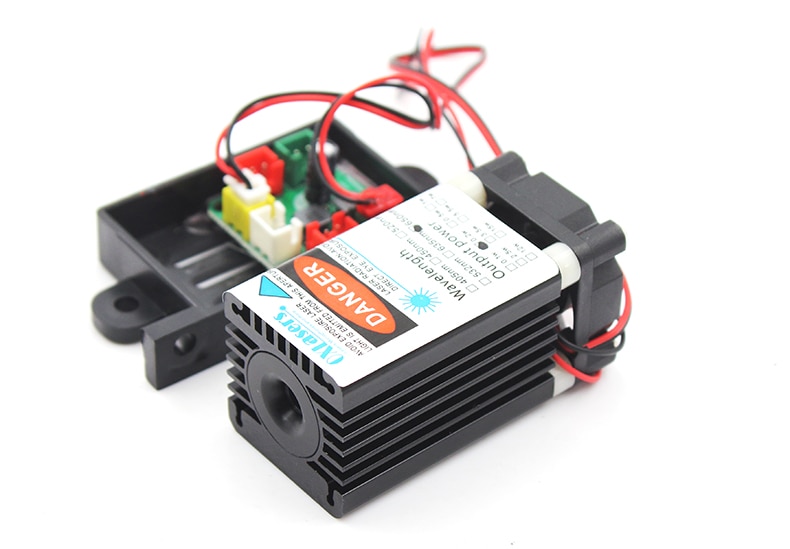

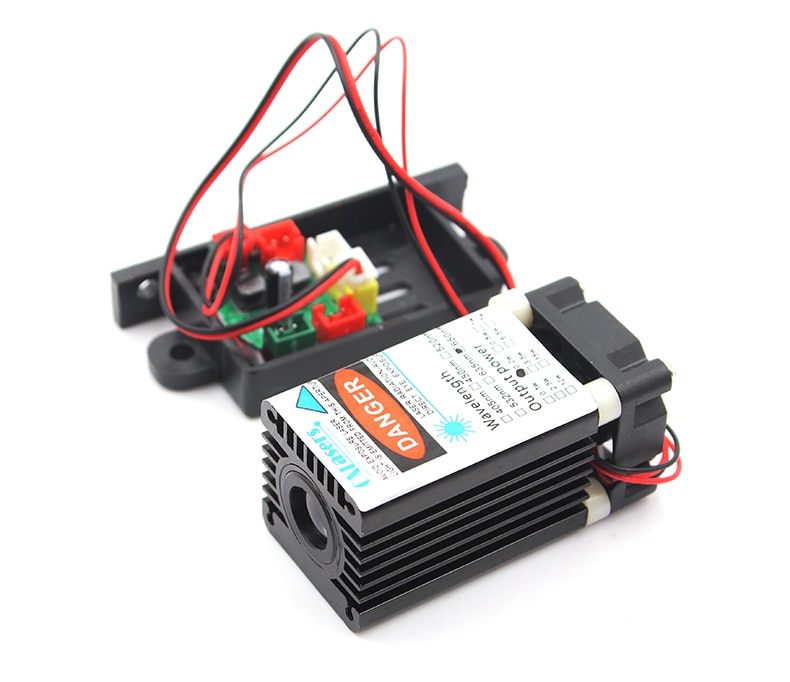

Driver Board*1

12V 2A Power Adapter Plug*1

DC-2PIN connect wire*1

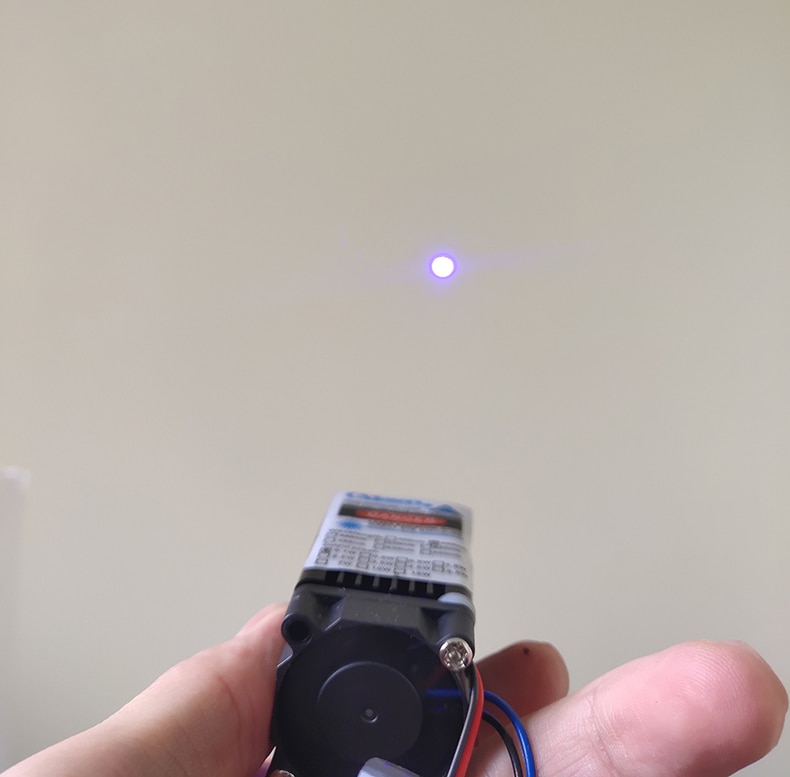

500mW 405nm:

505nm/520nm/450nm/488nm/635nm/650nm:

532nm 200mW:
