Ortur Laser Master 2 20W Laser Engraver Head for OLM2 S2 OLM2 Pro S2 Aufero 1 CNC Engraving and Cutting Machine

$94.89$194.99

SKU: 3452208018651 Category:

Description

Product introduction

Adapt To ORTUR Laser Machine

Ortur is advertising real Optical Power output in all the 2nd Generation Module Labels. There are in the market many products with impossible claims of power output. These are simply impossible with current diode technology. We give our users and customers the real specifications, in order to allow an informed purchase decision. Ortur Laser modules dot size are measured by engraving on real-world products and materials. The Laboratory results can be significantly better, but are of no consequence for the users. As a rule of thumb: More power is not always better. Engraving results benefit from a finer/smaller dot size and less power. Cutting on the other hand requires the opposite: More power, which consequently forces the dot size to be bigger.

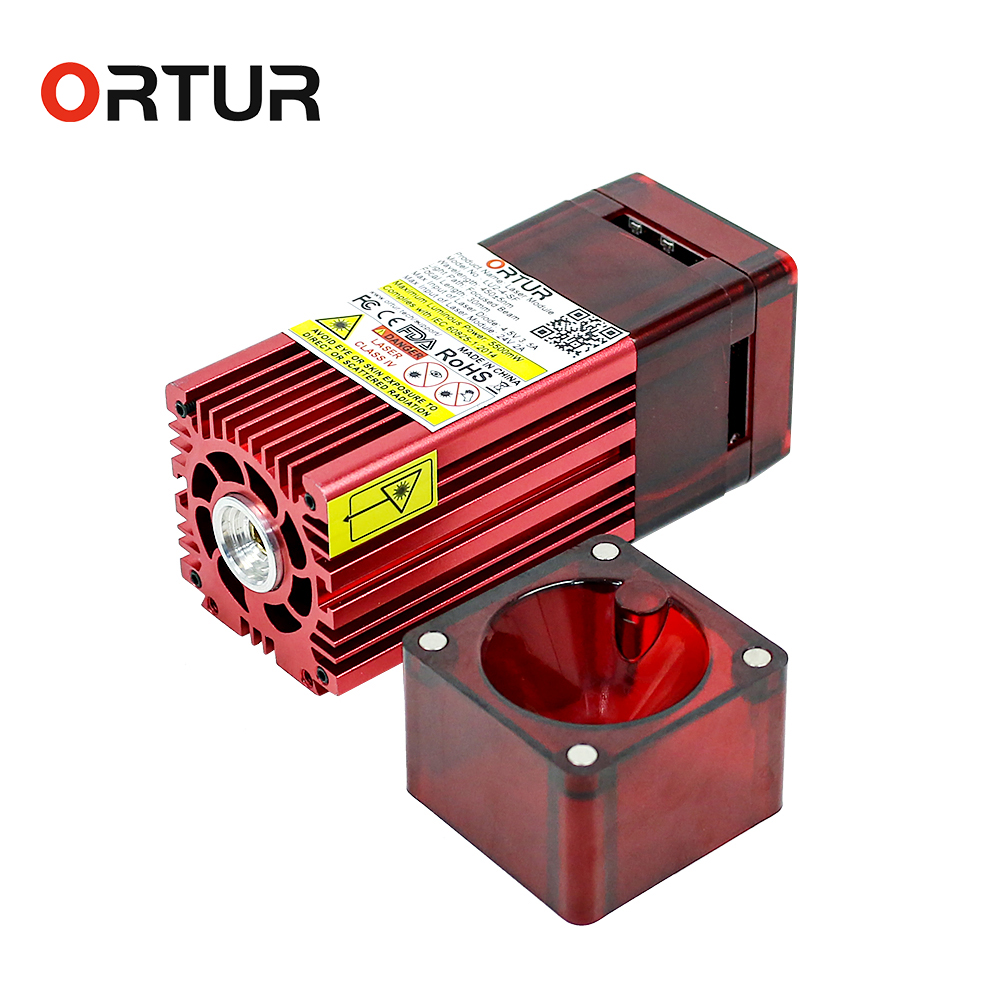

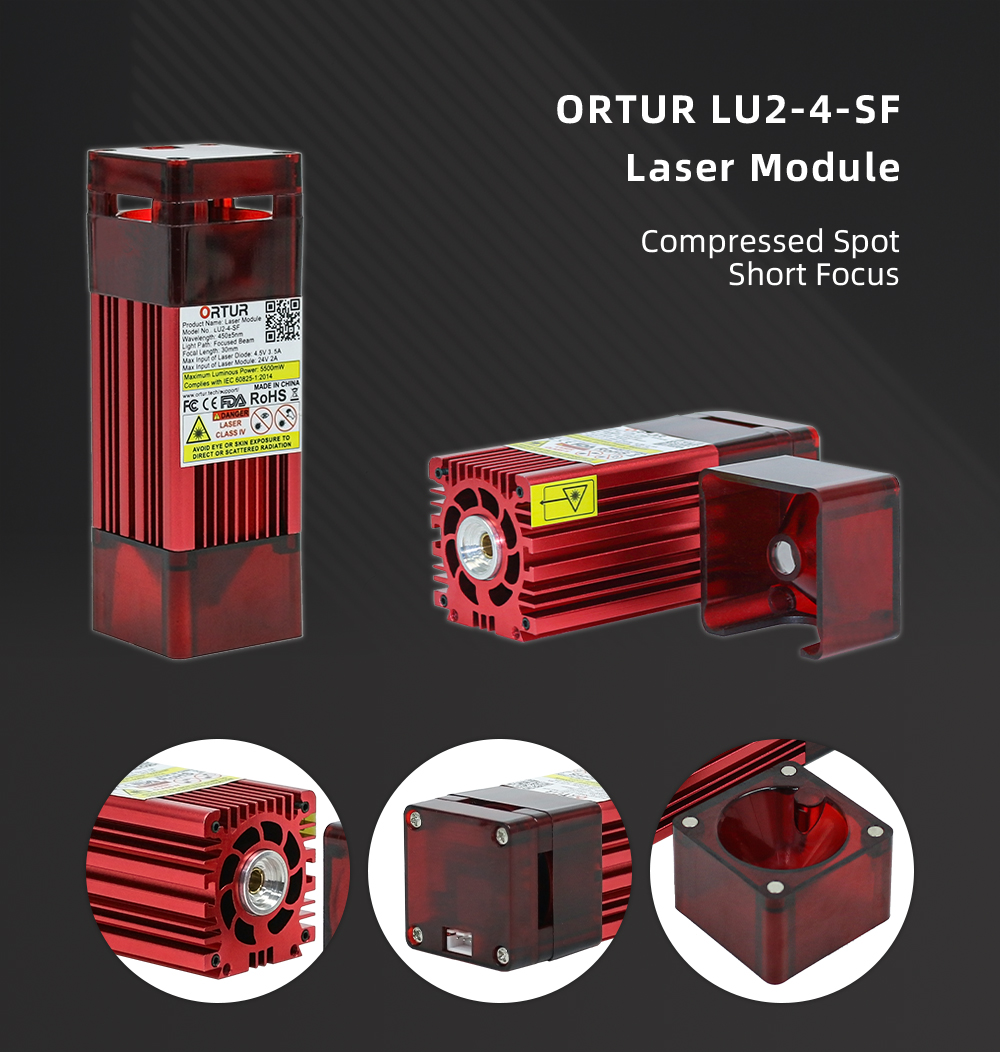

LU2-4-SF 24V Short Focus

Product Name
LU2-4-SF 24V Short Focus Laser Module
Optical Power
4500- 5500 mW
Focal Spot
About 0.12×0.15 MM
Light Path
Focused Beam
Focal Length
30 MM
Electric Current
3.4-3.6 A
Wavelength
445+10 NM
Voltage
4.2-5.0 V
Product Size
40x41x122 MM

TIPS:

1. LU2-4-SF is good at cutting and better at engraving harder materials (such as stainless steel and other hard materials), and could support a higher speed.

2. It is not that the smaller the light spot, the better the effect. When engraving photos, you may need to increase the laser spot to get a better picture effect.

Laser Shield can act as a shield, effectively reducing the damage to the eyes caused by the laser. But still can’t stare at the
laser for a long time, which will cause irreversible damage.

When the laser shield of the laser module, the focal gauge board and the laser engraved object are attached to each other, the focusing is completed. Before starting to engrave or cut, grasp the hole of the focal gauge board with your fingers, and drag the focal gauge board out.

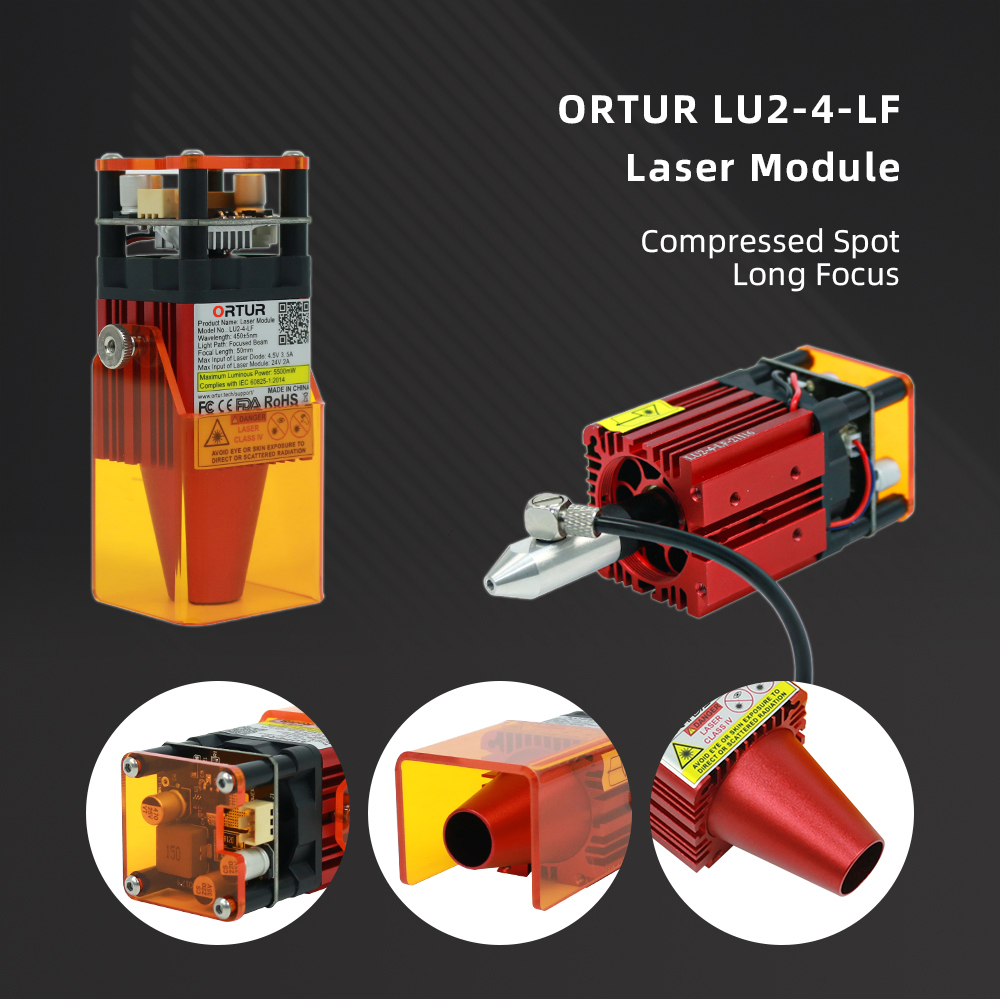

LU2-4-LF 24V Long Focus

Product Name
LU2-4-LF Long Focus Laser Module
Optical Power
4500- 5500 mW
Focal Spot
About 0.1 7×0.25 MM
Light Path
Focused Beam
Focal Length
50 MM
Electric Current
3.4-3.6 A
Wavelength
445+10 NM
Voltage
4.2-5.0 V
Product Size
40×41.5×1 10 MM

TIPS:

1. LU2-4-LF is good at engraving and better at cutting, and1. LU2-4-LF is good at engraving and better at cutting, and could support a higher speed.

2. It has the air assist, but you need to buy a Air Compressor to support the air assist.
3. It is not that the smaller the light spot, the better the effect.When engraving photos, you may need to increase the laser spot to get a better picture effect.

Shading acrylic can act as a shield, effectively reducing the damage to the eyes caused by the laser. But still can’t stare at the laser for a long time, which will cause irreversible damage.

Loosen the thumbscrews on both sides, you can adjust the up and down position of the laser shield, or the angle of rotation to suit your personal usage habits.

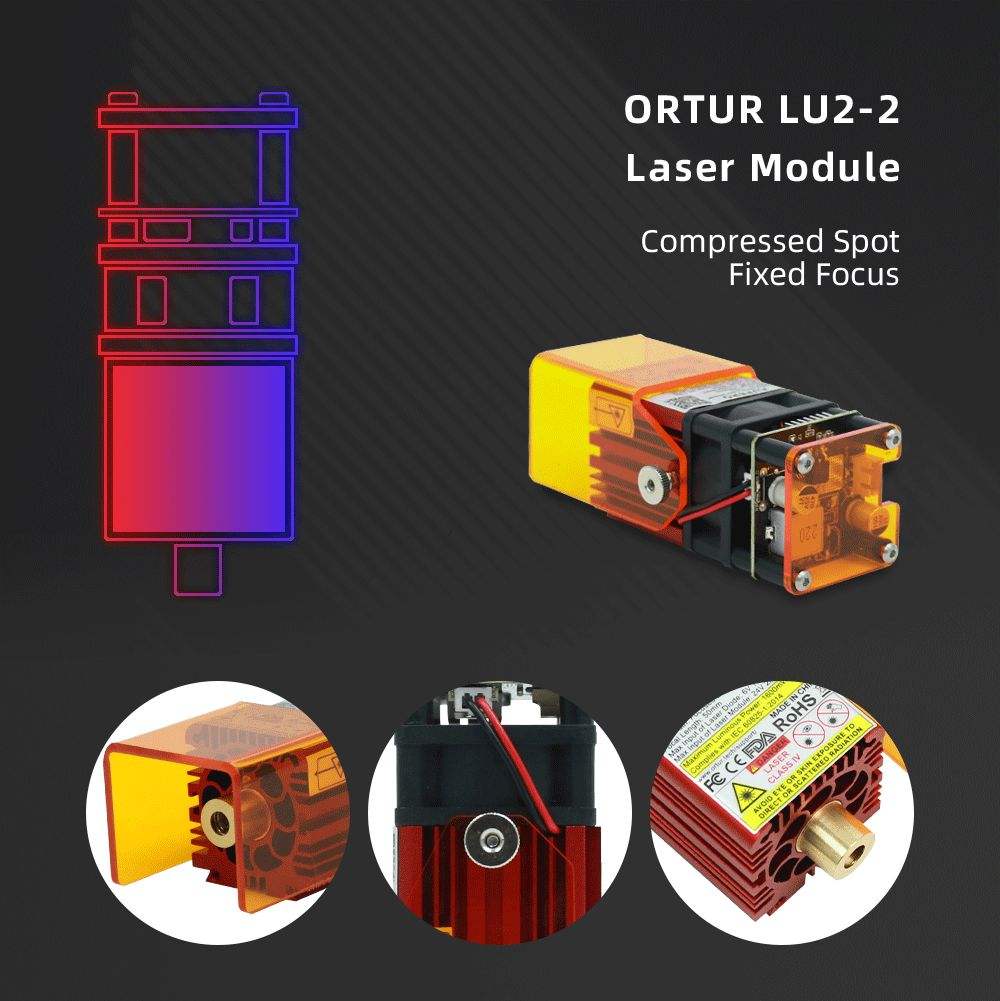

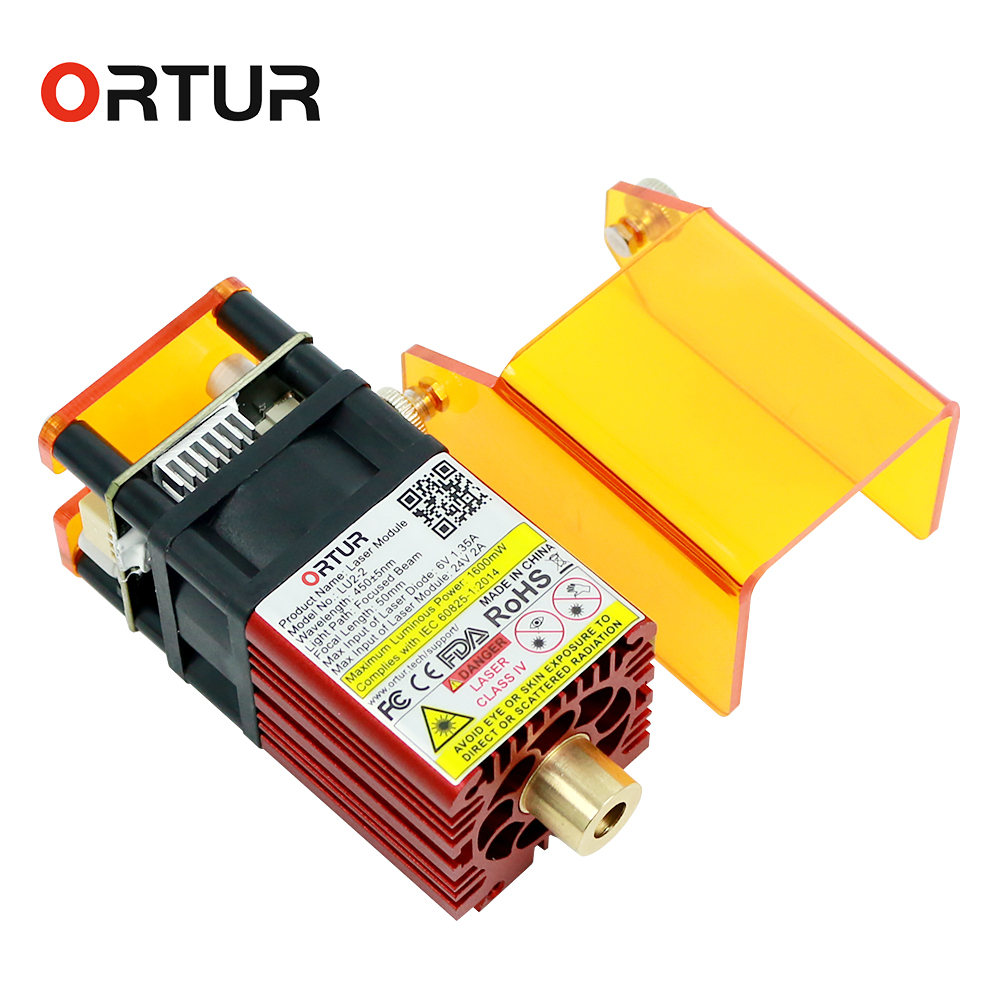

LU2-2 Laser Module

Product Name
LU2-2 24V Laser Module
Optical Power
1000-1600 mW
Focal Spot
About 0.07×0.06 MM
Light Path
Focused Beam
Focal Length
50 MM
Electric Current
1.1-1.35 A
Wavelength
445±10 NM
Voltage
5-6 V
Product Size
40×41.5×96 MM

TIPS:

1. LU2-2 is good for engraving high-precision pattern, but speed couldn’t be set too high.

2. It’s not good at cutting.
3. It is not that the smaller the light spot, the better the effect. When engraving photos, you may need to increase the laser spot to get a better picture effect.

Shading acrylic can act as a shield, effectively reducing the damage to the eyes caused by the laser.But still can’t stare at the laser for a long time, which will cause irreversible damage.

Loosen the thumbscrews on both sides, you can adjust the up and down position of the laser shield, or the angle of rotation to suit your personal usage habits.

About Ortur

Ortur’s Mission

Ortur is a high-tech manufacturer focus on developing diode laser engravers founded by a group of passionate engineers. We love to discover the unknown and try to develop our products to the next level with vitality and creativity.

Ortur is committed to expanding the use boundary of diode laser engravers and exploring more application scenarios of diode laser.In the next two years, Ortur’s mission is to create safer, more efficient,and more user-friendly multipurpose diode laser engravers, to provide more chances for small businesses,workshops, artists, engineers, and self-employed workers to improve their efficiency.

In future, Ortur will develop a small CNC machine to meet more demands from our users, to bring them more business opportunities and more possibilities.

Always on the way to try the best. Startup with creative imagination, find out the most adaptive design, always provide the outstanding product!

Our Certificate

Additional information

Model Number

LU2-4-LF, LU2-2, LU2-4-SF
