Description

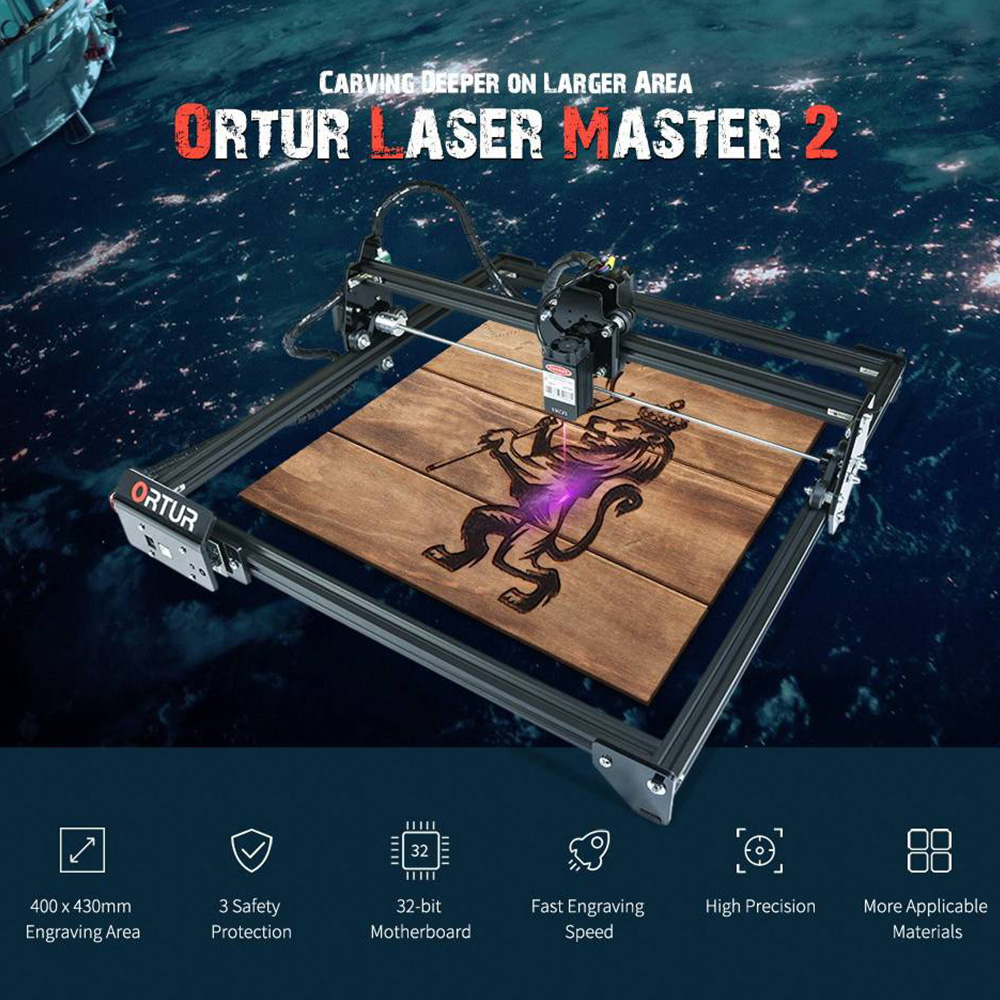

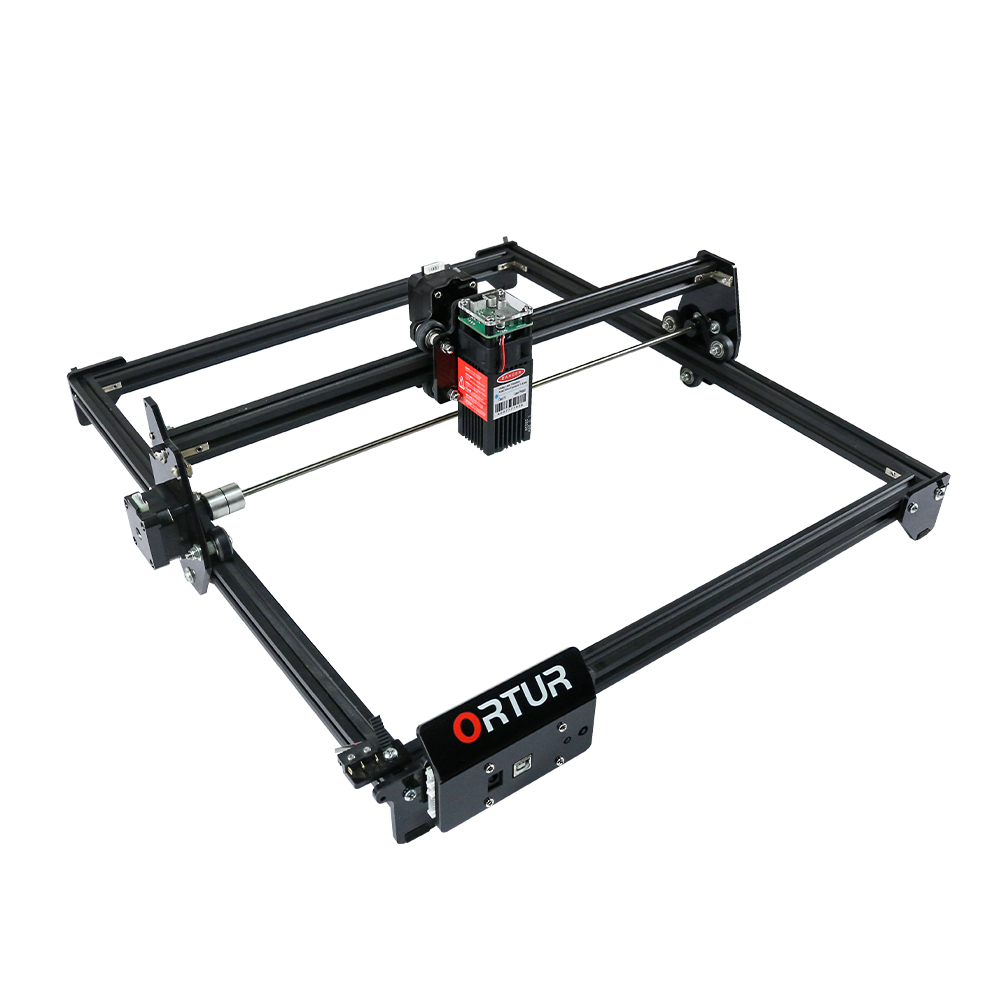

TOTEM DIY Diode Wood Desktop CNC 3D Printer Engraving Dog Tag Machine laser engraver
Features
●Specialized Motherboard with STM32 MCU
●The Most Advanced 32Bits Laser Engraver Firmware
Ortur laser master firmware, smarter, faster, higher precision and easier to use.
● Laser power range could be S0 – S1000
● Engraving speed could be as high as 3000MM/Min.
●Active Position Protection
●Laser Beam Safety Guard
●Exposure Duration Detection and Limitation
● LaserGRBL ( free software ) supports Windows XP, 7, 8, 10.
● LightBurn (not free software, lightburnsoftware.com ) supports Windows, Mac OS, and Linux. It’s the most popular paid carving software in the world, very easy to use.
● This laser engraver supports PWM mode.
● Pre-assembled parts, just need 10 – 20 minutes to install the machine.
● 400 x 430 mm large engraving area.
● Aluminum profile frame + structured cabling, solid structure, smooth operation, attractive appearance
● Synchronizing shaft mechanical structure, avoid out-sync on two Y rails, during full speed engraving.
●The Most Advanced 32Bits Laser Engraver Firmware
Ortur laser master firmware, smarter, faster, higher precision and easier to use.
● Laser power range could be S0 – S1000
● Engraving speed could be as high as 3000MM/Min.
●Active Position Protection
●Laser Beam Safety Guard
●Exposure Duration Detection and Limitation
● LaserGRBL ( free software ) supports Windows XP, 7, 8, 10.
● LightBurn (not free software, lightburnsoftware.com ) supports Windows, Mac OS, and Linux. It’s the most popular paid carving software in the world, very easy to use.
● This laser engraver supports PWM mode.
● Pre-assembled parts, just need 10 – 20 minutes to install the machine.
● 400 x 430 mm large engraving area.
● Aluminum profile frame + structured cabling, solid structure, smooth operation, attractive appearance
● Synchronizing shaft mechanical structure, avoid out-sync on two Y rails, during full speed engraving.
Brief Introduction:
● The Laser Master 2 – 7W (LU1-2) is good at picture engraving.
● The Laser Master 2 – 15W (LU1-3) is the most cost-effective, available for both engraving and cutting.
● The Laser Master 2 – 20W (LU1-4) is higher power and supports a faster engraving and cutting.
Ortur Laser Master 2-7W
Ortur Laser Master 2-15W
Ortur Laser Master 2-20W
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
||
|
1
|
LU1-2
|
Electric Power 7W, Luminous Power 1200-1600MW
|
||
|
2
|
LU1-3
|
Electric Power 15W, Luminous Power 4000-4500MW
|
||
|
3
|
LU1-4
|
Electric Power 20W, Luminous Power 5000-5500MW
|
||
|
4
|
Baud Rate
|
115200-921600（default 115200)
|
||
|
5
|
Available Materials for Engraving
|
Wood, Paperboard, Acrylic, Leather, Some Plastic, Power Coated Metal, Coated Glass, Stone, Ceramic
|
||
|
6
|
Available Materials for Cutting
|
Kraft Paper, Paper Board, Thin Plywood, KT board, Felt Cloth, Leather, etcs
|
||
|
7
|
Computer OS
|
Win XP, Win7, Win8, Win 10(LaserGRBL) Max and Linux(LightBurn)
|
||
|
8
|
Default Focus Length
|
58$55mm(from the heat sink to the object)
|
PRODUCT CONFIGURATION

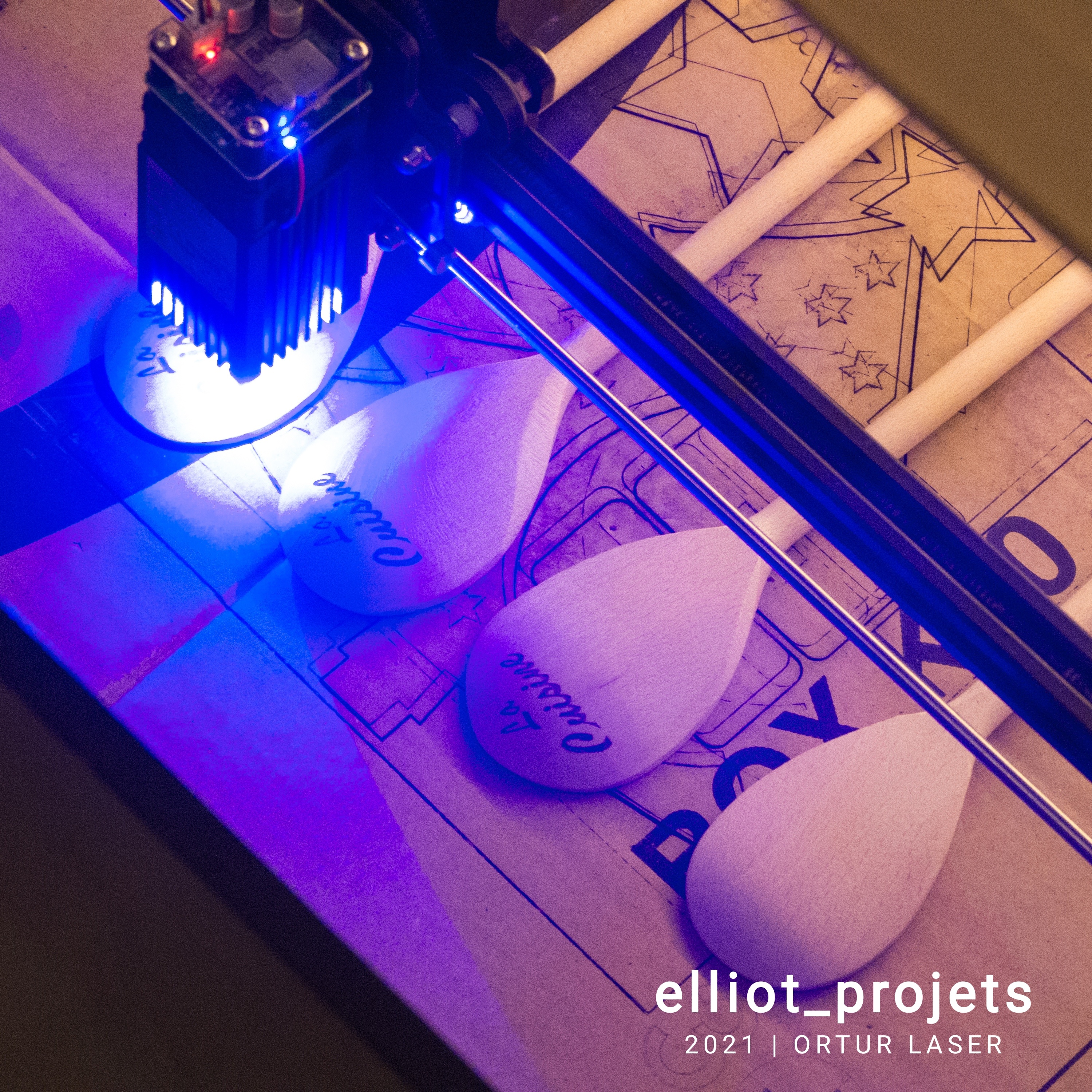

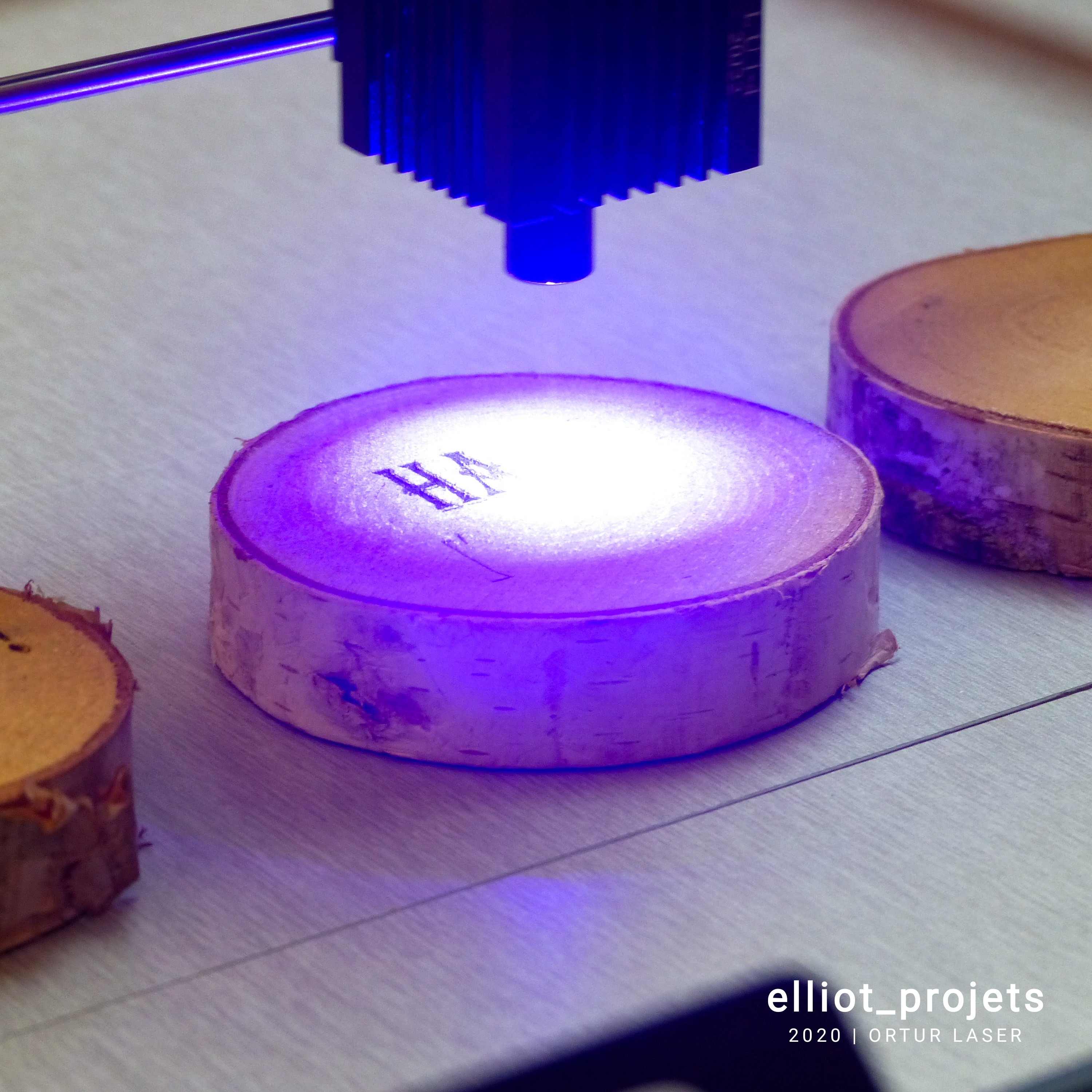

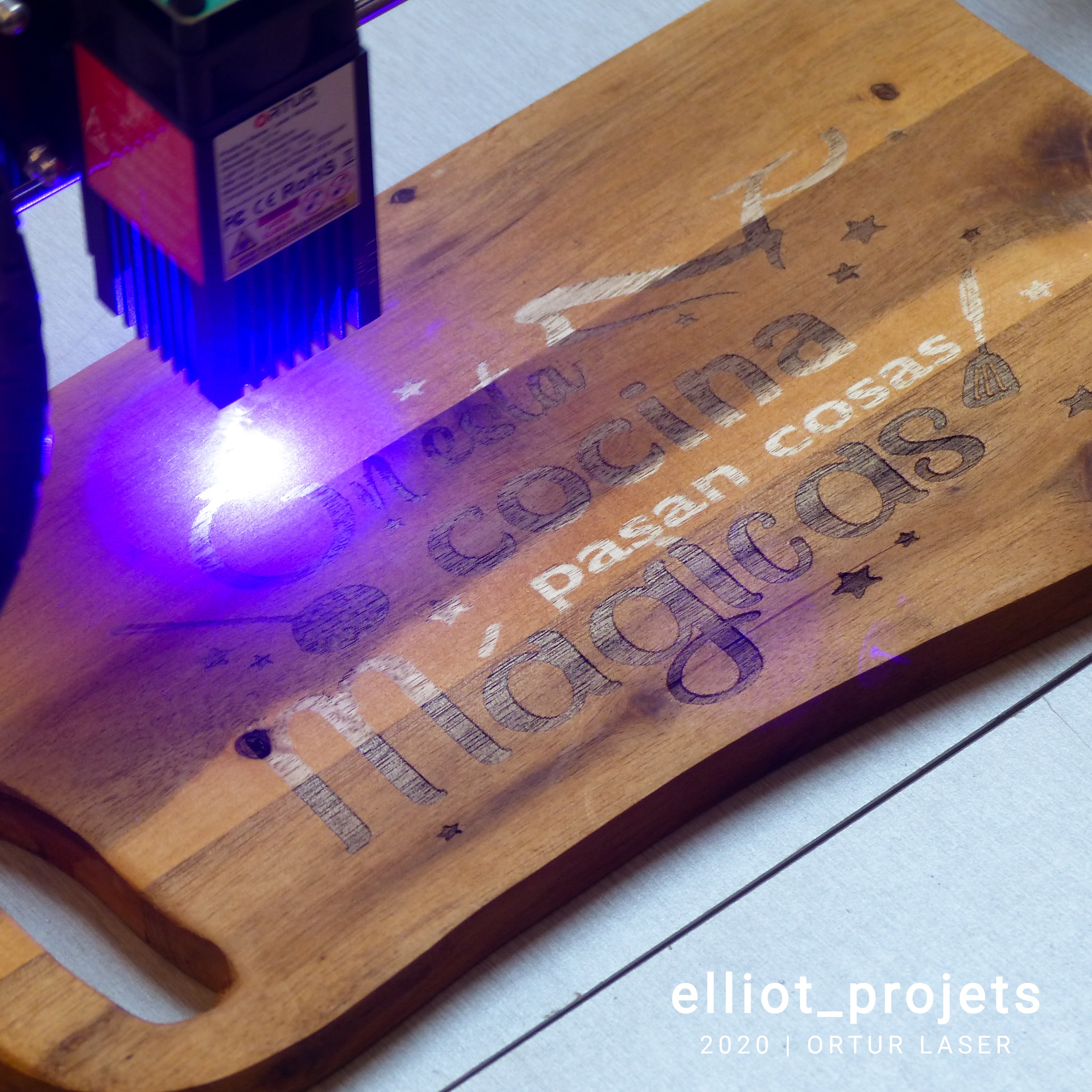

Successful Project
Plywood
Paper Board
Stone
Glass
Ceramic
Plastic
