Description
- Brand Name: Jolooyo
- Certification: NONE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Style: Mini
- Power: 0
- Model Number: LD-SLD3235VF
- Voltage: 0
- Occasion: Professional Stage & DJ

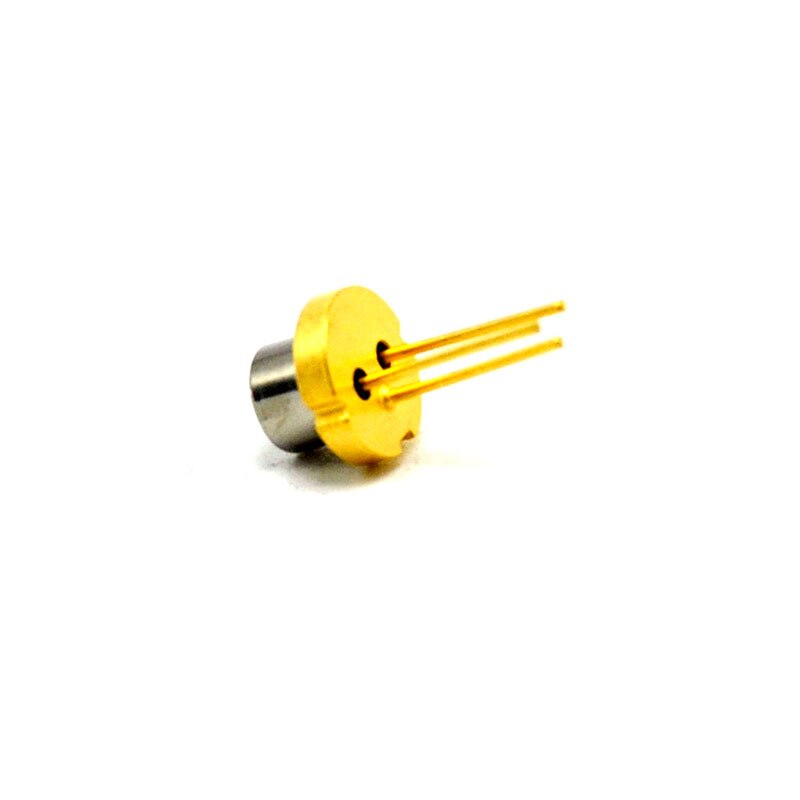

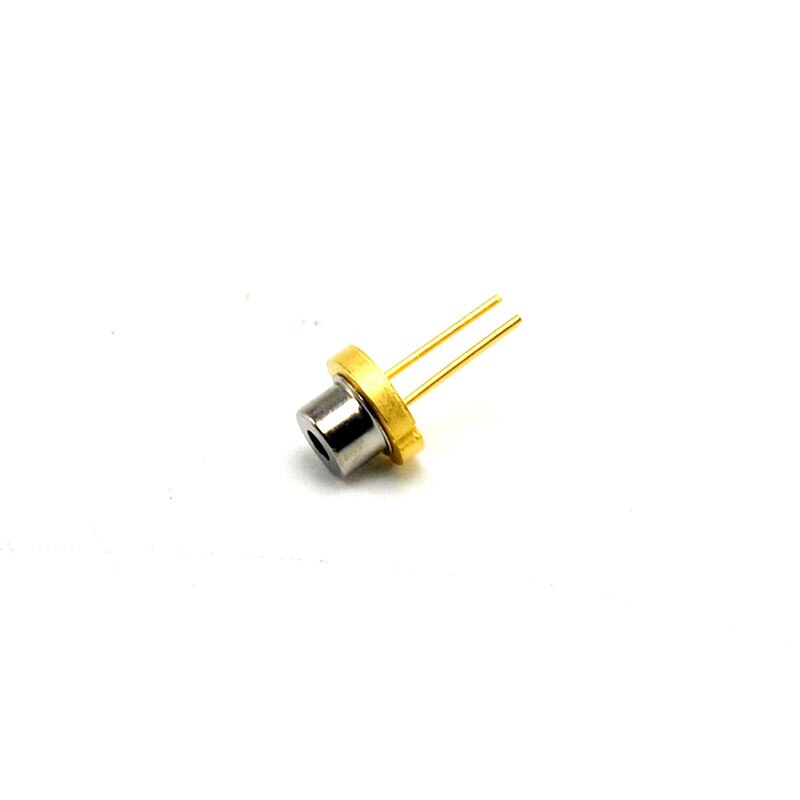

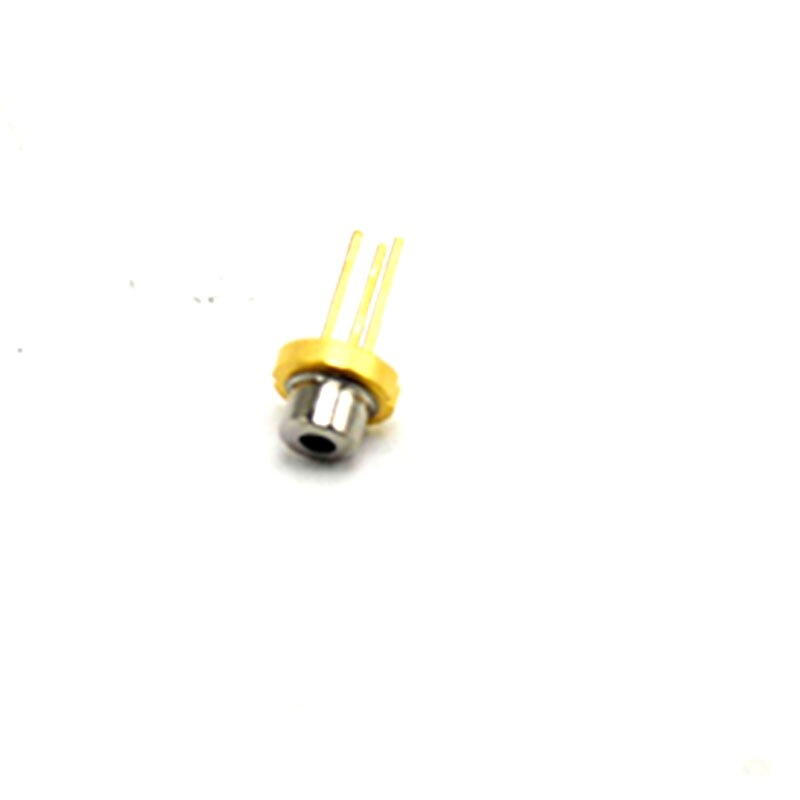

Original SLD3235VF 405nm 100mW 5.6mm Violet / blue laser diode TO-18 Sony NEW
Parameters
Model:SLD3235VF
Optical Output Power: CW100mW
Peak Wavelength: 405nm
Can Type: 5.6mm with Photo Diode
Absolute Maximum Ratings:
Optical Output Power: 140mw
LD Reverse Voltage: 2v
PD Reverse Voltage: 5.5V
Storage Temperatuer: -40~85°C
Operating Case Temperature: -10~70°C
For more technical information, please contact us for LD datasheet.
Features
Laser light can damage the human eyes and skin. Do not expose the eye or skin to any laser light directly and/or through optical lens. When handling the LDs, wear appropriate safety glasses to prevent laser light, even any reflections from entering to the eye. Focused laser beam through optical instruments will increase teh chance of eye hazard.
These LDs are classified in Class 4 of IEC60825-1 and 21 CFR Part 1040.10 Safety Standards. It is absolutely necessary to take overall safety measures against User’s modules, equipment and systems into which Nichia LDs are incorporated and/or integrated.
Package
1pc SLD3235VF 405nm 100mW 5.6mm Violet / blue laser diode TO-18 Sony NEW
