- Model Number: Fiber Laser source Module

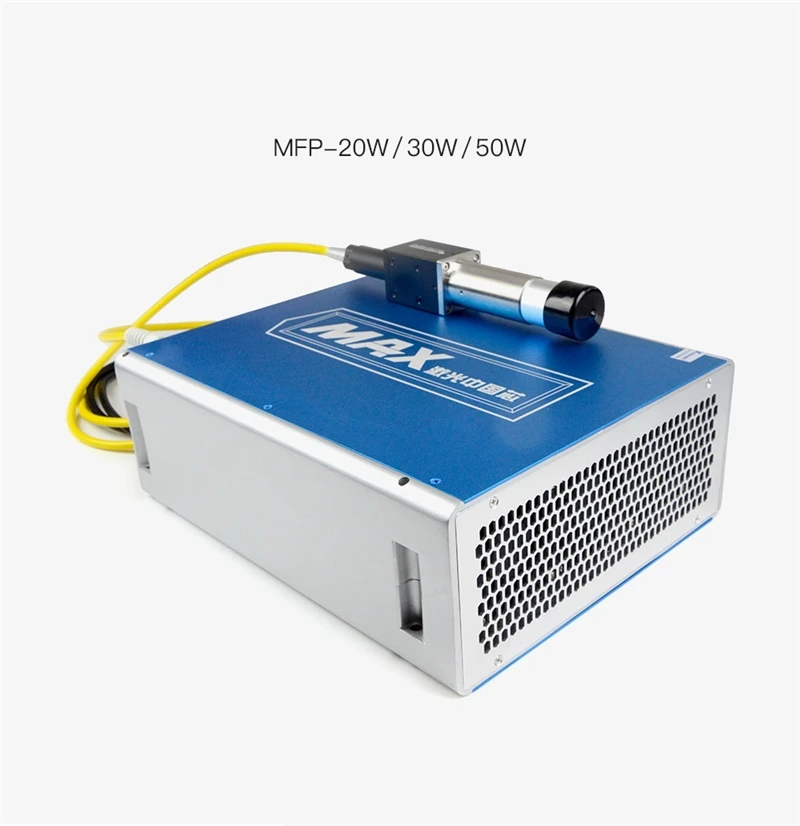

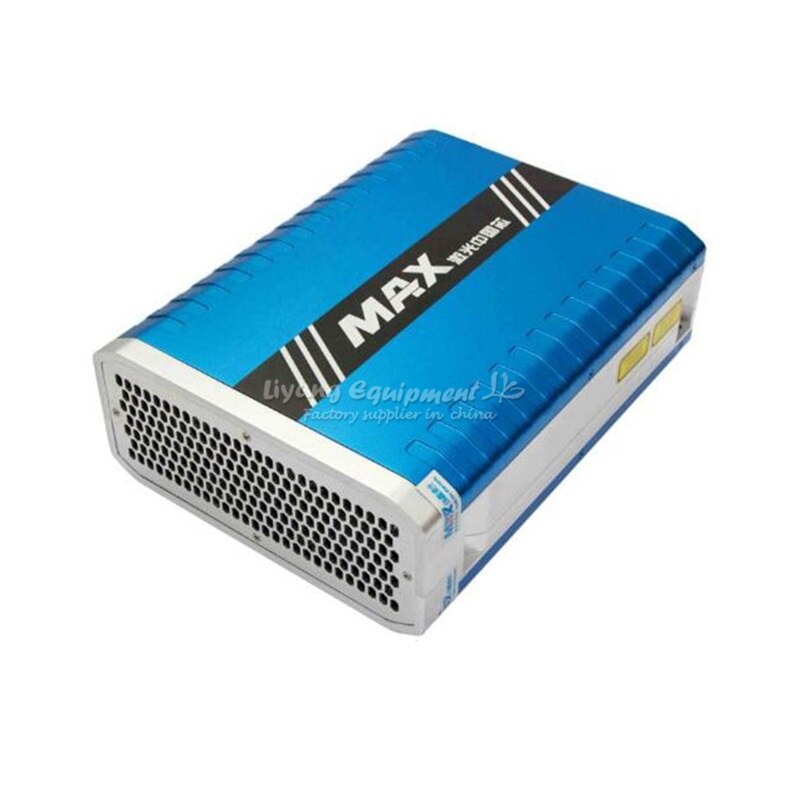

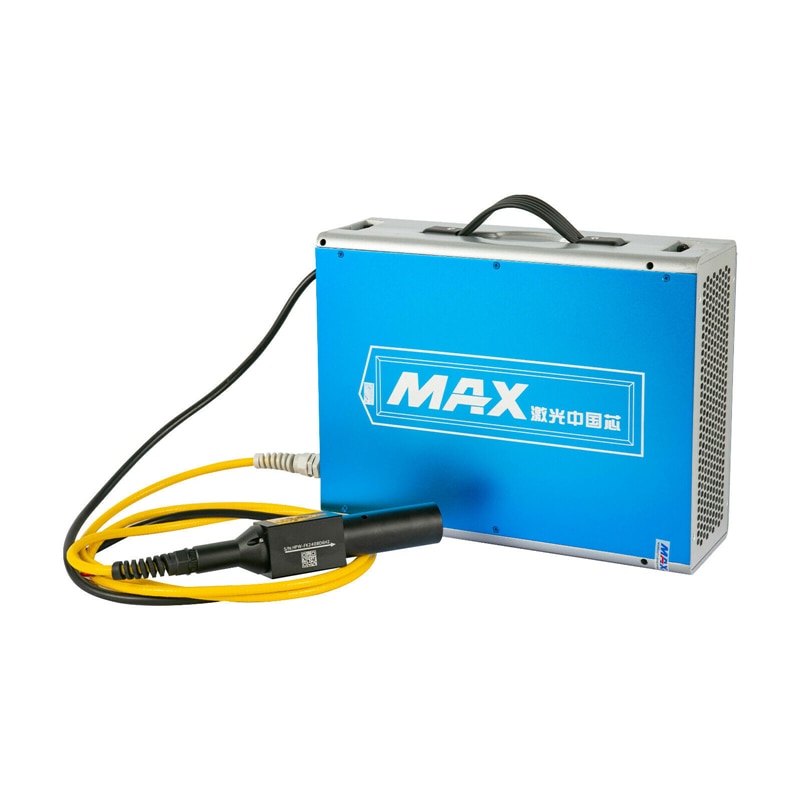

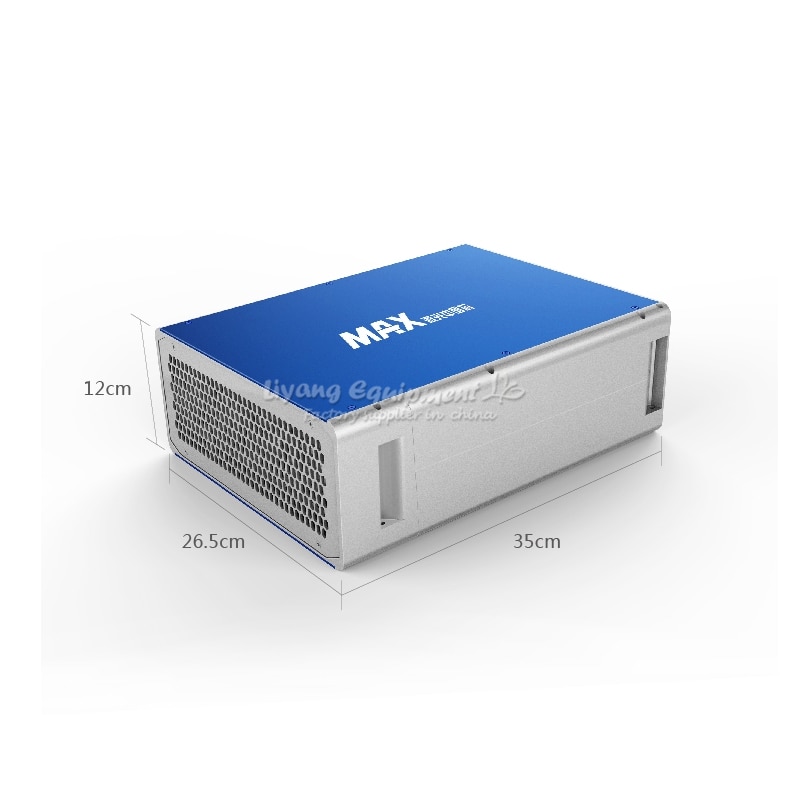

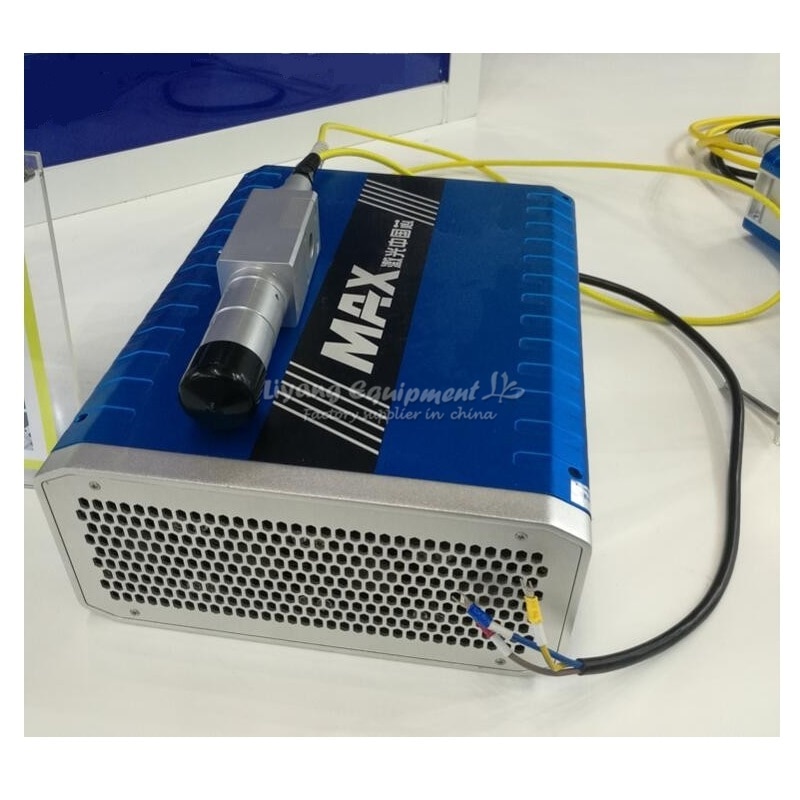

Original MAX 20W 30W 50W Power Q-switched Pulse Fiber Laser source Module GQM 1064nm H Laser Marking Machine Parts
Q-Switched Pulsed Fiber Laser
Series are maintenance-free fiber lasers based on the Q-switched technology and
MOPFA. These lasers deliver light centered at 1064nm and guided to the work
piece via a flexible metal-sheathed fiber cable. It provides a set of pulse
durations, repetition rates and peak powers. The optical head may be equipped
with an opto-isolator, that makes it possible to mark directly on non-metallic
materials (plastic, wood, paper, etc.) and some metal with low reflectivity.
·High beam quality fiber output.
·Superior reliability, long lifetime.
·No shadow or virtual open circuit phenomenon when processing
on special materials.
·Universal DB-25 interface.
·
Technical Parameters
NO. |
Characteristics |
Test Conditions |
Min. |
Typical |
Max. |
Unit |
1 |
Mode |
Pulse |
||||
2 |
Polarization |
Random |
||||
3 |
Beam Quality M⊃2; |
Pout=Pnom |
1.1 |
1.3 |
1.6 |
|
4 |
Center Wavelength |
Pout=Pnom |
1055 |
1064 |
1070 |
nm |
5 |
Spectrum Width(3dB) |
Pout=Pnom |
5 |
10 |
nm |
|
6 |
Average Optical |
MFP-5W |
4.5 |
5 |
5.5 |
W |
MFP-10W |
9.5 |
10 |
10.5 |
W |
||
MFP-20W |
19.5 |
20 |
20.5 |
W |
||
MFP-30W |
29.5 |
30 |
30.5 |
W |
||
MFP-50W |
49 |
50 |
51 |
W |
||
7 |
Power |
Range |
10 |
100 |
% |
|
8 |
Single Pules Energy |
MFP-5W |
0.45 |
mJ |
||
MFP-10W |
0.56 |
mJ |
||||
MFP-20W |
0.67 |
mJ |
||||
MFP-30W |
1 |
mJ |
||||
MFP-50W |
1 |
mJ |
||||
9 |
Optical Pulse Width(FWHM) |
90 |
100 |
110 |
ns |
|
10 |
Pulse Repetition |
MFP-5W |
10 |
30 |
KHz |
|
MFP-10W |
22 |
50 |
KHz |
|||
MFP-20W |
30 |
60 |
KHz |
|||
MFP-30W |
30 |
60 |
KHz |
|||
MFP-50W |
50 |
80 |
KHz |
|||
11 |
Output Power |
Pout=Pnom |
5 |
% |
||
12 |
Beam Diameter |
1/e2 |
6 |
7.5 |
9 |
mm |
13 |
Beam Ellipticity |
90 |
% |
|||
14 |
Delivery Cable Length |
1.9 |
2.5 |
3 |
M |
|
15 |
Laser Startup Time |
Pout=Pnom, |
110 |
140 |
us |
|
16 |
Laser Shutdown Time |
Pout=Pnom, |
110 |
150 |
150 |
us |
Applications
of Laser Marking:
Widely used for all
metal marking, some plastic and parts of stone engraving.
Ceramic, plastic keys, metal and non-metallic
material marking
Graphic engraving
Special materials processing, etc.
Questions
usually been asked by the customers
1) Does the laser have "auto verification" mode in which it can
diagnose itself for possible problems?
=> It has a protection software inside.
2) Can an abrupt electricity cut damage the laser? Is it necessary to connect
the laser to electricity via UPS?
=> an abrupt electricity cut won’t damage the laser, our laser has been
tested in this way for many many times. Not necessary to connect to UPS.
3) Is the laser filled with neutral gas (we are thinking about the risk of
opening it by the customs at the border)?
=> No neutral gas, it’s safe.
4) Can anything bad happen to the laser if it is scanned by X-ray on the
border?
=> Please don’t worry, our laser has been sold to many countries, it very
safe. Because there is no dangerous materials in it that will lead to fire or
explosion.
5) Does the laser have a CE certificate necessary to be sold to European Union?
=>Yes
6) What is the lifetime?
The lifetime of the
lasers are 100,000 hours, the lifetime of the pump diode is 100,000 hours.
Routine
maintenance and matters needing attention
1.When laser working, don’t touch or hit
the moving table;
2. Laser source and optical lens are fragile,
should be handled with great care and avoid vibration;
3. When a malfunction occurs in the
machine, work should be stopped immediately and handled by a professional staff
member;
4. Pay
attention to the switch ON/OFF order;
5. Pay
attention to keep indoor and machine surface clean and tidy
General
Warranty
All products are
warranted by MAX against defects in materials and workmanship for the period of
time as set forth on the applicable purchase order or in the specifications
starting with the date of shipment. Max also warrants that this product will
meet applicable specifications under normal use.
MAX shall,at its option,
repair of replace any product that proves, in the reasonable opinion of MAX, to
be defective in materials or workmanship during the warranty period. All
products repaird or replaces under warranty are only warranted for the
remaining up-expired period of time in the original warranty for the particular
defective product. MAX reserves the right to issue a credit note for any
defective products that have proved defective through normal usage.
Warranty
limitations
Products,
parts(including fiber connectors)or equipment which have been tampered with are
not covered by this warranty.
1.
Be tampered with ,opened, disassembled, opened, or modified by persons other
than MAX personnel.
2.
Misused, neglected, or damaged by accident, used in applications which exceeds
their specifications or rating.
3.
Outsied of environmental specifications for the products.
4.
Used with buyer software or interfacing.
5.
Improperly installed, maintained or otherwise abused or used other than in
accordance with the information and precautions contained in this User’s
Manual.
6.
It is the customer’s responsibility to understand and follow operating
instructions in this User’s Guide and specifications prior to operation-failure
to do so many result in voiding this warranty.
7.
Accessories and fiber connectors are not covered by this warranty.
