Original JPT 30/50W Q-switched Pulse Fiber Laser Source Module LP E-Series Output Protective Connector for Laser Marking Machine

$3,571.15$6,010.95

SKU: 3256803978986285 Category:

Description

  • Origin: CN(Origin)
  • Model Number: JPT50W
  • Certification: CE
  • Brand:: JPT
  • Series:: LP-E
  • Power:: 20W/30W/50W
  • Central Wavelength:: 1064nm
  • Output Beam Diameter:: 7±0.5mm
  • Pulse Repetition Rate Range:: 1-600KHZ
  • Pulse Duration:: 200NS
  • Cooling Method:: Air cool
  • Polarization State:: Random
  • Supply DC Voltage :: 24V

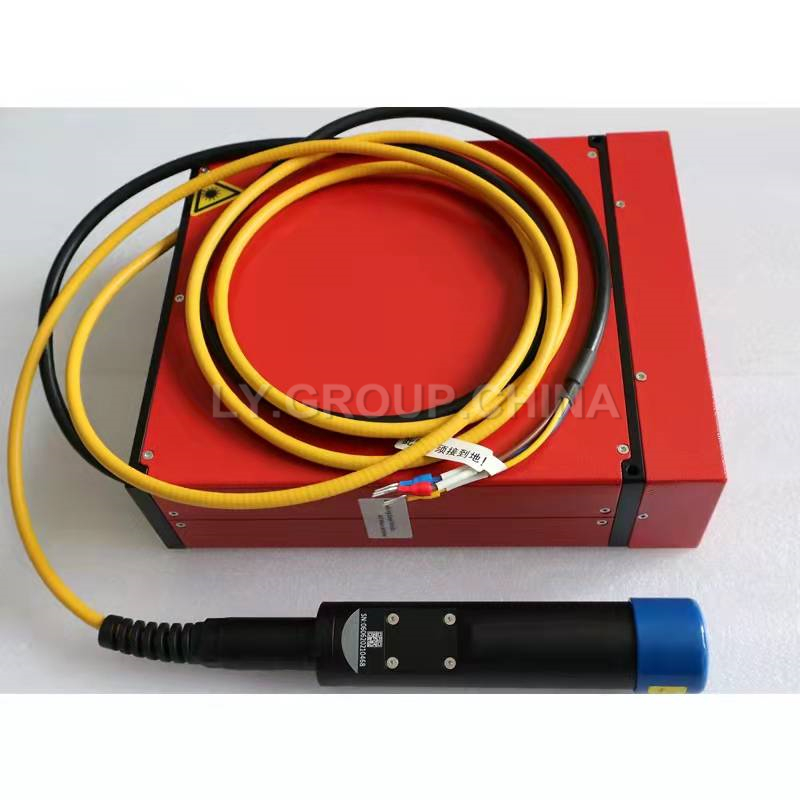

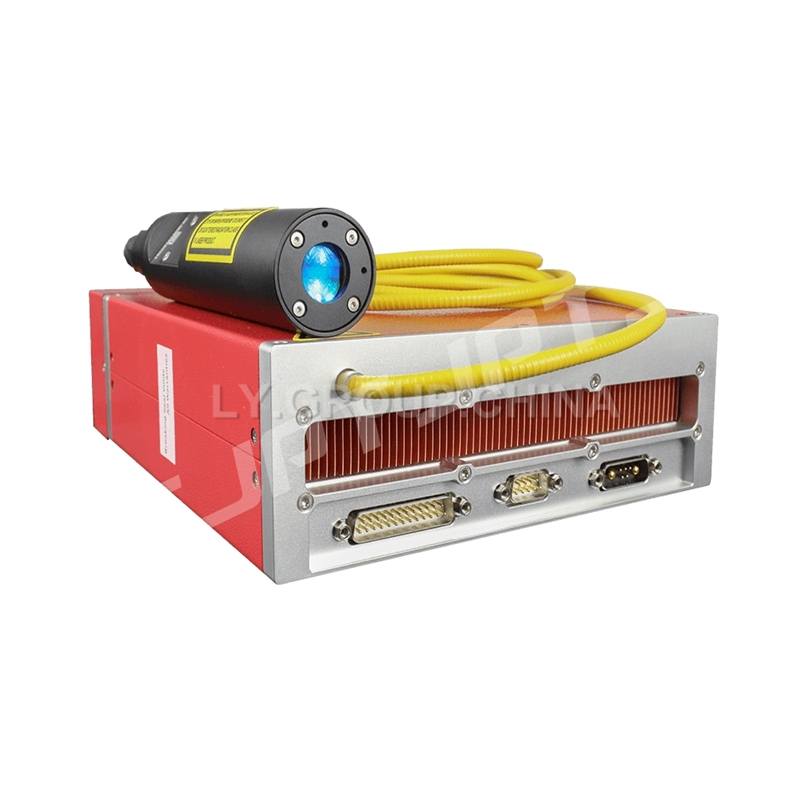

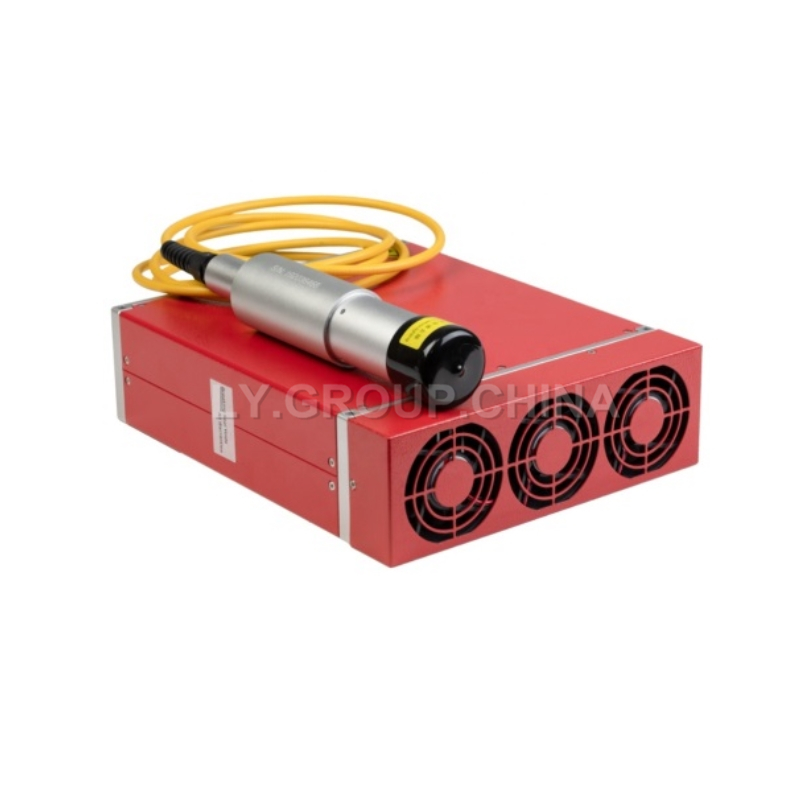

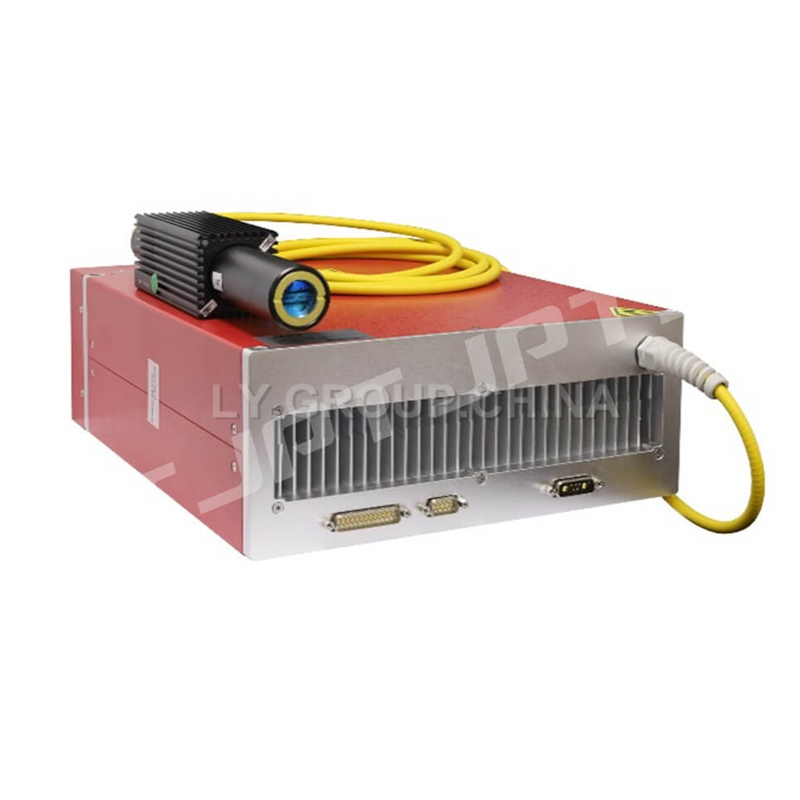

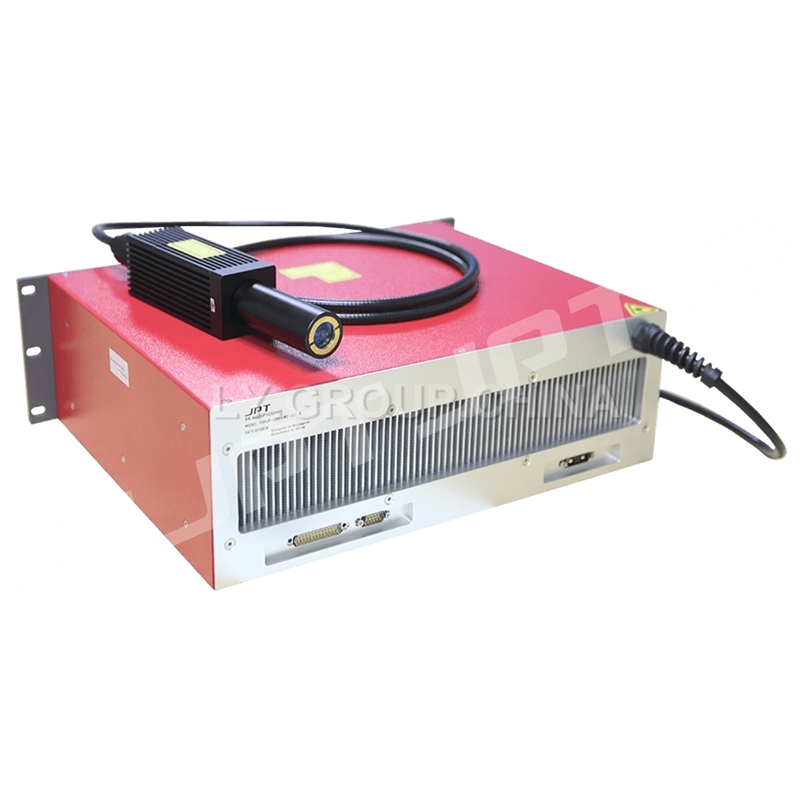

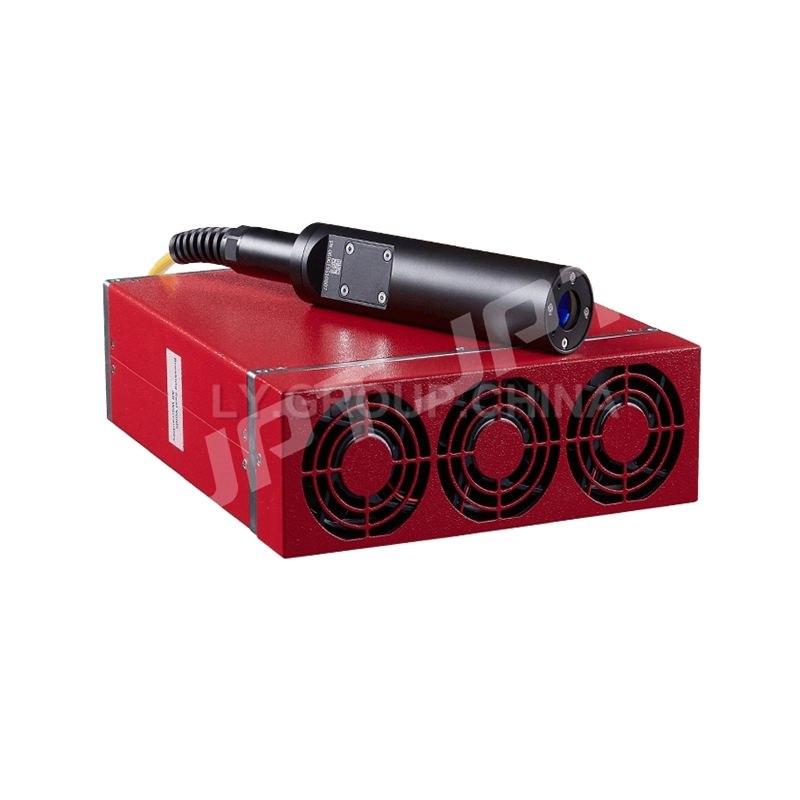

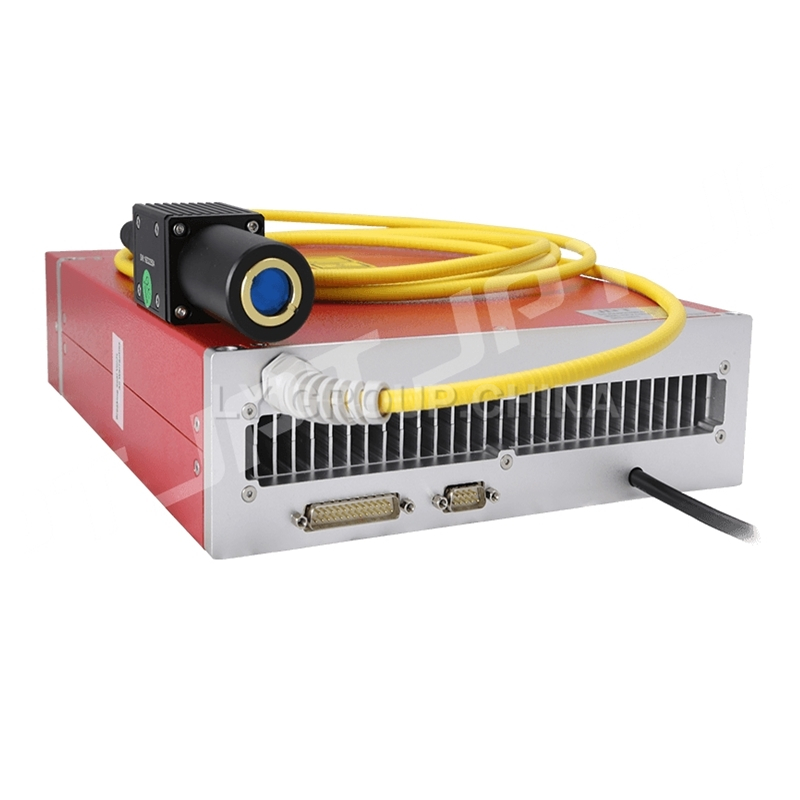

Original JPT 30/50W Q-switched Pulse Fiber Laser Source Module LP E-Series Output Protective Connector for Laser Marking Machine

Introduction:

JPT LP series pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration and show excellent laser performance as well as high level of temporal pulse shaping controllability. Compared with Q-switching technology, LP series has greater flexibility,wider frequency range, higher control precision and superior first pulse.

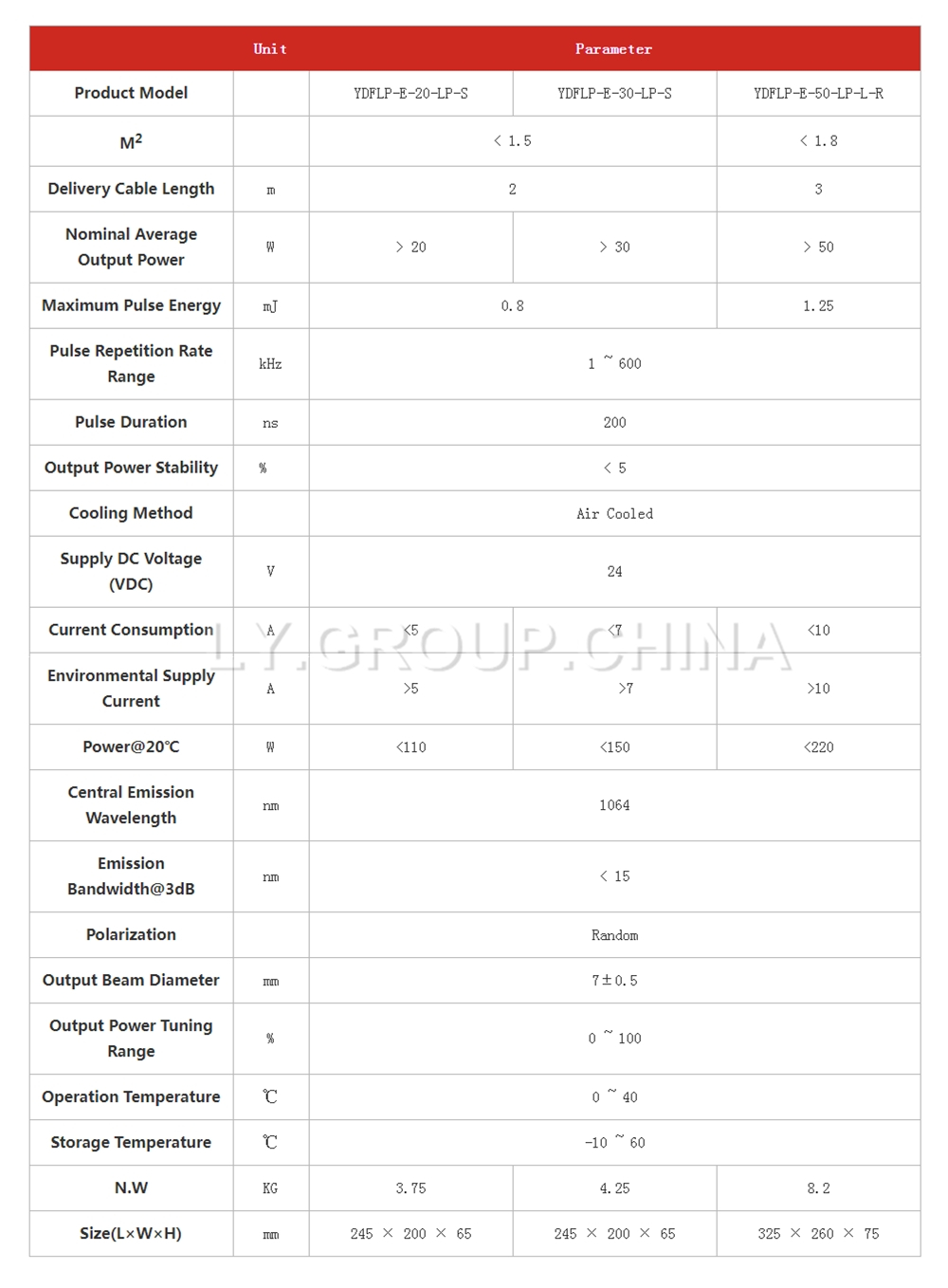

Product Information:

Brand:JPT

Series:LP-E

Power:20W/30W/50W

Central wavelength:1064nm

Emission Bandwidth@3Db nm <15

Output Power Stability <5%

Output Beam Diameter 7±0.5mm

Pulse Repetition Rate Range1-600KHZ

Pulse Duration 200NS

Cooling Method: Air cool

Polarization State: Random

Maximum Pulse Energy0.8MJ(20W/30W)1.25MJ(50W)

Delivery Cabel Length 2M(20W/30W)3M(50W)

Supply DC
Voltage : 24V

Output Power Tuning range:10-100%

Operating Temperature:0-40 Degree

Storage Temperature:-10-60 Degree

N.W 3.75KG / 4.25KG / 8.2KG

Size245*200*65MM / 245*200*65MM / 325*260*75MM

( RE: We also have MOPA frequency & pulse width adjustable version fiber laser source,As compared to the Q-switching technology, the pulse repetition frequency (PRF) and pulse width can be controlled independently in MOPA configuration, through adjusting different combination of the above parameters, the peak power of laser can be well maintained. And enable JPT laser suitable for more material processing which Q-switch limited. The higher output power makes its advantages especially in high speed marking applications.)
