Description

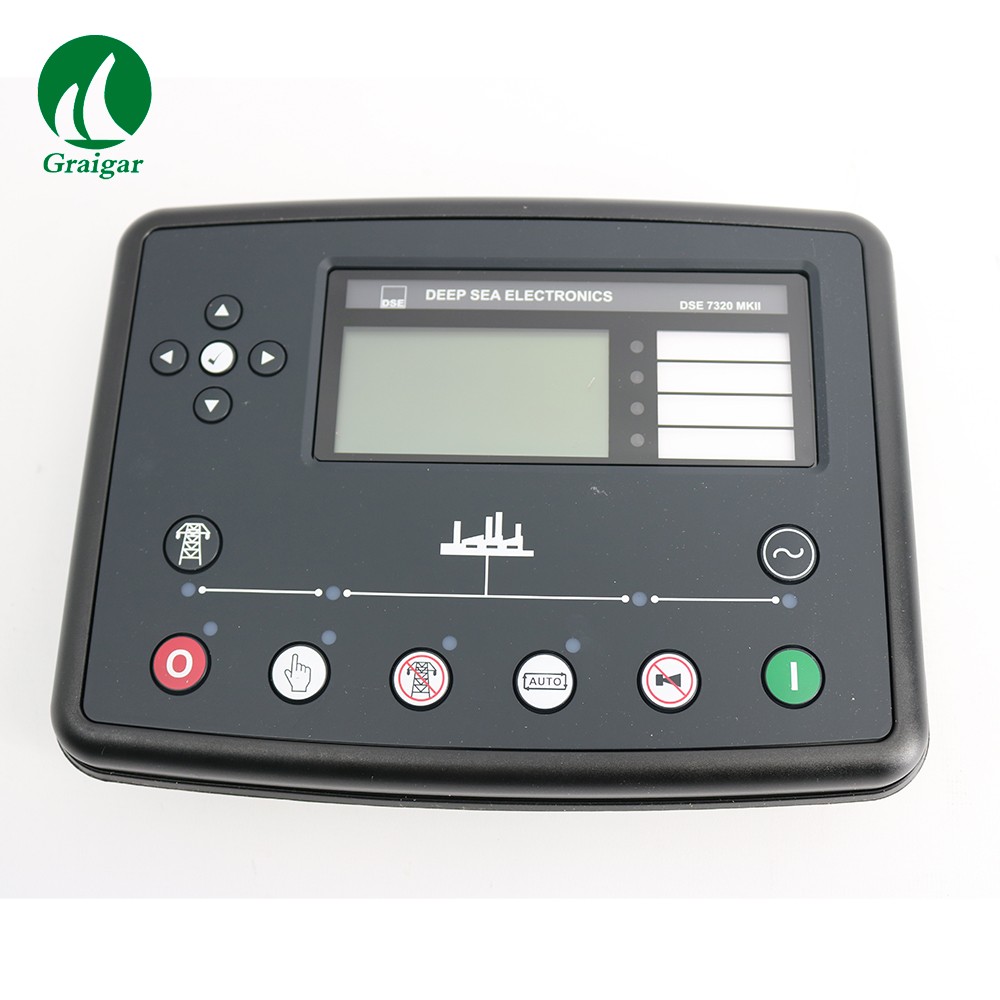

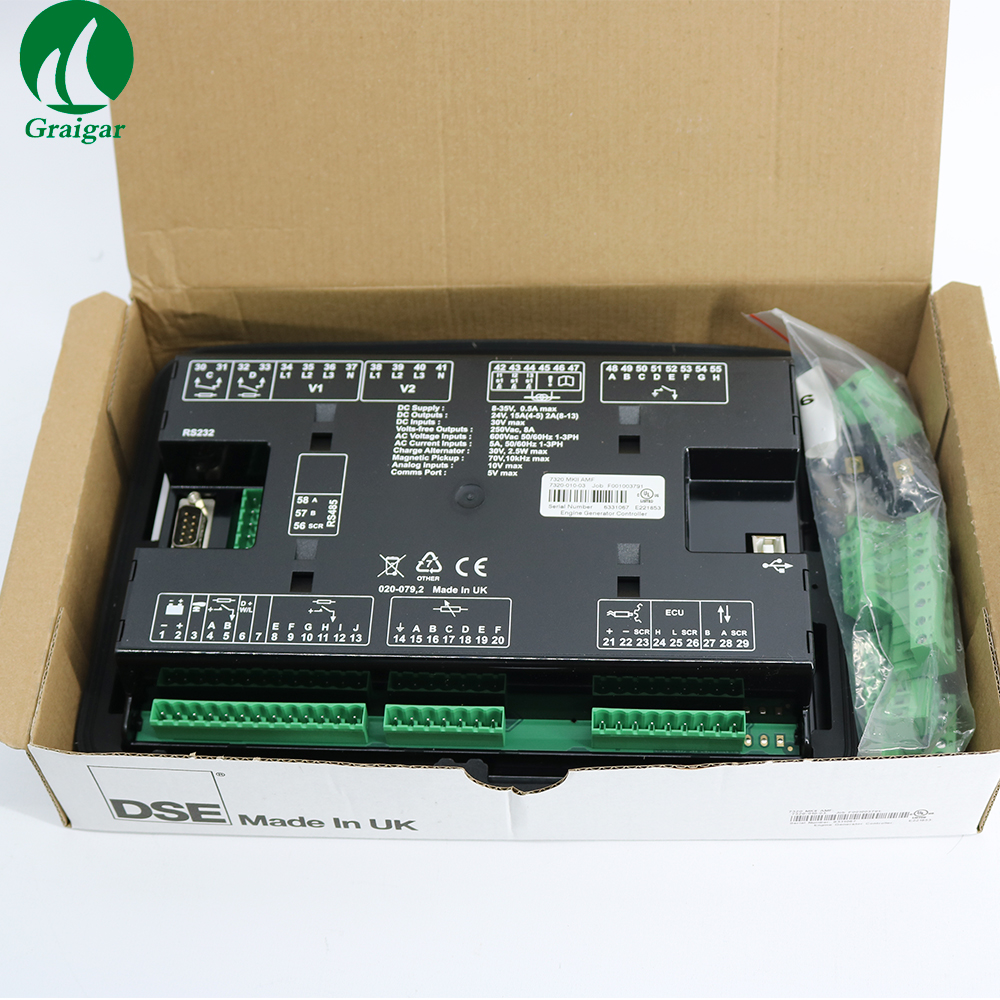

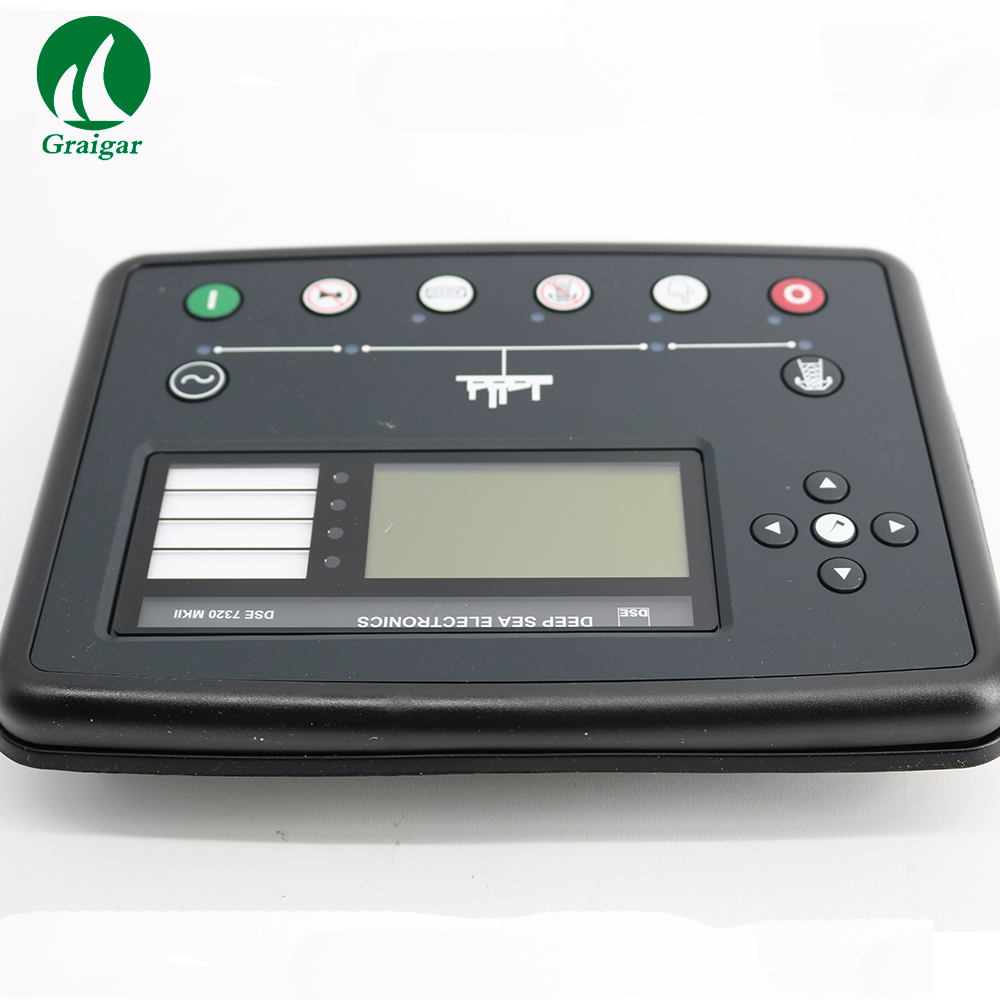

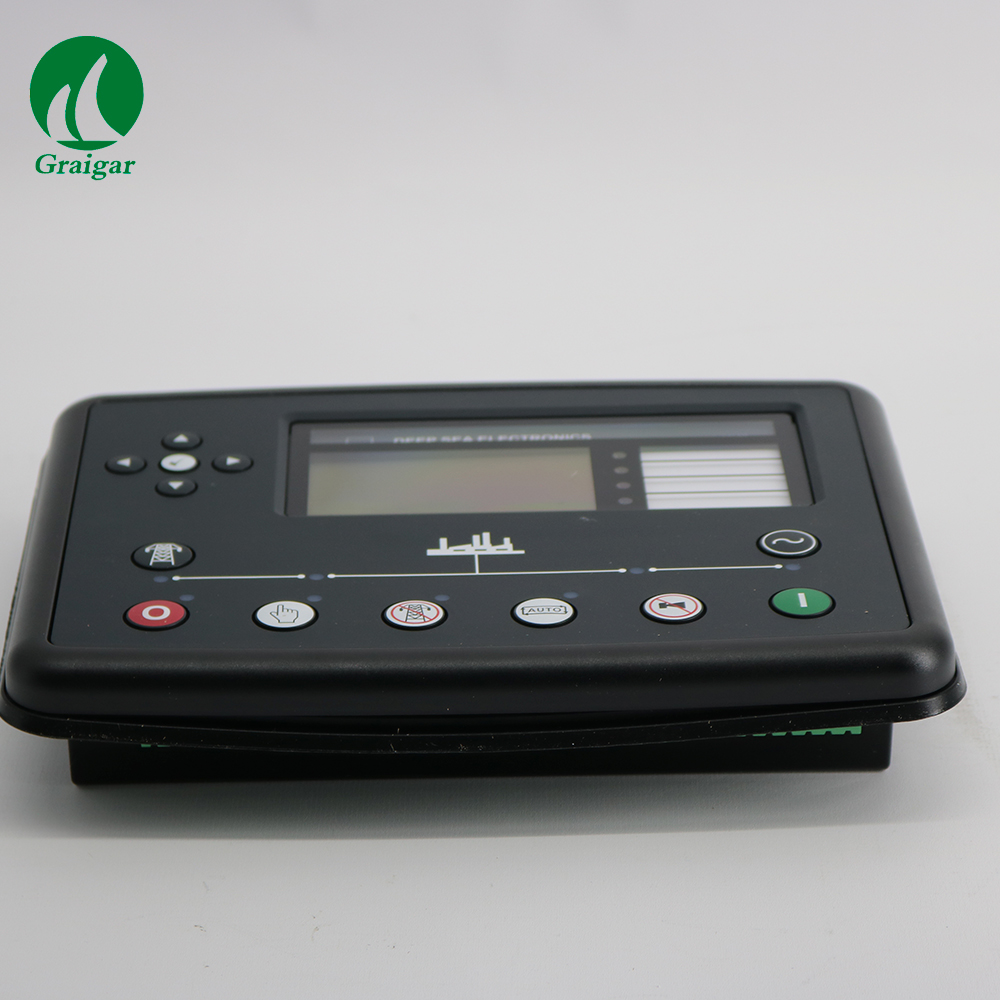

Original Deep Sea DSE7320 MKII diesel generator controller Deep Sea 7320 Generator Auto Controller















KEY BENEFITS

• 4-Line back-lit LCD text display

• Multiple Display Languages

• Five key menu navigation

• LCD alarm indication

• Heated display option available

• Customisable power-up text and images

• DSENet expansion compatibility

• Data logging facility

• Internal PLC editor

• Protections disable feature

• Fully configurable via PC using USB, RS232 & RS485 communication

• Front panel configuration with PIN protection

• Power save mode

• 3 phase generator sensing and protection

• 3 phase mains (utility) sensing and protection (DSE7320 MKII only)

• Automatic load transfer control (DSE7320 MKII only)

• Generator current and power monitoring (kW, kvar, kVA, pf)

• Mains current and power monitoring (kW, kvar, kVA, pf) (DSE7320 MKII only)

• kW and kvar overload and reverse power alarms

• Over current protection

• Unbalanced load protection

• Independent earth fault protection

• Breaker control via fascia buttons

• Fuel and start outputs configurable when using CAN

• 6 configurable DC outputs • 2 configurable volt-free relay outputs

• 6 configurable analogue/digital inputs

• Support for 0 V to 10 V & 4 mA to 20 mA sensors

• 8 configurable digital inputs

• Configurable 5 stage dummy load and load shedding outputs

• CAN, MPU and alternator frequency speed sensing in one variant

• Real time clock

• Manual and automatic fuel pump control

• Engine pre-heat and post-heat functions

• Engine run-time scheduler

• Engine idle control for starting & stopping

• Fuel usage monitor and low fuel level alarms

• Simultaneous use of RS232 and RS485 communication ports

• True dual mutual standby using RS232 or RS485 for accurate engine hours balancing.

• MODBUS RTU support with configurable MODBUS pages.

• Advanced SMS messaging (additional external modem required)

• Start & stop capability via SMS messaging

• 3 configurable maintenance alarms

• Compatible with a wide range of CAN engines, including tier 4 engine support

• Uses DSE Configuration Suite PC Software for simplified configuration

• Licence-free PC software

• IP65 rating (with supplied gasket) offers increased resistance to water ingress

• Modules can be integrated into building management systems (BMS) using MODBUS RTU

• Automatically transfers between mains (utility) and generator (DSE7320 MKll only) for convenience.

• Hours counter provides accurate information for monitoring and maintenance periods

• User-friendly set-up and button layout for ease of use

• Multiple parameters are monitored & displayed simultaneously for full visibility

• The module can be configured to suit a wide range of applications for user flexibility

• PLC editor allows user configurable functions to meet user specific application requirements.



SPECIFICATION

DC SUPPLY CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

5 V for upto 1 minute

CRANKING DROPOUTS

Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT:

510 mA at 12 V, 240 mA at 24 V



MAXIMUM STANDBY CURRENT:

330 mA at 12 V, 160 mA at 24 V



CHARGE FAIL/EXCITATION RANGE:

0 V to 35 V



GENERATOR & MAINS (UTILITY)

VOLTAGE RANGE:

15 V to 415 V AC (Ph to N)

26 V to 719 V AC (Ph to Ph)



FREQUENCY RANGE:

3.5 Hz to 75 Hz

MAGNETIC PICKUP VOLTAGE RANGE:

+/- 0.5 V to 70 V

FREQUENCY RANGE:

10,000 Hz (max)

INPUTS DIGITAL INPUTS A TO H

Negative switching

ANALOGUE INPUTS A & F

Configurable as:

Negative switching digital input:

0 V to 10 V sensor

4 mA to 20 mA sensor

Resistive sensor

ANALOGUE INPUTS B, C, D & E

Configurable as:

Negative switching digital input

Resistive sensor

OUTPUTS

OUTPUT A & B (FUEL & START)

15 A DC at supply voltage

OUTPUTS C & D

8 A AC at 250 V AC (Volt-free)

AUXILIARY OUTPUTS E, F, G, H, I & J

2 A DC at supply voltage

DIMENSIONS

OVERALL

245 mm x 184 mm x 51 mm 9.6” x 7.2” x 2.0”

PANEL CUT-OUT 220 mm x 160 mm 8.7” x 6.3”

MAXIMUM PANEL THICKNESS:

8 mm 0.3”

STORAGE TEMPERATURE RANGE:

-40°C to +85°C -40 °F to +185 °F

OPERATING TEMPERATURE RANGE:

-30°C to +70°C -22 °F to +158 °F

HEATED DISPLAY VARIANT:

-40 °C to +70 °C -40 °F to +158 °F
