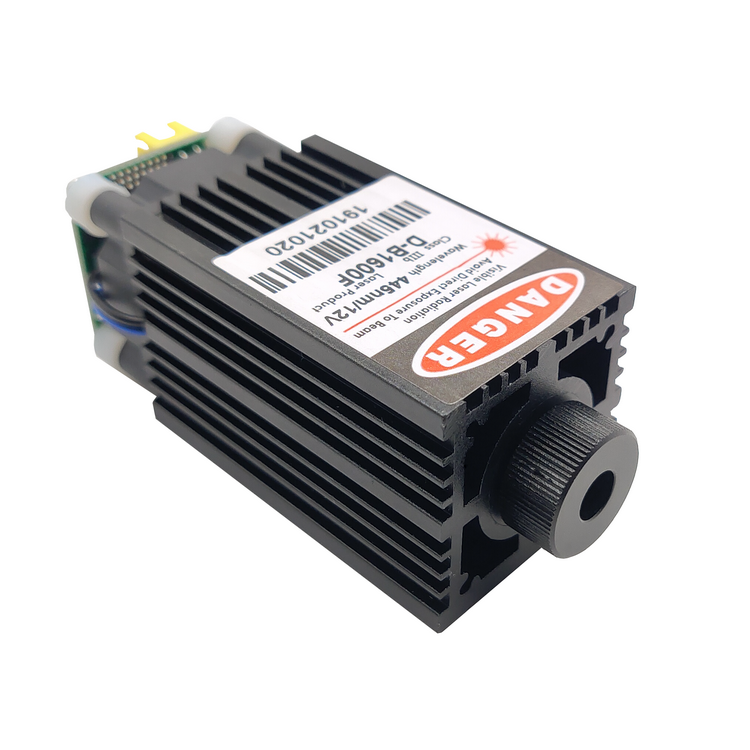

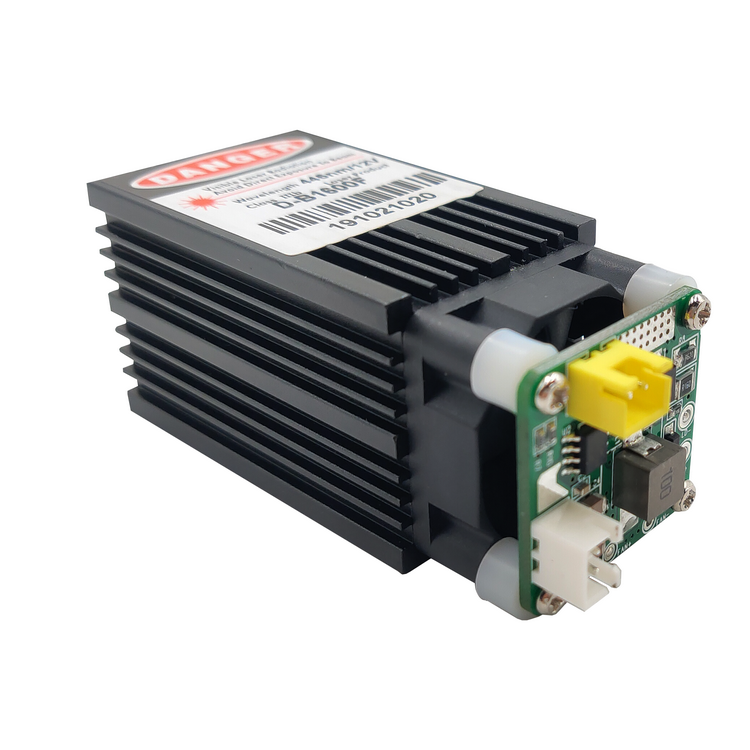

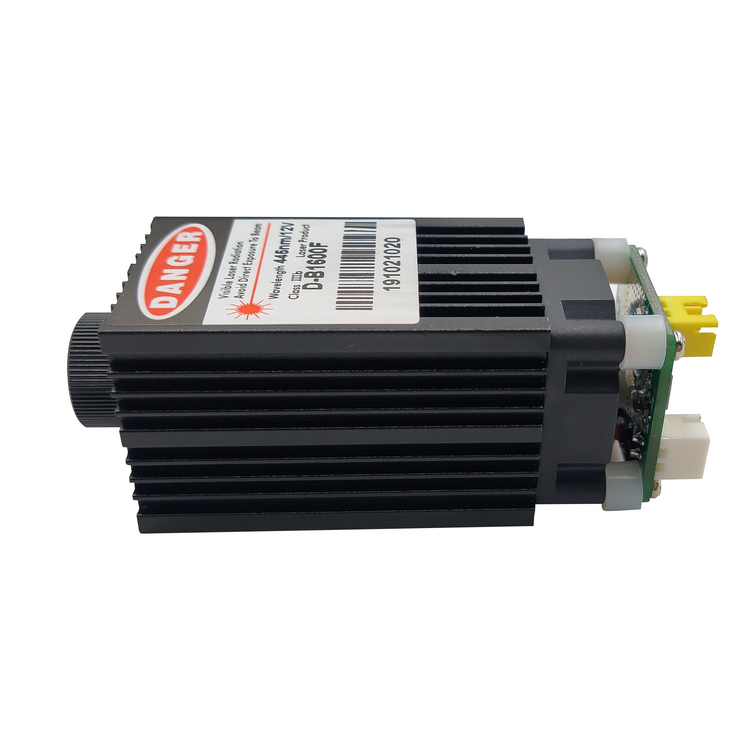

Optlaser 405nm 300mW Purple Laser Module 12V Focusable High Power Blue Violet UV Laser Head for DIY Engraving with TTL

$81.30

SKU: 3586119018651 Category:

Description

Product Overview
1. High-quality beam, Reliable performance, and Best
modulation efficiency.
2. Light, convenient, easy to integrate
3. Laser:405nm,≥300mW

Technical Parameters

Item Project Parameters
1 Laser Classification Class 4
2 TTL output power >1K HZ Output power at work=Continuous power x 40%
3  Output stability ±5%
4  Beam Mode Circular spot
5  Focus spot size 0.1mm

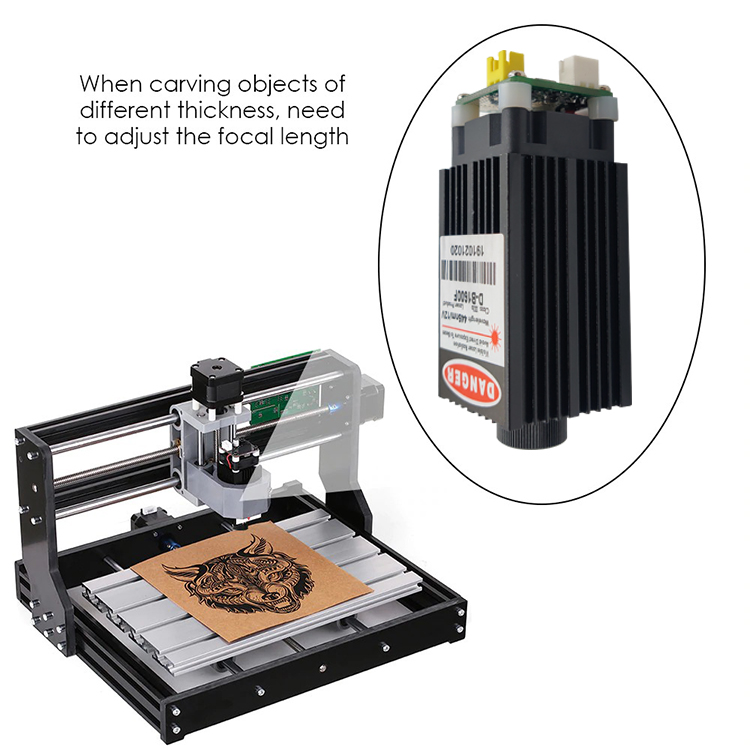

6  Focus length 3~30cm
7  Lens material  Professional focusing optical glass
8  Powerboard input voltage  DC12V
9  LD Input voltage  7V
10  LD Input Current  0.35A
11  Modulation mode  TTL
12  TTL trigger mode  Active high(>DC 2.0V)
13  Working frequency  <30KHz
14  Analog control input voltage  DC 0–5.0V
15  Ambient temp  -15℃–40℃
16  Preheating time  <1 Min
17  Working life  8000 Hours
18  Product weight  85g

Product Size

Electrical parameters

Item Project Technical parameters
1 Input voltage DC 12V
2 Input power 2.5W
3 Output current LD<1A
4 Constant current accuracy Output current stability less than 1%, Output ripple is less than
100mV
5 Drive and power
connection
22#AWG
6 TTL input maximum
voltage
DC 5V
7 TTL input response
voltage
DC2.0V

Product Wiring Diagram

Driver of D-B1600.jpg






Precautions

1.Not only plugged or unplugged under power is prohibited, but also avoids the effects of the tightness of the terminal by an external force. Otherwise, the laser will be damaged. Besides, the corresponding operator must wear a wired electrostatic bracelet.

2.The power supply itself has no key switch, and the power panel and the input line are exposedWhen the laser connects or removes the circuit, it must operate under the condition of power off, in order to prevent the electric shock.

3. It is necessary to ensure that the temperature of the shell of the laser head is close to that of the suitable operating temperature before the laser can be turned on, so as to avoid the excessive temperature difference, which may affect the performance of the laser or damage the device.

4.The product shall be used in a dry, clean, and non – static environment with working temperature of 15 – 50 to avoid high temperature, high humidity, and violent vibration and impact.

5.Do not arbitrarily adjust the potentiometer on the power supply board to avoid the excessive current, circuit board, or laser burn.

6.Please do a good job of external heat dissipation measures, as far as possible to maintain the shell heat cooling air path and module cooling air path consistent, lest the temperature is too high, affect or damage the laser.

7.This product power supply for DC-12V does not connect to other power sources, lest damage the laser.

8.The laser has potential harm to the human body and the eyes, It is forbidden to use a laser to irradiate othersespecially in the eyes.


5.5W Laser (8).jpg5.5W Laser (10).jpg

Additional information

Model Number

D-V300
