Online monitoring electrical network analyzer 3 phase digital power and harmonics analyzer

$368.50

88 in stock

SKU: 1005004201673530 Category:

Description

  • Brand Name: MLHJ
  • Origin: CN(Origin)
  • Place of Origin: Henan, China
  • Brand Name: Compere
  • Model Number: KPM75
  • Measuring Current Range: 0~6A
  • Measuring Voltage Range: 0~500KV
  • Accuracy Class: 0.2s
  • Operating Temperature: -25℃ ~ 70℃
  • Dimensions: 96*96*80
  • Product name: 3 phase digital power and harmonics analyzer
  • Application: electrical network analyzer
  • Certificate: ISO9001
  • Power Supply: 220V 50Hz
  • Standard: BS.EN.ASTM
  • Function: Power Quality Analysis
  • Color: Black
  • Communication: RS485 Port MODBUS-RTU Protocol
  • Storage Temperature: -30℃ ~ 75℃
  • Display: LCD
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-3{text-align:center}#detail_decorate_root .magic-4{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-5{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-6{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-7{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-8{width:750px}#detail_decorate_root .magic-9{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-10{font-size:20px}#detail_decorate_root .magic-11{width:446px}#detail_decorate_root .magic-12{overflow:hidden;width:446px;height:446.00000000000006px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:0;margin-left:0;width:446.00000000000006px;height:446.00000000000006px}#detail_decorate_root .magic-14{overflow:hidden;width:750px;height:335.6205250596659px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:0;margin-left:0;width:750px;height:335.6205250596659px}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-18{width:750px;border-collapse:collapse}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:715px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{display:none}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;width:127px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:28px;padding:5px 10px;width:126px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:28px;padding:5px 10px;width:273px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:28px;padding:5px 10px;width:420px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:28px;padding:5px 10px;width:125px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:28px;padding:5px 10px;width:272px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-27{overflow:hidden;width:750px;height:417px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:750px;height:417px}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:537px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:750px;height:537px}#detail_decorate_root .magic-31{overflow:hidden;width:373px;height:512.765294117647px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:372.99999999999994px;height:512.765294117647px}#detail_decorate_root .magic-33{overflow:hidden;width:373px;height:512px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:408px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:408px}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:831px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750px;height:831px}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:501px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:750px;height:501px}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:431.25px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:431.25px}

Product Overview

The KPM75 is a new generation of high-end watt meter power analyzer that follow international power quality standards and monitor all power quality parameters such as flicker, short interruptions in recorded voltage, and harmonic up to 63 measurements with power data Statistics, IO signal control alarm, communication and other functions. Large graphic LCD display, pluggable function module design, widely used in key power applications, it is the ideal choice to monitor the distribution operation efficiency.

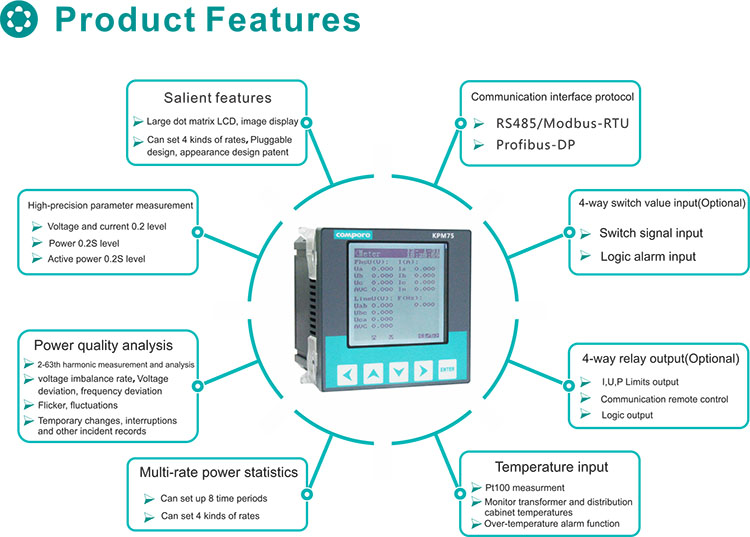

FEATURES AT A GLANCE

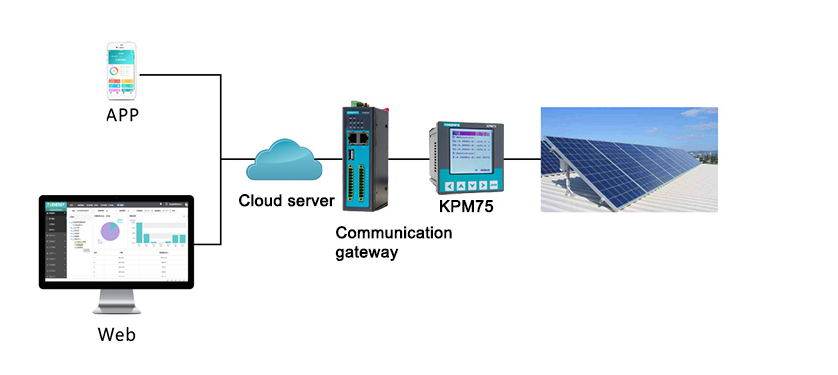

Application

• Measure, monitor and control power distribution system parameters
• Collect energy consumption data that cost center analysis needs
• Power quality analysis(Harmonic, voltage interruption, flicker and so on)
• Signal control alarm

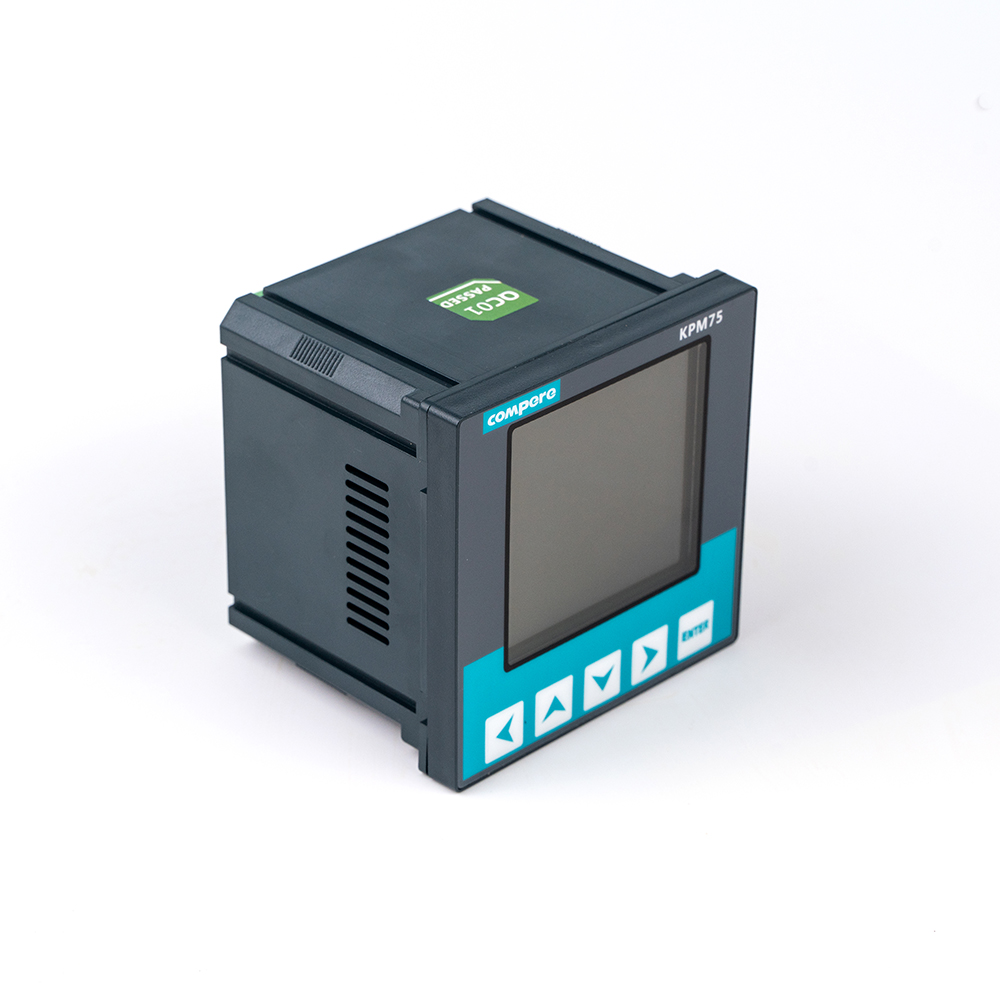

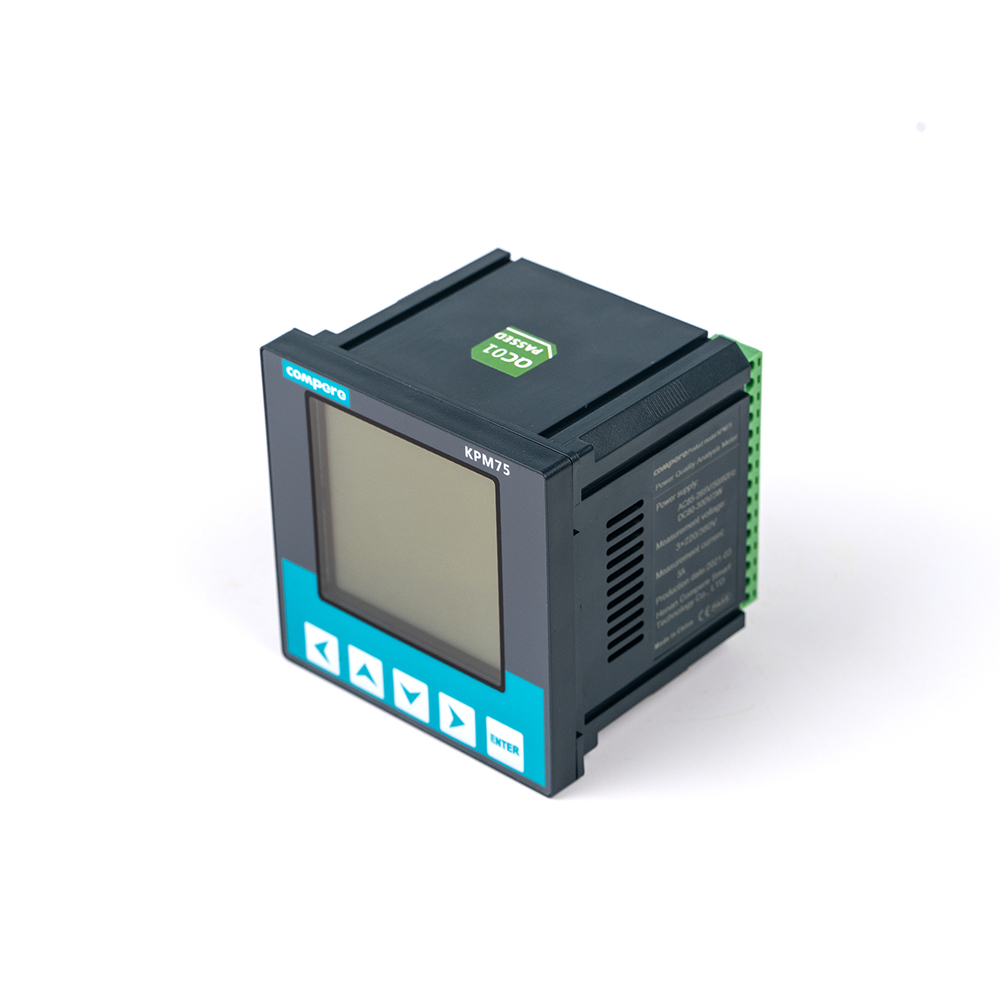

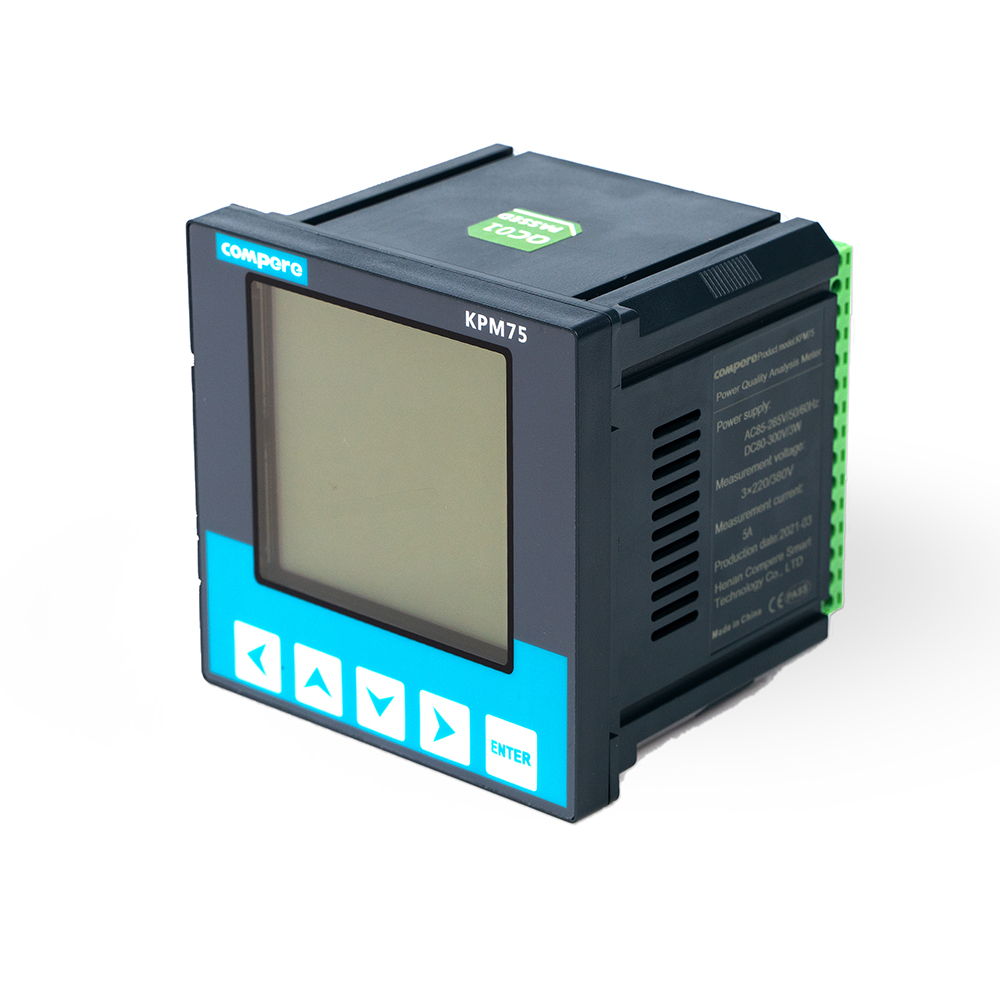

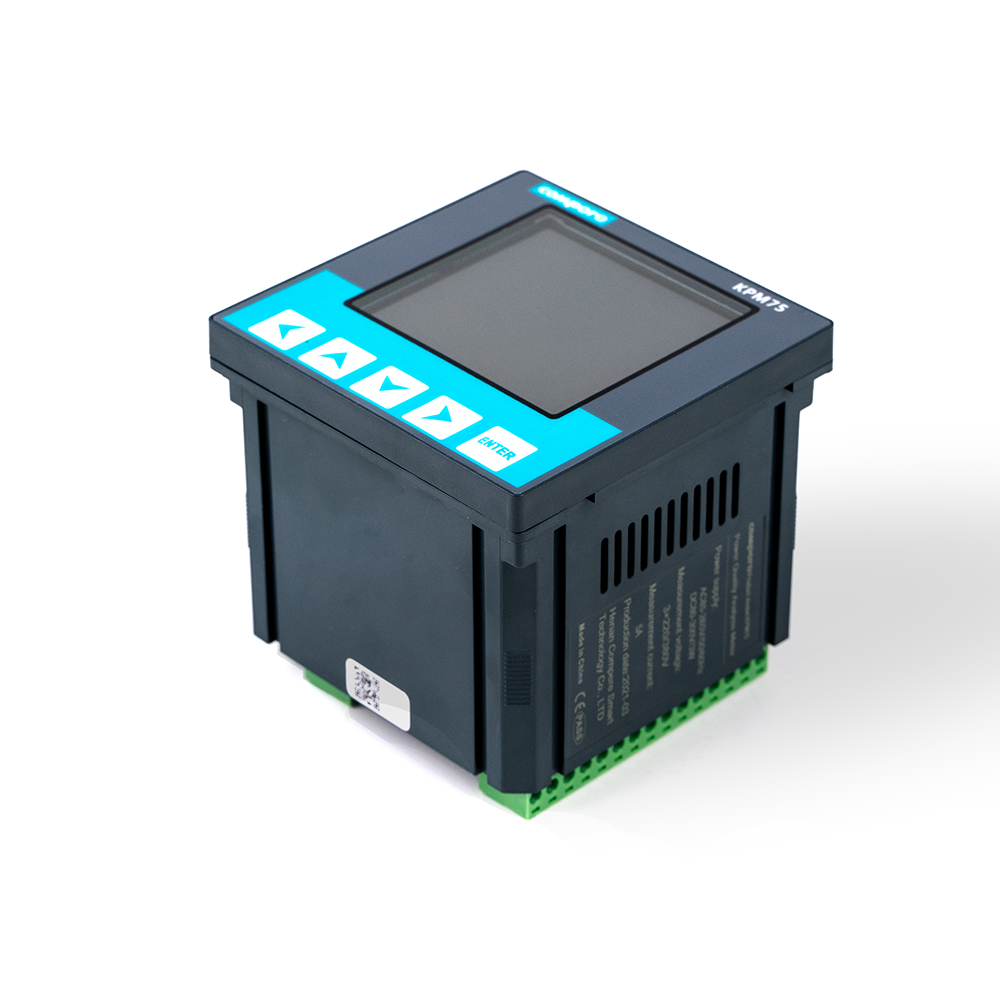

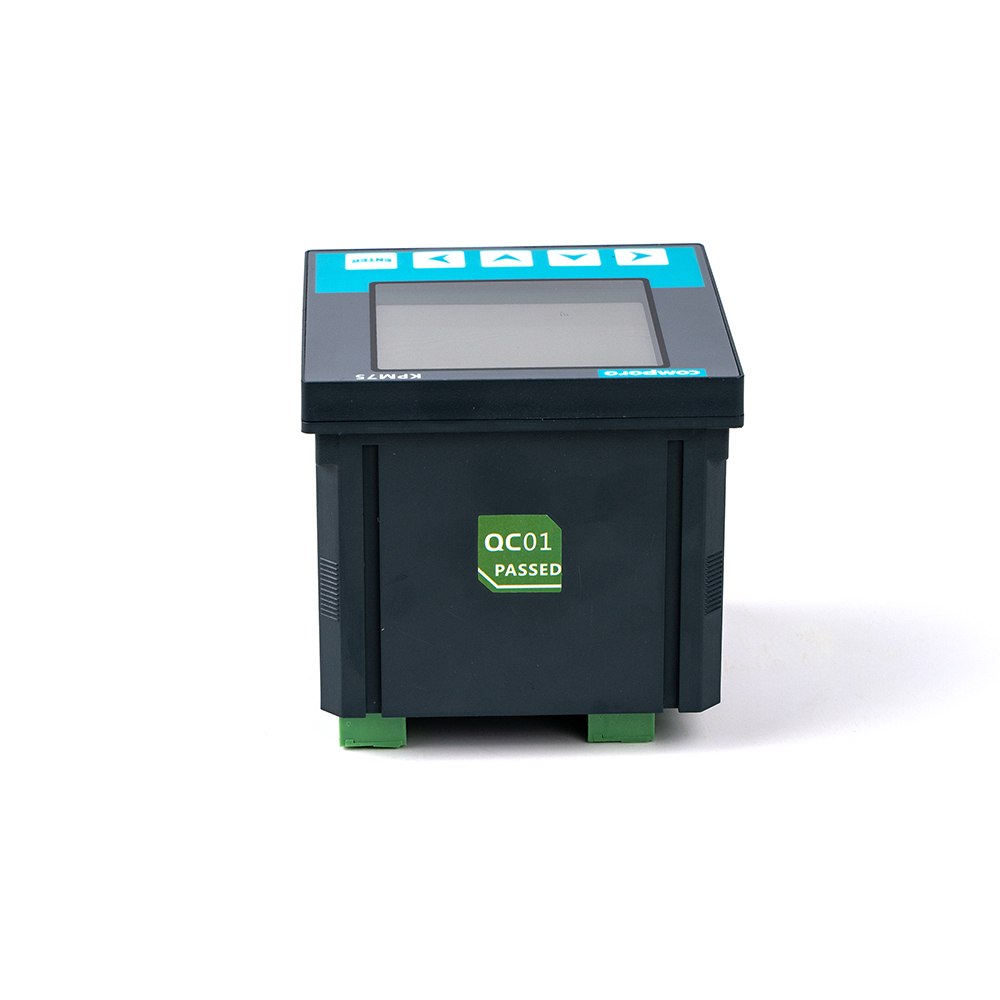

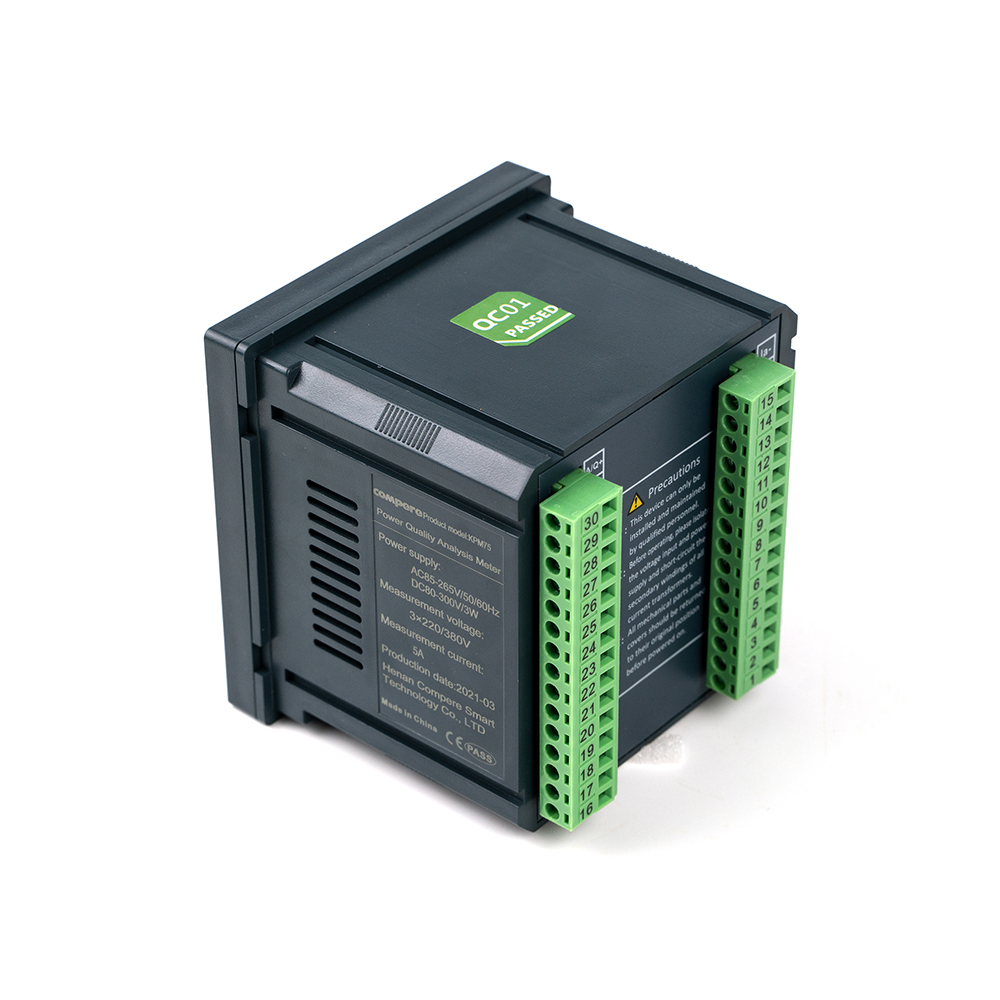

Details Images

Product Paramenters

Technical Parameters – KPM75 three phase electronic reactive energy meter
Accuracy Class
Voltage: 0.2; Current: 0.2; Frequency: 0.002 Hz; Power Factor: 1.0
Active Power: 0.5; Reactive Power: 2.0
Active Energy: 0.2S; Reactive Energy: 2.0
Input
Rated Value
Voltage: 57.7/100V, 220/380V,380/660V

Current: 1A(0~1.2A), 5A (0~6A)
Overload
Voltage: Sustained Overload: 1.2 times of the rated value
Momentary Overload: 2 times of the rated value, allows 1s
Current: Sustained Overload: 1.2 times of the rated value
Momentary Overload: 20 times of the rated value, allows 1s
Frequency
45-60Hz
Functional Module
Pulse Output
1
Interface
1*RS485; Modbus RTU protocol; Baud Rate: 1200-38400 bps

Optional Profibus-DP protocol, 9600~12Mbps
Power Supply
Working Range
AC: 85-265V; DC: 80-300V
Consumption
< 3VA
Working Condition
Temperature
Operating: -25°C~+70°C. Storage: -30°C~ +75°C
Humidity
5%~95% No condensation
Altitude
<4000m
Dimensions:
96×96×88mm

Certifications

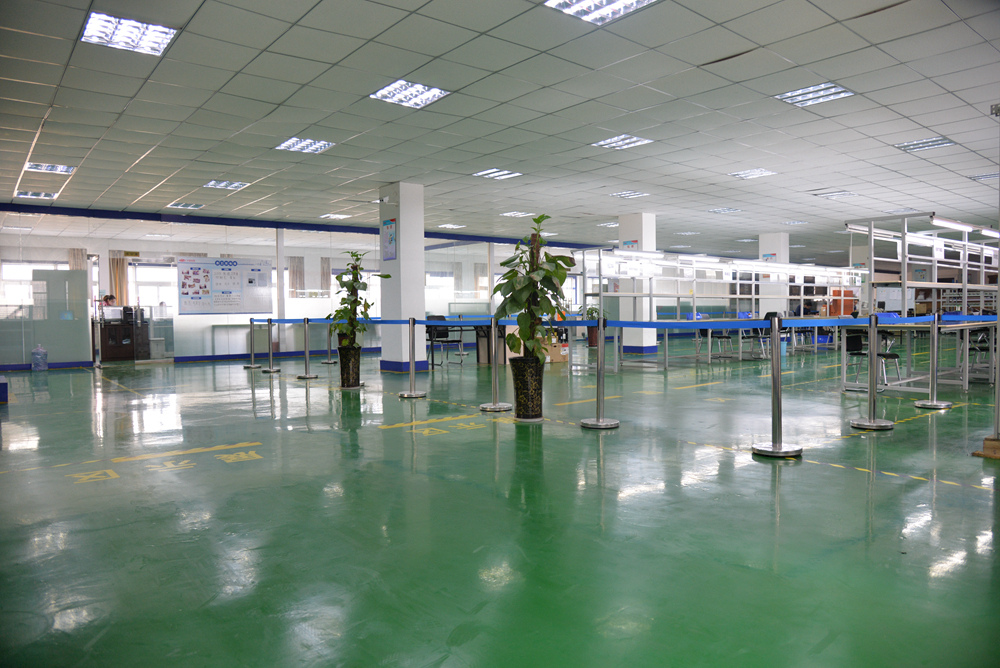

Company Profile
