Description

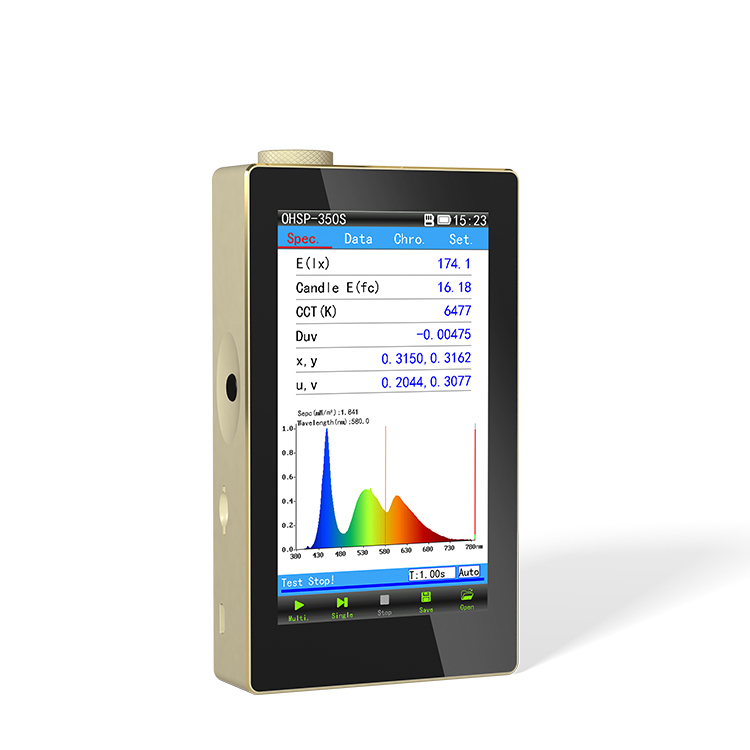

OHSP350S Portable UV VIS IR Spectrometer Irradiance Meter
OHSP350S: 350-950nm; extends wider wavelength to350-950nm.add the latest and most authoritative evaluation of light source color rendering Methods TM-30-2015 .it is suitable for measuring all light source, Such as solar radiation spectrum, medical light sources, grow light,365nm UV light, 850 nm infrared LED, etc.
OHSP350C Spectrum Lux Meter
OHSP350C: 380-780nm; not only measure LED wide spectrum light source ,but also measure CFL,HID narrow spectrum light source. But have no PC software.
OHSP660T Spectral Transmittance Tester
OHSP660T: 350-950nm; integrated Spectrum, Transmittance, L*A*B in one, can test material and lens immediately.
Meas parameters Wave range:350-950nm
| CCT(K) | Irradiance(W/m2) | Peak wave(nm) | illumination(lx) |
| TM-30-2015 Rf | Coordinate x,y | Spectral Distribution | TLCI-2012 |
| TM-30-2015 Rg | Plant parameters PAR,PPFD | OHSP350 Basic parameters | CRI(Ra) |
TEST PARAMETER
|
Model |
OHSP-350S flagship version |
|
Wavelength range |
350nm~950nm |
|
Splitting mode |
Long-focus cross asymmetric CT optical system |
|
Sensor |
High-precision CCD |
|
Spectral resolution |
0.2nm X, Y repetitive ±0.0005 |
|
Wavelength accuracy |
±0.5nm |
|
Illumination accuracy |
(±4% Reading +1 Digital) |
|
Spectral bandwidth (FWHM) |
2nm |
|
TM-30 chromaticity parameters |
YES |
|
Plant growth light parameters |
YES |
|
Accuracy of chromaticity coordinates |
±0.0025(Relative to the standard light source whose stability is better than ±0.0005and NIM traceable calibrated value) |
|
CCT range |
1,000K~100,000K |
|
Stray light |
≤0.3% |
|
Illuminance measurement range |
5lx~200klx |
|
Integration time |
50µs~10000ms |
TEST INTERFACE
