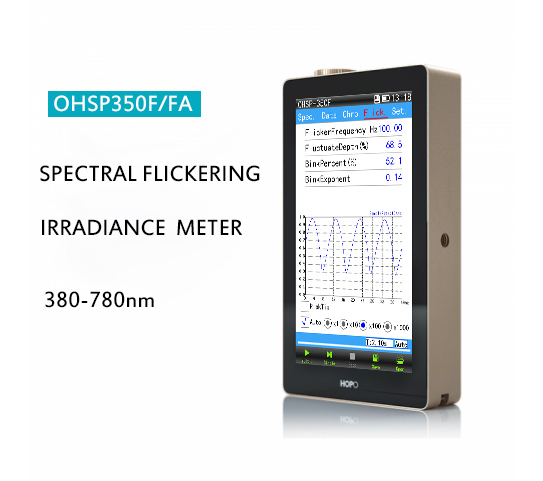

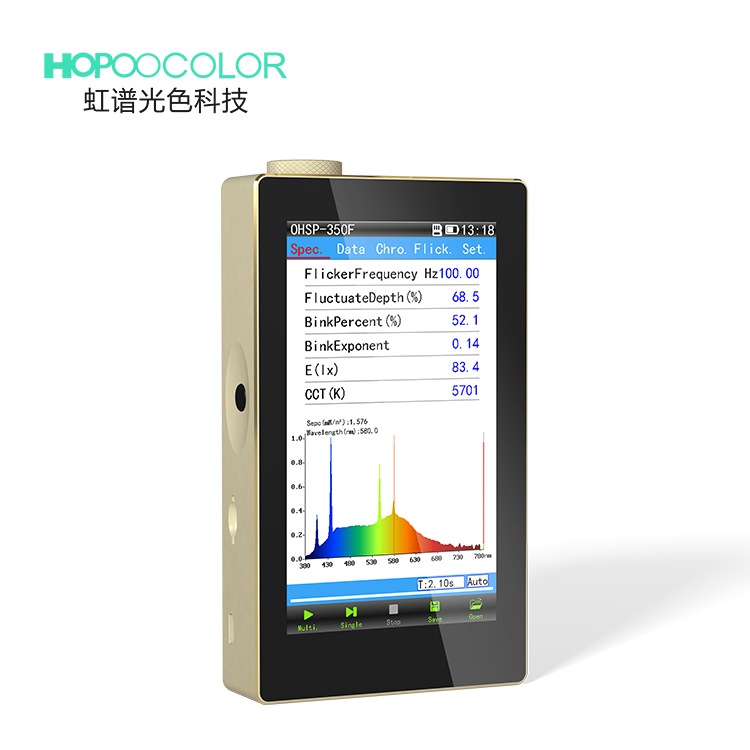

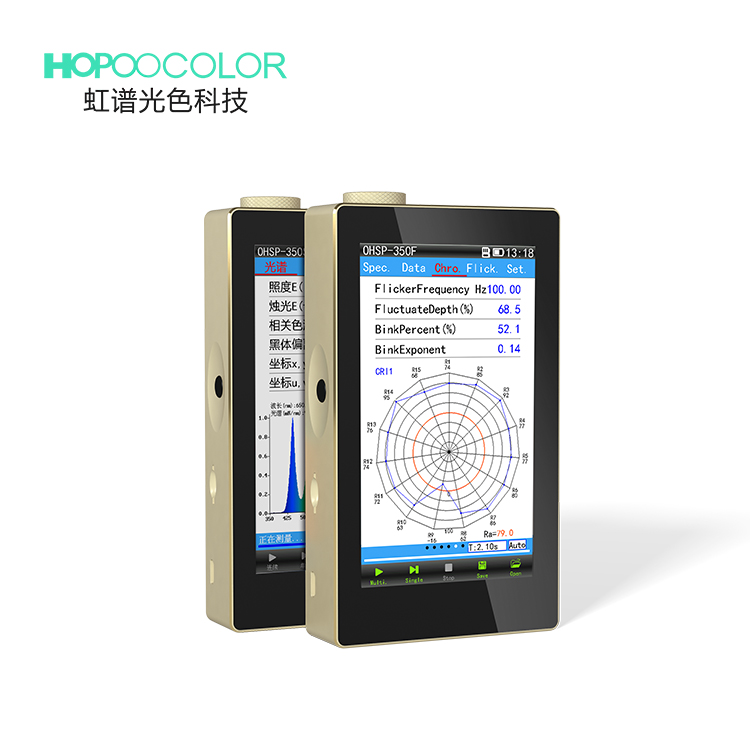

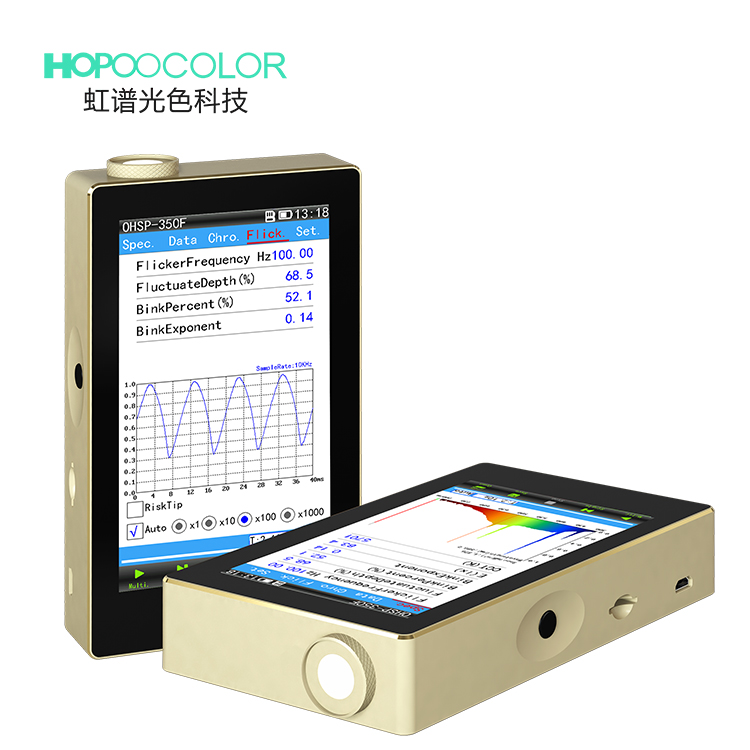

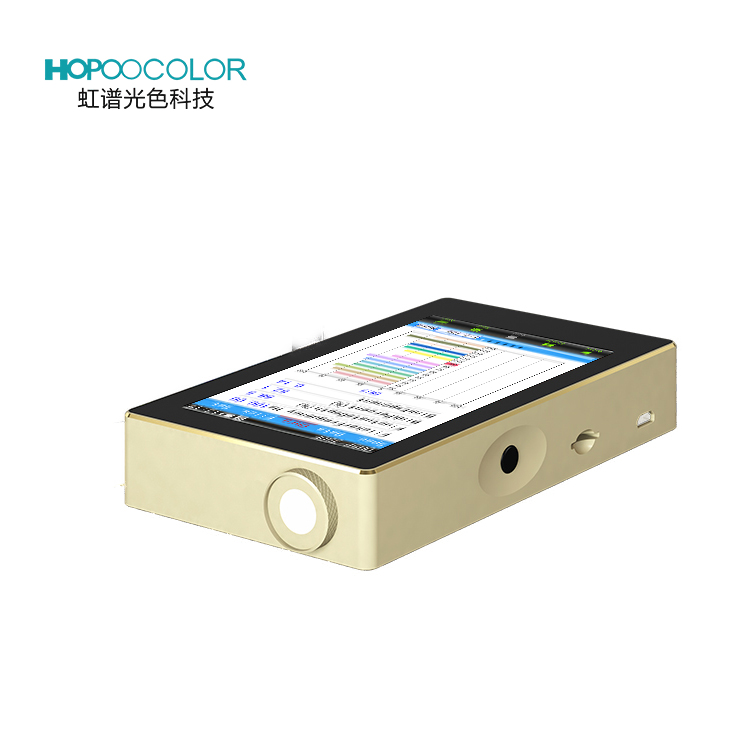

OHSP350F Portable Luminous Intensity Meter Analyzer With Light Flicker Tester

$845.00$3,900.00

SKU: 3528302018651 Category:

Description

Product Description



OHSP-350F/FA Spectral flickering irradiance meter, Not only test CCT,CRI,Lux,Spectrum,SDCM..but also test Flicker percent ,Flicker Index,Flicker frequency Hz, modulation depth,risk hints.meet IEEEStd1789-2015 standard.



Meas parameters     Wave range:380-780nm



Basic Parameters

CCT(K) illuminance(lx) Irradiance(W/m2) CIE1931
Coordinate   x,y    Candlelight(fc) Duv CIE1960
Coordinate  u,v    CRI (Ra) R1-R15 CIE1976
Coordinateu’,v’   SDCM Red ratio(%) Colour Tolerance Elliptic graph
Peak wave(nm) Purity%) Green ratio(%) CRI circular graph
Half width(nm) Dominant(nm) Blue ratio(%) Spectral Power Distribution
Central wave(nm) Centroid (nm) S/P CIE1931 X,Y,Z


Flicker parameters

Flicker freq(Hz) CCT (K)
Modulation depth(%) Flicker curve
Flicker Percent(%) 350 Basic parameters
illuminance(lx)



Flash Light Parameters

Effective Lux(lx) Peak Lux(lx)
Lux integral(lx.s) Flash time(us)



Application


Model OHSP350F Flicker Version
Wavelength range

380nm ~780nm

Light Splitting Mode

long focal cross section

Sensor

High precision CCD

Spectral Bandwidth (FWHM)

2nm

Spectral Resolution

0.2nm  X, Y repetitive ±0.0005

Wavelength Accuracy

+ 0.5nm

Frequency range

25-1000 Hz

Frequency sampling rate

1-10KHz

Integrating Time

50μs~10000ms

Chromaticity Coordinate Accuracy

±0.0025.

CCT Range

1,000K~ 100,000K

Stray Light

≤0.3%

Illuminance Range

5lx~200klx


HTB1MuCOX

Additional information

Usage

OHSP350F, OHSP350T, OHSP350C
