Description
- Brand Name: NoEnName_Null
- Certification: CE
- Origin: CN(Origin)
- Size: 138.5*81*23mm
- Model Number: OHSP-350C
- Focal Length: 2mm
- Weight: 450g
- Wavelength Range: 380nm ~780nm
- Type: Single Beam Spectrometers
- Measurement Range: 380nm ~780nm
- Name: Spectrometer
- Place of Origin: Zhejiang, China
- Brand Name: HOPOOCOLOR
- Power: Electronic
- Product name: OHSP-350C Spectral irradiance colorimeter
- Integrating Time: 50μs~10000ms
- Illuminance Range: 5lx~200klx
- CCT Range: 1,000K~ 100,000K
- Display: 5′ HD IPS LCD
- Material: Aluminum Alloy
- Warranty: 24 Months
- Color: Golden
Product Show

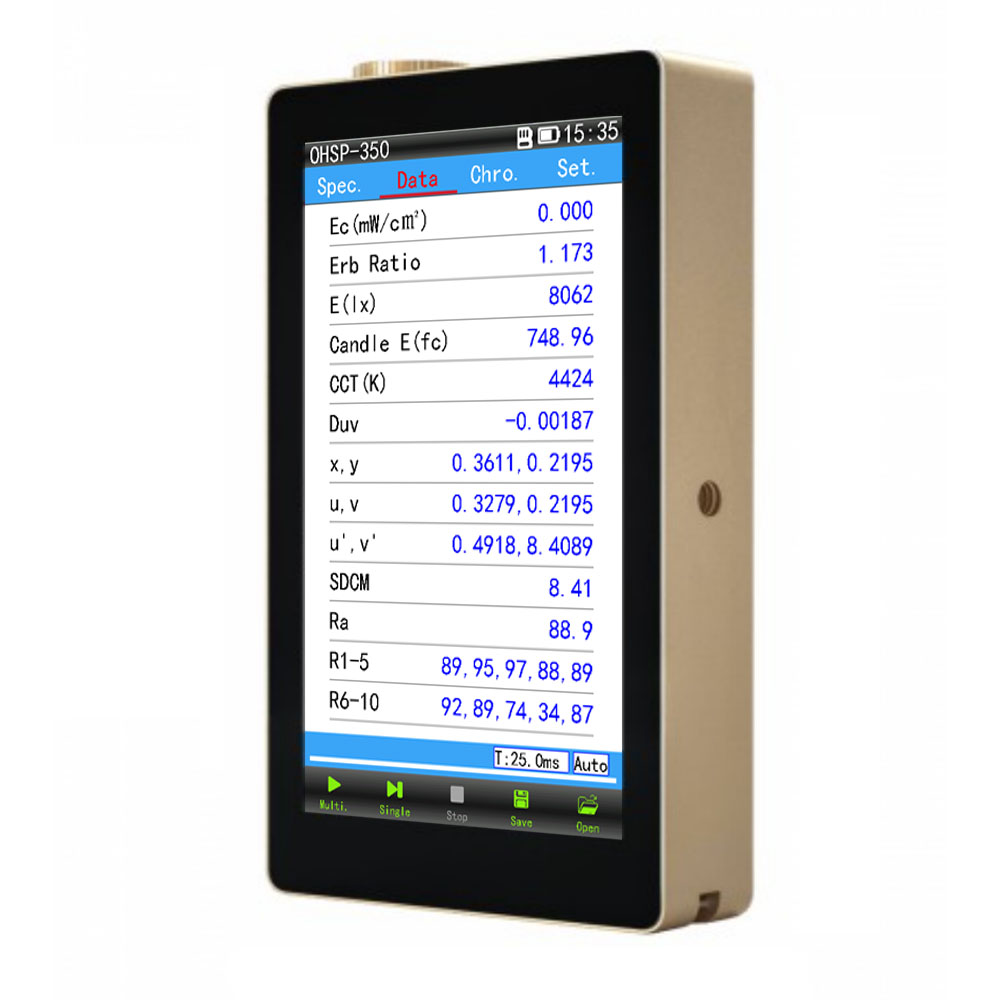

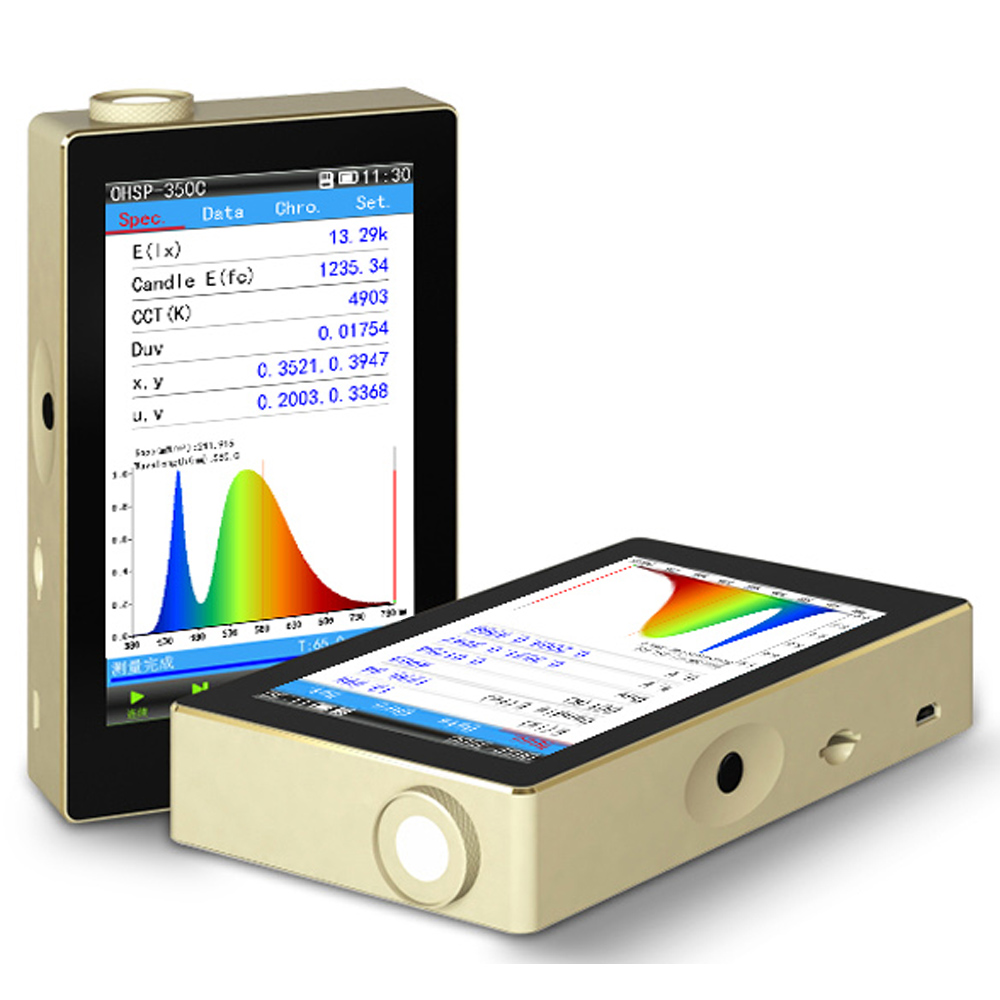

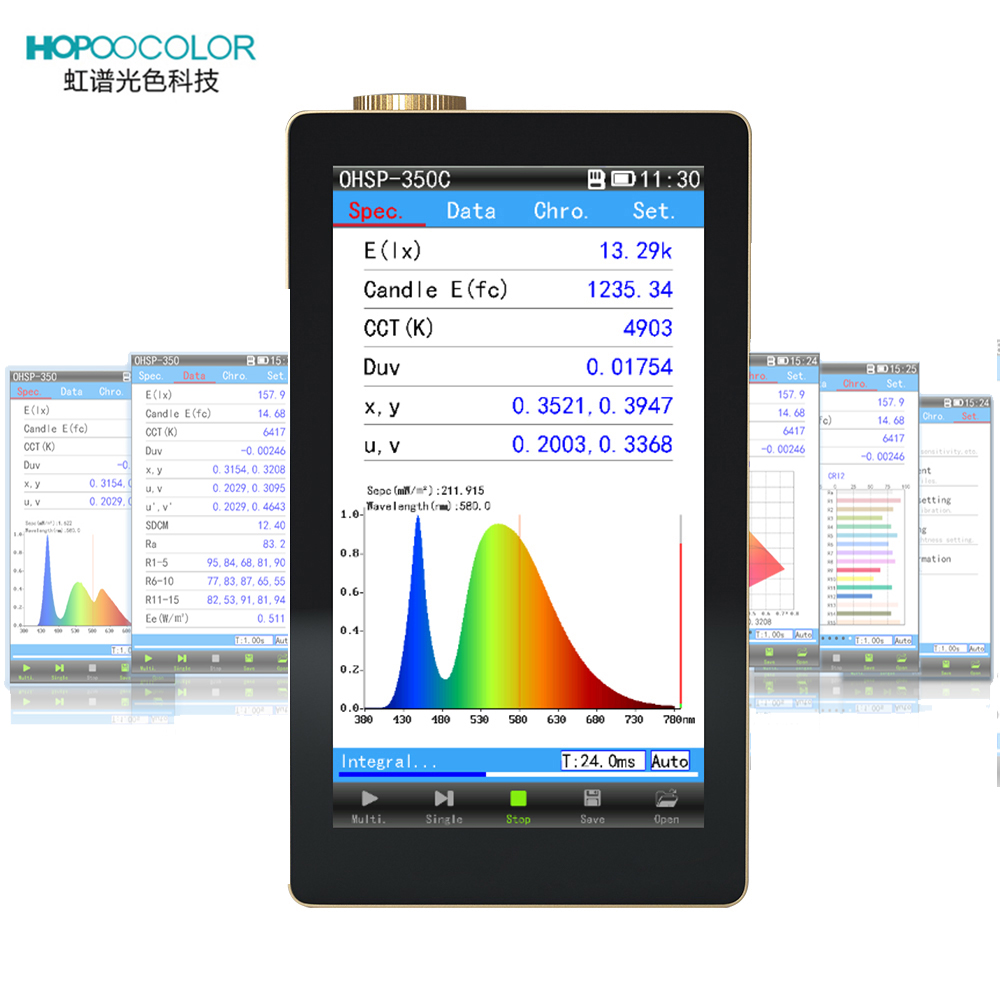

OHSP-350C Spectral irradiance colorimeter, integrated spectrum, CCT, CRI, Lux, irradiation .etc parameters in one. With 5 inch touch screen, Real-time display of measurement parameters and curves ,use convenient and fast.not only measure LED wide spectrum light source ,but also measure CFL、HID narrow spectrum light source.
Measurement
1. CCT Tc (K) and Blackbody deviation Duv
2. light illumination E (LX), candlelight E (Fc) Spectral irradiance Ee (W/m2)
3. chromaticity coordinates (x, y), (U, V), (U ‘, V’)
4. relative spectral power distribution P (lambda)
5. color index Ra, Ri (i=1 ~ 15)
6. color tolerance SDCM
7. Dominant wavelengths, peak wavelengths
8. Visual ratio of light and shade S/P
9. color purity, red ratio, green ratio, blue ratio, CIE1931 three basic color stimulus value X, Y, Z
