Description

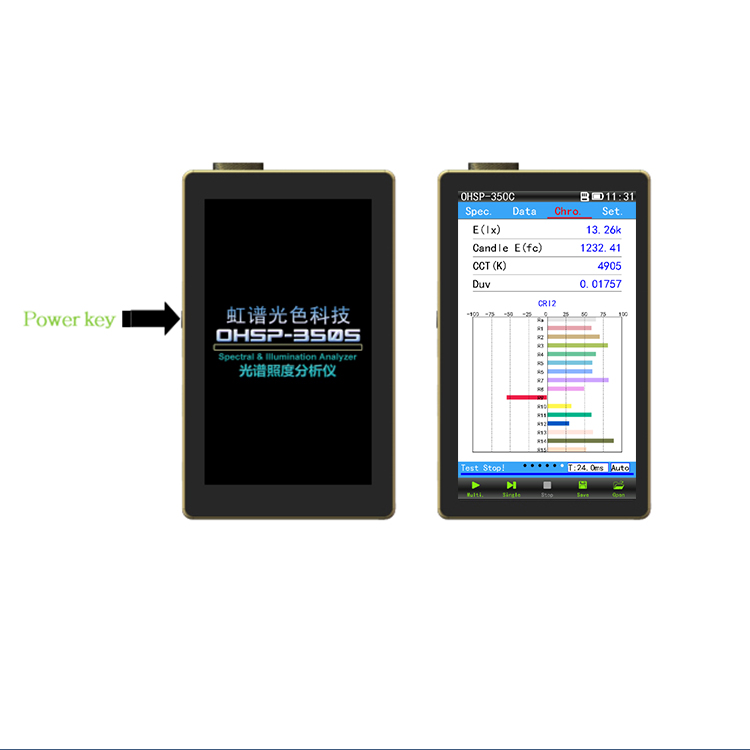

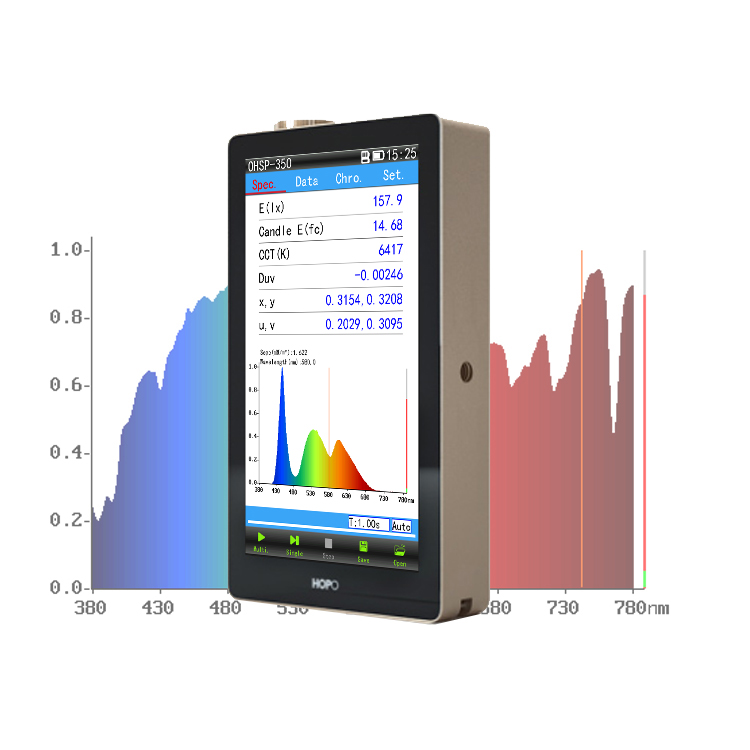

OHSP350C SPECTRM ILLUMINATION TESTER

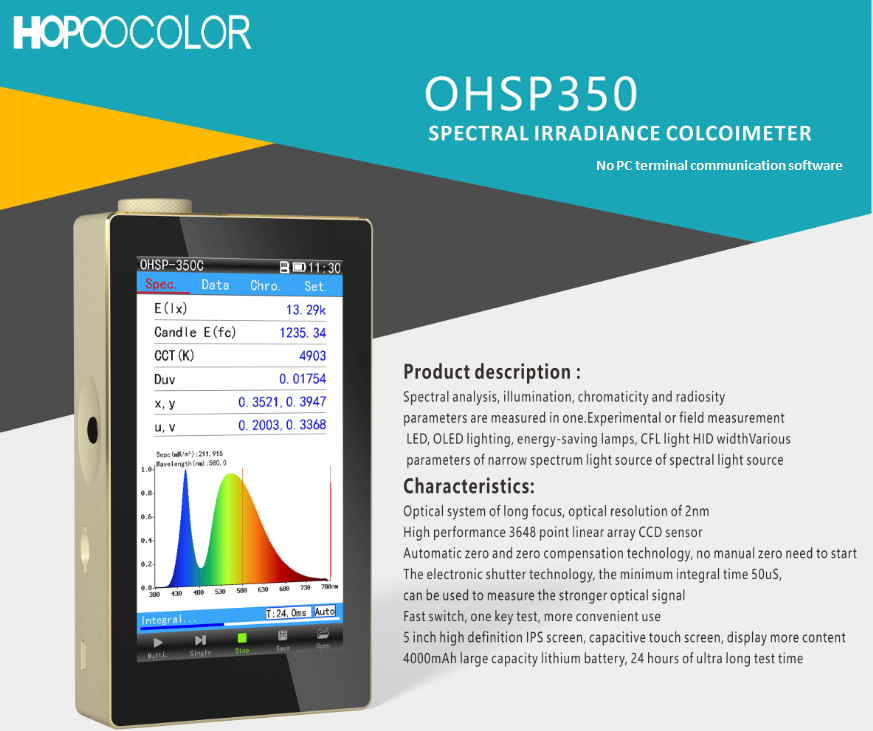

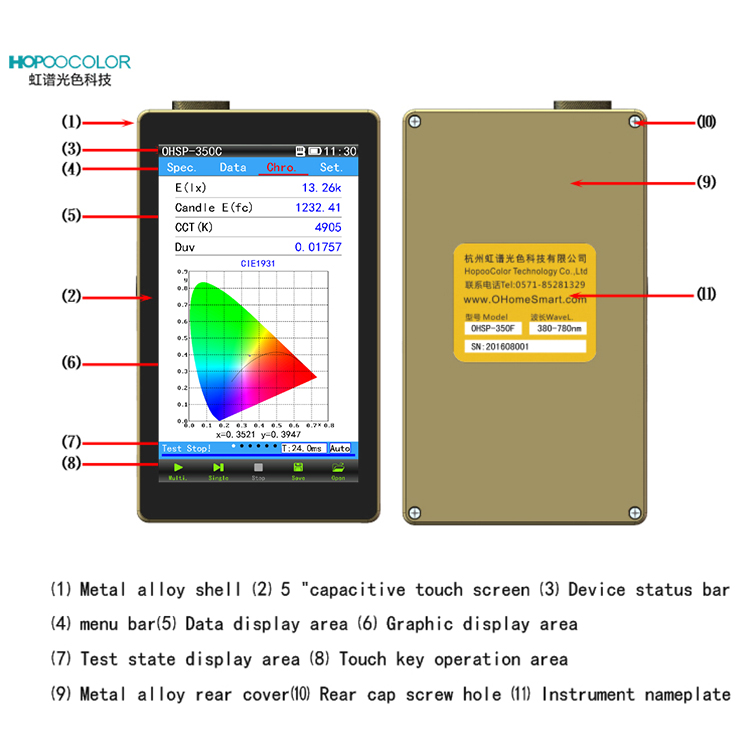

OHSP-350 Spectral irradiance colorimeter, integrated spectrum, CCT, CRI, Lux, irradiation .etc parameters in one. With 5
inch touch screen, Real-time display of measurement parameters and curves ,use convenient and fast.not only measure LED
wide spectrum light source ,but also measure CFL,HID narrow spectrum light source.
Meas Parameters
| CCT(K) | illuminance(lx) | Irradiance(W/m2) | CIE1931 |
| Coordinate x,y | Candlelight(fc) | Duv | CIE1960 |
| Coordinate u,v | CRI (Ra) | R1-R15 | CIE1976 |
| Coordinateu’,v’ | SDCM | Red ratio(%) | Colour Tolerance Elliptic graph |
| Peak wave(nm) | Purity%) | Green ratio(%) | CRI circular graph |
| Half width(nm) | Dominant(nm) | Blue ratio(%) | Spectral Power Distribution |
| Central wave(nm) | Centroid (nm) | S/P | CIE1931 X,Y,Z |
Application
| Model | OHSP350 |
| Wavelength range |
380nm ~780nm |
| Light Splitting Mode |
long focal cross section |
| Sensor |
High precision CCD |
| Spectral Bandwidth (FWHM) |
2nm |
| Spectral Resolution |
0.2nm X, Y repetitive ±0.0005 |
| Wavelength Accuracy |
+ 0.5nm |
| Illuminantion Accuracy |
(±4% Reading +1 Digital) |
| Lighting Area |
10mm |
| Integrating Time |
50μs~10000ms |
|
Chromaticity Coordinate Accuracy |
±0.0025. |
|
CCT Range |
1,000K~ 100,000K |
|
Stray Light |
≤0.3% |
|
Illuminance Range |
5lx~200klx |
