Description
Product Description
|
Product Name
|
OHSP350 380-780nm CRI CCT Meter Portable Spectrometer LED Light
|
|
Parameters
|
CCT, CRI, LUX, DUV, Peak wave….
|
|
Application
|
test LED wide spectrum light source, CFL/HID narrow spectrum light source….
|
|
Package
|
carton box for spectral lux meter
|
-
-
Product description

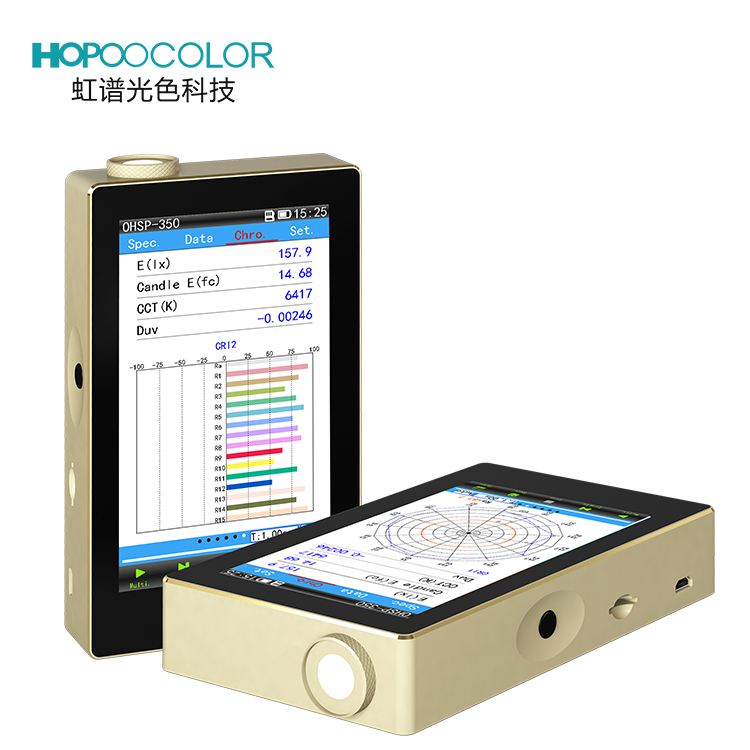

OHSP350 380-780nm CRI CCT Meter Portable Spectrometer LED Light, integrated spectrum, CCT, CRI, Lux, irradiation .etc parameters in one. With 5 inch touch screen, Real-time display of measurement parameters and curves, use convenient and fast. not only measure LED wide spectrum light source, but also measure CFL、HID narrow spectrum light source.
Details Images

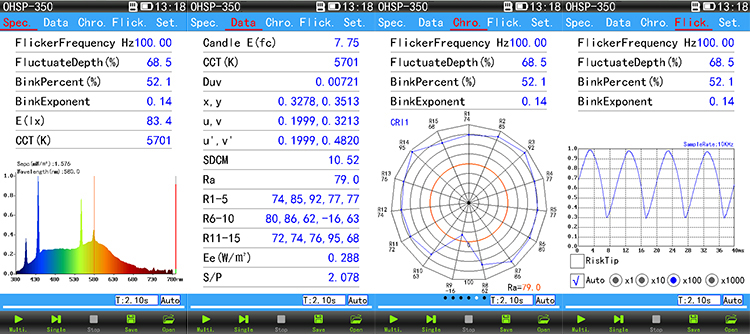

OHSP350 380-780nm CRI CCT Meter Portable Spectrometer LED Light, integrated spectrum, CCT, CRI, Lux, irradiation .etc parameters in one. With 5 inch touch screen, Real-time display of measurement parameters and curves, use convenient and fast.not only measure LED wide spectrum light source, but also measure CFL、HID narrow spectrum light source.
|
MODEL
|
OHSP350
|
|
Wavelength range
|
380nm ~780nm
|
|
Sensor
|
High precision CCD
|
|
Spectral Bandwidth (FWHM)
|
2nm
|
|
Spectral Resolution
|
0.2nm X, Y repetitive ±0.0005
|
|
Wavelength Accuracy
|
± 0.5nm
|
|
Illuminantion Accuracy
|
(±4% Reading +1 Digital）
|
|
Lighting Area
|
Ф10mm
|
|
Integrating Time
|
50μs～10000ms
|
|
Chromaticity Coordinate Accuracy
|
±0.0025.
|
|
CCT Range
|
1,000K~ 100,000K
|
|
Stray Light
|
≤0.3%
|
|
Illuminance Range
|
5lx～200,000lx
|
