Description
Product Description
|
Product Name
|
OHSP250I Spectrometer Chroma Meter Spectrum Light Meter RS485 Communication
|
|
Parameters
|

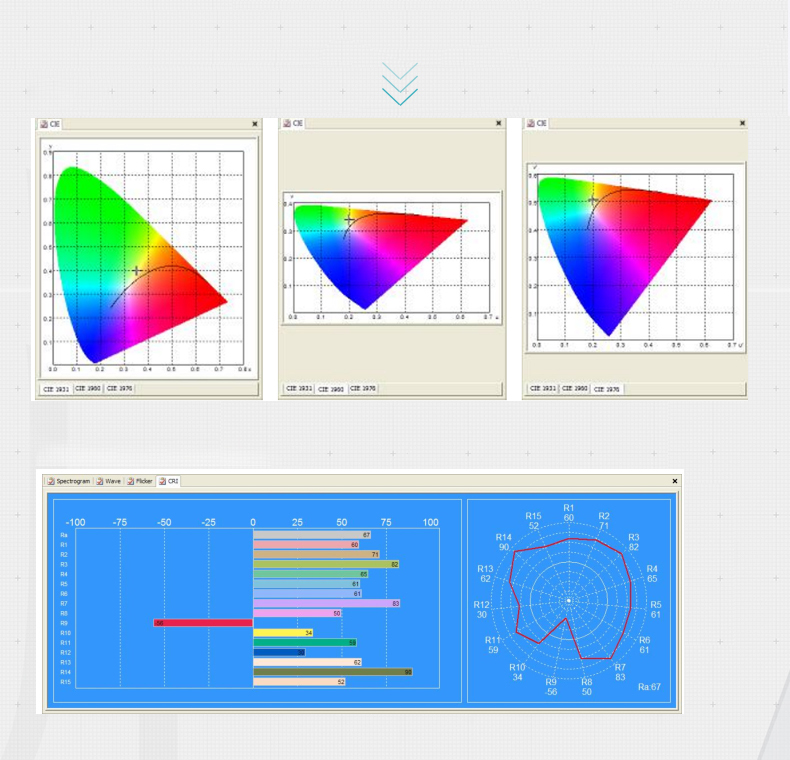

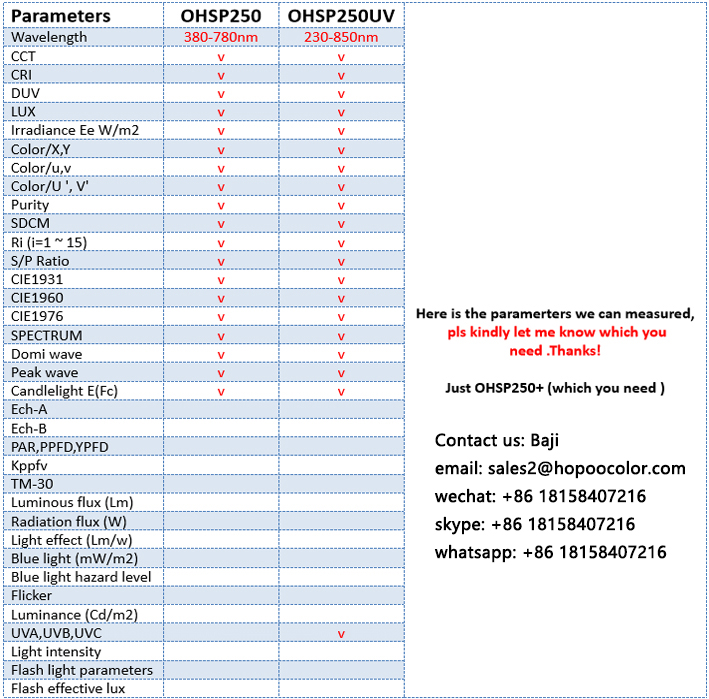

Irradiance Ee(W/m2), CCT, CRI, LUX, DUV, Peak wave….
|
|

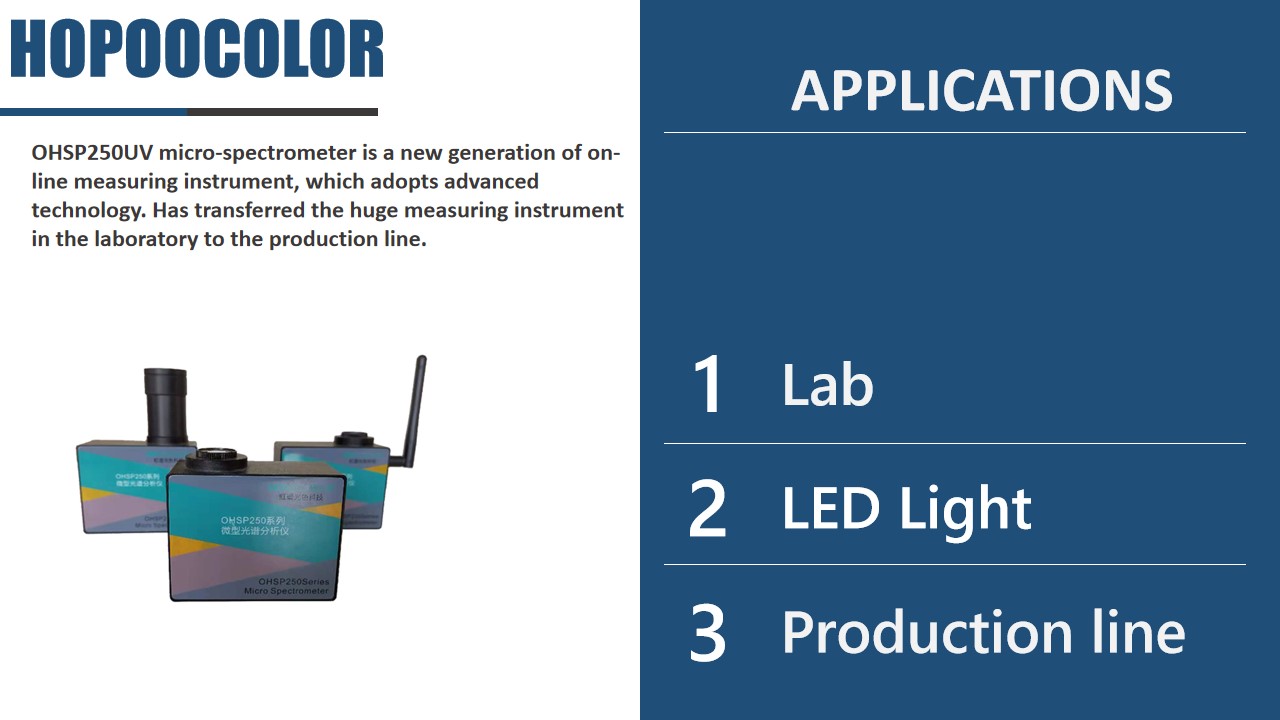

Application
|
Realized on-line analysis of light and color parameters, directly output test results….
|
|

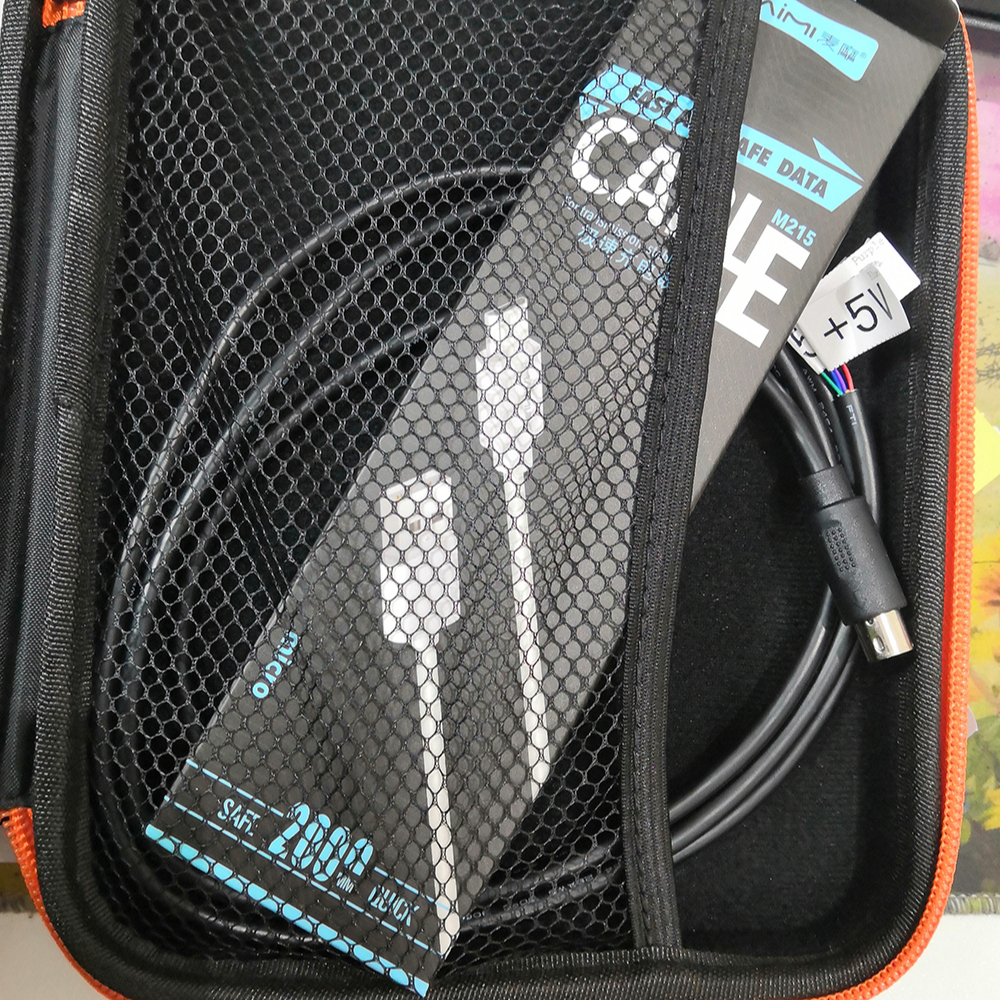

Package
|
carton box for spectral lux meter
|
-
-
Product description
OHSP250 microspectrometer is a new generation of on-line measuring instrument, which adopts advanced technology.The integration of microspectrometer technology and microcomputer technology has transferred the huge measuring instrument in the laboratory to the production line, realized on-line analysis of light and color parameters, directly output test results through RS485 or USB interface, open communication protocol, and conformed to Modbus communication protocol.
|
MODEL
|
OHSP250I
|
|
Wavelength range
|
380nm~780nm
|
|
Sensor
|
High precision CCD
|
|
Spectral Resolution
|
0.2nm
|
|
Integrating Time
|
50μs-10s
|
|
Detector
|
3648
|
|
Chromaticity Coordinate Accuracy
|
±0.0025.
|
|
CCT Range
|
1,000K~ 100,000K
|
|
Stray Light
|
≤0.3%
|
|
Illuminance Range
|
5lx～200,000lx
|
Details Images
OHSP250 micro-spectrometer is a new generation of on-line measuring instrument, which adopts advanced technology.The integration of microspectrometer technology and microcomputer technology has transferred the huge measuring instrument in the laboratory to the production line, realized on-line analysis of light and color parameters, directly output test results through RS485 or USB interface, open communication protocol, and conformed to Modbus communication protocol.
OHSP250 micro spectrometer
OHSP250: 380-780nm; directly output test results through RS485 or USB interface, open communication protocol, and conformed to Modbus communication protocol.

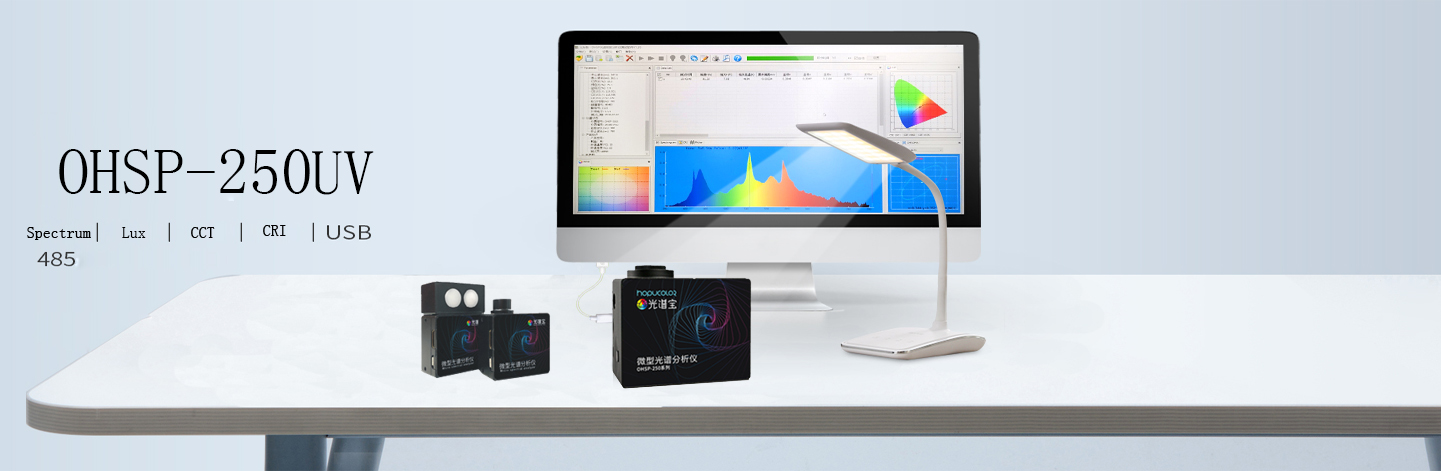

OHSP250UV spectral irradiance meter
OHSP250: 230-850nm; add the UV parameters, UV spectral irradiance meter, use a UV CCD and UV processing optical path, open communication protocol, and conformed to Modbus communication protocol.
