Description
Product Description
|
Product Name
|
OHSP250 Visible Light Spectrometer Optical Quantum Meter
|
|
Parameters
|
Irradiance Ee(W/m2), CCT, CRI, LUX, DUV, Peak wave….
|
|
Application
|
Realized on-line analysis of light and color parameters, directly output test results….
|
|
Package
|
carton box for spectral lux meter
|
-
-
Product description
OHSP250 microspectrometer is a new generation of on-line measuring instrument, which adopts advanced technology.The integration of microspectrometer technology and microcomputer technology has transferred the huge measuring instrument in the laboratory to the production line, realized on-line analysis of light and color parameters, directly output test results through RS485 or USB interface, open communication protocol, and conformed to Modbus communication protocol.
|
MODEL
|
250
|
|
Wavelength range
|
380nm~780nm
|
|
Sensor
|
High precision CCD
|
|
Spectral Resolution
|
0.2nm
|
|
Integrating Time
|
10μs-10s
|
|
Detector
|
3648
|
|
Standard Slit
|
100μm
|
|
Grating Marking
|
600mm
|
|
Focal Length (Input)
|
45mm
|
|
Focal Length (Output)
|
65mm
|
|
A/D Transform
|
16bit/250ksps
|
Details Images
OHSP250 micro-spectrometer is a new generation of on-line measuring instrument, which adopts advanced technology.The integration of microspectrometer technology and microcomputer technology has transferred the huge measuring instrument in the laboratory to the production line, realized on-line analysis of light and color parameters, directly output test results through RS485 or USB interface, open communication protocol, and conformed to Modbus communication protocol.

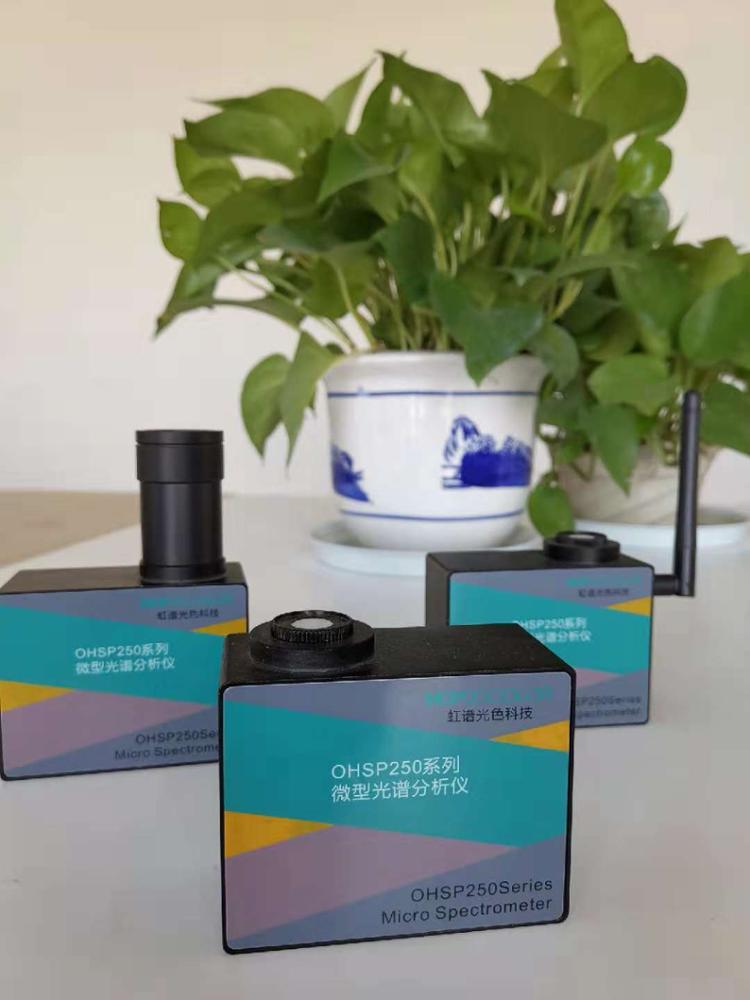

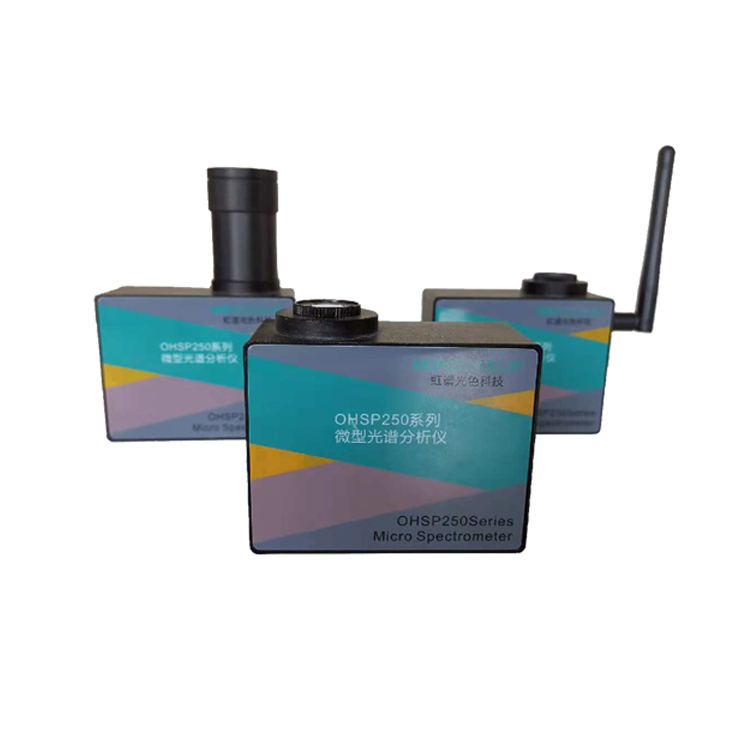

OHSP250 micro spectrometer
OHSP250: 380-780nm; directly output test results through RS485 or USB interface, open communication protocol, and conformed to Modbus communication protocol.
OHSP250UV spectral irradiance meter
OHSP250: 230-850nm; add the UV parameters, UV spectral irradiance meter, use a UV CCD and UV processing optical path, open communication protocol, and conformed to Modbus communication protocol.
GREAT packing, use carton box for lux meter.
Hangzhou Hongpu Light and Color Technology Co., Ltd. established in September 2014, Is a professional manufacturer with more than 10 years experience in the field , which is located in Hangzhou Zhejiang China. Providing the best solutions with higher quality to our customers at a competitive price.
